Certification: | CE ISO; | Supply Ability: | 30 Set/Sets per Month; |
Place of Origin: | Shanghai China; | Port: | Shanghai; |
Automatic Grade: | Semi-automatic; | Brand Name: | Herun; |
Driven Type: | Electric; | Operation: | Automatic; |
Voltage: | 110v/220v/380v; | Weight: | 240-400kg; |
Condition: | New; | Application: | Food,MEDICAL,Chocolate core coating; |
Packaging Type: | other; | Payment Terms: | T/T,Western Union,MoneyGram; |
Rotary speed: | 28-32rpm; | Material: | SUS304; |
After-sales Service Provided: | Engineers available to service machinery overseas; | Power: | 200~370w; |
Dimension(L*W*H): | various; | Type: | Coating Machine; |
Packaging Detail: | standard wood box for export; | Coating temperature: | 15-18℃; |
Introduction and Features

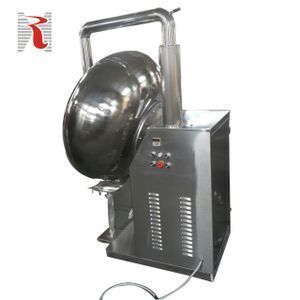

The Chocolate coating machine is widely used in pharmaceutical and foodstuff. It is used for rolling and heating beans, edible nuts, seeds or candy. Such as marble chocolate, peanut, fried flour-coated peanut,dumplings, crispy fruit and spicy bean and so on.
This machine has advantages of simple structure, easy operation, and smooth surface. It can save accessories and it is also easy to maintain. This machine is the ideal machine for tablet film sugar coating. It is also the ideal machine for chocolate coating and others
Main Technical Parameters
Dia. of coating pan | 800mm | 1000mm | 1250mm |
Production capacity | 30-50/kg | 50-70/Kg | 80-150/kg |
Rotary speed of coating pan | 32r/min | 32r/min | 28r/min |
Adjustable angle of inclination | 15 -45°c | 15 -45°c | 15 -45°c |
Motor power | 1.1kw | 1.5kw | 2.2kw |
Power of blower fan | 200w | 200w | 370w |
Outline dim.(mm)(L x W x H) | 1150x 800 x 1600 | 1150 x 1100 x 1430 | 1340 x 1250 x 1680 |
Internal and external heating power | 1500w /2000w | 1500w /2000w | 2000w/ 2000w |
Weight | 240kg | 250kg | 400kg |
