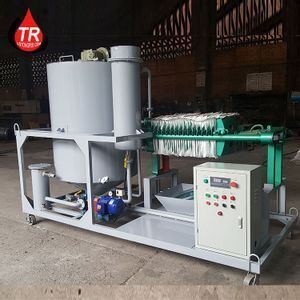

Waste Oil Refining to Diesel Processing Machine

Product details
Port:any port of China or other ports;Certification:CE;ISO9001:2008; SGS;
Machinery Test Report:Provided;Applicable Industries:Manufacturing Plant,Machinery Repair Shops,Home Use,Construction works ,oil recycling;
Core Components:Engine,Motor;Local Service Location:None;
Warranty:1 Year;Video outgoing-inspection:Provided;
Package Preview:;capacity:3000-12000liter/hour;
After Warranty Service:Video technical support,No service,Online support,Spare parts,Field maintenance and repair service;Motor power:0.75-4kw;
Warranty of core components:1 Year;Showroom Location:None;
Supply Ability:100 Set/Sets per Month;press method:Hand Movement;
color:as customer's requirements;After-sales Service Provided:Online support;
Payment Terms:L/C,D/P,T/T,Western Union,MoneyGram;Weight:130kg-450kg;
Brand Name:Tongrui;Packaging Detail:Waste Oil Refining to Diesel Processing Machine:To be packed in strong wooden cases, suitable for long distance ocean freight transportation as well as changing climate and with good resistance to moisture and shocks.;
Dimension(L*W*H):up to the capacity;filter frame quantity:8-17;
filter plate quantity:9-18;Maxipressure:0.6Mpa;
Voltage:380V/50HZ/3PH;Flow:3000-12000liter/hour;
Filter frame Dimension:180*180 or 280*280;Title:Waste Oil Refining to Diesel Processing Machine;
Marketing Type:hot sale Product;Condition:New;
Power:0.75-4kw;Place of Origin:Chongqing China;
Filtration Area:0.39-2.01m2;

Waste Oil Refining to Diesel Processing Machinem





Product Description





Applicable scope:

It's mainly used to remove metal particles, color, colloid, bitumen from transformer oil, insulation oil, gear oil, hydraulic oil, turbine oil,light fuel oil and compressor oil etc, it also can remove water, too. It is mainly use whiteclay to handle kinds of oil. The handling cost is low and purchasing cost is low, too.



Economic,easy operation and maintainance.





Technical Parameters:

Index

Unite

Model

ZJK

Capacity

10-600 Liters /minute

Working pressure

≤0.3Mpa

Work Noise

≤60dB(A)

Motor Power

0.75Kw

Precision of Pre-Filter

50micron

Precision of filter

10micron

Precision of Fine-Filter

5micron

Diameter of inlet&outlet

25mm

Weight

80Kg

Length

0.7m

Width

0.57m

Height

0.55m

Power Consumption

380Volt/3ph/60Hz

After recycling

Demulsification Value

≤8min

Moisture

≤100PPm

Kinematic viscosity

GB443-89(mm2 /s)

Mechanical impurities

0.05~0.005GB/T511

Cleanliness

NAS 6



Purpose:

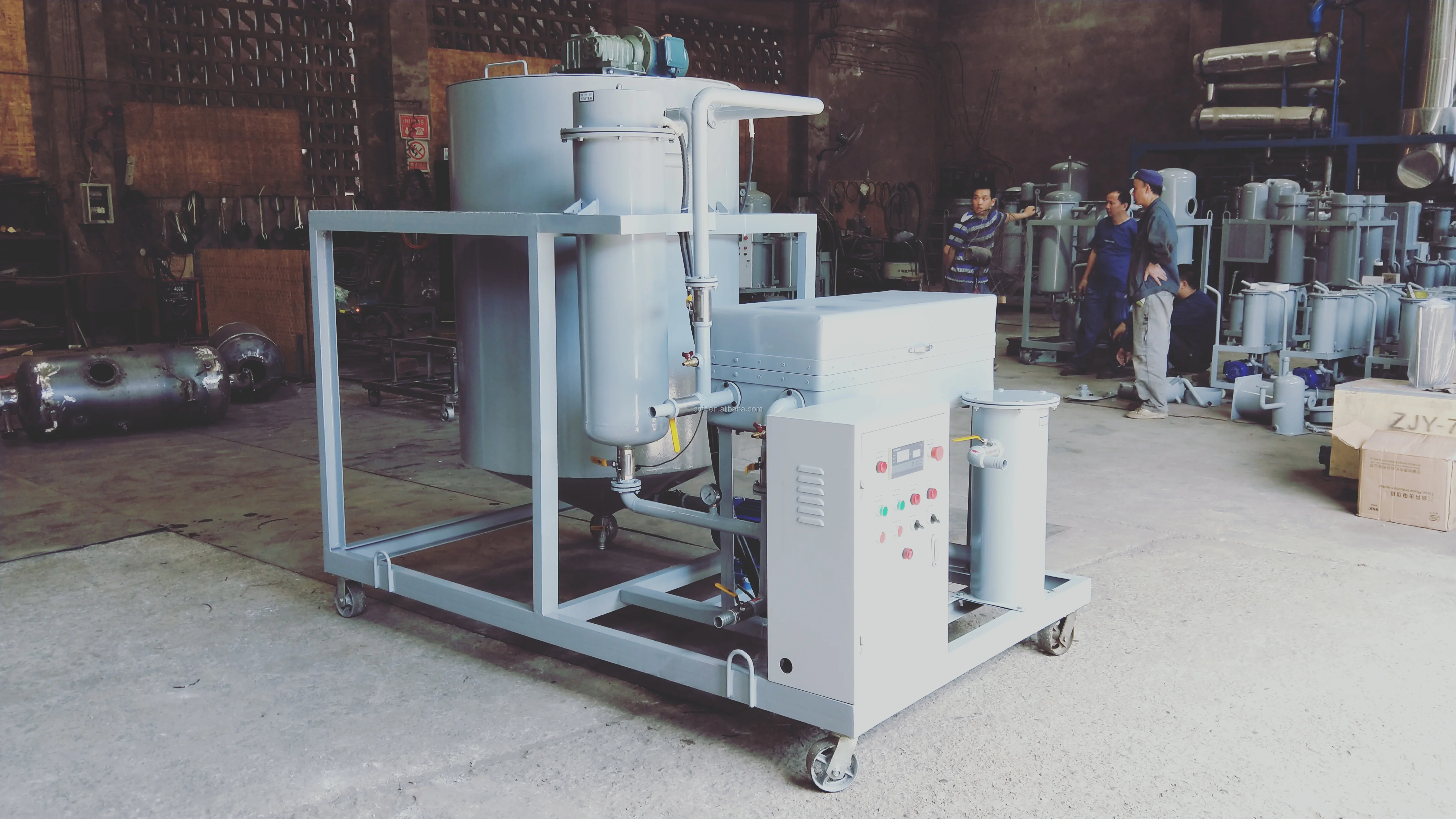

ZJK series is in the position to separate the water, impurity thoroughly and quickly from the diesel fuel,fuel oil and any other light oil, or some lube oil. It is also capable of changing the color of the used oil from black or red or other colors to the fresh oil color.

Feature:

1. ZJK series adopts special made oil & water separator which requires no heating and the dehydration efficiency is more than 25 times higher than other type of purifiers. If your oil has higher viscosity, then it can be customized design.

2. The oil performance is not degraded and deteriorated due to no heating.

3. Water can be discharged online automatically without the presence of operators, so it is easy to operate.

4. Low operation cost, the cost will be 50% lower than vacuum purifier,  centrifuge and filter press.

5. Adopt high precision and stainless steel FH rectangular filtration system and the precision of filter can reach up to 3~5 microns.

II. Operating principle and Structure

A. Operating principle

Used oil first enter the 1st filter, big impurities will be removed, and then the oil go into the fine filter via the oil pump to remove the

small impurities.After that, the oil enter aggregation separator (adopt the molecule separating technology) and water separator, separate the dissolved water and free water.





Product Overviews

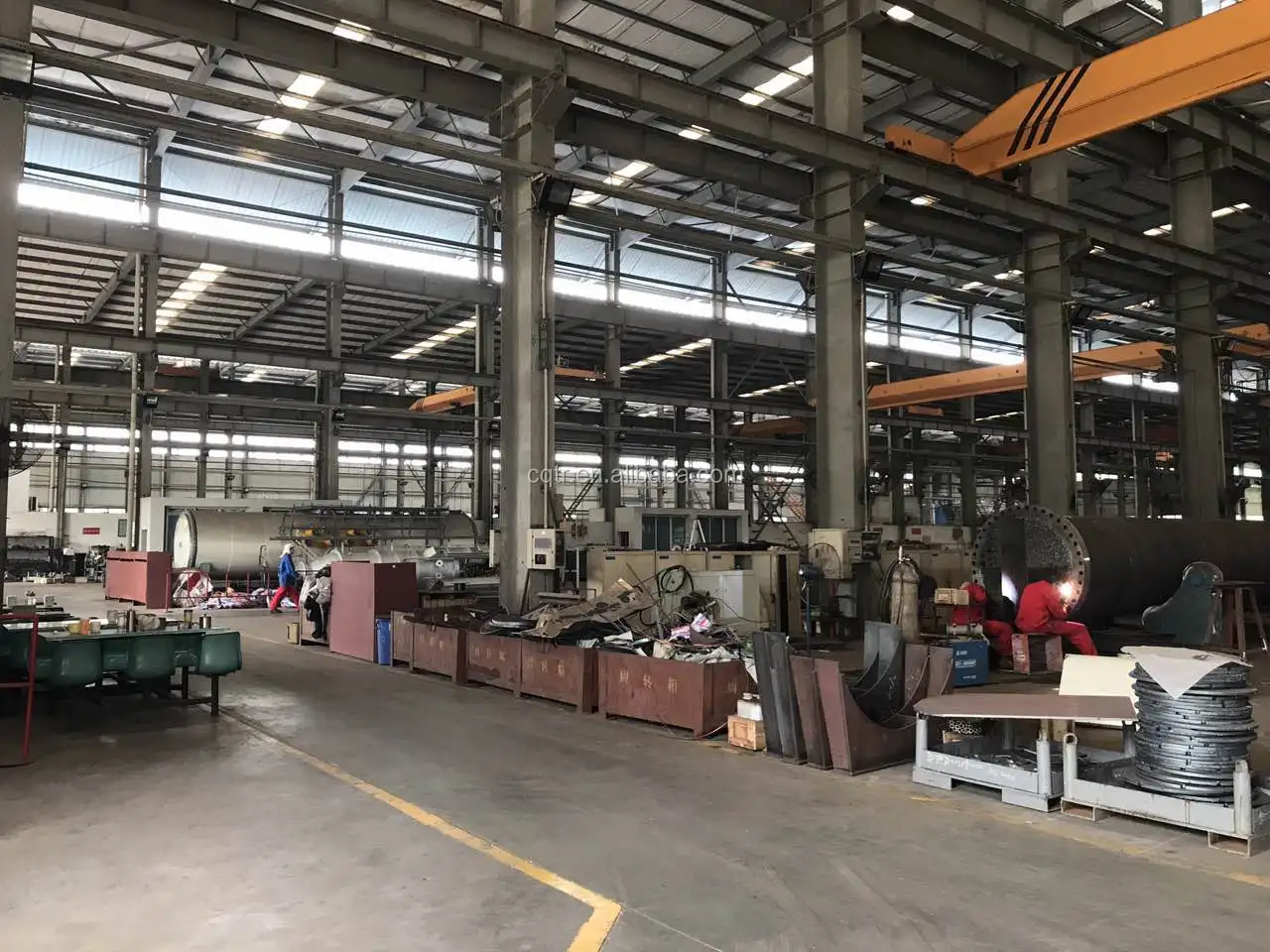

company information
