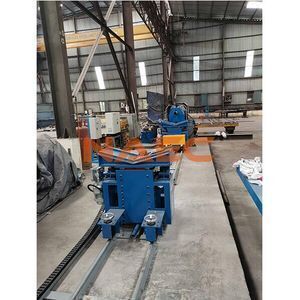

High Speed CNC Piping End Beveling Machine

Supplier: Nanjing Auto Electric Co., Ltd.
Region: Jiangsu, China
Contact: Ms Karen Peng
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight:	standard;	After-sales Service Provided:	Engineers available to service machinery overseas,Field installation, commissioning and training,Field maintenance and repair service;
Machinery Test Report:	Not Available;	Motor Type:	Other;
Place of Origin:	China;	Condition:	New,New;
Type:	CNC Plasma Cutters;	Supply Ability:	200 Set/Sets per Year;
Usage:	Pipe Beveling Machine;	Control mode:	PLC;
Applicable Industries:	Construction works ,Energy & Mining;	Applicable pipe dia. range:	2-60";
Dimension(LWH):	customized;	Port:	Nanjing;
Marketing Type:	Ordinary Product;	Payment Terms:	L/C,T/T;
Brand Name:	NAEC;	Warranty:	1 Year;
Local Service Location:	Malaysia;	Core Components:	Motor;
Video outgoing-inspection:	Not Available;	Warranty of core components:	1 Year;
Key Selling Points:	Multifunctional;	Package Preview:	;
Voltage:	380;	Packaging Detail:	container;
Applicable industries:	Oil&Gas, Offshore&Shipbuilding, Petrochemical, ect.;	Certification:	ce, iso;
Bevel type:	V type, double V, U type, J type;	Showroom Location:	Malaysia;
Applicable pipe material:	CS/SS/ALS;

NAEC-Provides Lean Fabrication Solution

Suitable for industries of: OIL AND GAS, REFINERY FACILITIES, OFFSHORE &SHIPBUILDING, POWER PLANT, ETC

Reference: CCC, L&T, AIM, Petrol Steel, THHE, MMHE, ETC.

High Speed CNC Piping End Beveling Machine

Features:

1	Automatic self-center chuck
2	Several models available: 16" type, 24" type, 32" type, 48" type
3	Single V, double V, U type, J type bevel
4	High speed beveling: it takes 2.5 minutes to get a 37.5 degree bevel for a S.S pipe end(diameter: 610mm, thickness:25mm, bevel 37.5 degrees)
5	Can be matched with pipe end turning device

Our company view

Nanjing Auto Electric Co., Ltd (NAEC) was established in 2001, taking promoting "Lean Fabrication to Global Energy Engineering Industry" as its mission, NAEC's core business is to provide Lean-fabrication One-stop Solution to energy engineering contractors and fabricators. With advanced innovation ability and continuous integration of new technology & processes, NAEC's solution ensure its users high quality and efficient fabrication, and make itself become worldwide clients' most preferred partner.

Our Strategic Clients are
L EPC companies, Contractors or Fabricators in Onshore Oil & Gas Exploration, Transportation, Storage, Refinery & Chemical
L EPC companies, Contractors, Fabricators or Equipment Manufacturers in Offshore Oil & Gas Exploration, Treatment, Transportation & Storage
L EPC companies, Contractors or Fabricators in Nuclear Power, Wind Power, or Thermal Power
L Various Energy Engineering Equipment Manufacturers
We provide Lean-fabrication One-stop Solution for Energy Engineering EPC Companies/ Contractors/ Fabricators, Based on Following Systems:

L NAEC Lean-fabrication Mode
L NAEC Lean-fabrication Management System
L NAEC Lean-fabrication Production System
NAEC Lean-fabrication One-stop Solution can help engineering fabrication operators to solve project problems. It can organize fabrication production and ensure the final delivery in good quality and on time.

Pipe Spool Fabrication Machines

1		Pipe Cutting& Beveling All-in-one Machine >Suitable for pipes not larger than 8”,max.thickness:20mm >Cutting efficiency:100times/8hrs >PLC control with automatic measuring to guarantee the same processing cycle >Widely used for small bore C.S/S.S production lines
2		High Speed Band-saw Cutting Machine >Three models available(16”type,24”type”,48”type) >PLC system control;self-measuring function with precision:±0.5mm >Using hydraulic self-centering chuck >It only takes 6 minutes to cut a 24” pipe of 25mm thickness >Widely used for C.S/S.S production lines.
3		High Speed CNC Pipe End Beveling Machine >Automatic self-centering chuck >Single V,double V,U type bevel >Can be matched with pipe end turning devic >High speed beveling:for example,it only takes 2.5minutes to get a 37.5 degree bevel for a S.S pipe end(diameter :610mm,thickness:25mm) >Several models available:16”,24”,32”,48”
4		Two / Multi- Axis CNC Flame/Plasma Cutting Machine >High efficient pipe cutting with automatic self-measuring function, pipe end beveling, intersection line profiling for both main and branch pipe. >Five/multi-axis cutting machine can profile more complicated outlines with various bevel type >Standard machine suitable for pipes nor larger than 24''
5		Multi-function Pipe Fitting-up Station >Suitable for flange,elbow,tee,reducer to pipe and special T-joint fitting-up. >Light-duty type(manual) and heavy-duty type(motorized) are available. >Different types available, 8" type, 24" type, 32" type, 48" type, 60" type
6		Automatic Pipe Welding Station >With two welding heads >TIG/MIG/SAW are optional >PLC system control & WPS programmed >Max. efficiency fo reach welding head can be 400D.I/8hrs even use TIG/MIG technology. >Different types available, 8" type, 24" type, 32" type, 48" type, 60" type
7		Conveyor Handling System >used for pipe convenient transporation during in pipe spool fabrication. >Its speed is adjustable between 2M to 20M/min.
