automatic transferring system

Supplier: Nanjing Auto Electric Co., Ltd.
Region: Jiangsu, China
Contact: Ms Karen Peng
Price: $100000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Marketing Type:	Ordinary Product;	Local Service Location:	Malaysia;
Supply Ability:	200 Set/Sets per Year;	Payment Terms:	L/C,T/T;
Condition:	New,New;	Core Components:	Motor;
After-sales Service Provided:	Engineers available to service machinery overseas,Field installation, commissioning and training,Field maintenance and repair service;	Place of Origin:	Jiangsu China;
Applicable Industries:	Construction works ,Energy & Mining;	Key Selling Points:	High-accuracy;
Structure:	Conveyor System;	Certification:	ISO9001:2008,CE, ISO;
Showroom Location:	Malaysia;	Video outgoing-inspection:	Not Available;
Warranty:	1 Year;	Material:	Rubber;
Applicable industries:	Oil&Gas, Refinery facilities, Offshore&Shipbuilding, Power plant, ect.;	Machinery Test Report:	Not Available;
Warranty of core components:	1 Year;	Port:	Nanjing;
Voltage:	380;	Brand Name:	NAEC;
Usage:	Pipe spool conveying and transportation;	Packaging Detail:	container;
Conveying speed:	2-20m/min;

NAEC-Provides Lean Fabrication Solution

Suitable for industries of: OIL AND GAS, REFINERY FACILITIES, OFFSHORE &SHIPBUILDING, POWER PLANT, ETC

Reference: CCC, L&T, AIM, Petrol Steel, THHE, MMHE, ETC.

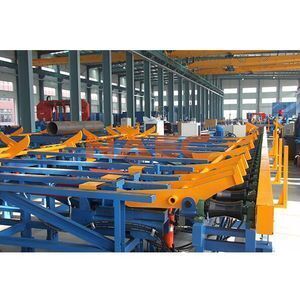

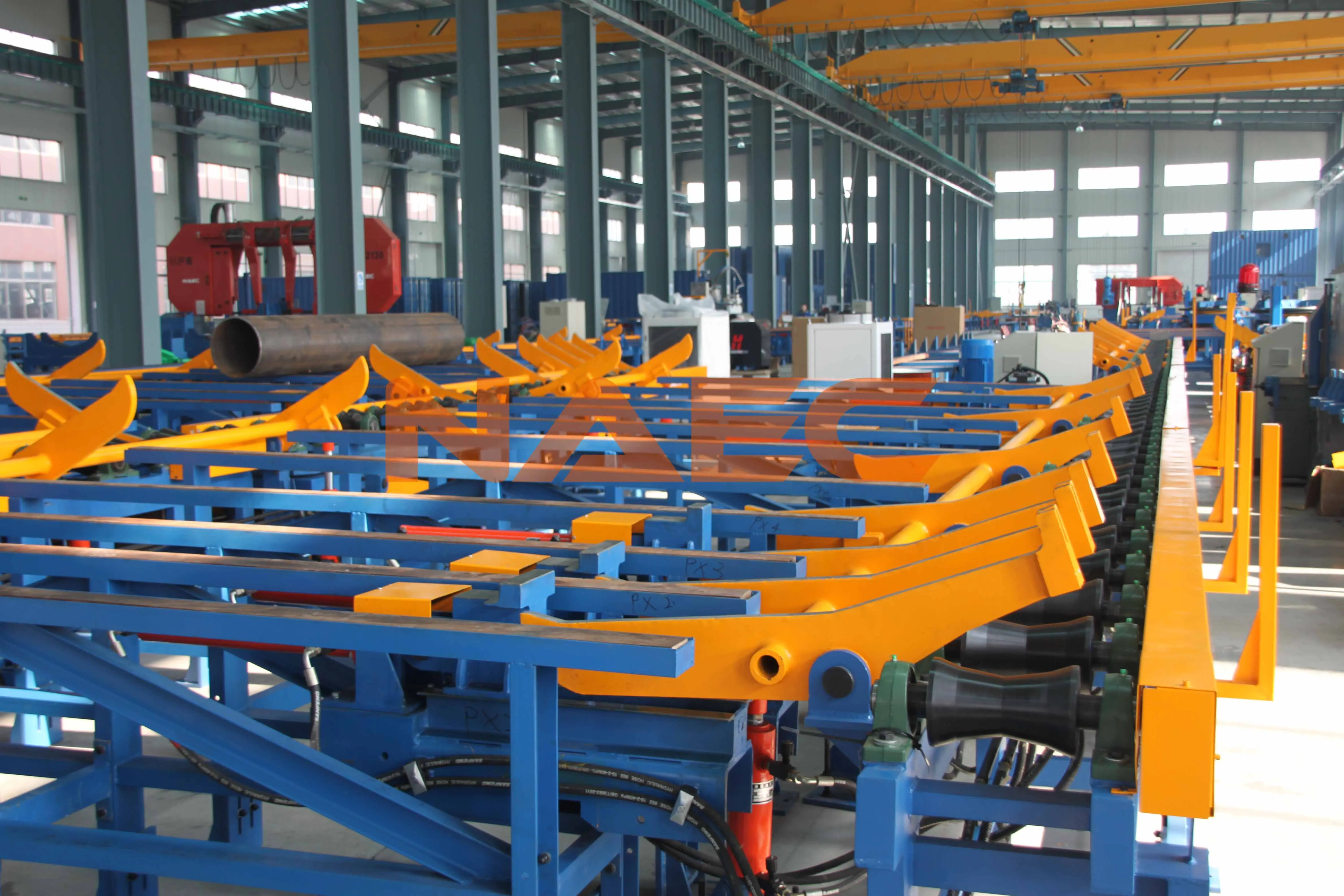

Automatic Conveying Logistics System

Conveyor System is specially designed and developed by NAEC which is able to perfectly match each single machine to form whole production line based on the principle of economic production line space occupation and max. productivity. It consists of storage/buffer rack, kicking-in/kicking-out device, and motorized handling conveyor system, which greatly improve the efficiency of single machine and save manpower & machine cost for workpiece transportation. Conveyor Logistics System can send cut and beveled pipes to the fitting-up stations with adjustable average speed of 2m-20m/min, the capacity of the conveyor system for handling is 750 kg/m, and 8tons/12m. 1m to 12m pipe can be transferred through this system.

It has features as following:

1	be matched with pipe spool fabrication system
2	used to transport pipes and fittings to different station and area
3	easy and convenient for operation
4	conveying speed:2-20m/min

NAEC Mission

Promoting ‘Lean-Fabrication to Global Energy Engineering Industry’ as its mission, NAEC’s core business is to provide NAEC LEAN-FABRICATION ONE-STOP SOLUTION to EPC Contractors, Sub-contractors and Fabricators of Energy Engineering Industry.

With our advanced innovation ability and continuous integration of new technology & processes, NAEC’s solution ensures its users into the new level of ‘high quality’ and ‘high efficient’ fabrication, and get delivery action meet field installation. Also, to make itself become worldwide clients’ most preferred partner.

Pipe Spool Fabrication Machines

1		Pipe Cutting& Beveling All-in-one Machine >Suitable for pipes not larger than 8”,max.thickness:20mm >Cutting efficiency:100times/8hrs >PLC control with automatic measuring to guarantee the same processing cycle >Widely used for small bore C.S/S.S production lines
2		High Speed Band-saw Cutting Machine >Three models available(16”type,24”type”,48”type) >PLC system control;self-measuring function with precision:±0.5mm >Using hydraulic self-centering chuck >It only takes 6 minutes to cut a 24” pipe of 25mm thickness >Widely used for C.S/S.S production lines.
3		High Speed CNC Pipe End Beveling Machine >Automatic self-centering chuck >Single V,double V,U type bevel >Can be matched with pipe end turning devic >High speed beveling:for example,it only takes 2.5minutes to get a 37.5 degree bevel for a S.S pipe end(diameter :610mm,thickness:25mm) >Several models available:16”,24”,32”,48”
4		Two / Multi- Axis CNC Flame/Plasma Cutting Machine >High efficient pipe cutting with automatic self-measuring function, pipe end beveling, intersection line profiling for both main and branch pipe. >Five/multi-axis cutting machine can profile more complicated outlines with various bevel type >Standard machine suitable for pipes nor larger than 24''
5		Multi-function Pipe Fitting-up Station >Suitable for flange,elbow,tee,reducer to pipe and special T-joint fitting-up. >Light-duty type(manual) and heavy-duty type(motorized) are available. >Different types available, 8" type, 24" type, 32" type, 48" type, 60" type
6		Automatic Pipe Welding Station >With two welding heads >TIG/MIG/SAW are optional >PLC system control & WPS programmed >Max. efficiency fo reach welding head can be 400D.I/8hrs even use TIG/MIG technology. >Different types available, 8" type, 24" type, 32" type, 48" type, 60" type
7		Conveyor Handling System >used for pipe convenient transporation during in pipe spool fabrication. >Its speed is adjustable between 2M to 20M/min.
