GUF142 Battery remote reading smart ultrasonic wireless water meter

Supplier: Xi'an Gavin Electronic Technology Co., Ltd.
Region: Shaanxi, China
Contact: Ms Coco Li
Price: $150.00 /set
Min. Order: 1 set

Click here to contact

Product details

Temperature:	0.1-30℃;	Port:	Any port of China;
Output Signal:	Two Way OCT pulse output/TTL pulse output/One way 4-20mA output;	Brand Name:	GAIMC;
Supply Ability:	10000 Set/Sets per Month;	Packaging Detail:	Standard export packaging;
Product name:	GUF142 Battery remote reading smart ultrasonic wireless water meter;	Working Pressure:	1.6Mpa (2.5Mpa optional);
Diameter:	DN15~DN300;	Certification:	/;
Place of Origin:	Shaanxi China;	Application:	agricultural irrigation,Water Resource Management,;
Payment Terms:	L/C,Western Union,T/T;	Type:	Ultrasonic meters;
Measurement Liquid:	Water, Sewage, Seawater(Other liquid need to customized);	Communication Interface:	RS485/USART/ Infrared;
Power supply:	DC8-36V;	Customized support:	OEM,ODM,OBM;
Model Number:	GUF142;	Protection Class:	IP68;

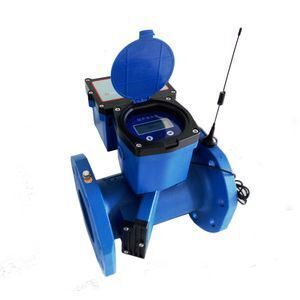

GUF142 Battery remote reading smart ultrasonic wireless water meter

Description

GUF142 ultrasonic water meter is designed for water metering settlement and production of a high performance products, with the remarkable features of low power consumption, wide measuring range ratio, stable and reliable measurement .Each component reaches IP68 protection class, to ensure long term operation though water in the inside meter.

Detail show

DN15~40(thread type)

Material:copper

>DN50 (flange type)

Material:Casted ductile iron/Welded carbon steel

Application

GUF142 ultrasonic water meter widely used in the urban water supply, water resources management, irrigation, landscape management, industrial production and automation industry.

Specification

Item	Specification
Measurement Liquid	Water, Sewage, Seawater(Other liquid need to customized), liquid should be full of the pipeline
Temperature	0.1-30℃
Working Environment	Temperature:-10-45℃;Humidity:≤100%(RH)
Working Pressure	1.6Mpa (2.5Mpa optional)
The sensitivity of upstream	U3
The sensitivity of downstream	D0
Climatic and mechanical	C class
Electromagnetic compatibility class	E2 class
Communication Interface	RS485/USART/ Infrared
Output Signal	Two Way OCT pulse output/TTL pulse output/One way 4-20mA output
Power supply	Built-in Lithium battery(3.6,19AhV)/DC8-36V power supply
Protection Class	IP68, can work 2 meters under water
Digital Display	Multi line 9 digital accumulative flow, 4 digital display for instantaneous flow, varies of state prompt and units
Data Storage	EEPROM/FLASH automatically record the accumulative flow of last 512 days
Measurement Cycle	Measuring : 1 times/second ; Verification: 4 times/second
Power Consumption	≤2.7AH/Year, 6 years battery life

Flow Range:

Diameter	R	Flow(m3/h)
Diameter	R	Starting flow rate	minimum flow rate Q1	transitional flow rate Q2	Permanent flow rate Q3	Overload flow rate Q4
DN15	200	0.003	0.0125	0.020	2.500	3.125
DN20	200	0.0035	0.016	0.026	3.200	4.000
DN25	200	0.007	0.020	0.032	4.000	5.000
DN32	200	0.010	0.032	0.050	6.300	7.875
DN40	200	0.015	0.100	0.160	20.000	25.000
DN50	100	0.030	0.400	0.640	40.000	50.000
DN65	100	0.059	0.630	1.008	63.000	78.750
DN80	100	0.064	1.000	1.600	100.000	125.000
DN100	100	0.094	1.600	2.560	160.000	200.000
DN125	100	0.120	2.000	3.200	200.000	250.000
DN150	100	0.270	2.500	4.000	250.000	312.500
DN200	100	0.315	4.000	6.400	400.000	500.000
DN250	100	0.508	4.000	6.400	400.000	500.000
DN300	100	0.770	6.300	10.080	630.000	787.500

Communication and Signal Output:

External waterproof junction box, Can complete the wiring connection without opening the water meter cover.

PS:when ordering ,you can choose any two of the above communication interface or output ,lead to the external junction box.

Wireless meter reading

1.Artificial wireless meter reading

Ultrasonic water meters with RF module and hand held meter reading unit can achieve artificial wireless meter reading.

2.IOT Ultrasonic Water Meters

IOT ultrasonic water meters with GPRS module (Battery powered,external power supplied optional), can achieveautomatic wireless meter reading via GPRS data storage cloud.

Type selection

	parameters	description	remarks
A	diameter	DN15-40(signal channel)
A	diameter	DN50-300(Dual channel)
B	pipe material	1.Casted ductile iron
		2.Carbon steel
		3.Copper
		4.Stainless steel
C	Ccommunication interface	0.None	Standard configuration 1
		1.RS485
		2.M-BUS
D	Output Signal/ External Power Supply	0.None	Standard configuration 1
		1.DC 8-30V
		2.Two-wired system 4-20mA
		3.OCT1 (open- collector output 1)
		4.OCT1 (open-collector output 1)
		5.OCT2 (open-collector output 2)
		6.C1 (TTL pulse output 1)
		7.C2 (TTL pulse output 2)
E	Wireless Meter Reading	0.None
		1.RF communication module(Optional)
		2.GPRS module(Optional)

Ps: you can choose any two of the above communication interface or output signal, lead to the external junction box.

Example :GUF142 -DN100-1 -1-1-0

Description: DN100 Ultrasonic water meter, Casted ductile iron material, the communication interface is RS485, external power supply is DC 8-30V, without the wireless meter reading function.
