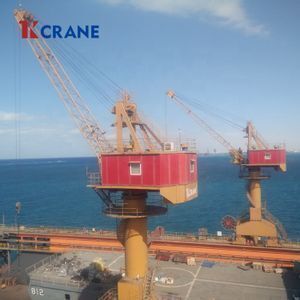

Wharf mobile type shipyard single girder portal crane

Product details
Industry working voltage:User local;Machinery Test Report:Provided;
Core Components:Engine,Motor;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
Span:outreach up to 70m;Structure:truss jib or box boom;
Rated Loading Capacity:5.0 ton to 250 tons;Place of Origin:Henan China;
Showroom Location:None;Payment Terms:L/C,T/T;
Brand Name:Kehao;Application:shipyard, port, floating dock, ship;
Port:Shanghai,Qingdao,Tianjin;Video outgoing-inspection:Provided;
Applicable Industries:Lifting Industry;Supply Ability:36 Set/Sets per Year;
Working duty:A5-A8( Continuous working: 4 hours to 24 hours per day);Marketing Type:Ordinary Product;
Packaging Detail:Wharf moible type shiyard single girder portal crane: Wood case, Carton, Plastic cloth, Container, Generally large parts (such as Jib) will be loaded onto the bulk cargo ship after packaging.;Max. Lifting Height:70 m above rail, 35 m below rail;
Condition:New;Distance between the rails:3.5m to 10.5m;
After-sales Service Provided:Engineers available to service machinery overseas,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support,Free spare parts;Warranty of core components:1 Year;
Package Preview:;Certification:CE,CCS, ISO9001;
Feature:Portal Crane;Product name:Wharf moible type shiyard single girder portal crane;
Lifting height:70m above rail, 35m below rail.;Luffing Type:steel rope or rack luffing;
Rated Lifting Moment:various as the load capacity;Vice hook:5t-50 t;
Power Supply:3-Phase, 50hz/60hz, 220V-460V;Local Service Location:None;
Warranty:1 Year;


         Wharf mobile type shipard single girder portal crane



 Product Description
  Key words:



Product name: Wharf moible type shiyard single girder portal crane



♦  Capacity:  5.0 tons ~ 250 tons

♦  Size requirements:  needed to be dsigned as customer's requirements







Portal Crane Components

Wharf moible type shiyard single girder portal crane are mainly used in the port, shipyard, ships at wharfs for mechanized handing and transshipment. it inculdes lifting mechanism, traveling mechanism, rotary mechanism, luffing mechanism. Engineers will design the portal crane according user requirements. some parts for your reference as below:



+



   Lifting Mechanism:

   ♦ Gear box

   ♦ Lifting motor

   ♦ Lifting brake

   ♦ Lifting fan

   ♦ Cable drum



   Traveling mechanism:

   ♦ Rail safety device

   ♦ Travel stop buffer block

   ♦ Anchor device

   ♦ Traveling wheel

   ♦ Full set electric equipment



   Luffing Mechanism:

   ♦ Jib

   ♦ A-bracket

   ♦ Wire rope

   ♦ Full set electric equipment


   Rotary Mechanism:

   ♦ Turnable

   ♦ Retory gear

   ♦ Full set electric equipment





   Note:

   The detailed packing list, please

   consult your marktering consultant.

   Above information for your

   reference.

+
Project one:  Mobile Single Girder Portal Crane
+

Step one: Design drawing



 Step Two: Parameters Confirm:

+

          Product Parameter of 7.0t Single Beam Portal Crane

Product Name Unit Parameter
Working Classification A6
Load Capacity t 7.0
Outreach Range Max range m 20
Min range m 6.0
Lifting Height Above rail m 22
Below rail m 15
Working Speed Lifting speed m/min 0-20m/min
Derricking speed m/min 0-20m/min
Slewing speed R/min 0-0.9r/min
Traveling speed m/min 0-25m/min
Motor Syetem Lifting motor YZP355M2-10   220KW×2
Derricking motor YZP250M-8       37KW
Slewing motor YZP225M-8 (Vertical)   37KW×2
Traveling motor YZP160L-6     11KW×4
Rails Distance m 9
Base Width m 9
Traveling Wheel Quantity Pcs 24(Driving wheel is 12pcs)
Max Wheel Pressure KN ≤250
Max Wind Pressure(Working) N/m2 250
Slewing Radius of turntable end m 6
Total Motor Capacity KW 562
Power Syetem Cable drum, three phase four wire system, AC380v 60HZ
+

Step Three:  Test on-site







Step1: Inspect before test

♦  Checking the purchased part cetificate
♦  Verificate the specificaiton of portal crane

♦  Inspect Installation,Circuit, Instrument Equipment,personnel allocation whether feasible



Step2: safety limit test

♦  isolated running

♦  Lifting-amplitude of variation

♦  Lifting-slew


Step3: Load capacity test(7ton)

♦  isolated running

♦  Lifting-amplitude of variation

♦  Lifting-slew



Step4: Overload dynamic test(7.7ton)

♦  isolated running

♦  Lifting-amplitude of variation

♦  Lifting-slew



Step5: Overload static test

♦  Loading 125%,8.75t lifting below 0.3m,keep in 10 minutes







+

If you interested in our products, we can talk more and supply you some test videos on the spot for your reference.



+
Step Four: Packaging and Delivery

Step Five: Installation

+

Test before shipment:



1. Every product will tested before shipment.

2. Welocome every customer visit our factory

and check goods before delivery, we'll help

apply for invitation letter and visa.

3. Kehao sales consultant will solve your problem

in time.



Installation:



1. we will arrange professional technical  staffs

 provide installation, commissioning and

 training services.

2. Delivery with English user manual, parts

manual, product certification and other

relevant certificates.

Step Five: After Services



1.14 months warranty when products leave the factory, or 12 months warranty after installation and

     commissioning in addition to the human damage factors.

2. 2 years spare-parts provided for better maintenance.

3. Professional technical staffs provide installation, commissioning and training services.

4. Delivery with English user manual, parts manual, product certification and other relevant

    certificates.

5. Technical advisory for any time and Engineers available to service machinery overseas.



ABOUT KEHAO------TO LIFT THE DREAM



To Build the Kingdom of Prosperity, Freedom and Justice.

Xinxiang kehao Machinery Equipment Co., Ltd as the most ambitious Lifting Equipment Developer & Manufacturer & Services

Supplier, we think the real enterprise spirit is the power express in the process of boosting the prosperity, freedom and

justice (PFJ) for human beings, and it has nothing to do with nationality, religion and country. Because everyone is devoted

 to the career of building the PFJ around him, that is why we can builddeep cooperation here and there, through the thinking

 on real principles of economics, we know the economics principles is same essence with liberty and justice.



Techincal:

Through unremitting efforts in innovation and corporate restructure, we have owns three branchs in China,one for supplying

         general lifting equipment in Changyuan City, one for marine lifting equipment in Xinxiang City, and one R&D center in Shanghai

        city. Additionally we have a long term cooperation with the machinery research institute of WHUT and SITU.





+

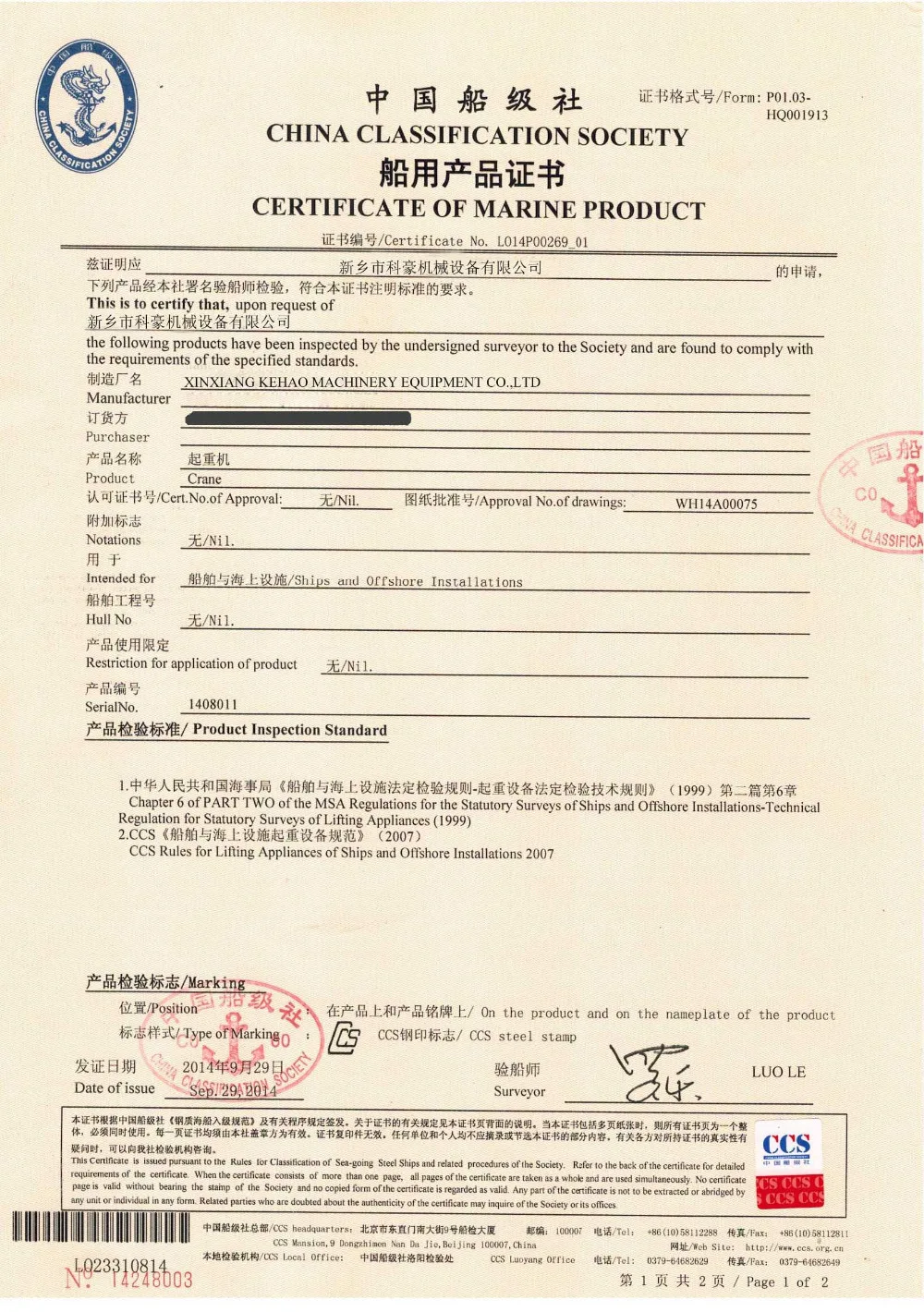

Certificate: CCS

Certificate: according customer requirements.



Consult Guide



Please tell us your specification according the above different drawing, if difficult to you, kindly see the

below the basic parameters or tell us your questions. We will choose a suitable products for you.



Or Just tell me where you will use, then it is my turns.



Basic Parameters: What should I do if I want to buy a protal crane?

    Answer:  please try to finish the main specification as below:

    1). Max load capacity    ---ton

    2). Max working radius   ---m

    3). Lifting height above rail/below rail   ---m

    4). Rail distance or guage  ---m

    5). Travelling distance       ---m



 Or let the Trade Consultant to help you to finish with you.
