4 axis cnc wood lathe machine 3d carve machine center for classic/ antique furniture legs, decorations, statues and artcrafts

Product details
Product name:4 axis cnc wood lathe machine 3d carve machine center;Working Table Size(mm):250 diameter*1200 lenght*4pcs;
Machinery Test Report:Provided;Spindle:2.2kw water cooling spindle optional 3kw;
Spindle Motor Power(kW):2.2/3.5kw;Machine Type:CNC Router;
Positioning Accuracy (mm):0.02;Place of Origin:Shandong China;
Warranty of core components:1 Year;Control System Brand:DSP;
No. of Spindles:Multi;Motor and driver:stepper motor and driver(optional servo motor and driver);
Supply Ability:300 Set/Sets per Year;Travel (X Axis)(mm):250;
Application:funiture leg, pillar, statue, artcraft;Brand Name:CHAODA;
CNC or Not:CNC;Local Service Location:Russia;
Inverter:Taiwan Delta Inverter;After-sales Service Provided:Online support;
Certification:CE ISO TUV;Travel (Y Axis)(mm):1200;
Payment Terms:L/C,T/T;Voltage:380v/220v 3 phase, 50 -60hz,AC380V/50HZ;
Guide rail:Linear Guide Rails;Core Components:Bearing,Motor,Gear,Gearbox;
Rotary working size:250mm(diameter)x1200mm (length);After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
Marketing Type:Hot Product 2019;Applicable Industries:Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Control system:4 Axis DSP;Weight (KG):2100;
Transmission:XY-axis:rack and pinion; Z-axis: ball screw;Dimension(L*W*H):2.46m*2m*1.5m;
Showroom Location:Russia;Video outgoing-inspection:Provided;
Repeatability (X/Y/Z) (mm):0.02;Range of Spindle Speed(r.p.m):6000 - 18000 rpm;
Packaging Detail:standard wooden package or other;Key Selling Points:Competitive Price;
Warranty:1 Year;Condition:New;

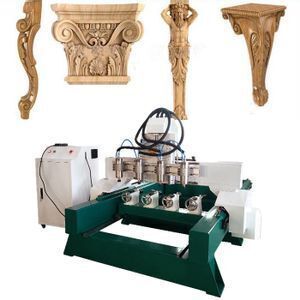

4 axis cnc wood lathe machine 3d carve machine center for classic/ antique furniture legs, decorations, statues and artcrafts





  • This item is very suitable for furniture bulk production, multi heads can work at the same time, also can work alone, many times increasing efficiency.
  • Table movement, long time use no distortion, the more precise positioning accuracy.
  • Each spindle can hold two tools, one tool for rough machining, one tool for finish machining ,which is equivalent to Auto Tool Changer.
  • Simultaneous 5 axis Syntec control system, can make more complex 3d jobs.
  • With a removable table, when you process plane material, just put the table on; when you process column /cylinder, just take off the table.
  • Well compatibility in software: all kind of 3D carving softwares.
  • We can make Multi heads machine with any working size according to customers' specific requirements.









Working Size 1200mm ( L)* 250mm (D)* 4 rotaries
Lathe Bed Structure heavy duty steel structure
Spindle Power

2.2kw water cooling spindle * 4pcs

X Transmission

Rack and pinion, linear square guide rail

Y Transmission

Rack and pinion, linear square guide rail

Z Transmission

Ball screw, linear square guide rail

B Transmission Reduction Gear Box
Collet

ER20

Spindle Speed 0-24000rpm
Max.Travelling Speed 0-2500mm/min
Max.Working Speed 0-15000mm/min
Motor and Driver Stepper motor and driver
Operating System 4 axis DSP
Command G code (*uoo,*nc,*mmg, *plt)
Oil System  Yes
Working Voltage AC380v,3 phase,50Hz/ Optional 220V
Working Environment Temperature: 0-45;Relative humidity:30%-75%

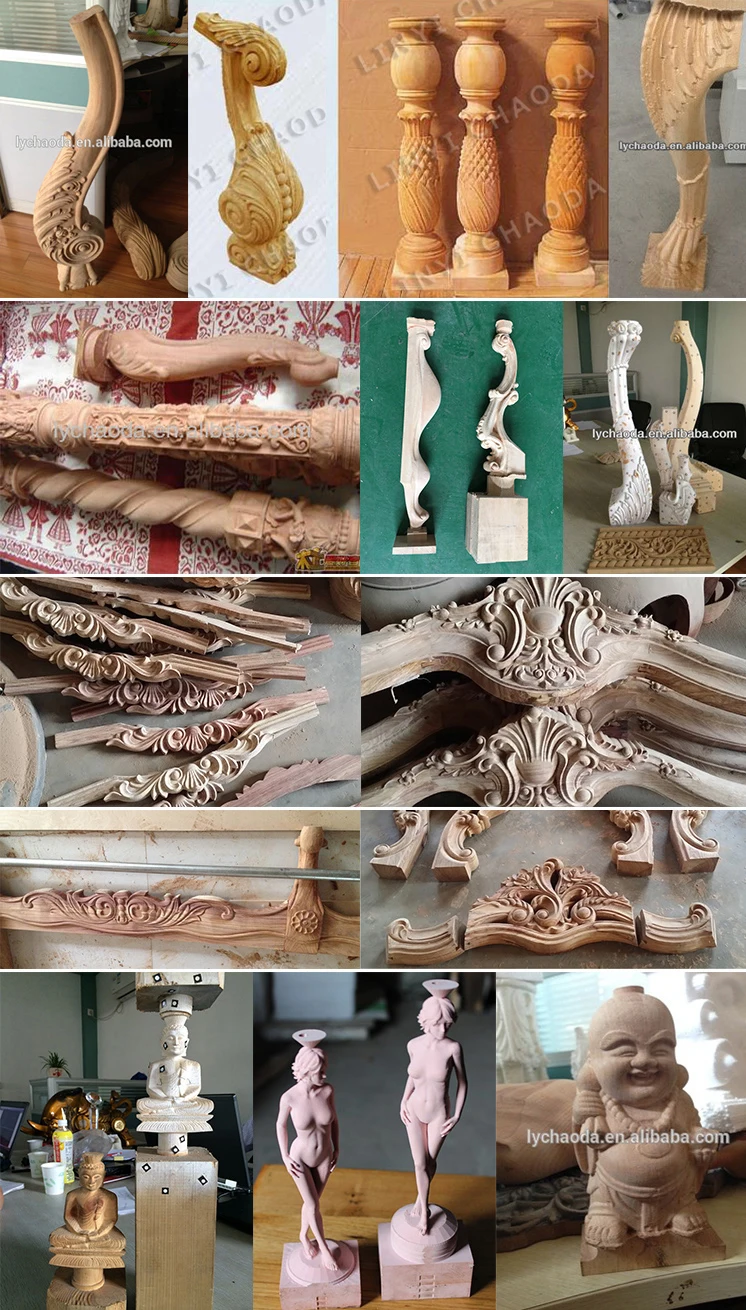

This machine is very suitable for furniture bulk production, like sofa legs, table legs, chair legs, bed legs, bed head, stair

handrails, prop guns, wooden column cylinders... it also can make 3d small statues, figures, sculptures, 360 degree human body, Buddhist statues… etc.



1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas
