Table Travel (Y) (mm): | 120; | Video outgoing-inspection: | Provided; |
Key Selling Points: | Automatic; | Packaging Detail: | plywood case; |
Max. Table Load(kg): | 100; | Core Components: | Bearing,Motor,Gear; |
Weight: | 110/122; | CNC Control System: | MACH3; |
After Warranty Service: | Video technical support,Online support; | Power (kW): | 0.4/1; |
Machinery Test Report: | Provided; | Type: | VERTICAL; |
Number of Axes: | 4; | CNC or Not: | CNC; |
Range of Spindle Speed(r.p.m): | 100 - 3000; | Port: | Shanghai; |
Brand Name: | NEW DARGON; | Spindle Taper: | ER20/ER25; |
Applicable Industries: | Manufacturing Plant,Machinery Repair Shops,Farms,Home Use; | Weight (KG): | 120; |
Payment Terms: | L/C,Western Union,T/T; | Color: | Opitional; |
Marketing Type: | Hot Product 2019; | Supply Ability: | 100 Set/Sets per Month; |
Voltage: | 220/380V; | Condition: | New; |
Local Service Location: | None; | Dimension(L*W*H): | 670*550*860mm/870*550*860mm; |
After-sales Service Provided: | Engineers available to service machinery overseas,Free spare parts,Video technical support; | Power(W): | 400W/1000W; |
Certification: | CE ISO; | Table Travel (mm): | 400X140; |
Warranty of core components: | 1 Year; | Warranty: | 2 years; |
Model Number: | TM13 CNC; | Place of Origin: | China; |
Positioning Accuracy (mm): | 0.02; | Machining Capacity: | Light Duty; |
Package Preview: | ; | Table Travel (Z) (mm): | 200; |
Showroom Location: | None; | Repeatability (X/Y/Z) (mm): | 0.015; |
Table Travel (X) (mm): | 220; |
Hot sale cnc machine/ small drill mill machine / 3 axis cnc milling machine for metal

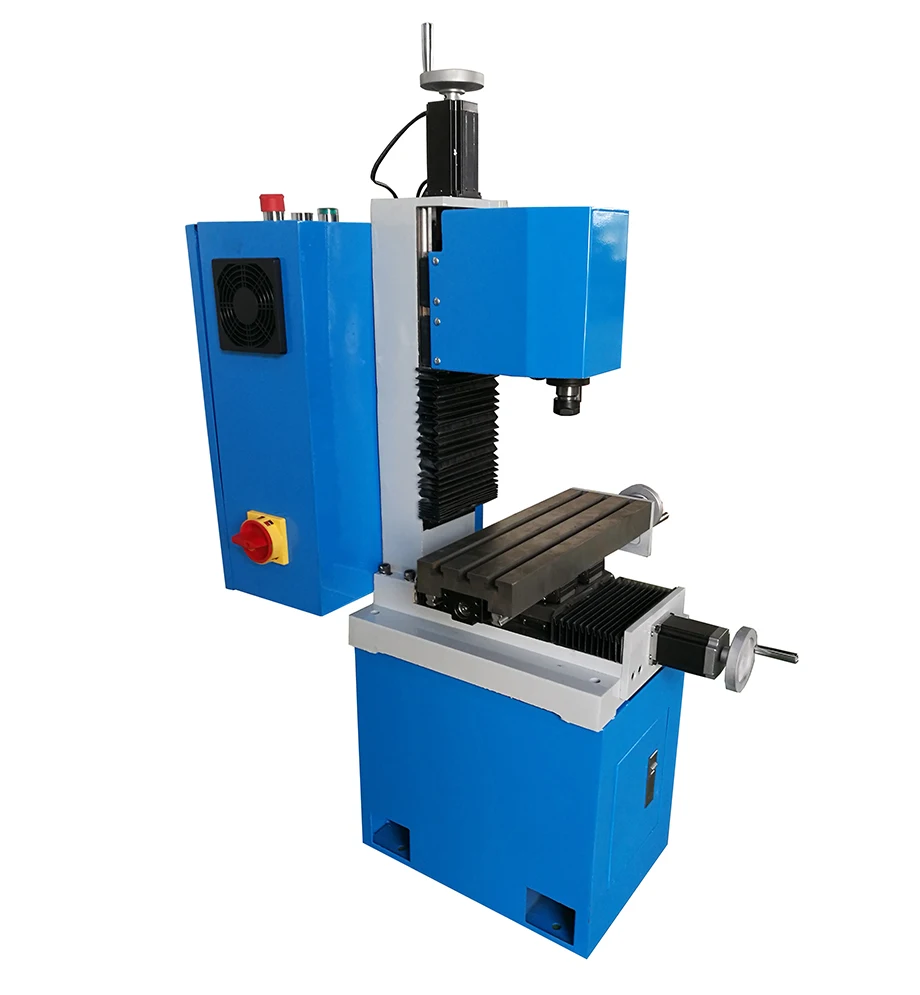

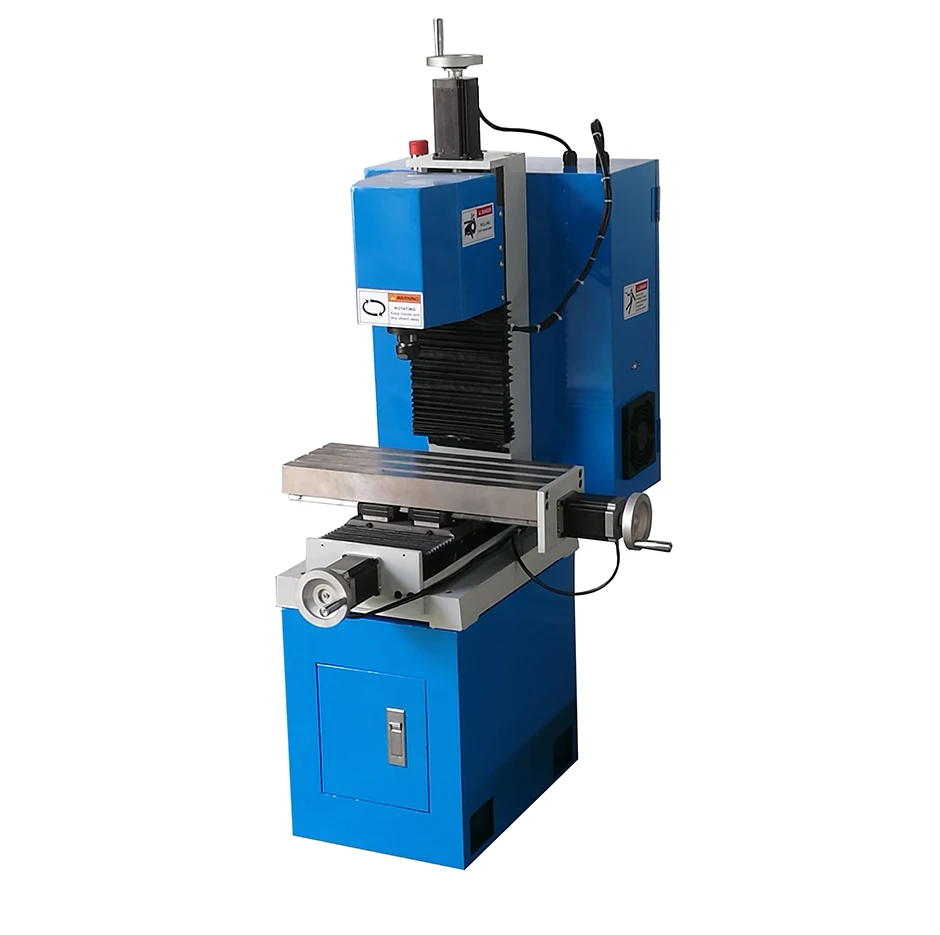

mini metal cnc milling drilling machine TMK13CNC
Feature
1.Small size and cheap price.
2.Low noise and high precision.

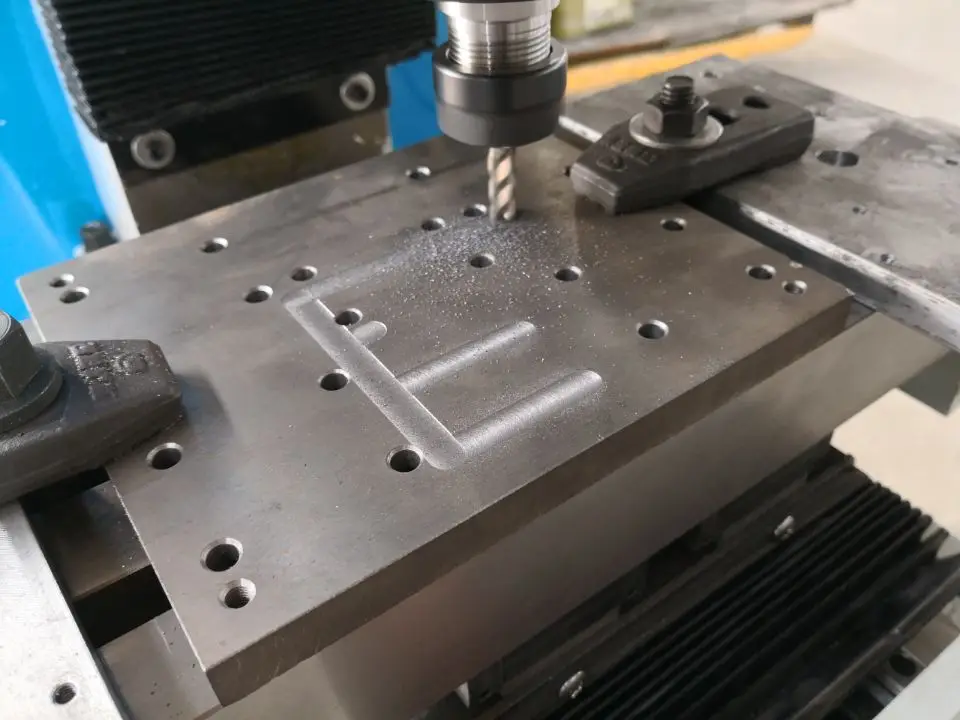

3.Suitable for soft metal material processing.
4.Easy operation by P.C.
5.Popular for education training and mould machining.
6.Best choice for hobby users.
Specification
Max drilling capacity |
13mm |
Max. milling capacity |
13mm |
Spindle speed |
3000rpm |
Spindle center to column distance |
189mm |
Spindle nose to table distance |
205mm |
Spindle taper |
ER20 |
T-slot |
12mm |
Worktable size |
400X140mm |
X axis travel |
220mm |
Y axis travel |
120mm |
Z axis travel |
200mm |
Main motor power |
400W |
Main motor type |
Brushless motor:0-5V analog speed regulation |
Feeding motor torque N.m |
2.6/2.6/3.2N.m |
Feed motor type |
Stepper motor with open loop |
N.W. |
590x590x780mm |
Packing size |
90kg |
