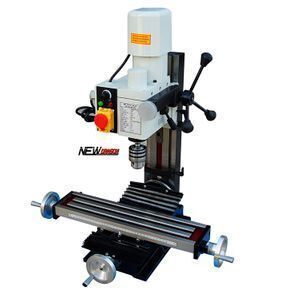

Mini milling machine 16mm drilling capacity XJ9512
-
Supplier: Chizhou New Dragon Machinery Co., Ltd. -
Region: Anhui, China -
Contact: Mr GUANGQING XU -
Price: $300.00 /set -
Min. Order: 1 set
| Packaging Detail: | plywood case; | Range of Spindle Speed(r.p.m): | 50-2500; |
| Payment Terms: | L/C,T/T,Western Union; | Type: | Vertical; |
| Power(W): | 550w; | Table Travel (mm): | 460x112; |
| After-sales Service Provided: | Free spare parts; | CNC or Not: | Normal; |
| Voltage: | 220/380V; | Supply Ability: | 100 Set/Sets per Month; |
| Spindle Taper: | MT3; | Condition: | New; |
| Color: | Opitional; | Brand Name: | NEW DARGON; |
| Model Number: | XJ9512; | Port: | Shanghai; |
| Weight: | 110/122; | Warranty: | 1 Year; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Certification: | CE ISO; |
| Dimension(L*W*H): | 670*550*860mm/870*550*860mm; | Place of Origin: | Anhui China (Mainland); |
mini variable drilling and milling machine
DC motor variable speed powerful
speed digital readout
infinitely precison
high quality PC board
Specification
Drilling capacity | 16mm |
Max.face mill capacity | 30mm |
Max.end mill capacity | 13mm |
Spindle stroke | 180mm |
Longitudinal travel | 250/300mm |
Cross travel | 100/130mm |
Spindle rotary angle | -45°±45° |
Working table size | 410/460×112mm |
Motor power | 550W |
Max.distance spindle to table | 220mm |
Spindle taper | MT3 |
Spindle speed | 50-2500RPM |
Net weight/Gross weight | 62kg/80kg |
Packing size | 570×510×740mm/640×565×720 |
Standard accessories
Speed display
Depth ruler
Arbor MT2/B16,M10
Drawbar MT2/M10
Operating tools
Optional accessories
Stand & chip tray
Keyless drill chuck 3-16mm
ER25/6pcs collet chuck (4-16mm)
End mill 7pcs (4-16mm)
58pcs of clamping kits/M10*11.7mm
Drill chuck 3-16mm
-
