Certification: | CE; | Supply Ability: | 200.0 Set/Sets per Month; |
Power(W): | 1500W; | Applicable Industries: | Machinery Repair Shops,Manufacturing Plant,Home Use; |
After Warranty Service: | Video technical support,Online support,Spare parts; | Showroom Location: | None; |
Weight (KG): | 230; | Warranty: | 2 years; |
Spindle Taper: | R8, MT3; | Table Travel (mm): | 700X190mm; |
Number of Axes: | 3; | Type: | Vertical; |
Table Travel (Y) (mm): | 230; | Warranty of core components: | 1 YEAR; |
Condition: | New; | Machinery Test Report: | Provided; |
After-sales Service Provided: | Free spare parts; | Core Components: | Bearing,Motor,Gear; |
Payment Terms: | L/C,D/P,T/T; | Table Travel (Z) (mm): | 350; |
Marketing Type: | Hot Product 2019; | Machining Capacity: | Light Duty; |
CNC or Not: | Normal; | Brand Name: | NEW DRAGON; |
Key Selling Points: | High Rigidity; | Port: | FOB Shanghai; |
Video outgoing-inspection: | Provided; | Place of Origin: | Anhui China; |
Voltage: | 220/110/120V; | Weight: | 230KG; |
Range of Spindle Speed(r.p.m): | 50 - 3000 r.p.m; | Model Number: | TM32GV; |
Power (kW): | 1.5; | Packaging Detail: | wooden case; |
Local Service Location: | None; | Table Travel (X) (mm): | 380; |

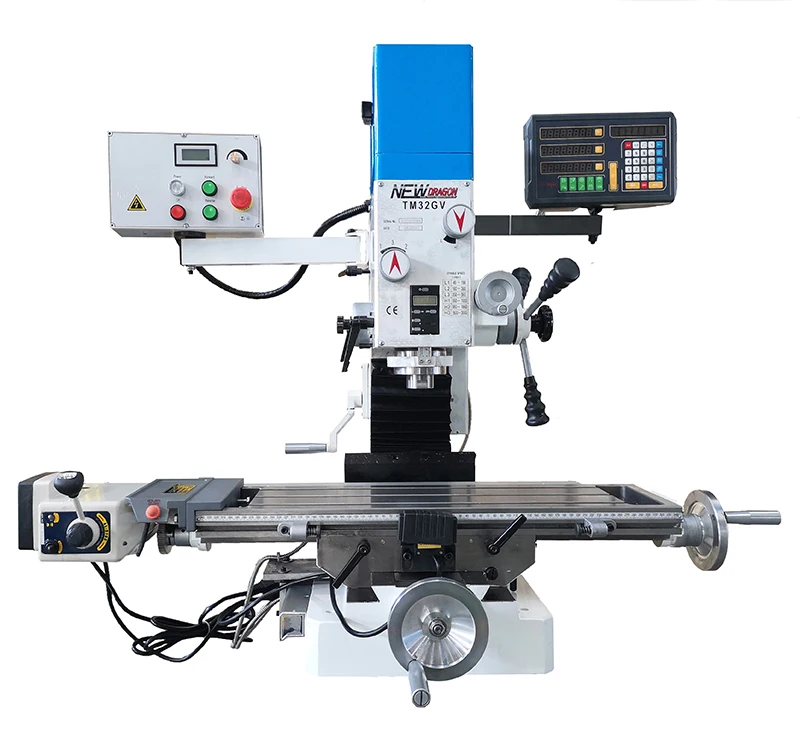

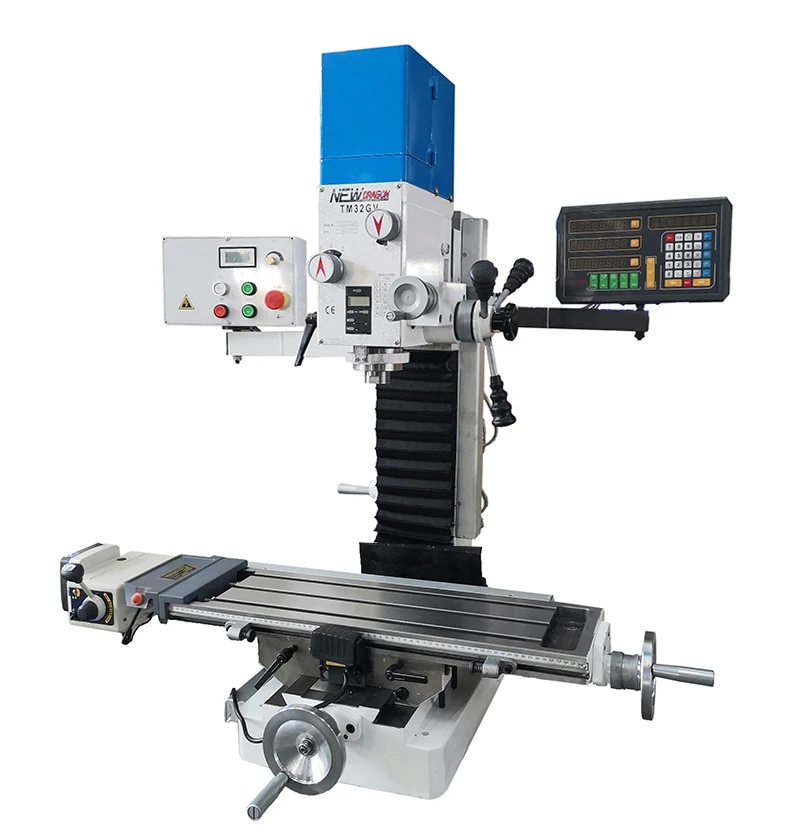

Model |
TM32GV |
|||
Max. Drilling capacity |
32mm |
|||
Max. Face milling capacity |
63mm |
|||
Max. End milling capacity |
20mm |
|||
Swivel angle of head-stock at perpendicular direction |
±90° |
|||
travel Spindle |
85mm |
|||
Max. Distance between spindle nose and table |
445mm |
|||
Distance between spindle axis and surface of square column |
203mm |
|||
Spindle taper |
MT3 |
|||
Spindle speed
|
L1 |
50-210 |
S1 |
250-1100 |
L2 |
95-300 |
S2 |
450-2000 |
|
L3 |
140-600 |
S3 |
700-3000 |
|
T-solt |
|
|||
Forward and backward travel of table |
150mm |
|||
Left and right travel of table |
390mm |
|||
Table size |
700mm×190mm |
|||
Motor |
150W,3000r/min |
|||
Weight | ||||
Special accessories |
Milling cutter holder Ø63 Vice 90mm end mill cutter 2-20mm drill 1-20mm machine stand |
|||
Standard accessories |
Double-head wrench 22mm×24mm 1pc Allen wrench 5mm,6mm 1pc each Screw driver(-) 150mm 1pc Drill stock MT3 1pc Drill chuck 1-13mm 1pc Wedge Drawbar 1pcDrawbar washer 1pc |
