High Quality Factory Direct two roll open type rubber mixing mill from OULI COMPANY

Supplier: Qingdao Ouli Machine Co., Ltd.
Region: Shandong, China
Contact: Mr Roy Ren
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Shandong China;	Weight:	1t-22t;
Certification:	ISO9001:2008/CE;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Rotation Speed of Front Roll(rpm):	20 - 21 rpm;	Roll Ratio(Front/Back):	1:1.2;
Application:	rubber compound mixing and sheeting;	Applicable Industries:	rubber machine;
Key Selling Points:	Competitive Price;	Local Service Location:	Kazakhstan,Tajikistan,United Kingdom,None;
Machinery Test Report:	Provided;	After-sales Service Provided:	Engineers available to service machinery overseas;
Dimension(LWH):	350032002800mm;	Weight (KG):	12000 KG;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Diameter of Roll(mm):	450;
Supply Ability:	30 Set/Sets per Month;	Showroom Location:	Ukraine,Japan,Australia;
Condition:	New;	Length of Roll(mm):	1200;
Package Preview:	;	Marketing Type:	New Product 2020;
Colour:	Bule;	Warranty:	3 Years;
Core Components:	PLC,Gearbox,Gear;	Name:	factory direct high quality open roll mill;
Video outgoing-inspection:	Provided;	Lubrication:	Automatic grease;
Year:	2020;	Warranty of core components:	3 years;
Brand Name:	ouli;	Port:	Qingdao port;
Power (kW):	55;	Voltage:	240-380 V,Required;
Power(W):	55KW;	roll:	chilled cast iron hardness HS 72;
Cooling Mode:	water;	Gear Reducer:	Hard-tooth Surface Gear Reducer;
Packaging Detail:	Package: standard export wooden case;

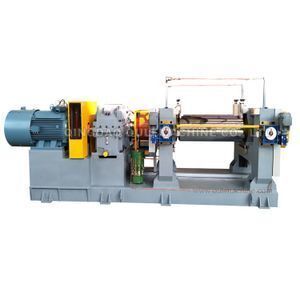

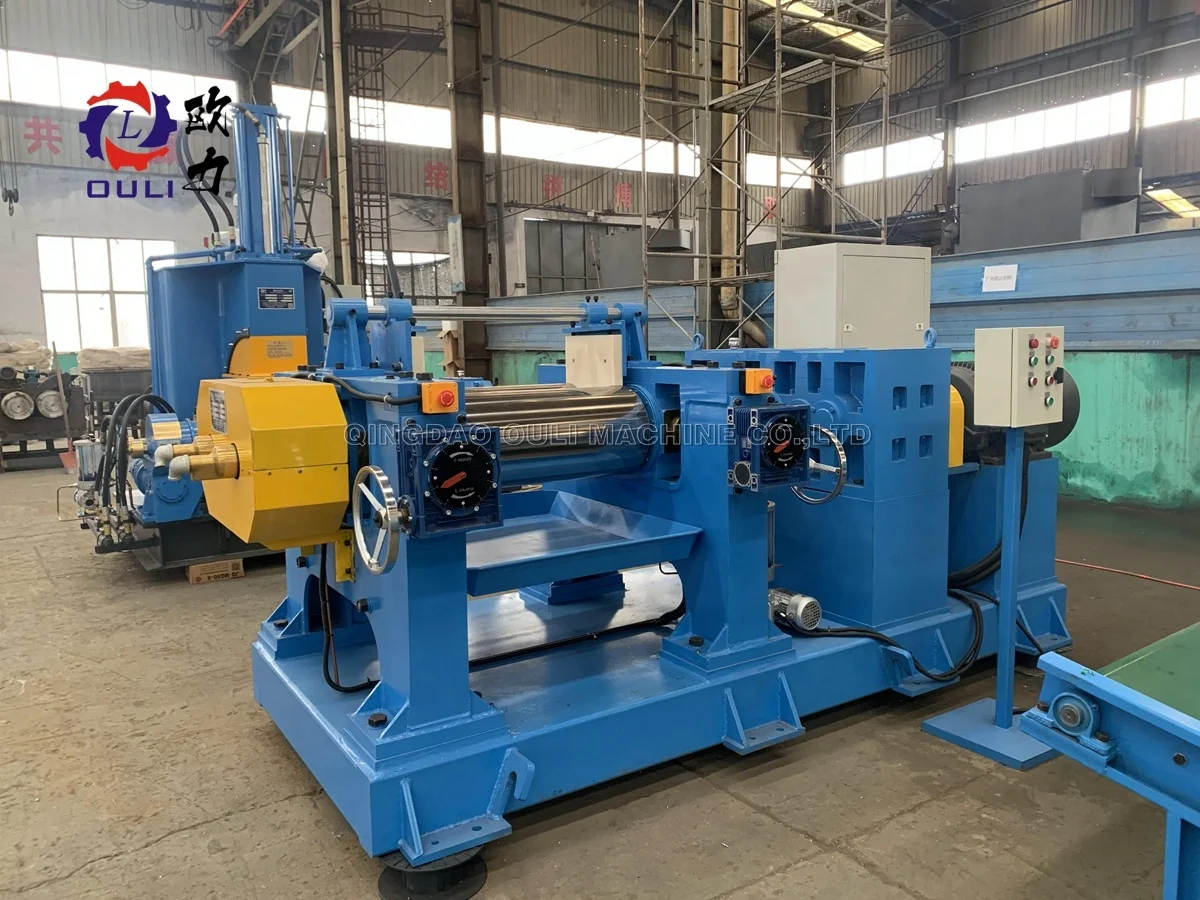

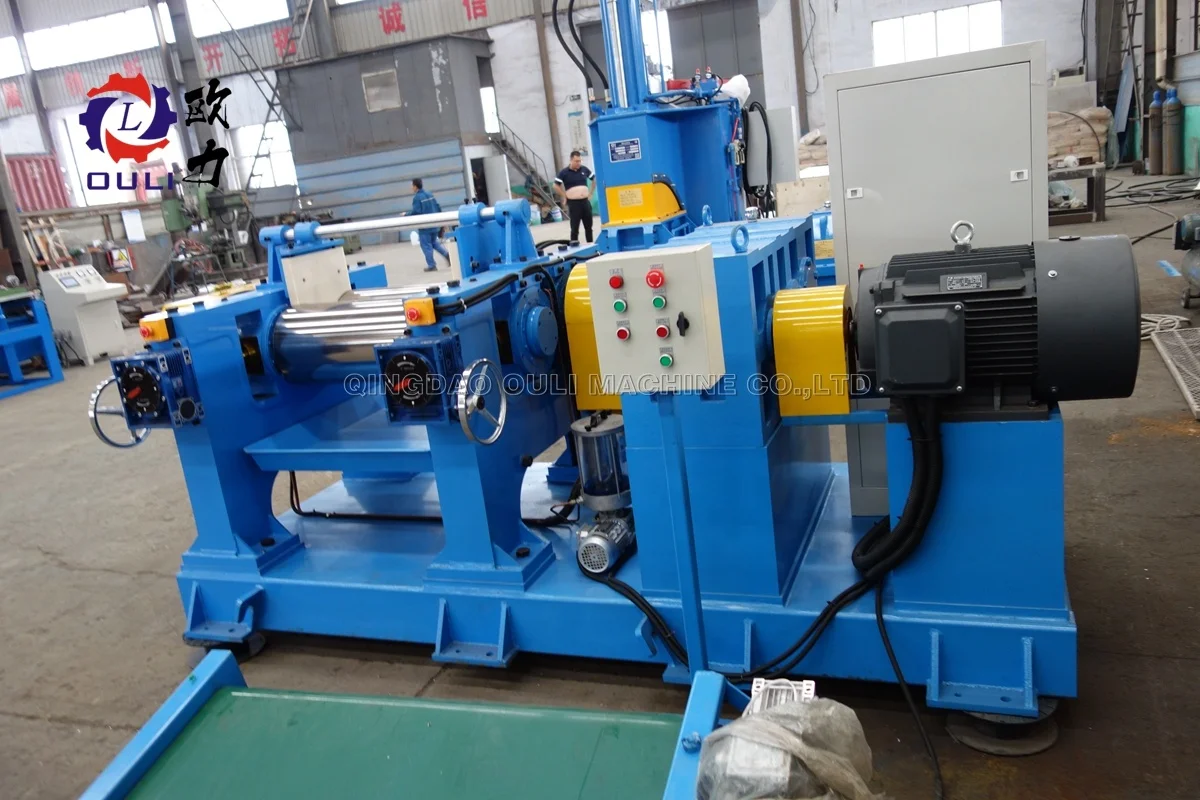

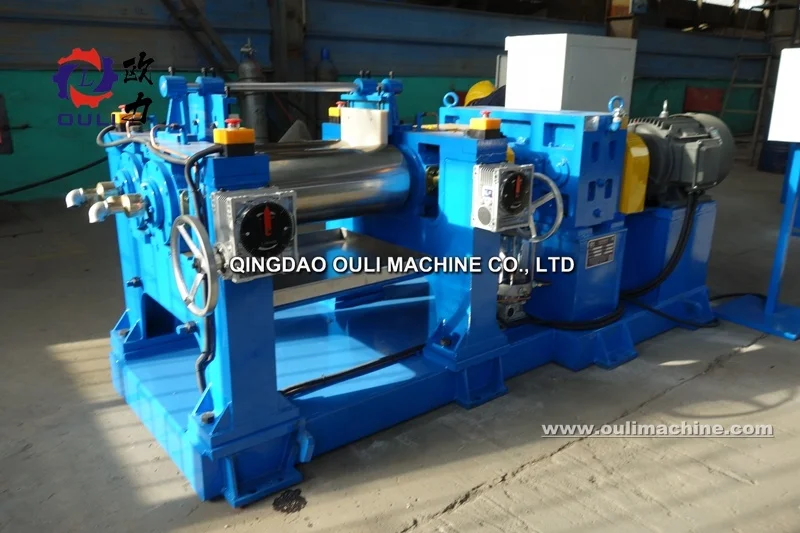

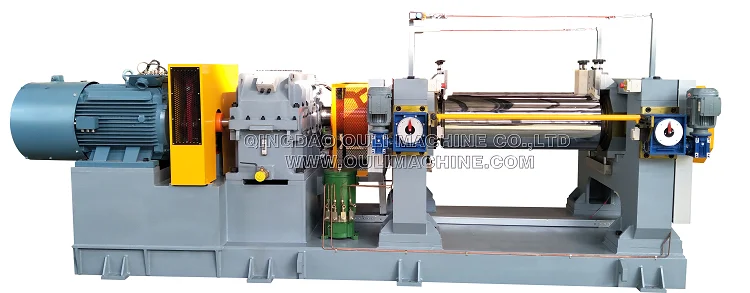

High Quality Factory Direct two roll open type rubber mixing mill from OULI COMPANY

Introduction :

MODEL: 22 INCH XK-560, Can be customized XK-160,230,250,300,360,400,450,510,550,560,610,660,710,810mm

Features :

1.The rubber two rolls mixing mill machine roll is made of chilled cast iron ,

including hollow roll and drilled roll in structure .The inner cavity of hollow roll is machined .The hollow roll surface is smooth and grooved .The grooved roll includes full grooved roll and half grooved roll etc

2.The rubber two rolls mixing mill machine roll is supported with roller bearing ,

so the energy is saved ,and the noise is reduced and is durable .

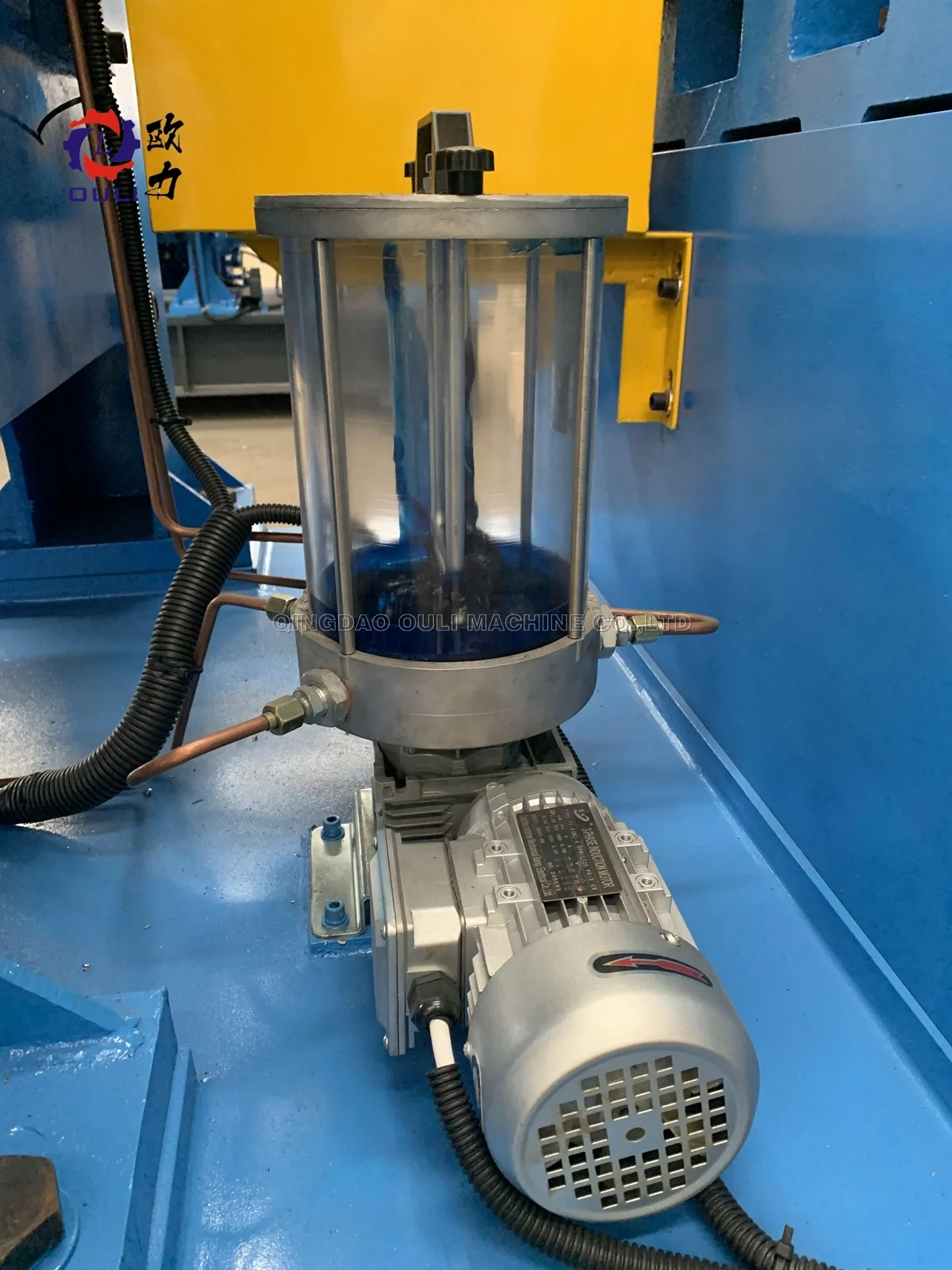

3. rubber two rolls mixing mill machine Lubricating mode includes grease and oil lubrication .

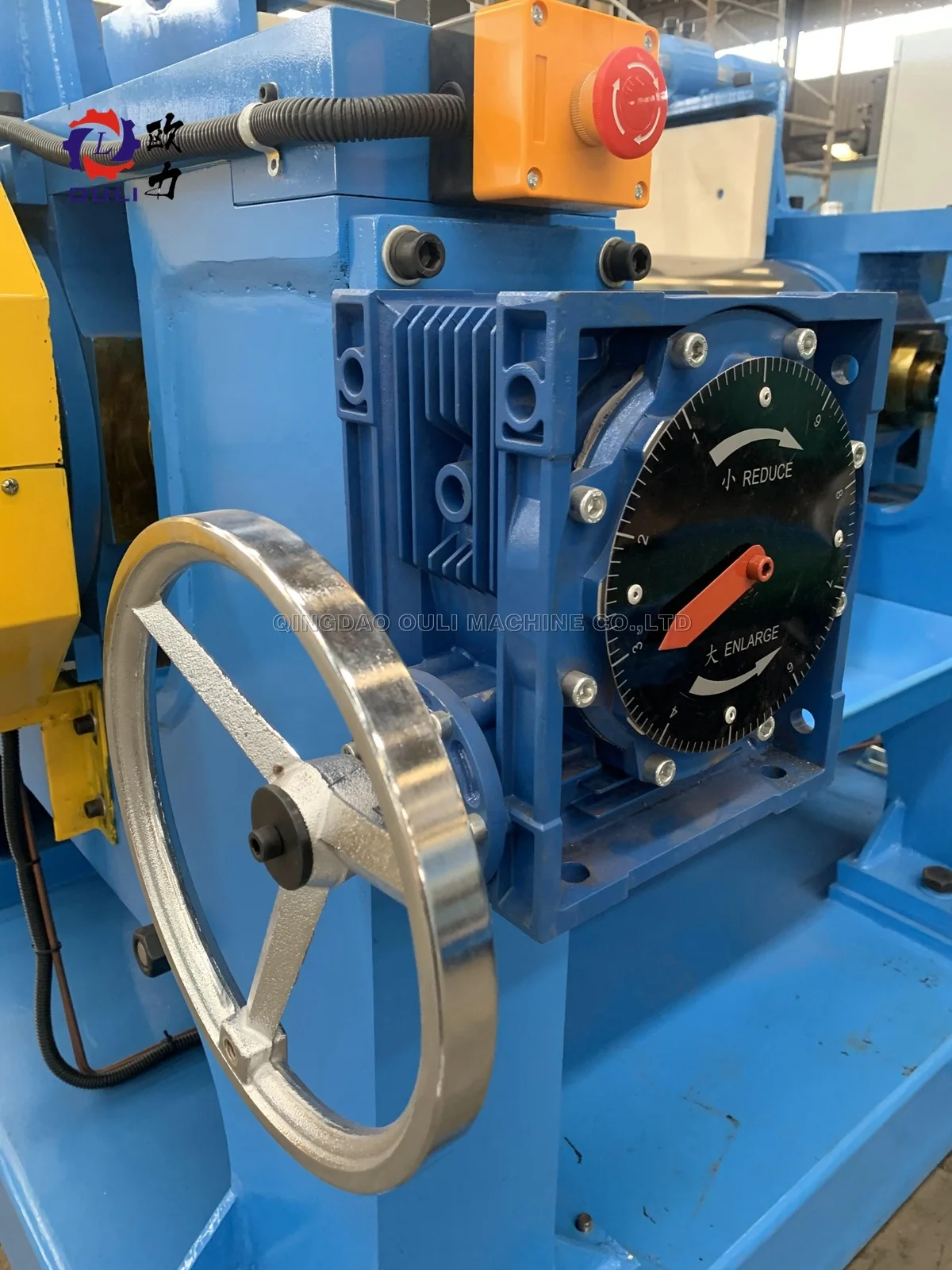

5.rubber two rolls mixing mill machine Roll nip adjustment includs manual adjustment ,

power adjustment and hydraulic adjustment . hydraulic adjustment can be automatically controlled ,having better safety protection preformance .

6. rubber two rolls mixing mill machine can be equipped with pressure sensor system

to directly display the working pressure to control the feed .In case of over load ,it can automatically stop at once ,and store and print the peak value .

7. User can select the stock blender according to the processing requirements

Parameter :

Parameter/model	XK-160	XK-250	XK-360	XK-400	XK-450	XK-560
Roll (mm)	160×320	250×620	360×900	400×1000	450×1200	560/510x1530
Capacity (kg/batch)	4	15	30	40	55	90
Front roll speed (m/min)	10	16.96	16.22	18.78	21.1	25.8
Roll speed ratio	0.000708449	0.000706944	0.000708565	0.000707986	0.000707986	0.000707986
Motor power (KW)	7.5	22	37	45	55	90/110
Weight (kg)	956	3150	6892	9500	12000	20000

Display

FAQ :

Q1:Why choose Us?

1.More than 20 years history of OULI MACHINE factory.

6-8 years foreign sales experience staff, more efficiency and professional.

Engineers oversea service more than 20 countries .

2.ISO:9001,CE,BV certification approval

3.Service timely, Promise to give solution within 12 hours,Guarantee customer trouble free.

4.Short delivery date, No delay. Accept urgent order for prompt shipment.

Q2:What about delivery date?

It will be according to the quantity of machines. Normally machines will be shipment within 20-30 days after get deposit, No delay.

Accept urgent order for prompt shipment.

Q3:What's the warranty statement?

OULI MACHINE warrants all the products manufactured by OULI MACHINE to free from defects in material and workmanship Under normal use of a period of 12 months or 36months after the date of the original purchase price if repair or replacement is not possible of practical, OULI MACHINE warranty covers ONLY the product itself.

OULI MACHINE will assume no liability for labor costs, installation costs, or other losses.

Your warranty rights will be honored

Only when the product has been installed and used properly as deemed by OULI MACHINE,OULIMACHINE will not repair products damaged by improper use or faulty installation.

Q4:What about OULI oversea service ?

OULI will arrange oversea setting up and training works if customer need .

Customer should pay for accommodation , tickets and salary .

Meanwhile OULI has branches in different areas like north America , Southeast Asia , Brazil etc , etc .
