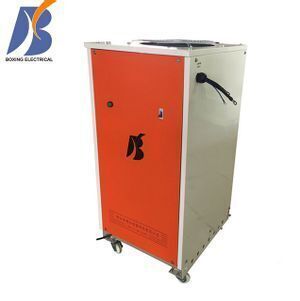

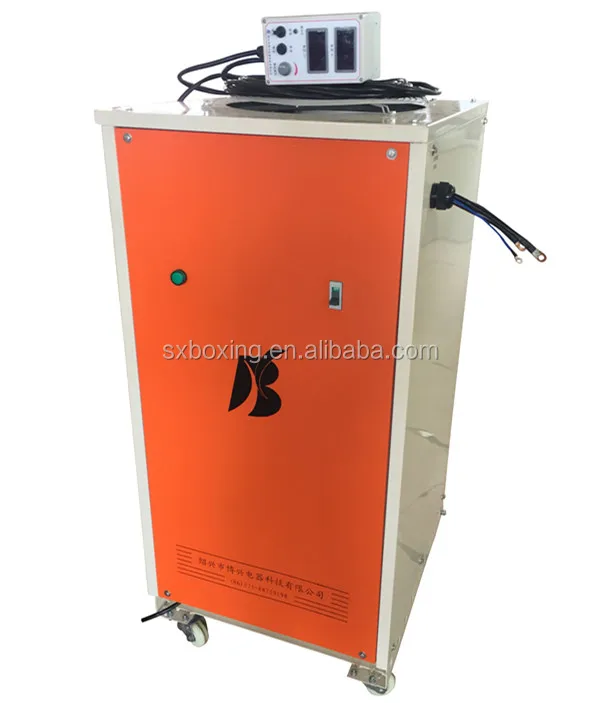

5000A 8V Zinc Plating Rectifier

Click here to contact

Product details

Input Voltage:	380VAC;	Package Type:	Wooden case;
Control Type:	Remote control;	Packaging Detail:	Wooden case exporting packing standard;
Supply Ability:	100 Unit/Units per Month;	Brand Name:	Boxing;
Place of Origin:	Zhejiang China;	Efficiency:	≥90%;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,Credit card;	Output Power:	40KW;
Ripple factor:	1%-2%;	Model Number:	GDF-5000A-8V;
Application:	Plating;	Package Preview:	;
Output Frequency:	50-60HZ;	Cooling Mode:	Air cooling;
Production cycle:	4-7 days;	Output Current:	0-5000A DC;
Port:	Ningbo or Shanghai port;	Output Voltage:	0-8V DC;
Module:	IGBT Module;	Warranty:	One year;
Mode:	Switching mode;

Input voltage	Single phase 220V AC (Three-phase four-wire) 380V,415V,440V,480V AC 50-60HZ
Output DC current	50-20000A Arbitrary choice, Output current can be adjusted
Output DC voltage	6V,12V,15V,18V,24V,36V Arbitrary choice , Output voltage can be adjusted
Voltage stability	≤1%
Current stability	≤1%
Ripple factor	1%-2%
Cooling Mode	Forced air cooled
Efficiency	≥90%
Workload	Full capacity operation, more than 1,000 meters above sea level, reduced load operation
Working condition	Ambient Temperature range -10 ℃ ~ 40 ℃,Less than 90% humidity(when ambient temperature is 20℃±5℃).
