Brand Name: | OUYAD; | Customized support: | Software reengineering; |
Weight: | 10KG; | Selling Units: | Single item; |
Single package size: | 60X40X24 cm; | Color: | Red,Green,Silver, blue; |
Certificate: | ISO,CE,ect.; | Battery voltage: | 5kw48V; |
Network: | NFC; | Output Frequency: | 50HZ/60HZ; |
Output Power: | 1 - 200KW; | Size: | 100 x 300x 440mm; |
Package Preview: | ; | Model Number: | HY5032VM II; |
Lead Time: | 7 days for sample; 25 days for bulk; | Type: | DC/AC Inverters,DC/AC Inverters; |
Place of Origin: | Guangdong China; | Single gross weight: | 12.0 KG; |
Capacity: | 5kw solar inverter; | Output Type: | Single; |
OEM: | SUPPORT; | Output Current: | 80A MPPT; |
Packaging Detail: | Carton box , size:600*400*240mm, 10KG/pc One 20GP container can load 800pcs One 40FT container can load 1650pcs one 40HQ container can load 1900pcs; | Output waveform: | Pure Sine Wave Solar Inverter; |
Frequency: | High frequency; | Warranty: | 12 months; |

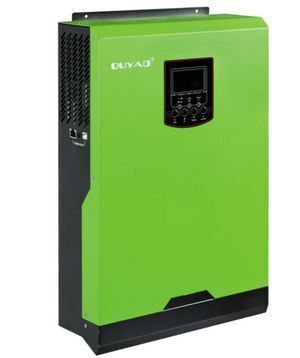

VMII Series 5KVA48V 80A hybrid solar inverter
Introduction:
VM II SERIES solar inverter is the perfect go-to solution for off-grid, backup power for homes , small business and it also delivers a value added , easy to install system that provides efficient power globally for every need
Features:
* High effciency pure sine wave inverter(PF=1);Wide PV input range (120V dc -500V dc) 80A MPPT SCC; Intelligent 3stage 80A AC battery charger.
* Surges to 2X continuous power for 5 seconds for motor loads.
* Intelligent functionality enables utility and solar input prioritization.
* Wide ulility input range (90Vac _280Vac) for unreliable grid even in the most challenging environments.
* Field serviceable with replacement boards and spare parts.
* Monitor, troubleshoot, or communication with USB/RS 232.
* System configures quickly into compact, wall-mounted system.
Specification:
Model |
HY3022VM II |
HY5032VM II |
RATED POWER |
3000VA / 3000W |
5000VA / 5000W |
230VAC |
||
Voltage |
230 VAC |
|
Selectable Voltage Range |
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliance) |
|
Frequency Range |
50 Hz/60 Hz (Auto sensing) |
|
OUTPUT |
||
AC Voltage Regulation (Batt. Mode) |
230 VAC ± 5% |
|
Surge Power |
6000VA |
10000VA |
Efficiency (Peak) |
90%~93% |
|
Transfer Time |
10 ms (For Personal Computers) ; 20 ms (For Home Appliances) |
|
Waveform |
Pure sine wave |
|
BATTERY |
||
Battery Voltage |
24 VDC |
48 VDC |
Floating Charge Voltage |
27 VDC |
54 VDC |
Overcharge Protection |
32 VDC |
63 VDC |
SOLAR CHARGER & AC CHARGER |
||
Max. PV Array Open Circuit Voltage |
500VDC |
500VDC |
Max. PV Array Power |
4000 W |
4000 W |
MPP Range @operating Voltage |
120~450VDC |
120~450VDC |
Max. Solar Charge Current |
80 A |
80 A |
Max. AC Charge Current |
60 A |
60 A |
Max. Charge Current |
80 A |
80 A |
PHYSICAL |
||
Dimension, D x W x H (mm) |
100 x 300x 440 |
|
Net Weight(kgs) |
9 |
10 |
Communication Interface |
USB/RS232 |
|
ENVIRONMENT |
||
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
|
Operating Temperature |
-10° C to 50° C |
|
Storage Temperature |
-15° C to 60° C |
Drawing:
Products Detail:
Package:
Project Case:
Production line:
Factory power &Certifications:
FAQ:
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 3days for sample 30pcs; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: Two year warranty
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
