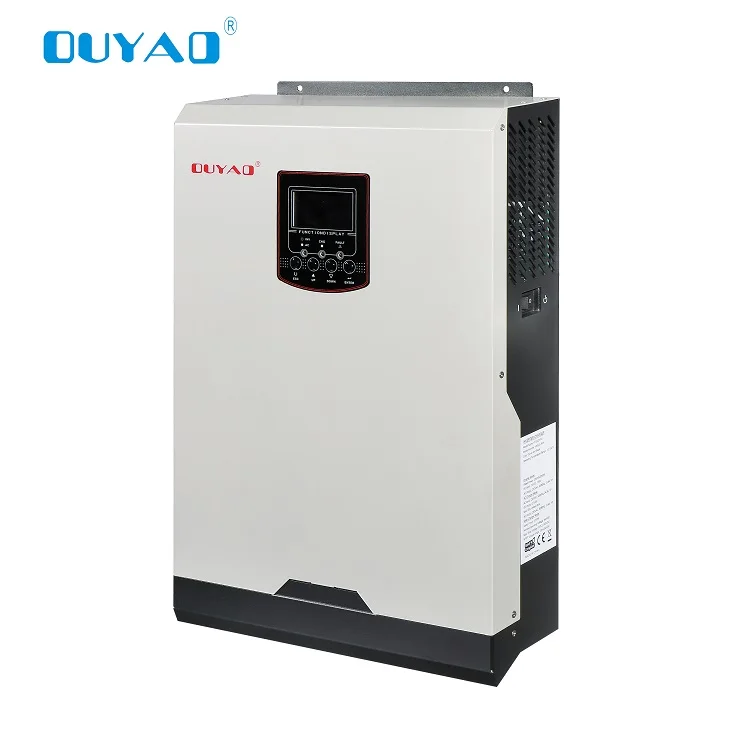

VMII Series 3.2KVA 5KVA 80A Off Grid Solar Power Inverter without battery working

Supplier: Foshan Ouyad Electronic Co., Ltd.
Region: Guangdong, China
Contact: Mr Ouyad Tan
Price: $320.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Name:	VMII Series 3KVA 5KVA Off Grid Solar Power Inverter;	OEM:	SUPPORT;
Output Frequency:	50HZ/60HZ;	Single gross weight:	13 KG;
Selling Units:	Single item;	Battery voltage:	24v/48v;
Size:	100 x 300x 440mm;	Output Voltage:	230V AC;
Output Type:	Single;	Output Current:	depends on load;
Input Voltage:	24VDC/ 230VAC;	Controller type:	80A MPPT;
Delivery Detail:	0 days after payment;	Output waveform:	Pure Sine Wave Solar Inverter;
Package Type:	Carton box;	Type:	DC/AC Inverters;
Model Number:	HY3222VM II HY5032VMII;	Single package size:	62X39X25 cm;
Warranty:	1 Year inverter;	Weight:	9KG;
Brand Name:	OUYAD;	Capacity:	3.2kw 5kw solar inverter;
Color:	Red,Green,Silver, blue;	Place of Origin:	Guangdong China (Mainland);
Frequency:	High frequency;	Package Preview:	https://sc02.alicdn.com/kf/HLB19pATO4TpK1RjSZR0q6zEwXXaX.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HLB1LpETO4TpK1RjSZR0762EwXXa6.png_640x640.png;
Lead Time:	7 days for sample; 25 days for bulk order.;

VMII Series 3.2KVA 5KVA 80A Off Grid Solar Power Inverter without battery working

Introduction:

VM II SERIES solar inverter is the perfect go-to solution for off-grid, backup power for homes , small business and it also delivers a value added , easy to install system that provides efficient power globally for every need

Features:

* High effciency pure sine wave inverter(PF=1);Wide PV input range (120V dc -500V dc) 80A MPPT SCC; Intelligent 3stage 80A AC battery charger.

* Surges to 2X continuous power for 5 seconds for motor loads.

* Intelligent functionality enables utility and solar input prioritization.

* Wide ulility input range (90Vac _280Vac) for unreliable grid even in the most challenging environments.

* Field serviceable with replacement boards and spare parts.

* Monitor, troubleshoot, or communication with USB/RS 232.

* System configures quickly into compact, wall-mounted system.

Specification:

Model	HY3222VM II	HY5032VM II
RATED POWER	3200VA / 3200W	5000VA / 5000W
230VAC
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliance)
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230 VAC ± 5%
Surge Power	6000VA	10000VA
Efficiency (Peak)	90%~93%
Transfer Time	10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	24 VDC	48 VDC
Floating Charge Voltage	27 VDC	54 VDC
Overcharge Protection	32 VDC	63 VDC
SOLAR CHARGER & AC CHARGER
Max. PV Array Open Circuit Voltage	500VDC	500VDC
Max. PV Array Power	4000 W	4000 W
MPP Range @operating Voltage	120~450VDC	120~450VDC
Max. Solar Charge Current	80 A	80 A
Max. AC Charge Current	60 A	60 A
Max. Charge Current	80 A	80 A
PHYSICAL
Dimension, D x W x H (mm)	100 x 300x 440
Net Weight(kgs)	9	10
Communication Interface	USB/RS232
ENVIRONMENT
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	-10° C to 50° C
Storage Temperature	-15° C to 60° C

Products Detail:

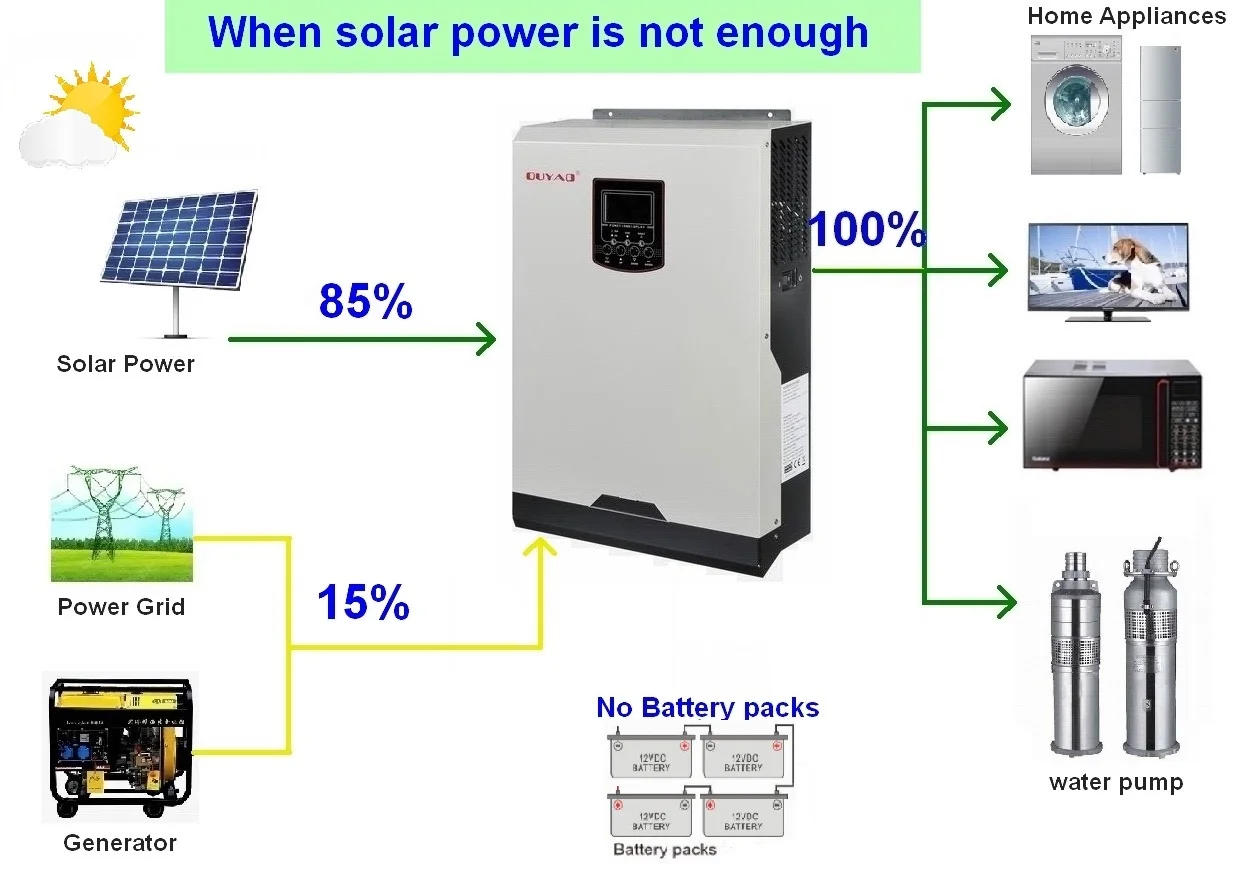

System Working Diagram

Package:

Project Case:

Production line:

Factory power &Certifications:

FAQ:

1, Why choose our company?

Our company had set up at 2007, have 11 years experience in inverter field.

In addition, we use alibaba platform for 11 years as superior supplier.

2, What qualifications and strengths does your company have?

Our company won the "Government authorized Hi-Tech Enterprise certificate " in November 2015(Remark: This is a national level comprehensive strength certificate).

3,What is your company's technology research and development capabilities?

Our company have a dedicated R&D department with 20 senior technicians.

Our company got the honor from Guangdong province department of science and technology as

“Guangdong province smart wind&solar hybrid power system engineering technology research center”( remark: This is a provincial-level technical research and development strength certificate)

4,What quality certification system did your products passed ?

Our products all passed ISO9001, CE, IEC,CQC Career Health and Safety Management System certificates.

5,How do you guarantee the quality of the product?

We provide 2 years warranty for the inverter, and provide 2% PCB board as spare parts.

In addition, for core distributors we will train technical maintenance personnel and provide free components and equipment to build service stations in the local area.

6,What is the goods lead time?

Inverter quantity less than 30pcs, lead time 3days; quantity more than 30pcs, lead time 25 calendar days.

7, If I want to be your distributor, what is the condition? What benefits and benefits can I get as your distributor?

When you can order more than 50,000 US dollars at a time, we can sign a distributor agreement with you. Being our distributor, we will give you a very favorable price (the specific price is determined according to the signing agreement); We can provide enough technical support, establish local service stations to provide repair equipment and components.
