50ml internal heating drilling fluid oil and water solid separating retort kit machine device for lab and field application

Supplier: Qingdao Haitongda Special Instrument Co., Ltd.
Region: Shandong, China
Contact: Ms Lily Wang
Price: $1378.00 / 1 - 19 sets
$824.00 / >=20 sets
Min. Order: 1 set

Click here to contact

Product details

Net weight / Gross weight:	7.44kg/8.04kg;	Heating method:	Internal heating;
Rated power:	170W;	Supply Ability:	1000 Set/Sets per Year;
Payment Terms:	T/T,Trade Assurance Order;	The distillation body capacity:	50±0.2ml;
Brand Name:	haitongda;	Port:	Qingdao, Tianjin, Shanghai, Shenzhen etc;
Product name:	drilling fluid oil and water solid separating retort kit machine;	Keywords:	Oil & Water Retorts;
Package Preview:	;	Customized support:	OEM,ODM;
Power supply:	220V±10%AC 50Hz;	Place of Origin:	Shandong China;
Warranty:	1 year or negotiable;	Certification:	CANS ISO etc;
Material:	stainless steel;	Packaging Detail:	Aluminum and Plastic Box Then Carton Dimensions 310280170mm Packing dimensions cardboard box 370290240mm;
Overall dimensions:	310280170mm;	Model Number:	ZNG-2 Retort Kit;
The recovery rate of the liquid:	≥98%;

50ml internal heating drilling fluid oil and water solid separating retort kit machine device for lab and field application

Product Description

The ZNG-2 drilling fluid Oil & Water Retorts is used to separate and determine the volume fraction of oil ,water ,and solids in a mud. The result is basic data in understanding solids concentration and component, viscosity of water-based drilling fluid, and filtration control. This apparatus features for simple structure and convenient operation. Easy to move and adjust the heating power, therefore, it is suitable for both lab and field application.

Type Specification

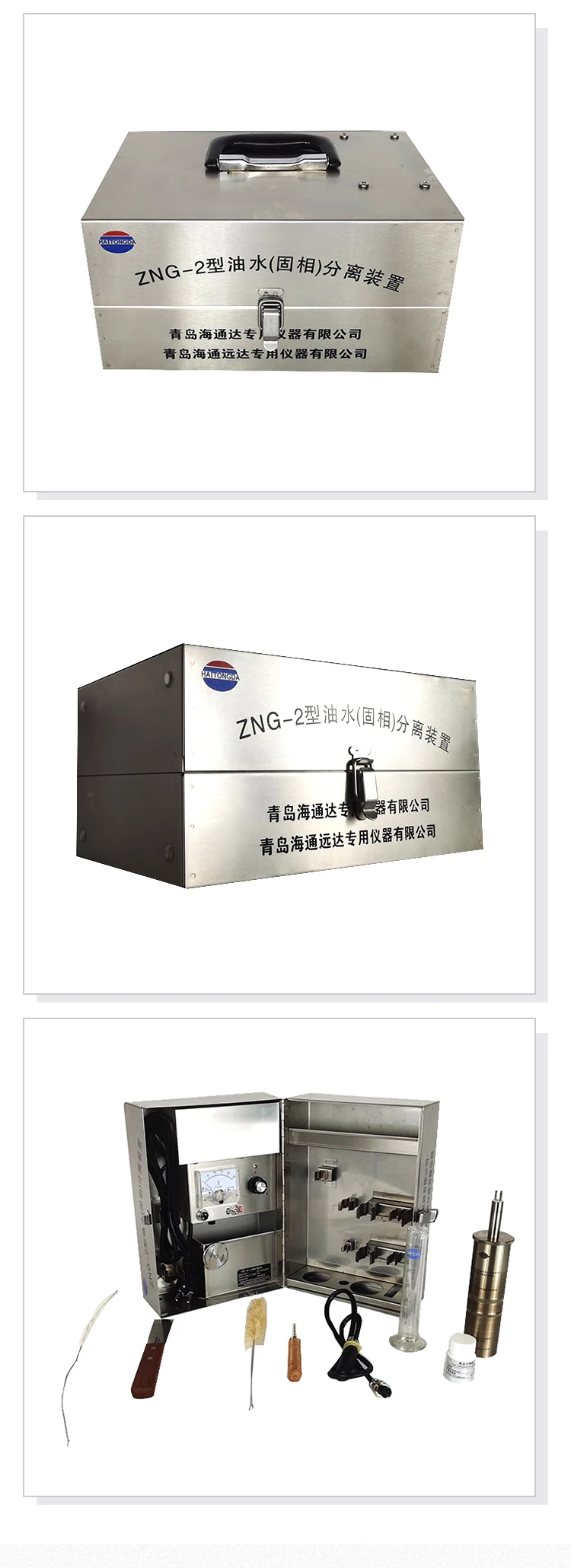

Detailed Images

No.	Technical Specification
1	Power supply	220V±10%AC 50Hz
2	Rated power	170W
3	Heating method	Internal heating
4	The distillation body capacity	50±0.2ml
5	The recovery rate of the liquid	≥98%
6	Net weight / Gross weight	7.44kg/8.04kg
7	Overall dimensions	310×280×170mm
8	Packing size	370×290×240mm

Oil & Water Retort model ZNG-2 is an instrument for separating and measuring the volume of water, oil and solid in water-based drilling fluid samples by distiller.

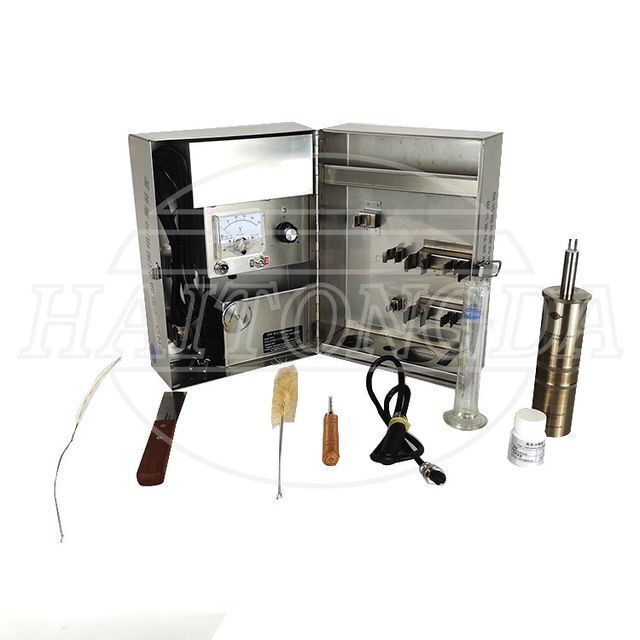

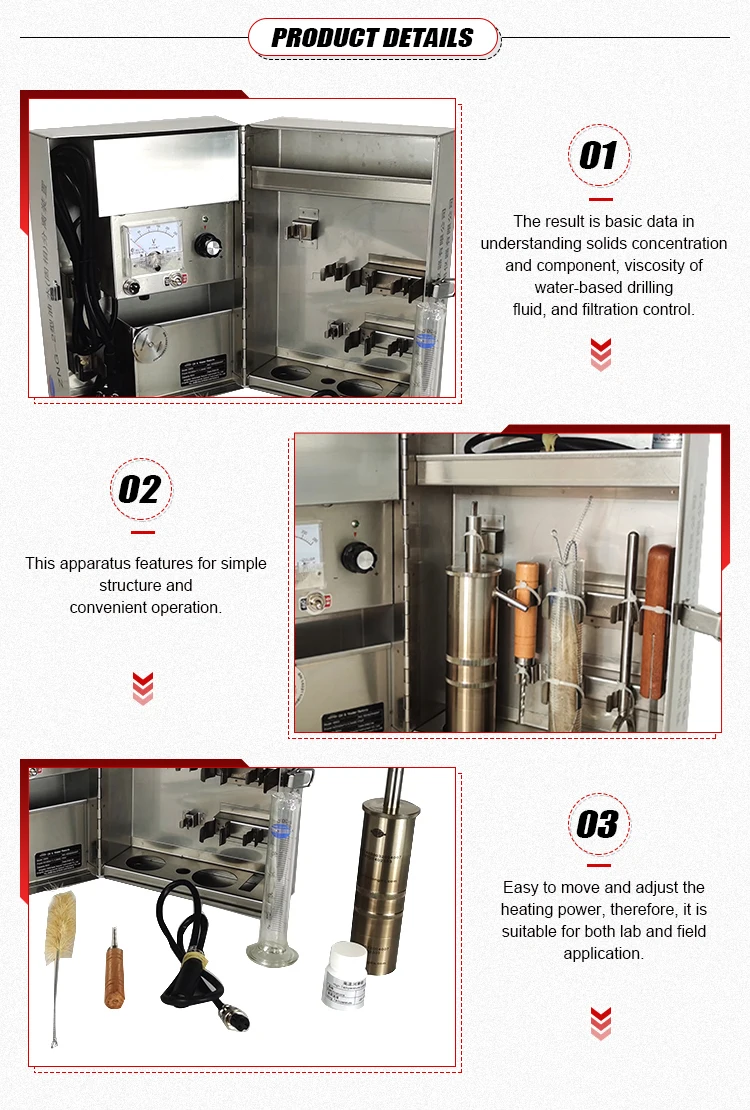

The instrument is mainly composed of box body, distiller, measuring cylinder, scraper, power cord, tube brush, cup holder, etc. This instrument adopts electronic device current control, heating temperature can be adjusted. It has characterize of high measurement precision, small repetition error, simple structure, convenient operation and carrying, large capacity distillation body and stainless steel shell, with good condensation effect and high liquid recovery rate.

This instrument is used to separate water, oil and solid components in drilling fluid samples, and determine their volume percentage of the drilling fluid. It heat a known volume of drilling fluid sample in the sample cup, evaporating the liquid components in a distiller, condenser to cool it, collecting in a graduated measuring cylinder, then obtain the contents of water, oil and solid components in the drilling fluid sample.

Related Products

Packing&Shipping

Aluminum and Plastic Box Then Carton

Dimensions 310*280*170mm

Packing dimensions cardboard box 370*290*240mm

Company Introduction

FAQ

Q1 : Are you a manufacturer or a trading company ?
A1: We are manufacturer.

Q2: What is your main brand?
A2: Our brand is Haitongda, which is famous in China and other nation. Also we do OEM.

Q3: What are your business scope and product classification?
A3:Business scope: mud analysis instrument, electronic products, special instrument, mold design and manufacturing; Instrument maintenance and sales; Import and export of goods and technologies.

Product classification: including drilling fluid analysis instrument, oil well cement testing instrument and field overall
solution, including 22 small categories and over 120 products.

Q4: What is your MOQ for the order?
A4: Testers per 1 set.

Q5: What is the warranty period of your instrument?
A5: One year.

Q6: Can I get better offer if our order can be bigger?
A6: Certainly. We will give you better prices based on the quantity for your order.

Q7:What certificate do you have for your instrument?
A7: ISO, SGS and so on

Q8: What is your lead time for our order?
A8: For new order: 3 weeks;

For stock order: 3 working days after T/T. Based on FOB Qingdao.

Q9: What is your advantage of your factory?
A9: We are the original oil ministry designated drilling fluid analysis equipment manufacturer in China, which was founded in 1968.

Q10: What is the process to become an agency?
A10: Please send us mail enquiry, then we will reply you as soon as possible.
