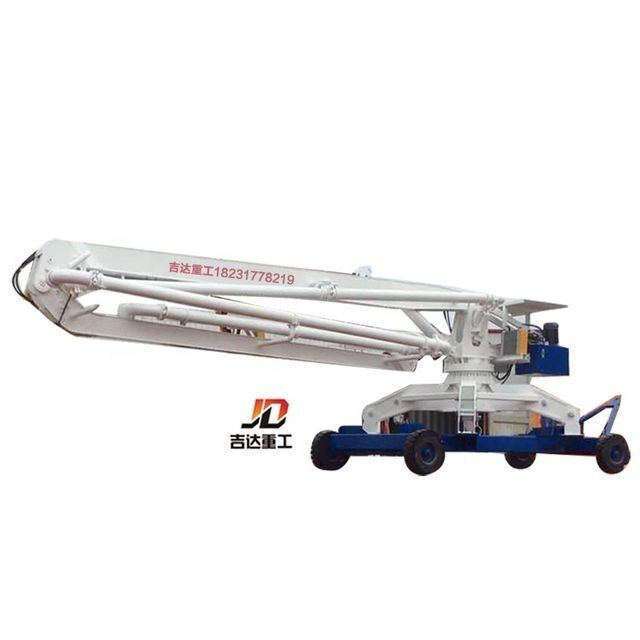

Factory supply High-Efficiency 15M Mobile Hydraulic spider Concrete placing boom for construction Concrete spreader

Product details
Certification:ISO9001;Applicable Industries:Building Material Shops,Construction works ;
Product Name:15m Wheels Walking;After-sales Service Provided:Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Online support;
After Warranty Service:Video technical support,Online support;Pressure of hydraulic system:24Mpa;
Packaging Detail:1. Export standard packing 2. Nude packing;Machinery Test Report:Not Available;
Video outgoing-inspection:Provided;Brand Name:Jida;
Core Components:Bearing;Port:Tianjin;
Marketing Type:Hot Product 2019;Warranty of core components:1 Year;
Showroom Location:None;Package Preview:;
Pipe Diameter:DN125;Local Service Location:None;
Max. placing radius:15M;Application:Concrete Transfer;
Payment Terms:T/T;Place of Origin:China;
UNIQUE SELLING POINT:Fully hydraulic system;Condition:New;
Warranty:1 Year;
Product Description

Wheel type mobile Concrete placing boom is a new product developed for enlarging the range of concrete pouring and improving the mechanization level of pumping construction.
Being corollary equipment of concrete pump, it increases the range of concrete pumping by connecting with concrete pump;
Also, in effectively solving the hard problem of material distribution in wall pouring, it plays an important role in increasing construction efficiency and reducing labor intensity.
This kind of concrete placing boom is reasonably designed, with stable and reliable structure, and the whole machine can be easily operated and flexibly turned due to its all direction and boom-type distributing structure, featuring character of high efficiency and energy-saving, as well as being economical and practical, etc.

SPECIFICATIONS FOR 15M Wheel type Mobile Hydraulic Placing boom

Length of Boom
1st Section
M
6.66
2nd Section
M
5.73
3rd Section
M
4.61

Articulation of Boom
1set Section
°
0~70
2nd Section
°
0~180
3rd Section
°
0~180

Main Parameters
Placing horizontal
M
15
End of Hose
M
3
Pipe Diameter
M
125

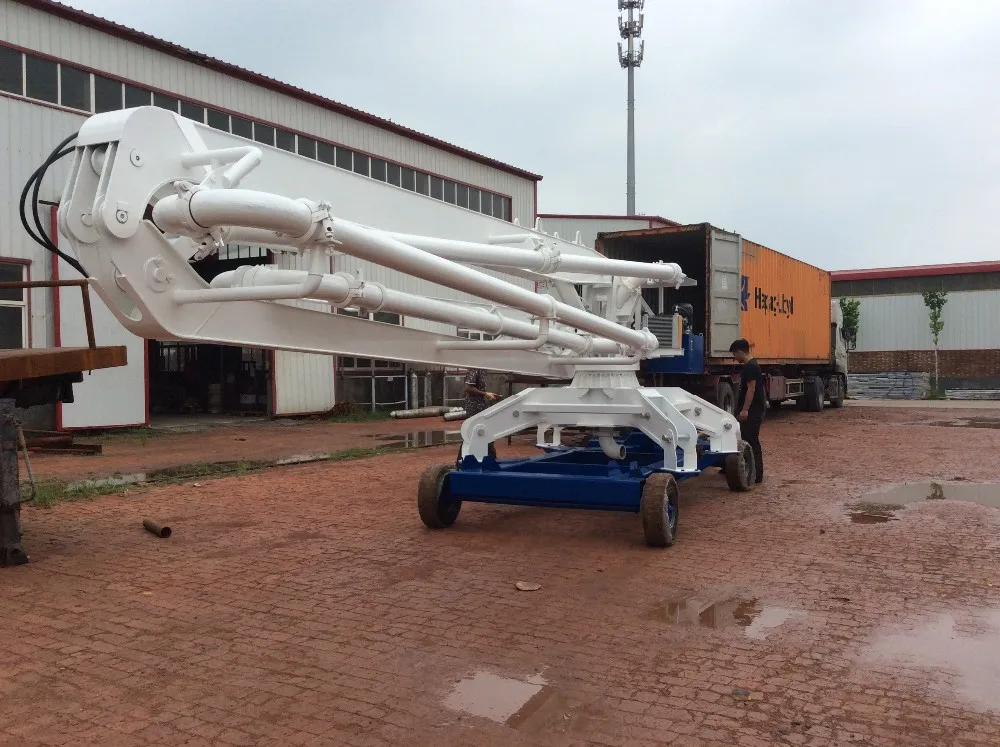

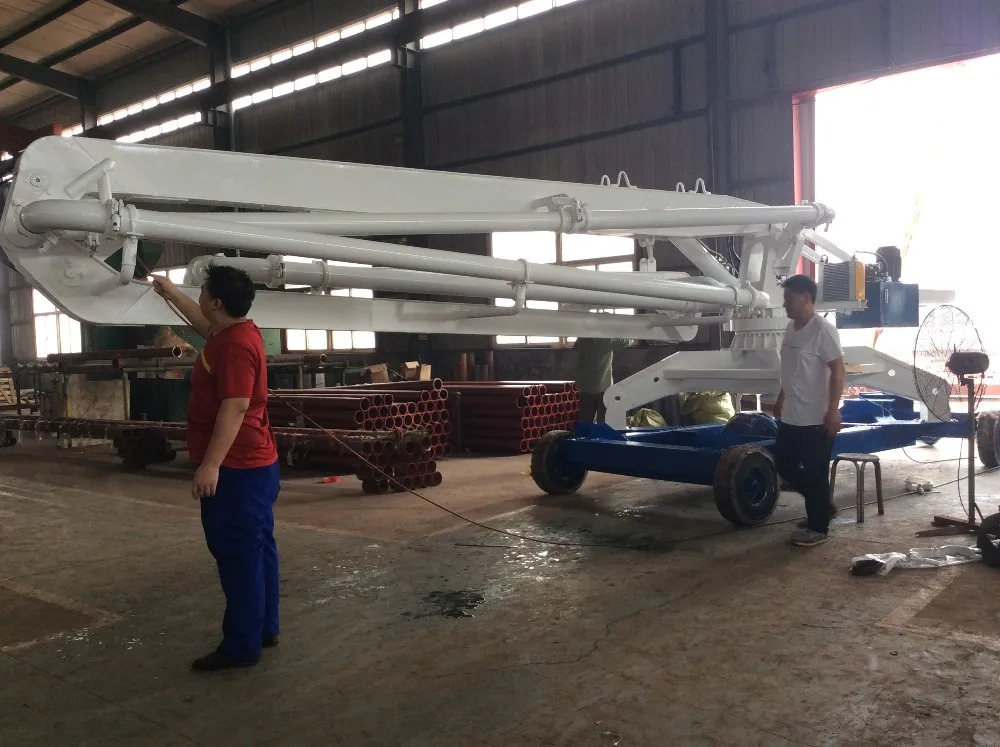

Detailed Images

Machine Parts

Name: Motor

Brand: JIDONG

Original: China


Main Features

Name: Main electrical parts
Brand: DELIXI
Original: China

Machine Parts

Name: Seal parts
Brand: American Parker
Original: U.S.A.

Our Company




Packing & Delivery
Packaging
Size
11500 (L) * 2650 (W) * 2300 (D)
Weight
6500kg



Packaging Details
The normal package is nude  packing. If container is too tigher,we will use pe film for packing or pack it according to customers special request.
