LAN: | 2*WGI211AT; | Packaging Detail: | Netural carton box; |
Display: | 1*HD OUTPUT; | Model Number: | NVR194PZ; |
Interface Type: | usb; | Brand Name: | YANYU GONGKONG; |
CPU: | J1900/2.00GHz Quad-core; | SATA: | 4*SATA; |
Product name: | J1900 nas ipfs mining nas computer; | USB: | 2*USB2.0, 1*USB3.0; |
Memory: | 1*SODIMM 1600/1333MHz,up to 8GB; | Certification: | ce,CCC; |
Color: | Silver; | Size: | 197mm*226.05mm*134mm; |
Products Status: | Stock; | Place of Origin: | Guangdong China; |
We are an Intel IoT Solutions Alliance Affiliate Member with professional R&D Team
16 years' manufacturing experience | OEM/ODM services | Exporting to the US and Europe
Intel IoT Solution Alliance Affiliate Member
Intel Intelligent System Alliance Member
ISO9001:2015 Quality Management Certified
ISO14001:2004 Environmental Management Certified
National High Tech Enterprice With Very Procssional R&D Team
ipfs mining Mini ITX Celeron J1900 Processor NAS mainboard Dual LAN 4 Bay NAS Storage Server NAS Barebone PC Computer
Features

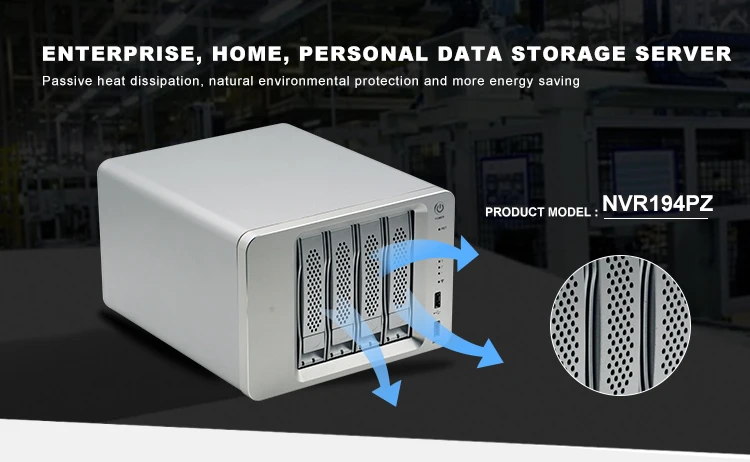

System fan heat dissipation structure, sheet metal material
Integrated Intel® Celeron J1900 quad-core four-thread processor
2* Intel® 211AT Gigabit LAN, support Wake on LAN/PXE function
1*SODIMM memory slot, support 1600/1333MHz DDR3L/1.35V memory, maximum support 8GB
Support 4 hot-swappable positions for 2.5-inch or 3.5-inch hard drives
A NAS system that integrates computers, routers, and set-top boxes, replacing traditional cloud disks, computers, routers, and set-top boxes
No. |
Model |
Processor |
Motherboard |
Memory |
HDD |
GPIO |
LAN |
COM |
HD OUTPUT |
VGA |
USB2.0 |
USB3.0 |
SIM |
power-input |
1 |
NVR194PZ |
J1900/2.00GHz |
NVR19 |
N/A |
N/A |
N/A |
2 |
N/A |
1 |
N/A |
3 |
1 |
N/A |
1U |
model |
NVR194PZ |
|
Case
|
Material/structure |
Sheet metal material, system fan cooling structure, |
colour |
Silver |
|

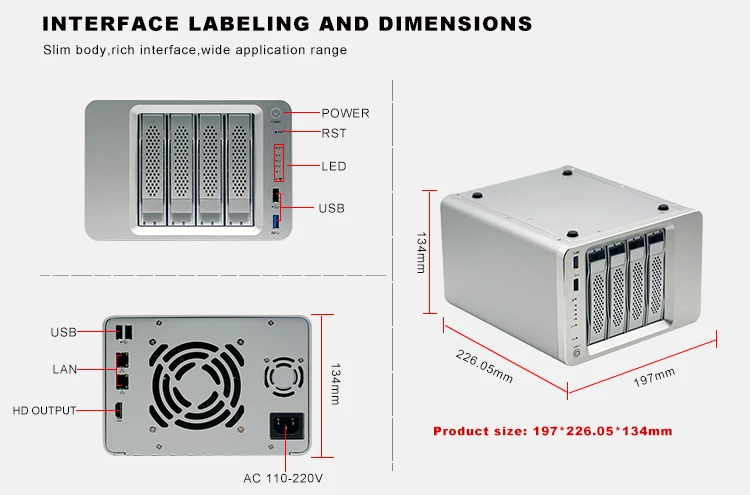

Dimensions (length, width, height) |
197mm*226.05mm*134mm |
|
installation |
Desktop |
|
Motherboard
|
CPU |
Integrated Intel®J1900/2.00GHz quad-core processor, TDP power consumption 10W |
System chip |
Based on Intel® Bay trail SOC platform |
|
display |
Integrated Intel®HD Graphics core graphics |
|
RAM |
1*SODIMM memory slot, support 1600/1333MHz DDR3L/1.35V memory, maximum support 8GB |
|
Front panel interface
|
POWER |
1*Power switch, 1*Reset switch |
led |
4* hard disk indicator, 1* power indicator, 1* network indicator |
|
Hard Disk Bit |
4*SATA hard disk |
|
USB |
1* USB2.0 interface, 1* USB3.0 interface |
|
Rear panel interface
|
Display interface |
1*HD OUTPUT interface |
LAN |
2* Intel WGI211AT Gigabit network card, support Wake on LAN, PXE function |
|
USB |
2* USB2.0 interface |
|
power supply |
1* AC power input interface |
|
storage
|
SATA |
4*2.5/3.5 inch hard disk |
Solid state drive |
1* MSATA SSD solid state drive expansion, SSD transmission speed up to 3Gbps |
|
Expand |
PCIE |
N/A |
software support
|
Microsoft Windows |
Windows 7/10, 64bit (without key) |
Linux |
Ubuntu |
|
Watch Dog |
Support hardware reset function (256 levels, 0~255 seconds) |
|
Power requirement
|
Power type |
External open power supply |
Voltage input |
AC 110~220V |
|
Power output |
AC TO DC, 60W |
|
surroundings |
Operating temperature |
-10℃~60℃ |
storage temperature |
-20℃~70℃ |
|
Relative humidity |
5%-95% relative humidity, non-condensing |
|
Job vibration |
0.5g rms/5-500HZ/random/operating |
