LAN: | 8* LAN (Intel 82574L, 1000/100/10Mbps); | Power: | 1* ATX Open PSU Interface; |
Fiber Port: | 4* SFP Port; | Memory: | 2* DDR3 1600/1333 MHz Max 16GB; |
Package Preview: | ; | VPN Support: | Yes; |
Dimensions(mm): | 430mm*360mm*44.5mm(L*W*H); | Model Number: | R870LZ-N,R870LZ-B,R170LZ; |
Name: | 8 LAN Firewall 4 SFP; | Certification: | ce,ccc; |
Display: | 1* VGA; | Products Status: | Stock; |
Place of Origin: | Guangdong China; | USB: | 2* USB 2.0; |
Throughput: | 1Gbps; | Packaging Detail: | Standard Carton Box; |
Type: | Wireless; | Storage: | 2* 2.5" HDD/1* 3.5"HDD, 1* MSATA SSD; |
Simultaneous Sessions: | Unlimited; | Payment Terms: | L/C,T/T,Western Union,MoneyGram; |
Supply Ability: | 5000 Piece/Pieces per Month; | Processor: | LGA1150 Intel Core i3/i5/i7; |
Brand Name: | YANYU GONGKONG; | Port: | Shenzhen; |
Intel IoT Solution Alliance Affiliate Member
Intel Intelligent System Alliance Member
ISO9001:2015 Quality Management Certified
ISO14001:2004 Environmental Management Certified
National High Tech Enterprise With Professional and Experienced R&D Team

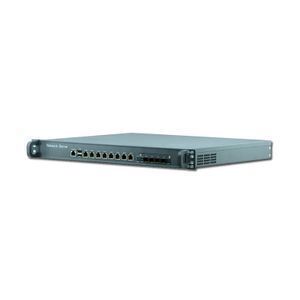

R870LZ 8 LAN Port 1U Network Appliance Firewall With 4 SFP 1000MPs Fiber Port Support LGA1150 i3 i5 i7
Features
Fan cooling fin structure
High quality galvanized steel plate, compact structure, flexible installation
Support LGA1150 4th gen Intel Core i7/i5/i3/Pentium/Celeron processor
1xVGA, 2xUSB2.0, 1xCOM
Adopt 82574L chipset,support 8* Gigabit Ethernet, 4* Intel 82580EB 1000Mbs fiber port
Dimension:430mm*360mm*44.5mm
Model No. | R870LZ-N | |
Chassis | Color | Black |
Dimension | 430mm*360mm*44.5mm | |
Structure | 1U Standard chassis | |
Material | High quality galvanized steel sheet | |
Installation | 1U standard rack mounting method | |
Motherboard | Model | H87SL_B |
Processor | Support LGA1150 Intel® Core® i3/i5/i7 processor | |
Chipset | Adopt Intel® H87 high speed chipset, compatible H81 series chipset | |
Graphics | Integrated Intel® HD Graphics 4000, support 1*VGA display output | |
Storage | Memory | 2* DDR3 memory slot, support 1600/1333MHz, max up to 16GB |

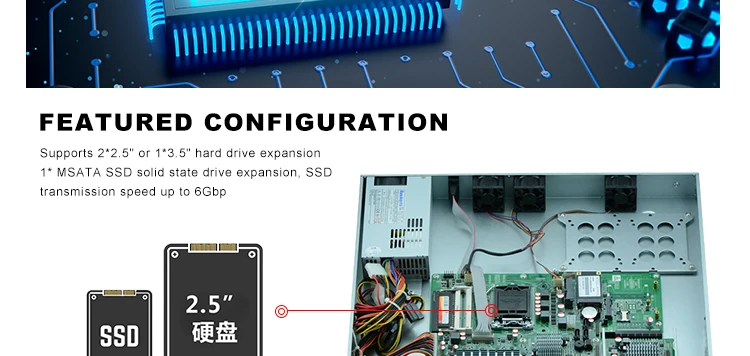

HDD | Support 2*2.5" / 1*3.5’ HDD expansion | |
CF | N/A | |
SSD | Support 1*MSATA SSD expansion | |
Audio | Sound Card | N/A |
Network | Ethernet |

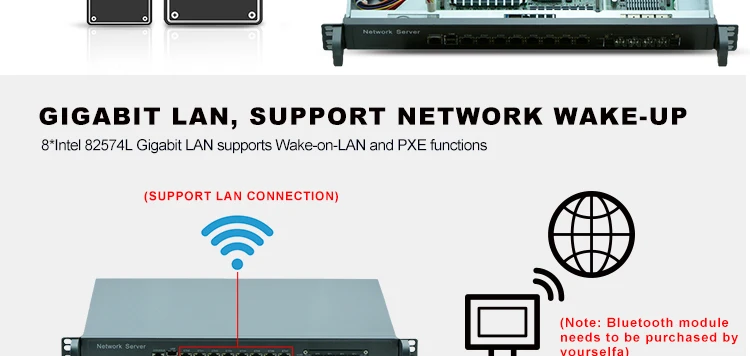

8* LAN (Intel 82574L, 1000/100/10Mbps) 4* Intel 82580EB 1000Mbps fiber interface / ethernet port |
WiFi | N/A | |
I/O Port | Serial Port | 1* CISCO standard RS232 serial port |
USB | 2* USB2.0 | |
LAN | 8* RJ45 Gigabit Ethernet Port | |
Expansion | 4* Fiber interface | |
Power Switch | 1*Power switch | |
LED | 1* HDD LED, 1* Power HDD, 4*Fiber Data LED, 4* Fiber Link LED | |
Display | 1* VGA display output | |
Power Supply | 1* ATX Power Interface | |
Power Supply | Input | AC 110V ~ 220V |
Output | AC 110V ~ 220V | |
Type | ATX power supply | |
Reliability | Operating Temp. | 0℃~45℃ |
Storage Temp. | -20℃~70℃ | |
Relative Humidity | 5%-95%, no condensing | |
Vibration | 0.5g rms/5-500HZ/random/operating | |
Operate System | Support Windows7, Windows8, Windows10, Linux |
Order Information
No. | Model | CPU structure | Processor | Motherboard | Memory | SSD | LAN | Optical Port | COM | USB | Power Supply | System |
1 | R870LZ-N | LGA1150 | / | H87SL | / | / | 8*82574L | 4*82580EB | 1 | 2 | 220W | / |
2 | R870LZ-B | LGA1150 | / | H87SL_B | / | / | 8*82574L | 4*82580EB | 1 | 2 | 220W | / |
3 | R170LZ | LGA1151 | / |
H17SL |
/ | / |
8* WGI211AT |
4*82580EB | 1 | 2 | 220W | / |
