storage: | 8G/16G/32G/64G/128G SSD; | LAN: | 6*Intel 1000M LAN; |
Packaging Detail: | Each in a neutral box; | Warranty: | 3 Years; |
Simultaneous Sessions: | 8000000; | Single gross weight: | 8.0 KG; |
Certification: | FCC,ce,RoHS; | SFP: | 4 Gigabit SFP; |
Brand Name: | YANYUGONGKONG; | Package Preview: | ; |
Place of Origin: | Guangdong China; | Products Status: | Stock; |
OS: | Linux/Win XP/Win7/Win8/Win10/PFSense; | Type: | Wired & Wireless; |
VPN Support: | yes; | CPU: | Core I3 I5 I7 Optional; |
Dimension (W*D*H, mm): | 430mm*360mm*44.5mm; | Single package size: | 45X38X5 cm; |
Selling Units: | Single item; | Throughput: | 1Gbps; |
Key word: | firewall hardware barebone; | Memory: | 2G/4G/8G; |
Power supply: | ATX Power; | Model Number: | R870LZ-N,R870LZ-B; |
No. |
Model |
Processor |
Motherboard |
Memory |
BYPASS |
LAN |
COM |
HD-MI |
VGA |
USB2.0 |
USB3.0 |
fiber optic |
power-input |
1 |
R870LZ-N |
LGA1150 |
H87SL |
2* SO DDR3 |
2 |
8*82574L |
1 |
/ |
1 |
2 |
/ |
4 |
1U |
2 |
R870LZ-B |
LGA1150 |
H87SL_B |
2* SO DDR3 |
2 |
8* WGI211AT |
1 |
/ |
1 |
2 |
/ |
4 |
1U |
Chassis |
Colour |
Silver black |
Dimension |
430mm*360mm*44.5mm(L*W*H) |
|
Structure |
1U standard Chassis |
|
material |
High quality galvanized steel sheet |
|
Motherboard |
Model |
H87SL_B |
Processor |
Support LGA1150 Intel® Core™ i3/i5/i7 processor |
|
Graphics |
Integrated Intel®HD Graphics |
|
Memory |
1* 2GB/DDR3/1.35V memory,up to 16GB |
|
Storage |
HDD |
Support 2*2.5 inch or 1*3.5 inch HDD expansion |
CF |
N/A |
|
SSD |
Support 1*MSATA SSD expansion,standard configuration16G |
|
system features |
LAN |
8* LAN(Intel 82574L, 1000/100/10Mbps) 4* Intel 82580EB 1000Mbps Fiber port/electric port |
USB |
2* USB2.0 |
|
Serial port |
1* COM serial port |
|
display |
1* VGA display output |
|
Audio |
N/A |
|
Expansion slots |
2* MINIPCIE(1* MSATA,1* Mini-PCIE) |
|
Indicator |
Power LED/HDD LED |
|
system control |
System switch and AC power interface |
|
Antenna |
N/A |
|
Power |
Power |
AC 220V |
Reliability |
Installation |
1U standard rack mounting method |
Operating Temp. |
0℃~45℃ |
|
Storage Temp. |
-20℃~70℃ |
|
Relative humidity |
5%-95%, no condensing |
|
Vibration |
0.5g rms/5-500HZ/random/operating |

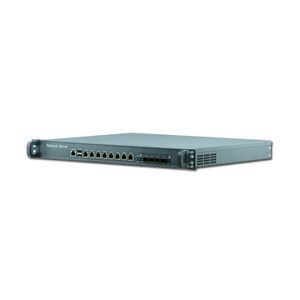

♦ 1U standard Chassis
♦ High quality galvanized steel sheet
♦ Adopt Intel LGA1150 series processor
♦ 1xVGA ,2xUSB2.0,1xCOM
♦ Adopt Intel 825874L chipset,support 8* Gigabit Ethernet
♦ Dimension:430mm*360mm*44.5mm
YANYUGONGKONG(HANZSUNG)
MEMBER OF INTEL® INTELLIGENTSYSTEMS ALLIANCE, is a R&D and manufacturing technology-innovation enterprise specialized in Industrial Motherboards and embedded products.
Our products include:mini-itx motherboard,all-in-one motherboard, 3.5'' industrial motherboard,
firewall motherboard, NVR&industrial motherboard, Mini PC , HTPC,All-in-one PC,
Embedded PC ,Vehicle computers,Cloud Terminal,Networking Security,OPS Mini PC
Computer,OEM / ODM available.
1. As a professional manufacturer/ OEM Factory and supplier of mini pc/ motherboard,firewall appliance over 11 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 3years maintenance warranty for our products.
Q1: Can you put my brand name (logo) on these products
A1: Yes,.We can support OEM/ODM service, the process of customization is following:
1:provide your specific requirement. 2:our design engineer draw the design draft.
3:you confirm the design draft. 4.we start produce it.
Q2: What payment method do you accept?
A2: T/T,Western Union,PayPal.
Q3: What is the Minimum Order Quantity(MOQ)?
A3: We can sell one piece sample for your test.
Q4: What is the lead time of your products?
A4: 1-3 days for one sample, 15 working days for a large quantity.
Q5: Will it be ok to run the device 24 hrs a day 7 days a week, just like a desktop pc? will it be overheated?
A5: There's no problem with running the device 24/7. I've done it for about a month and have had no problems. Just set your monitor to sleep when you're not using the computer.
Q6: How does your factory do related quality control?
A6: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.
Q7: What’s the warranty of motherboard or MINI PC?
A7: Non-artificial damage,1 years warranty,the second year and the third year,
we can repair it free. but we will charge for the parts that need to change.
Q8: Are you a factory or trading company?
A8: We are the professional consumer electronics manufacturer which located in SHENZHEN, China
Q9: If we come to China, can you arrange the visiting to your factory?
A9: We warmly welcome and look forward to your visiting to our factory at any time.
