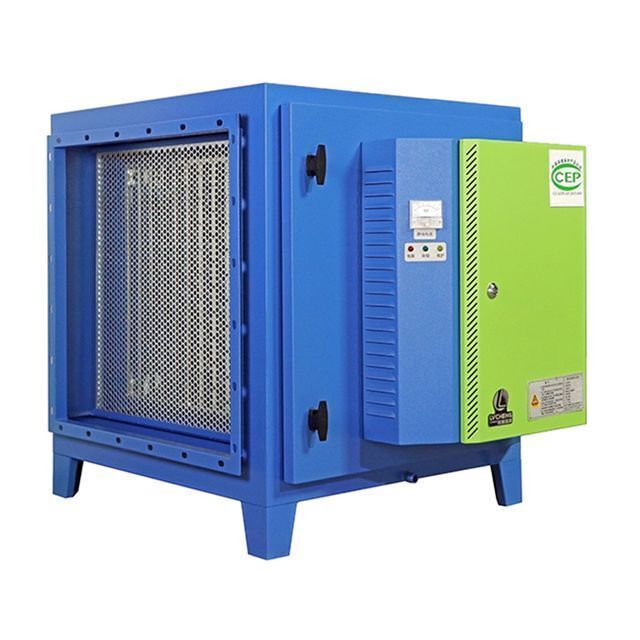

Gas Disposal Machinery restaurant kitchen exhaust smoke filter coffee roaster ESP electrostatic precipitator

Product details
Packaging Detail:plywood crate with polyfoam lining, packing by wooden box.;Video outgoing-inspection:Provided;
Showroom Location:None;Single gross weight:138.0 KG;
Purify Efficiency:90%-95%;Warranty:1 Year;
Applicable Industries:Hotels,Food & Beverage Factory,Restaurant,Food & Beverage Shops,coffee roaster;Package Preview:;
Air flow:4000m3/h;Place of Origin:Guangxi China;
After Warranty Service:Online support;Weight:80kg;
Single package size:90X89X97 cm;OEM:Acceptable;
emission way:100% low altitude emission;Selling Units:Single item;
Core Components:power supply;Odor Removal Rate:80%;
Warranty of core components:1 Year;Marketing Type:Hot Product 2019;
Condition:New;Power:380W;
Power supply:Intelligent High-voltage Power Supply;After-sales Service Provided:Online support;
Local Service Location:None;Purified Rate:90%;
Brand Name:LVCHENG;Weight (KG):80;
Certification:CE ISO9001;Machinery Test Report:Provided;
Size:848*840*840mm;
Product Description

Description

Our electrostatic recipitator is used to purify the commercial kitchen cooking & grilling fume grease with advanced electrostatic precipitator technology.

After using it, the fume can be effectively removed with over 98% purification efficiency. No smoke can be seen at the outlet. Most of odor can also be removed.

It is widely used in the kitchens of hotels, restaurants, enterprises and universities.

Installation Instructions
How to choose the model I need?
Air Flow is the key !
★1: Check the air flow of exhaust fan, then choose an ESP device larger than that.
For example, the exhaust fan is 7000CMH, then you will need ESP device of 8000CMH.

★2 : Check the covering area of range hood, then do the math. Usually 1-meter-long range hood requires 2000CMH to 2500CMH air flow.
For example, Ana's range hood is 1.2m in width and 2m in length, then she will need an ESP of 4000CMH.

Where to install my ESP device?
Cubic ESP device can be installed anywhere between range hood and exhaust fan.

For fire safety, we strongly suggest you put a fire damper after ESP device.

How often should I do the maintenance?
The maintenance is mainly about to clean the honeycomb structure fume collectors.

We suggest the user shall clean the cells every 4-6 weeks. Or whenever the maintenance light lights up.

【Specification】

Cubic ESP - Series A

90% smoke purifying rate

80% odor purifying rate

Windage: 150 Pa

Outlet position: low altitude discharging available

Material of Housing: cold rolled steel with electrostatic coating

Material of Fume Collectors: galvanized iron sheet

Certification: ISO, CE, Chinese national technology patents.

No.
Model
Air flow
(M3/Hr)
Volume
L*W*H
(mm)
flanged
(inner)
A1*B1
Power
(w)
Net
Weight
(kg)
1
LCA-4A
4000
848
*840
*840
479
*566
380
80
2
LCA-6A
6000
848
*1020
*920
657
*643
530
100
3
LCA-8A
8000
848
*1400
*860
998
*586
600
110
4
LCA-10A
10000
848
*1325
*1040
922
*764
700
125
5
LCA-14A
14000
848
*1550
*1040
1150
*764
760
150
6
LCA-16A
16000
848
*1550
*1140
1152
*863
920
160
7
LCA-18A
18000
848
*1380
*1455
980
*1177
1060
190
8
LCA-20A
20000
848
*1440
*1455
1040
*1171
1200
220
9
LCA-24A
24000
848
*1555
*1455
1152
*1177
1300
270
10
LCA-30A
30000
848
*1600
*1605
1197
*1330
1400
320
11
LCA-36A
36000
848
*1795
*1605
1394
*1330
1520
375
12
LCA-40A
40000
848
*1995
*1605
1592
*1330
1630
410
13
LCA-48A
48000
848
*2175
*1615
1774
*1342
1690
460
14
LCA-56A
56000
848
*2375
*1615
1972
*1340
1720
470
15
LCA-62A
62000
848
*2210
*1860
1807
*1582
1800
520
16
LCA-70A
70000
848
*2210
*2055
1807
*1780
2100
570
Our Advantages

Unique patented technology:

Intelligent power control system

automatically adapt to the working conditions
overload protection
short-circuit protection
no-load protection

3D structure transformer
low temperature rise & long service life

Honeycomb structure smoke collector

excellent rigidity

not easily deformed

powerful blue tip discharge makes high efficiency

ionize and decompose most of odor

Unique patented technology:

Cathode needle fixed at both ends

Stabilize the equipment

prolong the life cycle of the smoke collector,

reduce cleaning and maintenance work.

Modular design

Most parts can be quickly disassembled on site for easy installation and maintenance.

Related Products
Marks
1. Oil mist
2. Airflow divider pre-filter
3. Electric field area
4. Anode Tube (honeycomb structure collector)
5. Cathode needle
6. Ceramic insulator
7. Clean air
8. Fume and dust particles will get negatively charged within 0.01second and attracted to the tube collectors instantly, while the purified exhaust gas comes out clean.
Manufacturing Technique
Certifications
Exhibition
FAQ

1. Q: What is the material of your equipment?
A: In order to guarantee quality,We use A3 steel sheet to make machine cover. The electrostatic honeycomb is made from all stainless steel. This honeycomb technology is owned by only a few companies in China.

2.Q: How does your factory do regarding quality control?
A:We value quality as highly as you do. We have CE certification and ISO9001 certification which is the most authoritative certificate of quality inspection in China.

3. Q:Are you a factory or trading company?

A: We are the professional manufacturer,our team has committed to the electrostatic precipitator business for more than 10 years. We sincerely welcome you visit our factory at any time.

We located in Nanning City, Guangxi Province, China.


4.Q:Can you offer the OEM for us?
A:We welcome you to be our OEM client and we are willing to discuss all the details and requirements with you before we issue a formal plan.

5. Q:What is your minimum order quantity?
A:We welcome one-unit trial.
We believe that trying a small order then making a big decision is a necessary step before we build up a long term cooperation.

6.Q:Why choose you?

A: Our technical team will be a great backbone in every project, from the very beginning to after-sale service.
Our self-developed intelligent power supply can make sure operation steady with high security.
It can help to save the maintenance cost and time with long service life, maximizing the expectant benefits.
