high frequency intelligent power supply electrostatic precipitator

Supplier: Nanning Lvcheng Environmental Protection Equipment Co., Ltd.
Region: Guangxi, China
Contact: Ms Judy Ke
Price: $600.00 / 4 - 11 units
$550.00 / >=12 units
Min. Order: 4 units

Click here to contact

Product details

Payment Terms:	Western Union,T/T;	Core Components:	Circuit board;
Showroom Location:	None;	Local Service Location:	None;
After-sales Service Provided:	Online support;	Condition:	New;
Warranty of core components:	1 Year;	Applicable Industries:	Hotels,Machinery Repair Shops,Food & Beverage Factory,Restaurant,Food Shop,Printing Shops,Food & Beverage Shops,Advertising Company;
Weight:	6-10kg;	Supply Ability:	300 Unit/Units per Month;
Packaging Detail:	Plywood case Package;	Brand Name:	LVCHENG;
Marketing Type:	New Product 2020;	Package Preview:	;
Machinery Test Report:	Provided;	Port:	Guangzhou, Shenzhen, Fangcheng, Shanghai;
Warranty:	1 Year;	Size:	234x148x360mm;
Emission way:	100% low altitude emission;	After Warranty Service:	Online support;
Video outgoing-inspection:	Provided;	Place of Origin:	Guangxi China;

Product Description

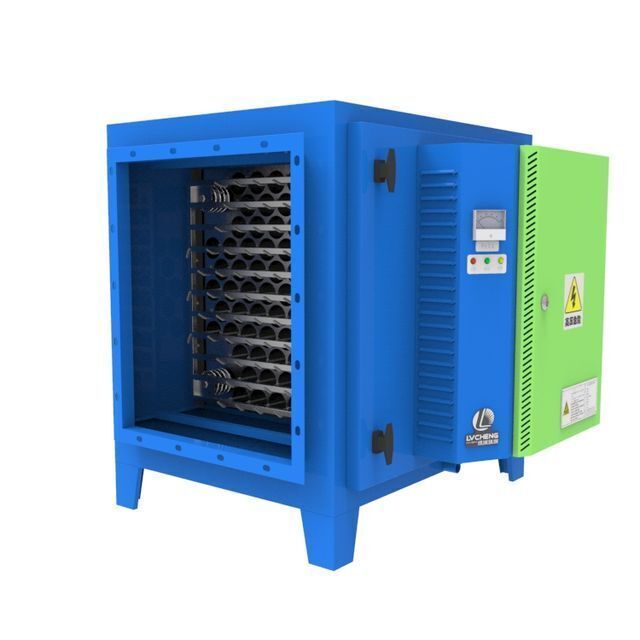

What is ESP?

· An electrostatic precipitator is a type of filter (dry scrubber) that uses static electricity to remove grease and smoke from exhaust fumes before it exit from the ventilation system.

· Engineers build up a honeycomb structure electric filed which is charged with a high voltage. Smoke particles pick up a charge when they pass the charged electrodes.

· Then the charged smoke particles are attracted to oppositely charged collecting cylinders.

As a result, at least 90% of smoke will be removed！

No smoke will be seen from outlet.

Applications

Advantage I

Our advantages

Unique patented technology:

Intelligent power control system

automatically adapt to the working conditions
overload protection
short-circuit protection
no-load protection
safe and reliable

3D structure transformer
low temperature rise
long service life

Honeycomb structure smoke collector

excellent rigidity

not easily deformed

powerful blue tip discharge makes high efficiency

ionize and decompose most of odor

Unique patented technology:

Cathode needle fixed at both ends

Stabilize the equipment

prolong the life cycle of the smoke collector,

reduce cleaning and maintenance work.

Modular design

Most parts can be quickly disassembled on site for easy installation and maintenance.

Specification

Series A

98% smoke purifying rate

90% odor purifying rate

Windage: 150 Pa

Outlet position: low altitude discharging available

Material of Housing: cold rolled steel with electrostatic coating

Material of Fume Collectors: galvanized iron sheet

Certification: ISO, CE, Chinese national technology patents.

Model	Air Flow (m³/Hr)	Size *LWH* (mm)	flanged (inner) *A1B1**	Power (w)	Net Weight (kg)
LCA-4A	4000	848 840 840	479 *566	380	80
LCA-6A	6000	848 1020 920	657 *643	530	100
LCA-8A	8000	848 1400 860	998 *586	600	110
LCA-10A	10000	848 1325 1040	922 *764	700	125
LCA-14A	14000	848 1550 1040	1150 *764	760	150
LCA-16A	16000	848 1550 1140	1152 *863	920	160
LCA-18A	18000	848 1380 1455	980 *1177	1060	190
LCA-20A	20000	848 1440 1455	1040 *1171	1200	220
LCA-24A	24000	848 1555 1455	1152 *1177	1300	270
LCA-30A	30000	848 1600 1605	1197 *1330	1400	320
LCA-36A	36000	848 1795 1605	1394 *1330	1520	375
LCA-40A	40000	848 1995 1605	1592 *1330	1630	410
LCA-48A	48000	848 2175 1615	1774 *1342	1690	460
LCA-56A	56000	848 2375 1615	1972 *1340	1720	470
LCA-62A	62000	848 2210 1860	1807 *1582	1800	520
LCA-70A	70000	848 2210 2055	1807 *1780	2100	570

How to choose the model I need?
Air Flow is the key !

★1: Check the air flow of exhaust fan, then choose an ESP device larger than that.
For example, the exhaust fan is 7000CMH, then you will need ESP device of 8000CMH.

★2 : Check the covering area of range hood, then do the math. Usually 1-meter-long range hood requires 2000CMH to 2500CMH air
flow.
For example, Ana's range hood is 1.2m in width and 2m in length, then she will need an ESP of 4000CMH.

Where to install my ESP device?

Cubic ESP device can be installed anywhere between range hood and exhaust fan.

For fire safety, we strongly suggest you put a fire damper after ESP device.

How often should I do the maintenance?
The maintenance is mainly about to clean the honeycomb structure fume collectors.

We suggest the user shall clean the cells every 4-6 weeks. Or whenever the maintenance light lights up.

Related Products

Certifications

FAQ

1. Q: What is the material of your equipment?
A: In order to guarantee quality,We use A3 steel sheet to make machine cover. The electrostatic honeycomb is made from all stainless steel. This honeycomb technology is owned by only a few companies in China.

2.Q: How does your factory do regarding quality control?
A:We value quality as highly as you do. We have CE certification and ISO9001 certification which is the most authoritative certificate of quality inspection in China.

3. Q:Are you a factory or trading company?
A: We are the professional manufacturer,our team has committed to the electrostatic precipitator business for more than 10 years. We sincerely welcome you visit our factory at any time.

We located in Nanning City, Guangxi Province, China.

4.Q:Can you offer the OEM for us?
A:We welcome you to be our OEM client and we are willing to discuss all the details and requirements with you before we issue a formal plan.

5. Q:What is your minimum order quantity?
A:We welcome one-unit trial.
We believe that trying a small order then making a big decision is a necessary step before we build up a long term cooperation.

6.Q:Why choose you?
A: Our technical team will be a great backbone in every project, from the very beginning to after-sale service.
Our self-developed intelligent power supply can make sure operation steady with high security.
It can help to save the maintenance cost and time with long service life, maximizing the expectant benefits.

Our Company

Nanning Lvcheng Environmental Protection Equipment Co., Ltd was established in 2008, located in Economical developing zone of Liangqing in Guangxi, China.

It is a high-tech environmental protection company with independent R & D, production and marketing, cooperating with colleges in long term on high-voltage electrostatic precipitator (ESP). Our ESP include Oil Mist and Smoke Filter Mechine, Mist-Smoke Filter Electrostatic Precipitator and Dust Collector.
