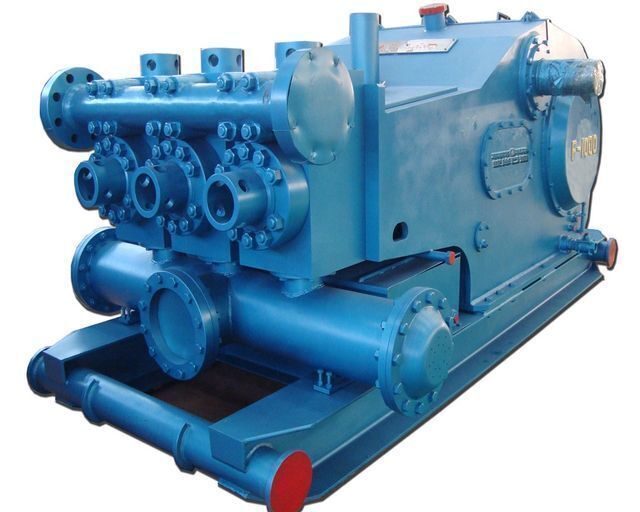

API BOMCO F1000 High Quality Triplex Piston Triplex Single Acting Mud Pump For Oilfield Drilling Rig

Product details
Product Name:drilling rig rotary mud pump;Port:QINGDAO / TIANJIN / SHANGHAI;
Packaging Detail:Packing in nude / Spare parts in wooden box;Overall Dimension L*W*H(mm):4267*3167 *2580;
Marketing Type:Hot Product 2019;Stroke Length(in /mm):10"/254;
Core Components:Gearbox,Pressure vessel,Pump,Gear,Bearing,Engine,Motor,PLC;Condition:New;
Video outgoing-inspection:Provided;Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;
After-sales Service Provided:Free spare parts,Field maintenance and repair service,Field installation, commissioning and training,Video technical support,Online support;Inlet Dia. (in/mm):12"/305;
Local Service Location:Egypt,India,Argentina,Kazakhstan,Uzbekistan;Package Preview:;
MOQ:1 set;Applicable Industries:Construction works ,Energy & Mining;
Power Rating HP(kw):1000 (746);Supply Ability:10000 Set/Sets per Year;
Approx. Weight (kg):18790;key words:F1000 Triplex Drilling Rig Mud Pump;
Outlet Dia. (in):5-1/8" Flange 5000psi;Max. Liner (in/mm):6-3/4"/170;
Showroom Location:Egypt,India,Argentina,Kazakhstan;Warranty:1 Year;
Model Number:F1000;Machinery Test Report:Provided;
Brand Name:BEYOND;Warranty of core components:1 Year;
Type:Triplex Single-Acting;
Product Description
Triplex mud pumps and triplex mud pump parts are already our featured products ever since start of our business. We supply quality EMSCO F-series mud pumps including F-500, F-800, F-1000, F-1300, F-1600, RLF-2200, and China National 3NB series mud pump, including 3NB350, 3NB500, 3NB-600, 3NB800, 3NB1000A/D, 3NB1300A/D, and 3NB1600. The full range of products can well satisfy any need from the clients.
API BOMCO F1000 High Quality Triplex Drilling Piston Triplex Mud Pump
F Series Mud Pump Model
F500, F800, F1000, F1300,F1600,F2200
3NB Series Mud Pump Model
3NB350,3NB500,3NB800, 3NB1000, 3NB1300,3NB1600
Certificate
API 7K, API 4F, API Q1, ISO9001
Delivery time
Normally for pump spares have at stock, pump delivery time mainly 20 working days.
Other service
OEM available
F Series Mud Pump Description

Our F series mud pump are designed and manufactured on the basis of American Emsco F series mud pump strictly according to America Petroleum Institution API 7K Standard. All of its expendable parts are interchangeable with any other spare parts produced according to API standard. Therefore it is easy to repair and maintain internationally .
F series mud pump are applicable to the requirement of high pump pressure in oilfield and high displacement technology of well
drilling with its solid and compact structure, small volume and out-standing operation performance.
  • F Series Mud Pump Description


F series mud pump has a longer stroke and can be operated at a lower stroke, thus improved the water supplying performance effectively and extended the lifetime of expendable parts in the fluid end greatly. The suction pulsation dampener has an advanced structure which is reliable to use and can make the pump realize its best suction performance.
The power end of F series mud pump adapts combined lubricating system of forced lubrication and splash lubrication. Reliable to
lubricate and increased the service life of power end.
F1000 High Quality Triplex Drilling Rig Rotary Drilling Price Mud Pump

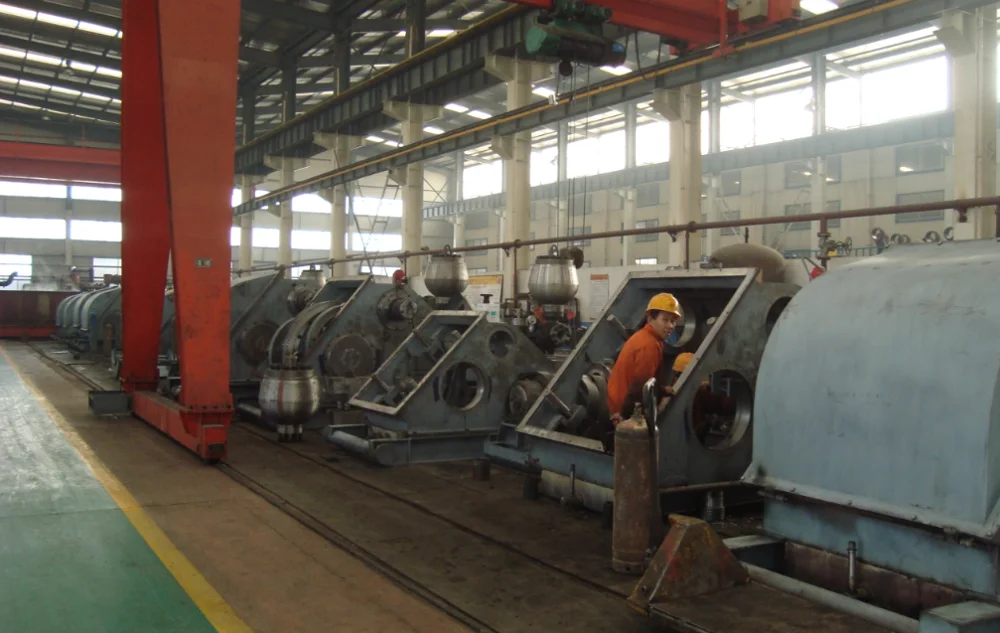

Detailed Images
The best is checking our manufacture details to know what it is from the beginning.
Size Information
Model
F500
F800
F1000
1300
F1600
F2200
Power rating HP(kw)
500(373)
800(597)
1000(746)
1300(969)
1600(1193)
2200(1618)
Stroke rating SPM
165

150
140
120
120
105
Stroke length (in/mm)
7.5"/190.5
9"/228.6
10"/254
12"/305
12"/305
356
Gear ratio
4.286
4.185
4.207
4.206
4.206
3.512
Inlet dia. (in/mm)
8"/203
10"/254
12"/305
12"/305
12"/305
305
Outlet dia. (in)
4" flange 5000psi
5-1/8" flange 5000psi
5-1/8" flange 5000psi
5-1/8" flange 5000psi
5-1/8" flange 5000psi
130
Valve
API 5#
API 6#
API 6#
API 7#
API 7#
API 8#
Max. liner (in/mm)
6-3/4"/170
6-3/4"/170
6-3/4"/170
7"/180
7"/180
φ140-φ230
Overall dimension
L*W*H (mm)
3658*2709*2231
3963*3025*2410
4267*3167*2580
4617*3260*2600
4615*3276*
2688
6000*3456*
2746
Approx.weight (kg)
9770
14500
18790
24572
24791
38800

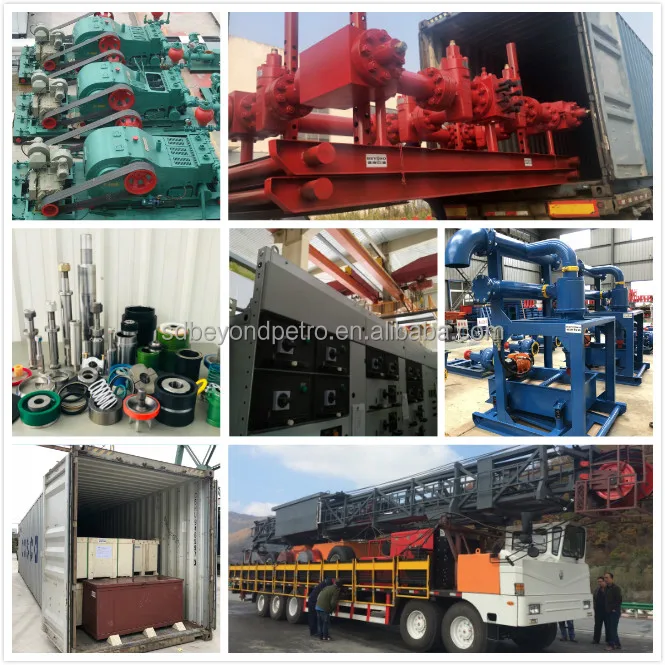

Related Products

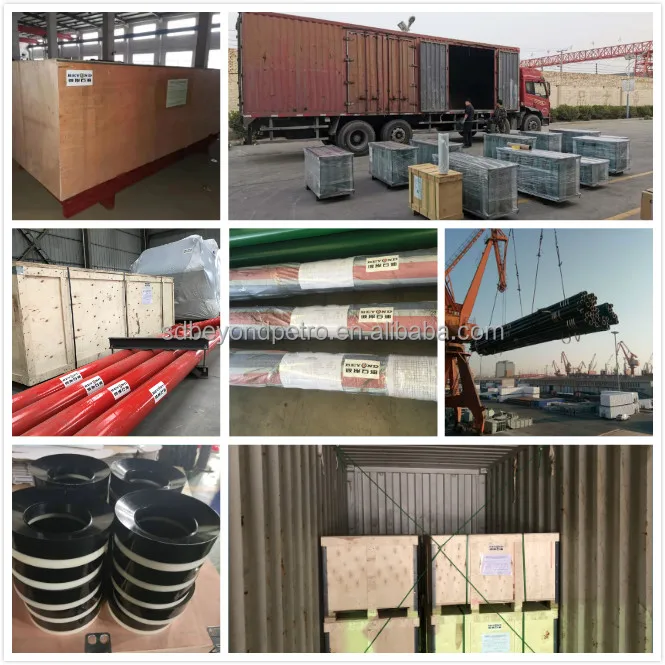

Packing&Shipping
All is export standard packing, good looking.
After Sales Service
Where You Need Us Where We Are
1. We provide professional engineers to go abroad on work site to provide after-sale service.
2. Every group with professional translators so language don't worry
3. We normally provide 1 year warranty after delivery, but if for some urgent spares, we will send by air
4. We now provide service in Azerbaijan, Argentina,Russia, Egypt, India, Kazakhstan.
Clients visiting
On Exhibition
Company Introduction
SHANDONG BEYOND PETROLEUM MACHINERY CO.,LTD. is established on request of customer and aimed to supply best product and service for the customer. It focuses on to supply best solutions for the overseas oilfield customer on equipment & spares maintenance and supply.
China has become main supplier for oil production countries, but Chinese equipment has some special features different with European and American countries, and there exits big language and cultural difference between China and other countries, so it has become one big challenge for the overseas customer to get the exact equipment and parts they need in a short time. However, BEYOND takes root in China, and has very good cooperation relationship with most of famous factories, plus strong technical support and good advantage in language. Therefore, BEYOND is quite capable to help the customer to solve this challenge.
BEYOND products cover but not limited to: China-make oil drilling rigs, workover rigs, wellhead and downhole tools, drilling tools, OCTG and other related equipment and parts. Meanwhile, BEYOND can offer technical services, personnel training and maintenance guide towards China-made drilling rigs. Only if it is what you need, BEYOND can get it for you: from best factories, with most competitive price and within shortest lead time.
FAPI BOMCO F1000 High Quality Triplex Drilling Piston Triplex Mud Pump
FAQ
1,Are you trading company or manufacturer?
We are professional trading company with 12 year export experience, And our products have been exported to more than 20 countries of Azerbaijan, Kazakhstan, Asia, South America, Africa, India, Egypt, and get a good reputation in the world.
We own a complete technical overseas service engineers team and translator team, now already provide service in Azerbaijan, Georgia, Argentina, Russia, India, Egypt.
API BOMCO F1000 High Quality Triplex Drilling Piston Triplex Mud Pump
2,Are your products qualified?
Yes, our products all have gained ISO certificate, and we have specialized quality inspection department for checking every machine
before leaving our factory.

3,How about your machine quality?
All of our machines must pass a great number of strict testing in order to offer the best quality to our customers.

4,Do you have after-sale service?
Yes, we have professional technic after-sale service team which will offer you the best technical maintenance guidance. Engineers
are available to be abroad for service.

5,What about the qaulity warranty?
We offer one-year quality warranty.

6,How long can you deliver the machine?
Generally, parts mainly have at stock , pumps we can delivery in 20 working days.
