AC-110C Pocket and digital Car paint thickness meter FN 0~1250um

Product details
Package Type:Packing with portable plastic case;Brand Name:AMITTARI;
Measuring Range:0~1250um / 0~50mil;Model Number:AC-110C;
Single package size:26X21X6 cm;Selling Units:Single item;
Accuracy:1~3%n or 2.5 um or 0.1mil (Whichever is the greater);Single gross weight:1 KG;
Package Preview:https://sc02.alicdn.com/kf/HTB18NU3aovrK1RjSspcq6zzSXXaV.jpg_640x640.jpg;Resolution:0.1 um (0~99.9um)/1 um (over 100um);
Function:FN Type;Place of Origin:Guangdong China (Mainland);
Delivery Detail:0 days after payment;



Guangzhou Amittari Instruments Co., Ltd. specialized in Coating thickness gauge, Ultrasonic thickness gauge, Hardness tester, surface Roughness tester, Vibration meter, Gloss meter, Moisture meter, Tachometer, Tension tester, Anemometer, Sound level meter etc.

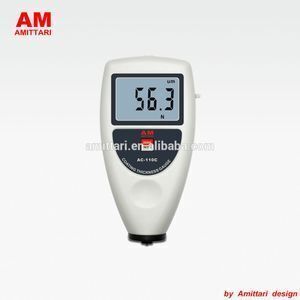

 AC-110C Pocket and digital Car paint thickness gauge FN 0~1250um







Product Description

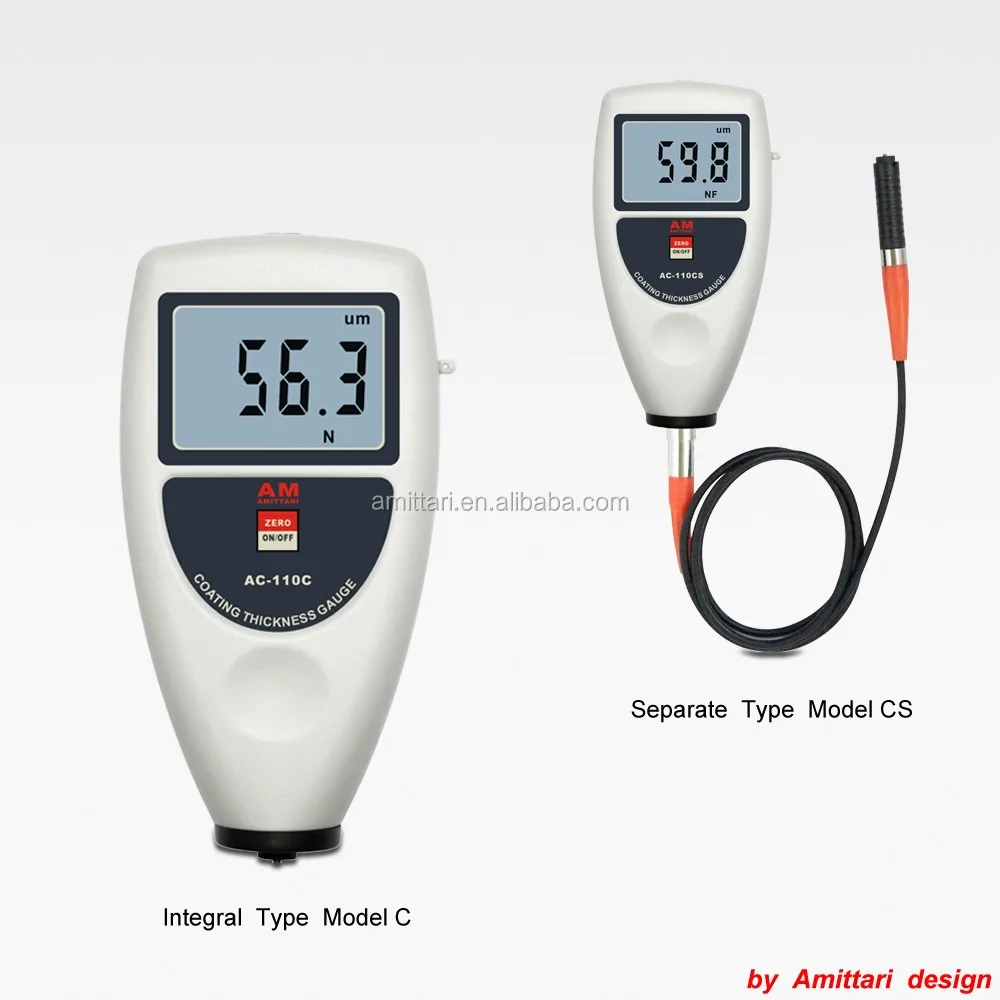

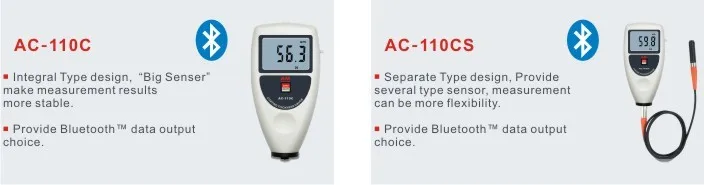

The Basic Type Coating Thickness Gauge AC-110 Series have two types: Type C ( Integral Type ), Type CS ( Separate Type ); Suitable for automotive, paint layer coating thickness measurement; Integral Type suitable for single-hand operation, large  probe  with  large  contact  surface  have  better  stability, users  can  get  continuous, good  repetitive  and  precise measurements. Separate Type can provide  several  type  probe, measure  can  be  more  flexibility. It  is  a  kind  of  portable measuring instrument, it can quickly, no damage and precise coating, coating thickness measurement. Not only can be usedin the laboratory, also can be used in the engineering field. Through the use of different measuring head, but also can meet the needs of a variety of measurement. Widely used in manufacturing, metal processing industry, chemical industry, commodityinspection and testing field. Is the material protection professional.











Product Parameters



Measuring Range0~1250 um
0~50mil (other range may be specified)
Resolution

0.1 um (0~99.9um)/1 um (over 100um)

Accuracy:1~3%n or 2.5 um or 0.1mil (Whichever is the greater)
Minimum Measurement Area6 mm

Minimal Surface

F Type convex1.5 mm / concave 25 mm
NF Type  convex 3 mm / concave 50mm
Operating ConditionTemp: 0~50°C /
Humidity: <95%
Size120x63x25 mm
Power Supply2x1.5vAAA Um-4 Battery
Weight90 g  (Not including batteries)



Product Accessories



Standard AccessoriesMain Unit
Calibration Foils
Substrate  ( Iron )
Substrate  ( Aluminium )
Carrying Case
Operation Manual
Optional AccessoriesUSB data output
Bluetooth data output



Buying Guide

When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.

The following three items are basic optional accessories choices

Standard Accessories+USB data output

Standard Accessories+Bluetooth data output



Bluetooth Accessories



Amittari  instruments  generally  can  be  supplied  with   Bluetooth™  data  output function ( except  few  instruments ) . As  Bluetooth™  data  output  is  included  in optional accessories, not  standard delivery,it needs to be indicated when choose.10 meters to 100 meters distance can be chosen.Please kindly  contact  with   the customer-service worker  if you need Bluetooth™  data  output.

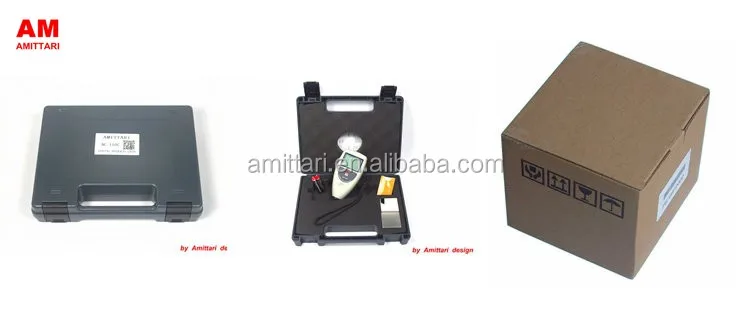

Packaging & Shipping







Our Services
1. Support OEM, customer can made their own Logo brand.
2. Guarantee is 2 years, during guarantee defective or damage spare parts can be replaced free in next order shipment.
3. Support payment by T/T, Paypal, Western Union in advance.
4. Delivery time is 2~7days, it all depend on quantities, for samples have stock.
5. Generally products ship by DHL, UPS, FEDEX,
