Jaw Crusher Price Ballast Classic Mining Ore Jaw Crusher Small Aggregate Primary Granite Limestone Gravel Hard Stone Jaw Crusher

Supplier: The Nile Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Lily Li
Price: $6000.00 / 1 - 4 sets
$4000.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Motor power:	5.5kw;	Capacity:	1-3t/h;
Core Components:	Motor;	Motor Type:	AC Motor;
Max feeding size:	125mm;	OEM:	Yes;
Certification:	ISO, CE;	Local Service Location:	Kenya;
Brand Name:	The Nile CO., LTD;	Rotation speed:	260r/min;
Color:	As your required;	Supply Ability:	200 Sets per Month;
Condition:	New;	Showroom Location:	Kenya;
Applicable Industries:	Building Material Shops,Construction works ,Energy & Mining;	Marketing Type:	New Product 2020;
Capacity(t/h):	1-3;	Key Selling Points:	Competitive Price;
MOQ:	1;	Dimension(LWH):	1000870990mm;
Weight:	0.7t,0.7t;	Warranty:	1 Year;
Place of Origin:	Henan, China;	After-sales Service Provided:	Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;
Application:	Rock Stone Crusher;	Port:	QingDao;
Factory visit:	welcome;	Discharge size:	10-40mm;
Packaging Detail:	Standard package in wooden boxes or containers;	Video outgoing-inspection:	Provided;
Warranty of core components:	1 Year;	Type:	Jaw Crusher;
Payment Terms:	L/C,T/T;	Machinery Test Report:	Provided;

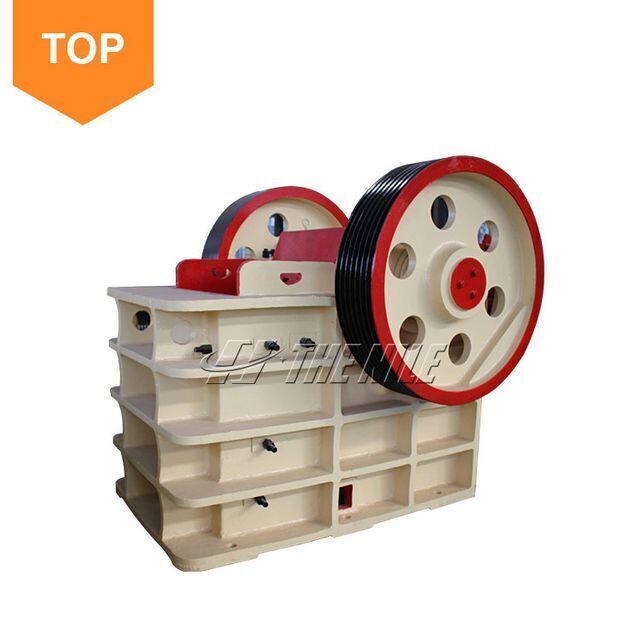

JAW CRUSHER

Product Description

Features

High ratio of crushing;
Simple structure，Reliable working condition;
Easy maintenance， Low operating cost;

Homogeneous final product size;
Discharge size can be adjusted.

Application

Processing Material:
River Gravel, Granite, Basalt, Quartz Stone, Iron Ore, Diabase, Limestone, Coal Gangue

How to Work

The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft.
The angle between toggle plate and moving jaw plate increases when moving jaw moves . So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.

Technical Data

Model	Max.Feeding Size (mm)	Discharging Size (mm)	Capacity (t/h)	Motor Power (kw)	Weight (t)
PE150*250	125	10-40	1-3	5.5	0.7
PE250*400	210	20-60	5-20	15	2.8
PE400*600	340	40-100	16-60	30	7
PE400*900	340	40-100	40-110	55	7.5
PE500*750	425	50-100	40-110	55	12
PE600*900	500	65-160	50-180	75	17
PE750*1060	630	80-140	110-320	90	31
PE900*1200	750	95-165	220-450	160	52
PE1000*1200	850	195-265	315-500	160	55
PE1200*1500	1020	150-350	400-800	220	93
PE1500*1800	1200	220-350	500-1000	280	122
PEX150*750	120	18-48	8-25	15	3.8
PEX250*750	210	15-60	13-35	30	6.5
PEX250*1000	210	15-60	16-52	37	7
PEX250*1200	210	15-60	20-61	45	9.7
PEX300*1300	250	20-90	16-105	55	15.6

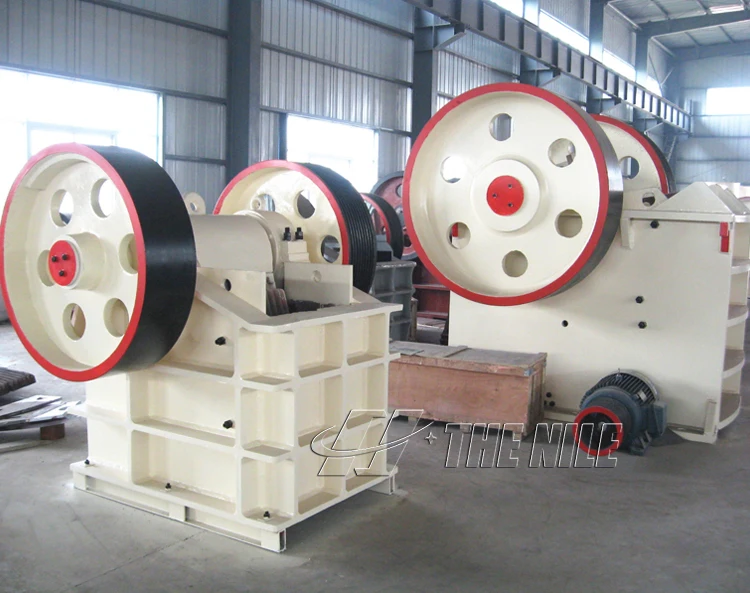

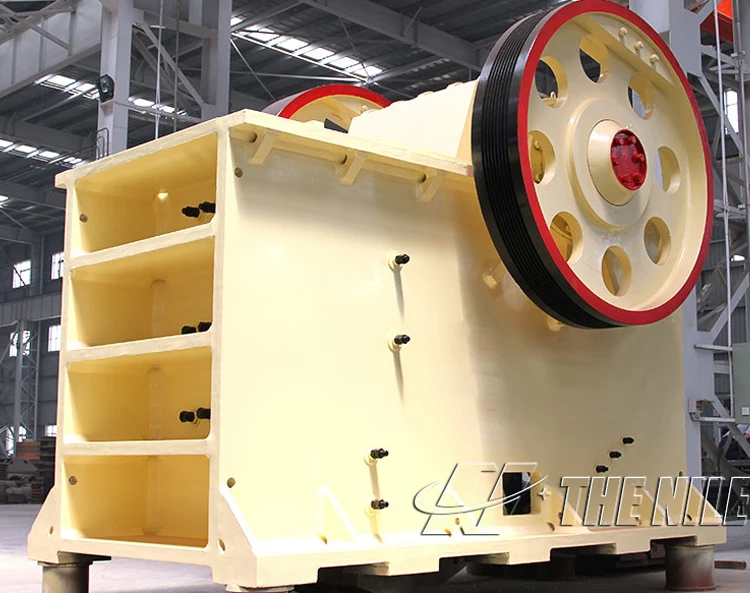

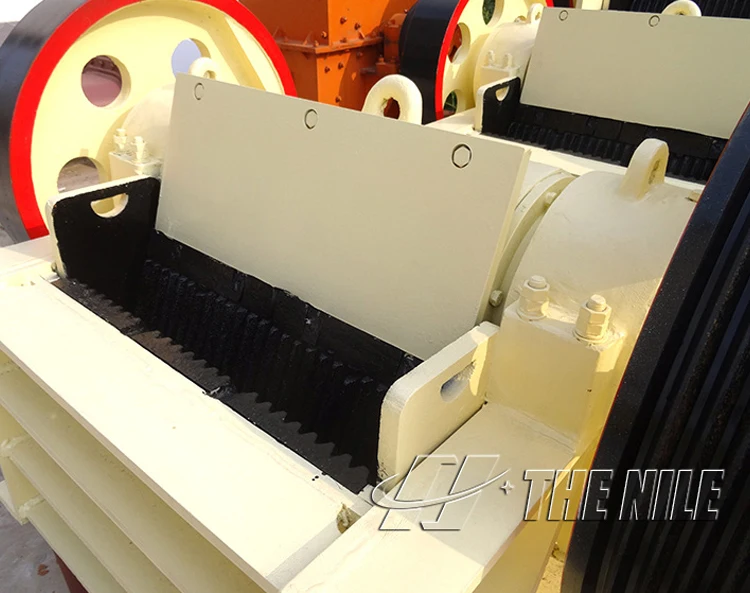

Product Details

Customer Site

Packing&Shipping

Company Profile

The Nile Co.,Ltd.is committed to designing,producing grinding mills,crushers,conveyors,feeding machines,drying and calcinating as well as beneficiation equipment,fine sand recycling equipment etc,which are widely applied in electricity,metallurgy,mine and quarry, wharf,granary,chemical industry.Our products have been spread all over China,and also exported to European,American,Asian,African countries and enjoyed great popularity among our customers.

Our Advantages

Overseas Service

1.We have engineers in Kenya , Sudan ,Uganda , Professional installation and training skills .

2.We have factory and warehouse in Kenya and China , Fast pre-sale and after-sale service , Wear Parts in stocks , You can get it soon .

3.Our products have been spread all over China,and also exported to European,American,Asian,African countries . Our sales managers and engineers know the local condition very well , We will supply the most suitable solution for you .

Factory and Warehouse in Kenya

Welcome to visit our factory in China and Kenya .

FAQ

Q1: Are you factory or trade company?
A1: We are factory with CE. We have factory in China and Kenya .

Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.

Q3: How will you help the customer to install the equipment?

#1 Our senior engineer will supply installation and training service on-line or on-site .
#2 We have engineer in Uganda ,Sudan ,Kenya ,China, We will supply 7*24 service .

Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price . You can buy them from our factory in China and Kenya .

Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.

Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 1 hours .
