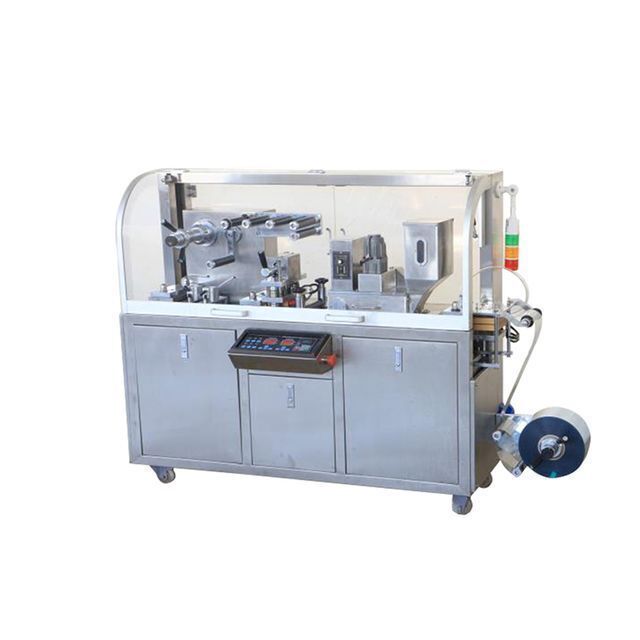

Dpb-80 Automatic Pill Tablet Capsule Blister Packing Machine Alu Pvc Blister Packing Machine China Electric Provided CN;ZHE FRS

Click here to contact
Product details
Application:For packing tablet pill capsule etc granule,Food,MEDICAL;Main market:USA,West Europe;
Capacity:AL-AL: 10-30 Times/min;Supply Ability:6 Unit/Units per Month;
Place of Origin:Zhejiang China;Driven Type:Electric;
Condition:New;Local Service Location:Canada,United States,Russia;
Material:304 Stainless Steel,iron;Key Selling Points:Easy to Operate;
Power Supply:220V/110,1phase,3phase can customize;After-sales Service Provided:Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;
Keyword:Blister Packing Production Line;Automatic Grade:Automatic;
Packaging Detail:wooden case;Brand Name:FRS;
Warranty of core components:1 Year;Showroom Location:Canada,United States,Russia;
Type:Blister Packaging Machine;Video outgoing-inspection:Provided;
Core Components:PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Package Preview:;Model:dpb-80;
Applicable Industries:Hotels,Machinery Repair Shops,Food & Beverage Factory,Restaurant,Home Use;Marketing Type:New Product 2020;
Operation:Pannel operation or touch screen;Warranty:1 Year;
Product name:blister packing machine;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
Port:Ningbo Shanghai;Machinery Test Report:Provided;
Weight:1500;
Product Overview
DPB SERIES BLISTER PACKING MACHINE
It is suitable for capsule, tablet, honey pill, candy, liquid (ointment), paste as well as irregular shape Al-al Al-plastic and
paper-plastic composite sealing packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.This machine can form seal the blister with alu or plastic through change the feeder can be used for packing the solid,liquid,paste product like tablet capsule,milk,honey,yougurt,etc,,our machine mainly export to the USA.
Product Paramenters
Model
DPB-88
Blanking frequency（standard）
20-35times/min(alu plastic)15-30times/min(alu alu)
Max. forming area and depth
80×110×14(height can be customize)
Range of travel
30-100
Packaging material
Φ75
PVC
（0.15～0.4）X 270X(Φ300) ㎜
PTP
（0.02～0.15）X 270 X(Φ300)㎜
ALU ALU FOIL
（0.16-0.2）X 270 X(Φ300)㎜
Paper
(50-100)g/㎡X270X(Φ300) ㎜
Power
380V 50Hz 8kw
Air compressor
≥0.25m³/min 0.6～0.8Mpa
Mould cooling
10-30L/h
Dimension（L X W X H）
1400×460×950
Weight
2T
Model
DPB-140
Blanking frequency（standard）
20-50times/min(alu plastic)15-30times/min(alu alu)
Max. forming area and depth
140X130X15mm(height can be customize)
Range of travel
30-140
Packaging material
Φ75
PVC
（0.15～0.4）X 270X(Φ400) ㎜
PTP
（0.02～0.15）X 270 X(Φ300)㎜
ALU ALU FOIL
（0.16-0.2）X 270 X(Φ400)㎜
Paper
(50-100)g/㎡X270X(Φ300) ㎜
Power
380V 50Hz 8kw
Air compressor
≥0.25m³/min 0.6～0.8Mpa
Mould cooling
50-80L/h
Dimension（L X W X H）
2300×560×1410
Weight
2T
Model
DPB-260

Blanking frequency（standard）

20-60times/min(alu plastic)15-30times/min(alu alu)

Max. forming area and depth

250X110X15(height can be customize)

Range of travel
30-140

Packaging material
Φ75
PVC
（0.15～0.4）X 270X(Φ400) ㎜
PTP
（0.02～0.15）X 270 X(Φ300)㎜
ALU ALU FOIL
（0.16-0.2）X 270 X(Φ400)㎜
Paper
(50-100)g/㎡X270X(Φ300) ㎜
Power
380V 50Hz 8kw
Air compressor
≥0.25m³/m;0.6～0.8Mpa
Mould cooling
 60-80L/h
Dimension（L X W X H）
3550 X 900 X 1900
Weight
2T
Model
DPB-350
Blanking frequency（standard）
20-60times/min(alu plastic)15-30times/min(alu alu)
Max. forming area and depth
350X130X15(alu plastic) 350X130X12(alu alu)
Range of travel
30-140
Packaging material
Φ75
PVC
（0.15～0.4）X 270X(Φ400) ㎜
PTP
（0.02～0.15）X 270 X(Φ300)㎜
ALU ALU FOIL
（0.16-0.2）X 270 X(Φ400)㎜
Paper
(50-100)g/㎡X270X(Φ300) ㎜
Power
380V 50Hz 8kw
Air compressor
≥0.25m³/min 0.6～0.8Mpa
Mould cooling
60-100L/h
Dimension（L X W X H）
3650 X 900 X 1900
Weight
2T
Model
Capacity
( capsule
/min)
Capsule
Size
Filling rate
Power
Vacuum pump
Noise
Oversize and weight
of machine
DTJ-V semi auto capsule machine
300 Depend on capsule size
No.00-5 or 000
=>99%
1.5kw
0.02-0.06Mpa
<80dBA
1200*600*1700mm
500kg
Model
Capacity
( capsule
/min)
Capsule
Size
Filling rate
Power
Vacuum pump
Noise
Dust collector
Oversize and weight
of machine
NJP-200
200
No.00-5
=>99%
3.5kw
0.02-0.06Mpa
<80dBA
700m3/H, 2X105pa,
350*700*1000mm,
40kg
870*670*1900mm,
700kg

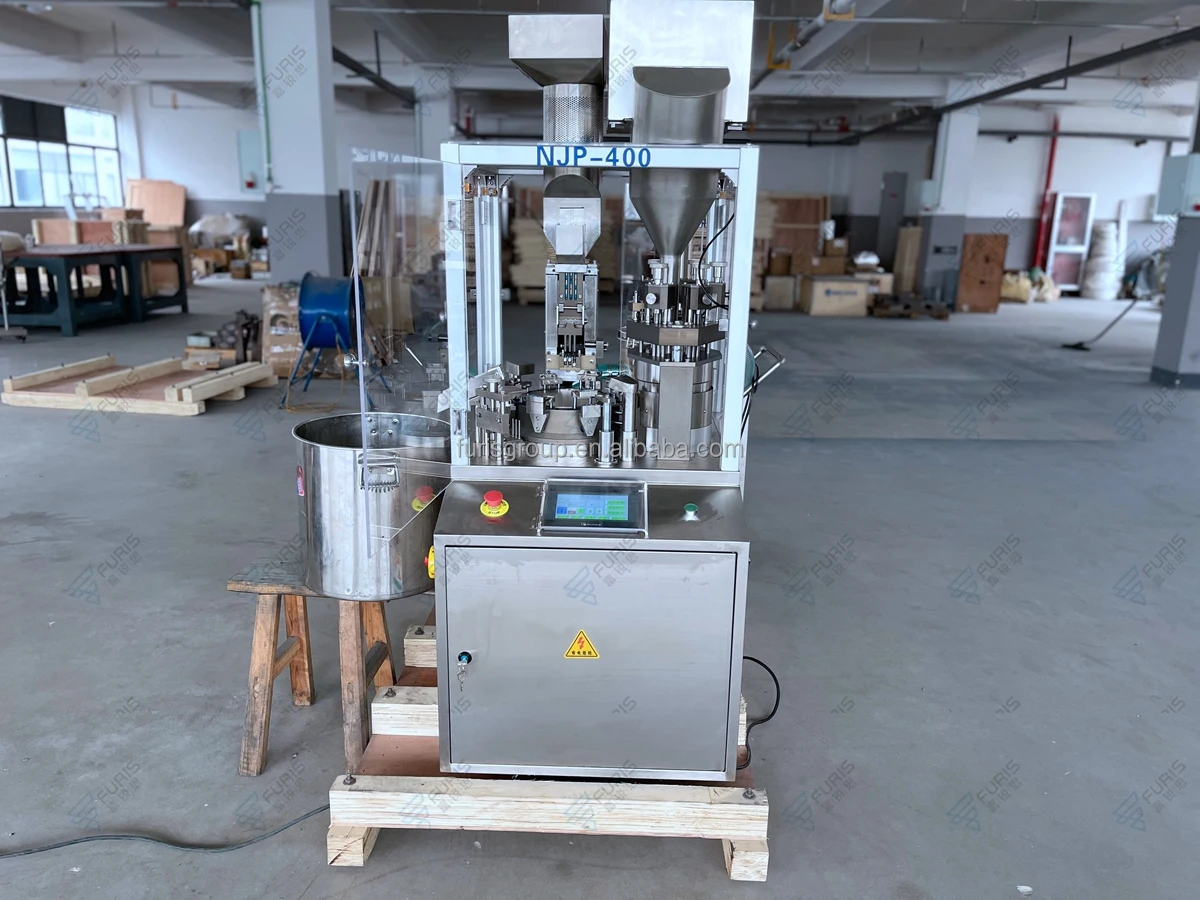

NJP-400
400
No.00-5
=>99%
5kw
0.02-0.06Mpa
<80dBA
700m3/H, 2X105pa,
350*700*1000mm,
40kg
870*670*1900mm,
700kg
NJP-800
800
No.00-5
=>99%
5.5kw
0.02-0.06Mpa
<80dBA
700m3/H, 2X105pa,
350*700*1000mm,
40kg
970*820*1900mm,
900kg
NJP-1200
1200
No.00-5
=>99%
7kw
0.02-0.06Mpa
<80dBA
700m3/H, 2X105pa,
350*700*1000mm,
40kg
1020*860*1970mm,
1000kg
NJP-1500
1500
No.00-5
=>99%
7kw
0.02-0.06Mpa
<80dBA
700m3/H, 2X105pa,
350*700*1000mm,
40kg
1500*1040*1970mm,
1300kg
NJP-2500
2500
No.00-5
=>99%
7kw
0.02-0.06Mpa
<80dBA
700m3/H, 2X105pa,
350*700*1000mm,
40kg
1500*1040*1970mm,
1500kg
NJP-3800
3800
No.00-5
=>99%
7.6kw
0.02-0.06Mpa
<80dBA
700m3/H, 2X105pa,
350*700*1000mm,
40kg
1500*1450*2100mm,
2000kg
NJP-7500
7500
No.00-5
=>99%
13.5kw
0.02-0.09Mpa
<80dBA
900m3/H, 2X105pa,
350*700*1000mm,
40kg
1700*1450*2150mm,
3800kg

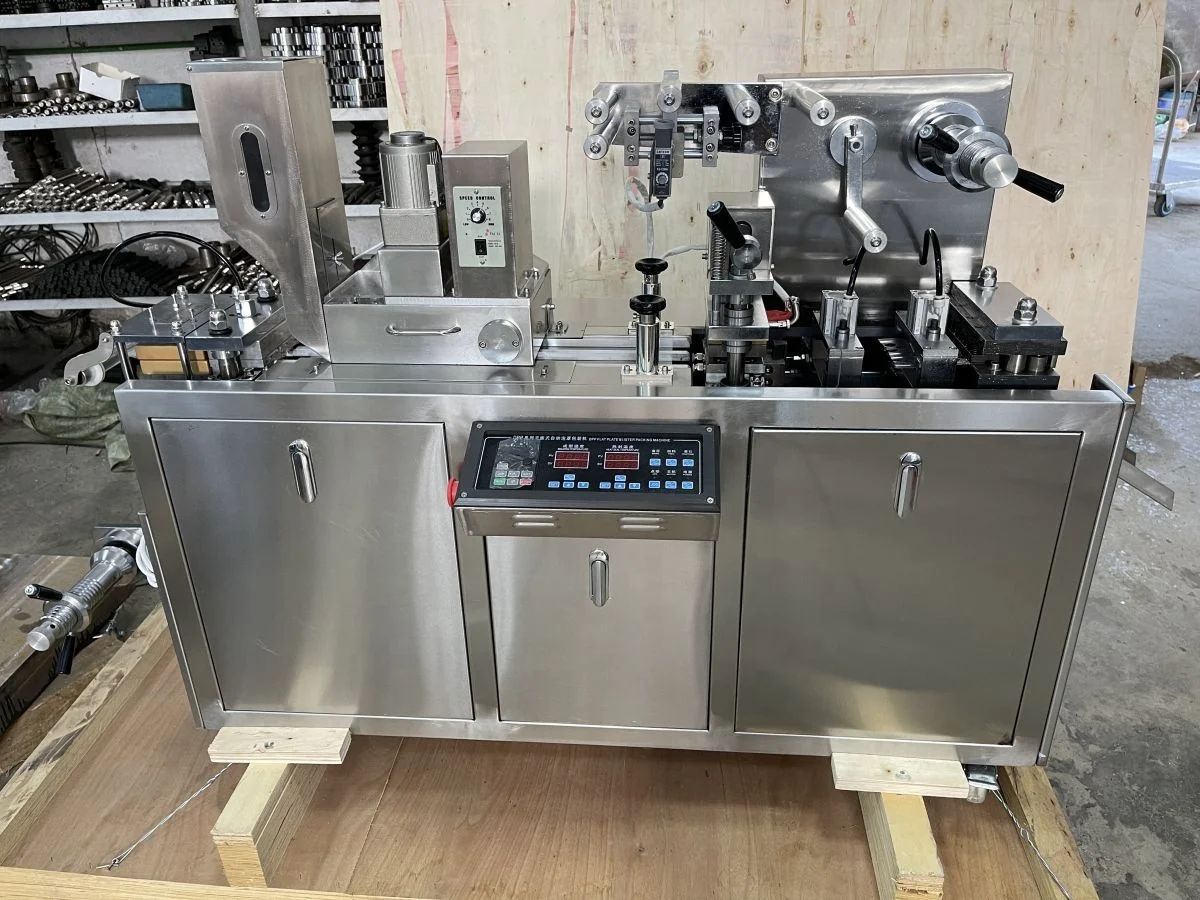

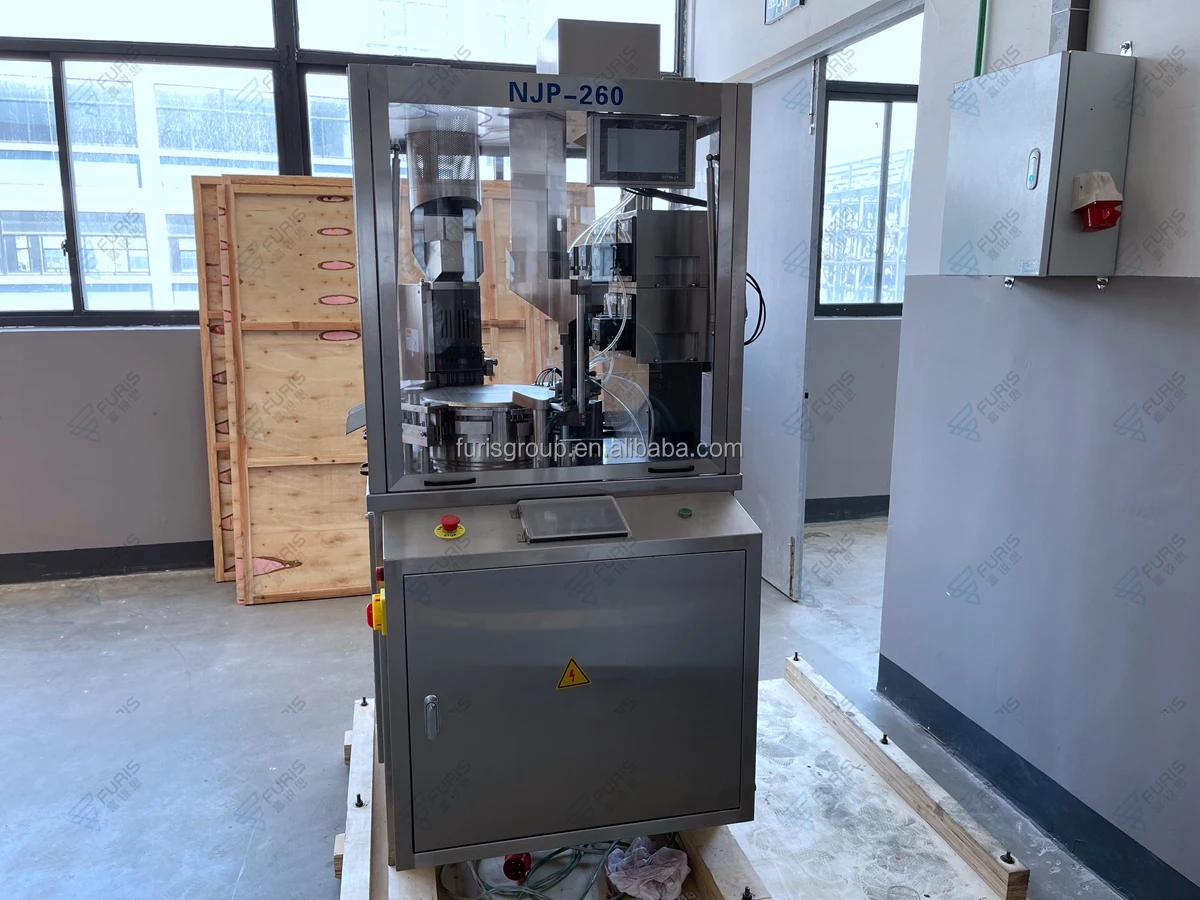

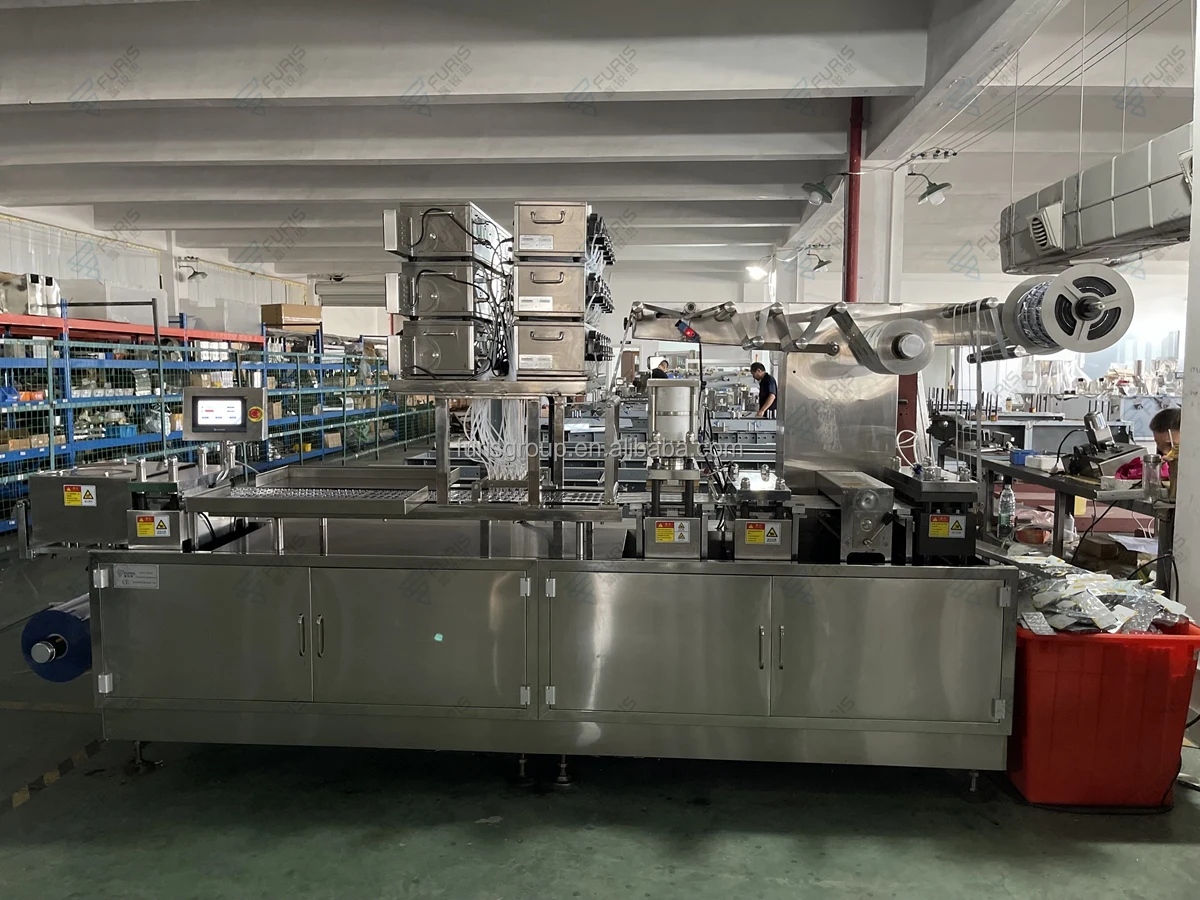

Machine photo
Related Products
Company Information
Furis I/E company is a sub-company of furis group,it is especially for importing and exporting. Furis group is a integrated the machine research and sales enterprise.We are a professional manufacturer for making pharma machine and Pharma packing machine,disposable personal care products machine,,etc.Our main product :blister packing machine,capsule filling machine,tablet press machine,bath bomb making packing line,detergent pod making line,face mask machine,shoe cover machine,bouffant cap making machine,labeling machine,etc We own more than 10000 square meter modern standard factory,has 80 skillful workers.We strictly according to ISO9001:2002 quality management system to organize producing,the machines gets the CE certification.The advanced equipment, high manufacture technology and prefect inspection system assures products quality and precision.With complete production equipment,stable quality,reliable performance and good after service.
Certifications
FAQ
Q: Are you a factory or a trading company?
A: We have own factory manufacturing pharma machine and packaging machines and we provide perfect OEM and after-sale service.

Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.before ship the machine,we will let the machine run one week in our factory.

Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.

Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.

Q: How can I pay my order?
A: We accept T/T, Western Union, Alibaba Trade Assurance payments.Pay 30%deposit after when finish the machine you can pay the balance before shipping.

Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.

Q:How is your machine quality?
More than 15 years manufacturing experience,with rich experience engineer and good CNC machine to make the with machine stable performance and high quality ,with good quality and competitive price let our machines with good comment from our customers,now our machines mainly export to north American and western Europe.

Q:How is the machine guarantee and after service?
One year guarantee,in one year,if the spare parts break,we can send the new spare parts for free but the customer need pay the express fee.

Q:How is the after service?
We have several technicians who gets passport ready to travel all over world to offer service to you.have 24hours hot line for Technical Support.We get 18hours internet line for technical support. Video camera in workshop to help you adjust and solve machine problem in working situation.We have many agents can offer the technical support in local place all over the world.

Our advantages

1. High quality + Economical Solution

Furis Group with China technology support match up your high quality requirements.
Furis Group economical price can provide you better budget control.
Furis Group strict quality control with ISO 9001 certification CE certification and other qualification can guarantee you avoiding any risk in machine selection or project implementation.

2. Professional Turnkey Project

Furis Group GMP experts and validation engineers can guide your project and documents match up the WHO GMP.EU GMP USA,etc
FRS factory general planning experts can ensure your project not only quality in all aspects,but also cost efficiency flexibility and expandability and security.
Furis Group professional designing and experienced engineering team can support your project optimal implementation saving labor time and cost.

3. One-stop Technical Service

Furis Group with worldwide partners can provide you current technology and know how of machine project validation and production.
FRS Mechanical and electrical engineers can make custom-made design to match up user's requirement specification.
and manufacturing according to European standard.
HM Energetic and professional team can provide you effectively one-stop technical service from sample trial testing
FAT,installation commissioning,SAT,training to documentation and validation.
