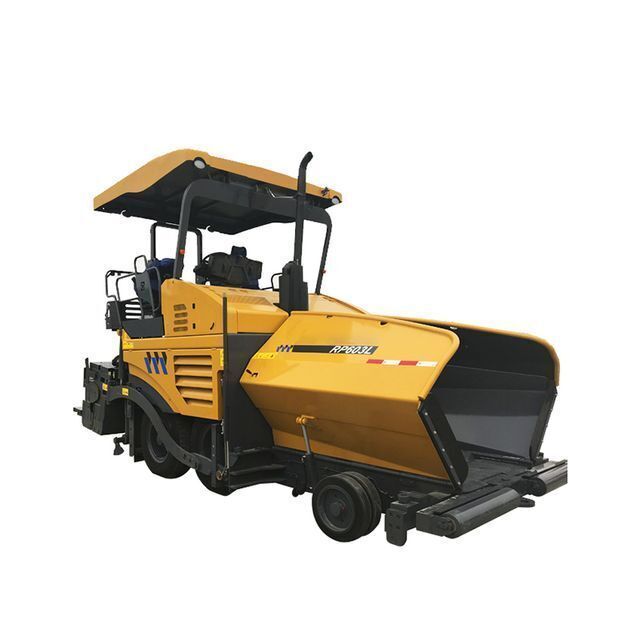

RP603 7m Pavement Finishing Asphalt Paver with Concrete Spreader

Product details
Engine Brand:Cum-mins;Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Machinery Test Report:Provided;Dimension(L*W*H):6660x2600x4000mm;
Marketing Type:New Product 2020;Package Preview:;
Warranty of core components:1 Year;Model:RP603L;
Application:Asphalt Road Paving;Overall dimensions of machine:6660x2600x4000mm;
Production Capacity:400 t/h;Local Service Location:None;
Key words:Concrete Paver Leveling Machine;Warranty:1 Year;
Core Components:PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;Weight:16500kg;
Condition:New;Power:103kw;
Applicable Industries:Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;Place of Origin:Jiangsu China;
Certification:CE;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
Product name:RP603 7m Pavement Finishing Asphalt Paver with Concrete Spreader;Engine:103KW;
Packaging Detail:Nude Ro-ro Bulk Ship or by container.;After-sales Service Provided:Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
Max. Paving Thickness:260mm;Video outgoing-inspection:Provided;
Type:Vibratory Road Paver;Port:China port;
Supply Ability:100 Unit/Units per Week;Hydraulic Valve Brand:POCLAIN;
UNIQUE SELLING POINT:Low Maintenance Cost;Spray medium:Emulsified Asphalt;
Showroom Location:None;Traveling speed:17m/min;
Name:Road Roller Paver;Hydraulic Pump Brand:MOOG;




RP603 7m Pavement Finishing Asphalt Paver with Concrete Spreader

Product Description



  • RP603L paver is the first full-hydraulic medium 3 series wheeled paver.
  • This machine adopts full-hydraulic drive and electro-hydraulically automatic control, featuring advanced technologies and reliable performance.
  • It’s extensively applied for the large scope paving operations, including sidewalks, non-motorized vehicle lanes, urban roads, and small roads.
  • With the paving width continuously adjustable from 2.5m to 6.0m, it’s especially suitable for the maintenances of classified highways.



Specifications



Item



Unit



Parameter

Engine manufacturer



-



SDEC

Engine Model



-



SC4H140G3

Rated Power



kW/rpm



103/2200

Operating weight



kg



16500

Overall dimensions



mm



6660×2600×4000

Basic Pave Width



m



2.5~4.75

Maximum Pave Width



m



6

Maximum L ayer Thickness



mm



260

Maximum Paving Speed



m/min



17

Maximum Travel Speed



km/h



15

Theoretic productivity



t/h



400

Hopper Capacity



t



13

Gradeability



%



20

Heating of screed



-



Electric/Gas heating

Travel type



-



tire

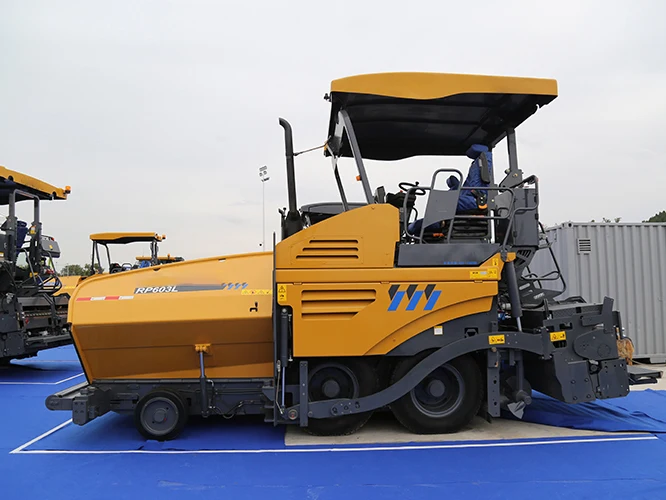

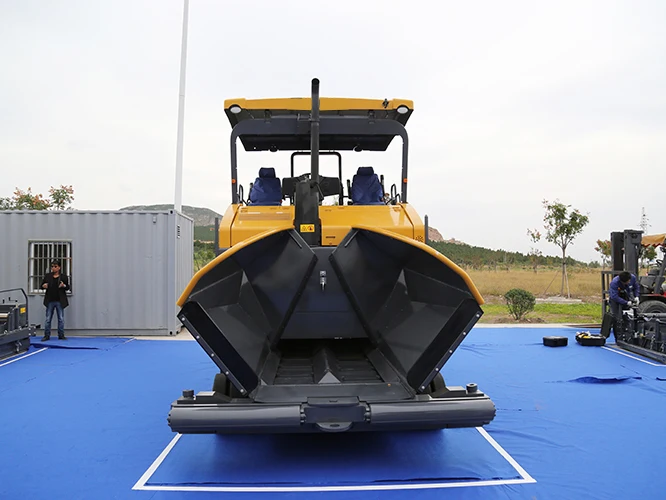

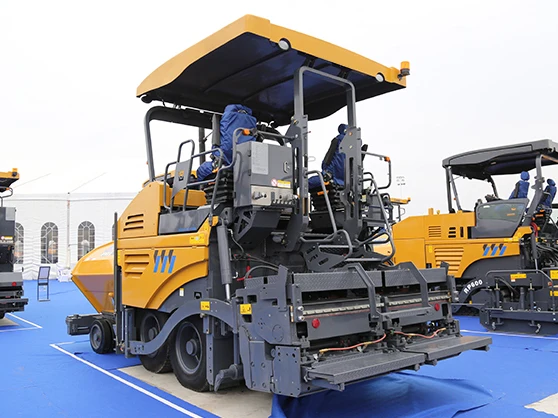

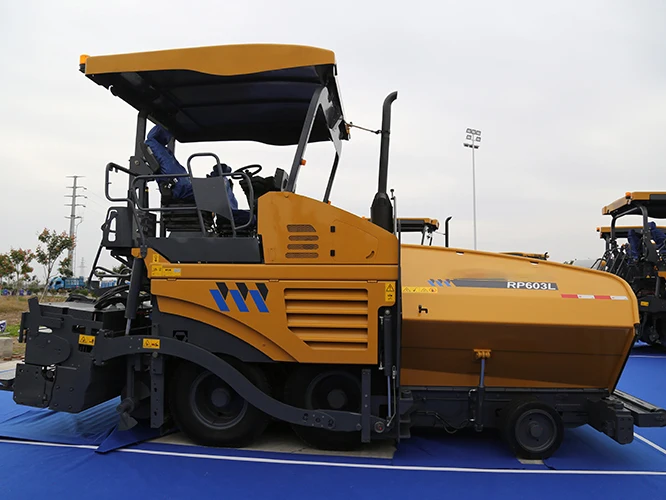

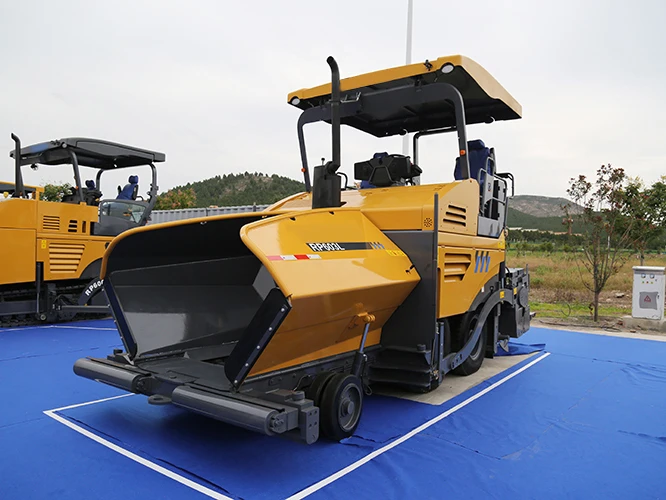

Detailed Images

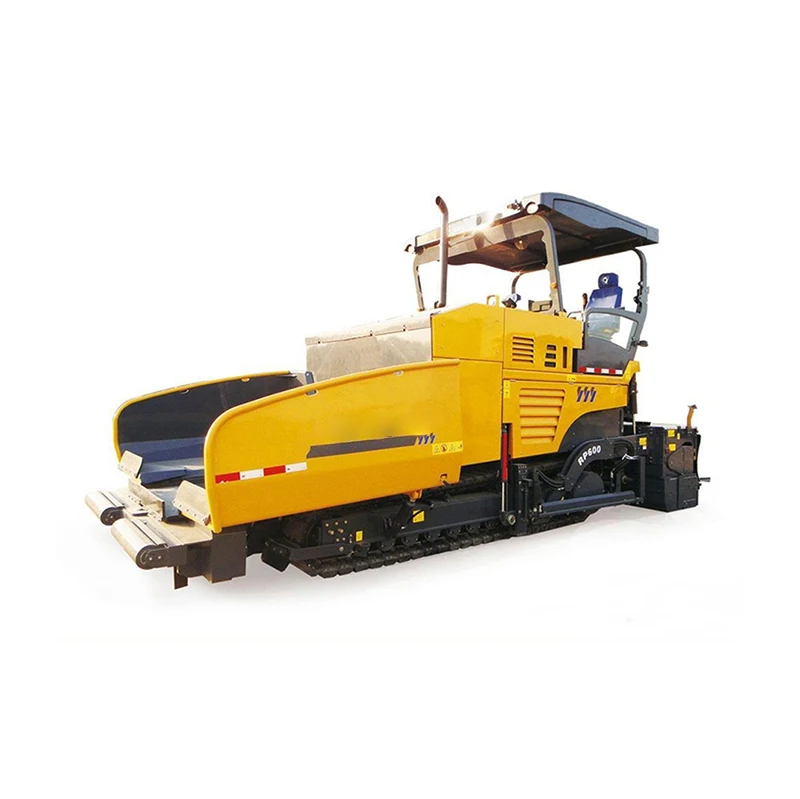

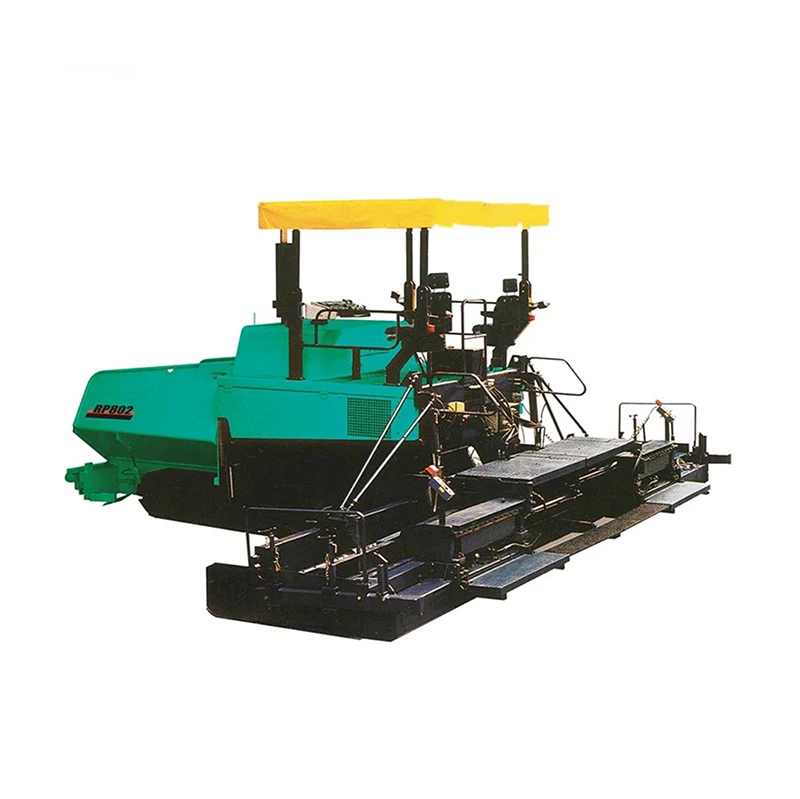

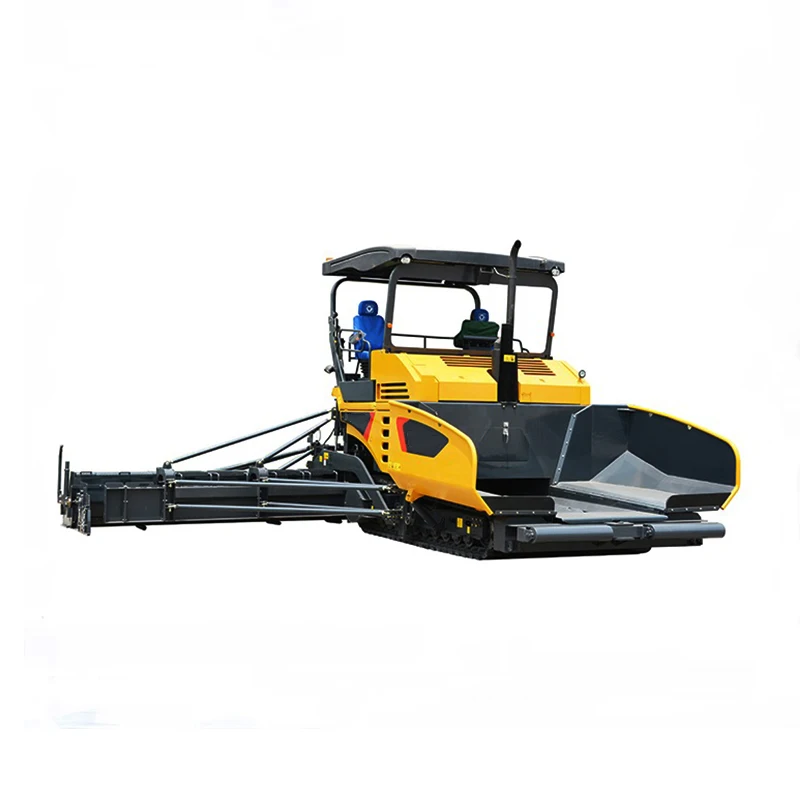

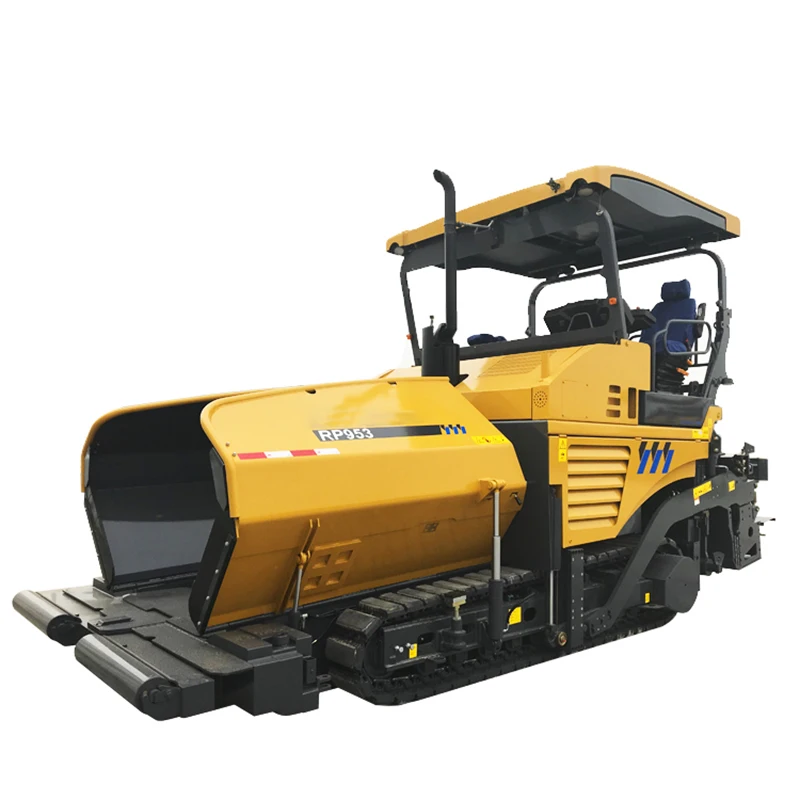

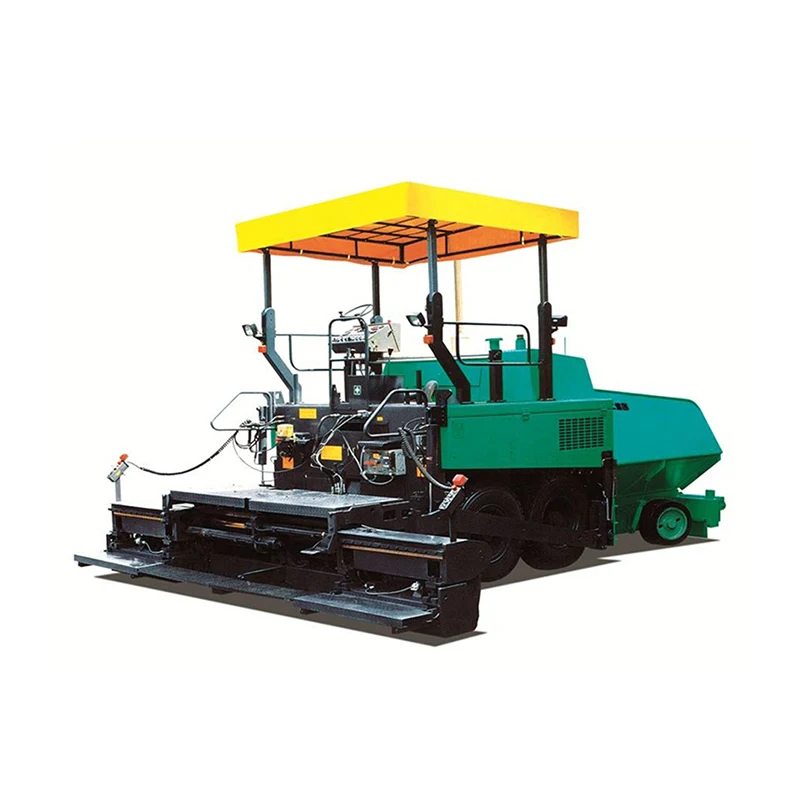

Other Model
