Tower Crane Hand Signals Used Tower Cranes In Dubai dubai tower crane

Supplier: Acntruck Automobile Sales (Shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Ms Willow Shen
Price: $114553.00 / 1 - 2 units
$113980.00 / >=3 units
Min. Order: 1 unit

Click here to contact

Product details

Packaging Detail:	Nude;	Product name:	Tower Crane Hand Signals Used Tower Cranes In Dubai dubai tower crane;
Certification:	CE ISO;	Port:	Shanghai, Qingdao, Lianyungang;
Jib length:	50(m);	Working radius (m):	0-80;
Max.load:	6.0t;	Power Supply:	380V/50Hz;
Supply Ability:	100 Units per Year;	Showroom Location:	None;
Max. Lifting Height:	220m;	UNIQUE SELLING POINT:	High operating efficiency;
Rated Loading Capacity:	6ton;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Feature:	Tower Crane;	Warranty:	1 Year;
Place of Origin:	China;	Keyword:	Towr Crane;
Rated Lifting Moment:	500/630/800/1000/1200KN.m;	Machinery Test Report:	Provided;
Core Components:	PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Marketing Type:	Hot Product 2019;	Video outgoing-inspection:	Provided;
Condition:	New;	Model:	QTZ63;
Warranty of core components:	1 Year;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Type:	Building Constrction;	Name:	QTZ 63Tower Crane;
After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support;	Span:	80m;
COLOR:	Optional;	Local Service Location:	None;
Application:	Construction;

Tower Crane Hand Signals Used Tower Cranes In Dubai dubai tower crane

Product Description

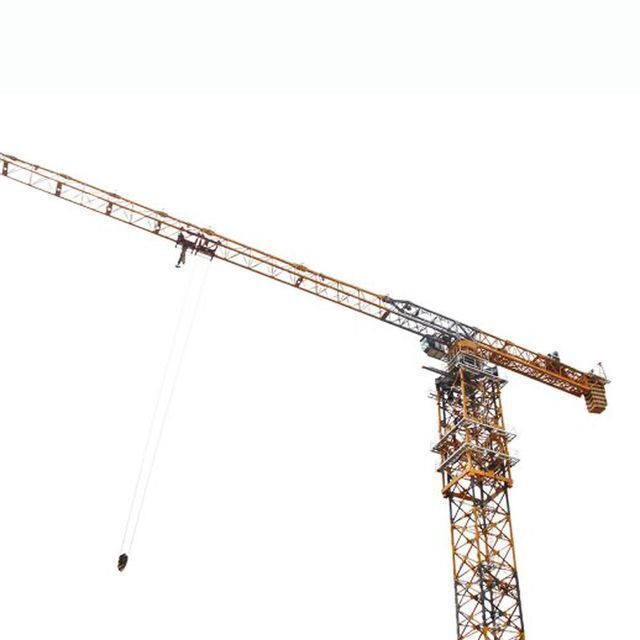

QTZ63 tower crane Summarize our various series jack-up tower crane successful experience, Absorbing the domestic and foreign latest technology achievements and advanced technology to the development of a new generation of jack-up tower crane. The machine is the crane which has horizontal jib frame, trolley luffing and slewing

Hydraulic jack-up type. The hoisting jib length is 50 meters or 44 meters, Max. Load is 5 tons, rated load moment is 630 KN. M. This machine stationery hoisting height is 35 m, Attached hoisting height is 60/120m. The machine working space is large, the small can replace large, Greatly reduced the construction equipment costs. It is a ideal hoisting machinery in construction which can save energy, save steel and reduce traffic.

Tower's rising and add section Adopt hydraulic jack-up, making tower move freely according to the requirement of construction in a certain height range and can stay lifting stability. The driver is installed in the tower top, opening horizon, the driver can operate it comfortably and conveniently.

Tower has various security protection device, including load moment limit device, Maximum lifting weight limit device, slewing limit device and trolleying limit device and so on. So as to ensure the safe operation.

QTZ63 jack-up tower crane have advanced parameters, Reliable performance and good quality. The design thought has not only focused on wide enormous quantity of small and medium-sized construction units requirements, and has Prominent advantage of simple operation and reasonable price. But also can adapt to the high-level housing, top of industrial architecture construction requirements.

Specifications

Institutions load rate		Hoisting mechanism		JC 40%
		Slewing mechanism		JC 25%
		Trolleying mechanism		JC 25%
Hoisting height		magnification		Basic height			Attachment height
		a=2		35			120
		a=4		35			60
Rated load moment(KN.m)		630
Maximum lifting weight (t)		5
radius		Maximum radius(m)				50
		Minimum radius(m)				3
Hoisting mechanism	magnification	a=2				a=4
	Speed m/min)	70	35		10	35		17.5		5
	Lifting weight(t)	1.25	2.5		2.5	2.5		5		5
	power(Kw)	18	18		5	18		18		5
Slewing mechanism		speed(m/min)				0.64
		power(Kw)				3.7
Traction mechanism		speed(m/min)				38			25
		power(Kw)				2.8			2.2
Jacking mechanism		speed(m/min)				0.4
		Working pressure(MPa)				20
		power(Kw)				4
Counterweight block		Hoisting jib height				Counterweight block weight(t)
		50				10.00
		44				8.40
The total power(Kw)		28.5
Working temperature		-20-40
