2 minutes for full suction HOWO sewage suction vacuum tank 1000l

Product details
Emission Standard:Euro 2;Supply Ability:100 Unit/Units per Week;
Port:China Port;Fuel Type:Diesel;
Place of Origin:China;Tire Type:295/80R22.5;
Tank Volume:1000L;Gross Vehicle Weight:8500;
Horsepower:266;Cab:Single row with one sleeper;
Curb Weight:8500;Packaging Detail:nude;
Wheel Base:4600;Drive system:RHD;
Pumping speed:360m3/h;Condition:New;
Dimension (L x W x H):8500X2500X3450;Engine:WD615.62;
Brand Name:SINOTRUK;Time for full suction:2 minute;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Transmission Type:Manual;
Emission:Euro 2;Rotate speed:900r/min;

2 minutes for full suction HOWO sewage suction vacuum tank 1000l

Description:

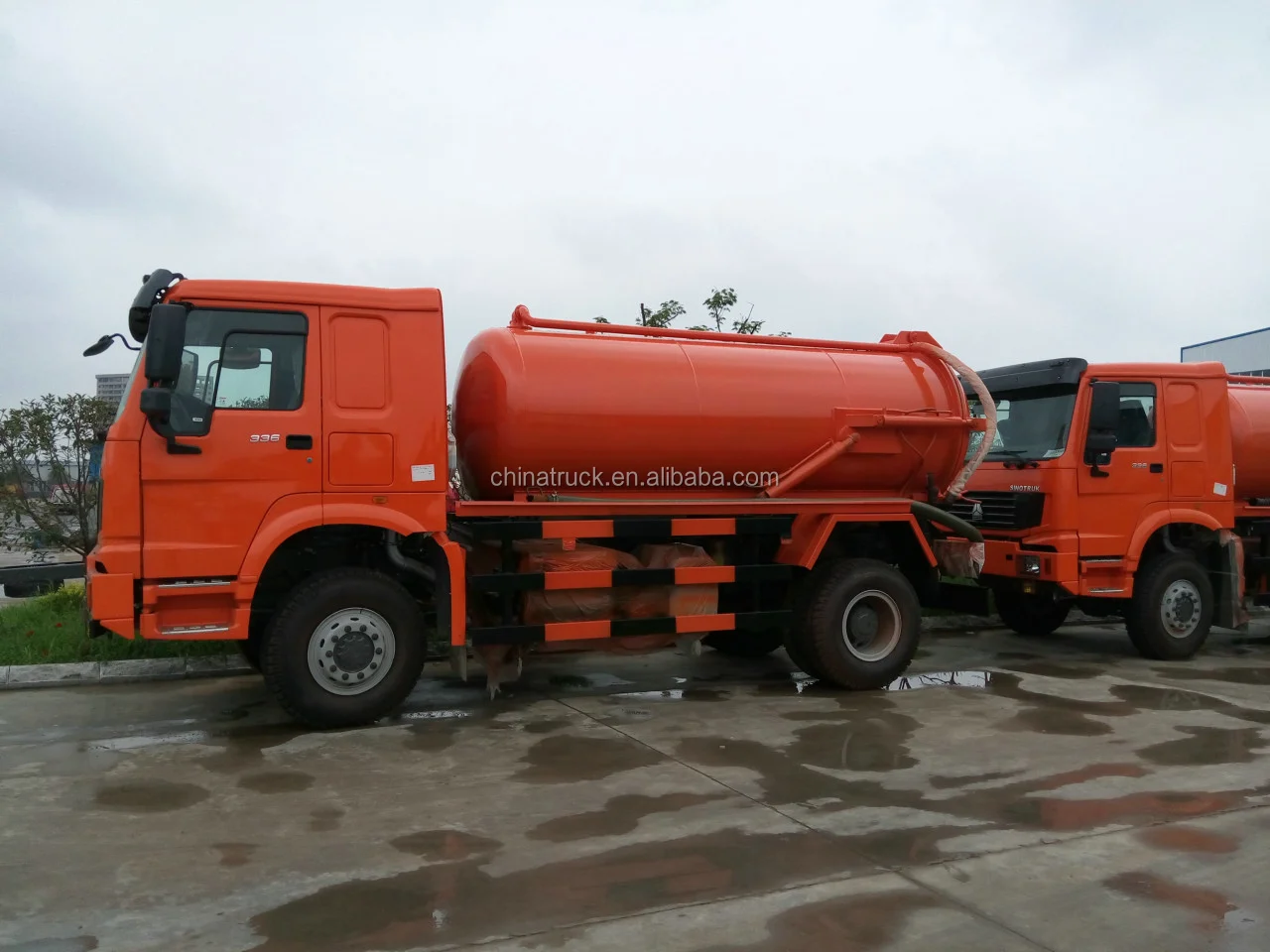

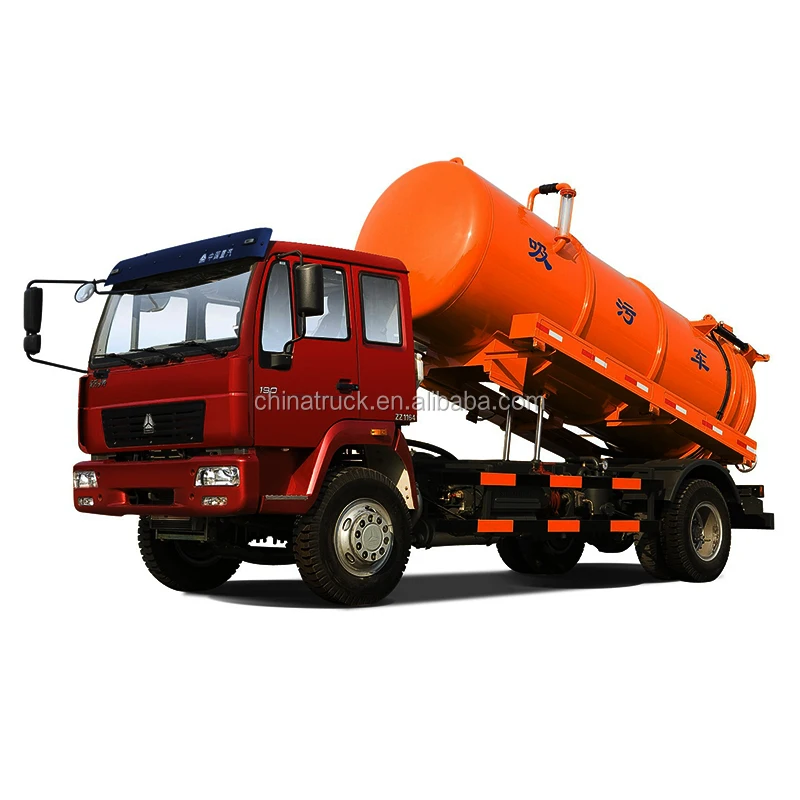

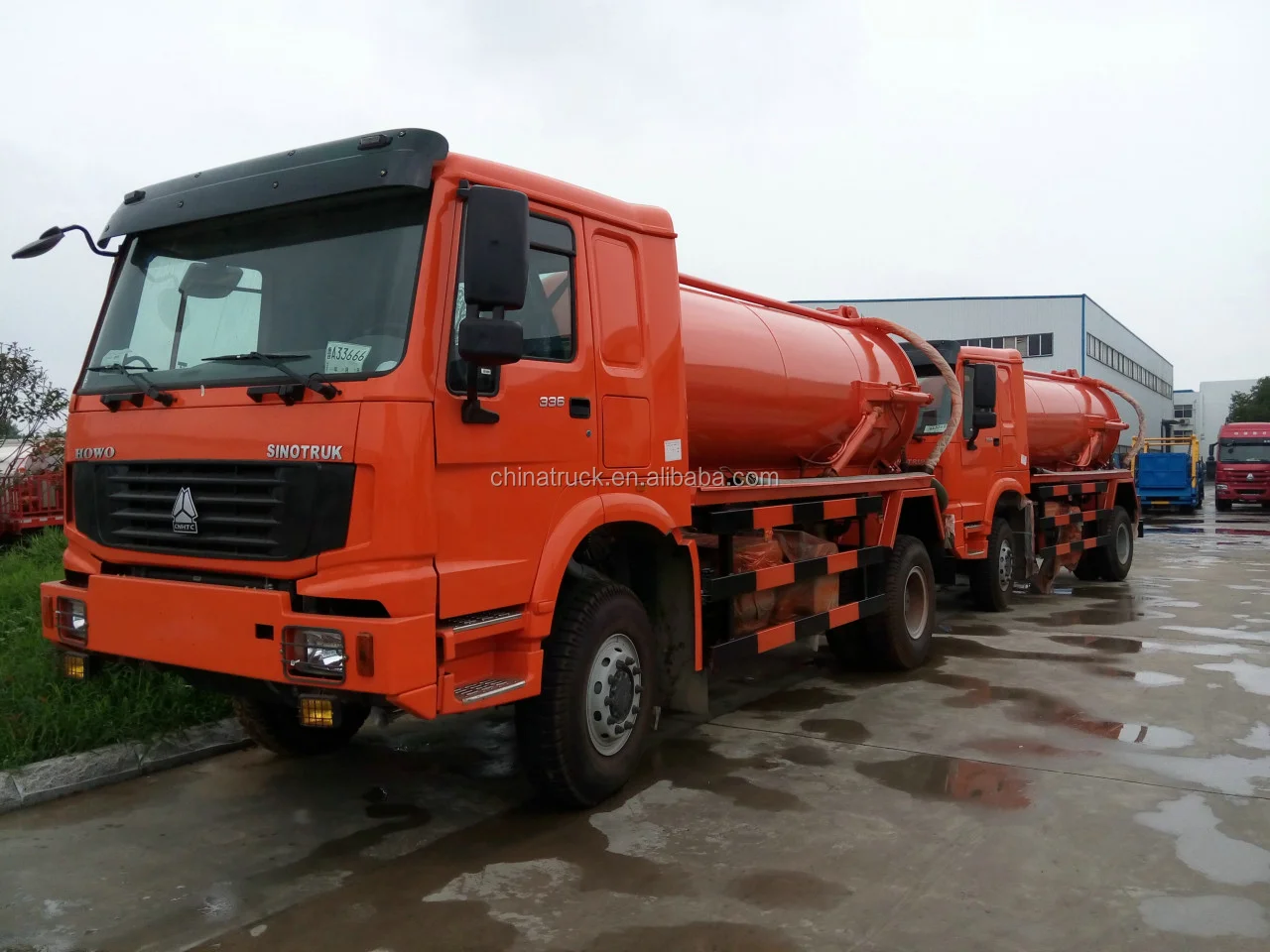

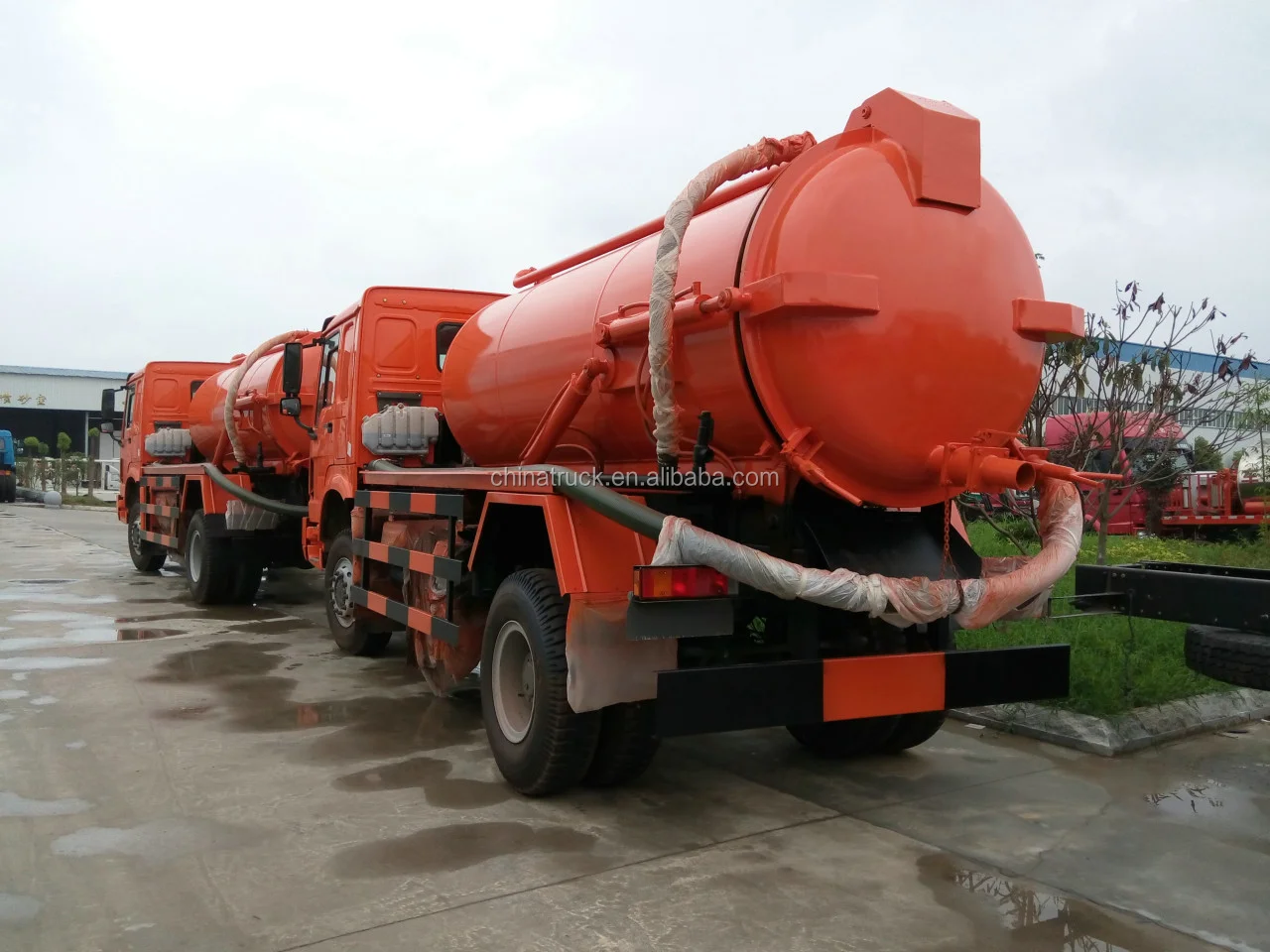

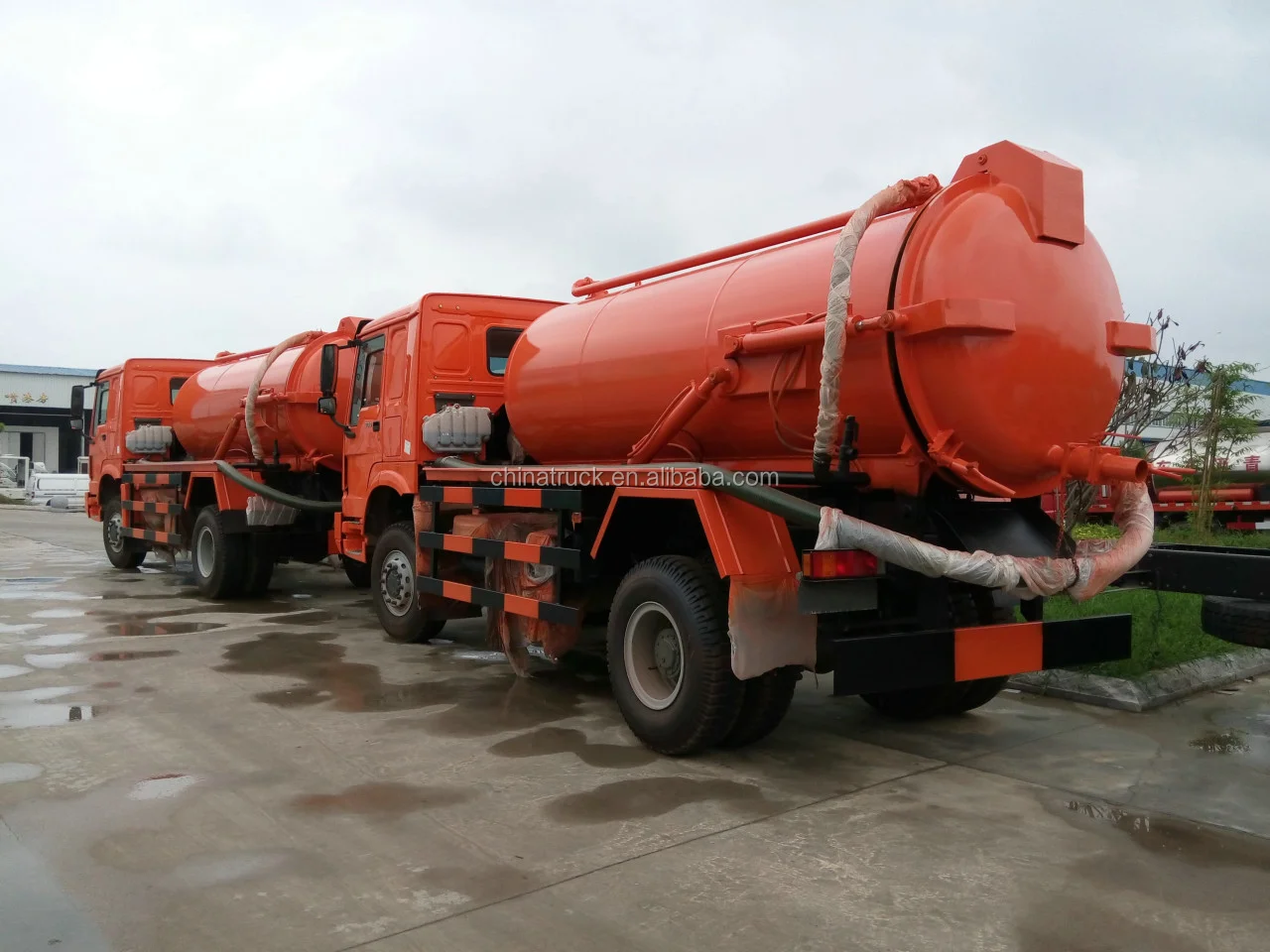

Sewage Suction Truck SINOTRUK HOWO for Sanitation Enterprise 8-12CBM LHD 4X2

The introduction of Germany advanced manufacturing technology, with rising underground

sewage pipes,the collection and transportation of sludge, city life waste and building

operations such as muddy water  in liquid waste and other functions.



Suction sewage truck is sanitation vehicles which is used for collecting and transporting

sewage and  sludge in municipal, enviromental sanitation and large property managerment

company ,to avoid  secondary pollution ,with vacuum suction ,pressure discharge function

efficient and time saving vacuum pump,valve and others are imported products.



Specification:



Sewage Suction Truck SINOTRUK HOWO for Sanitation Enterprise 8-12CBM LHD 4X2

Chassis Model

ZZ1167M4611W

Drive Type

4×2

Engine

WD615.62, 266HP

Cabin

HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat)

Transmission

HW15710(10 forwards & 2 reverses)

Front Axle

HF7 (1X7Tons)

Driving Axle

HC16(1X16Tons)

Clutch

hydraulically operating with air assistance

Rim/ Tire

11.00R20

Wheel base

4600(mm)

Capacity of tank body

8-12CBM

Diameter of suction tube

Φ100mm

Suction depth

≥ 8 m

Vacuum pump

type: Vane pump

Pumping speed: 318 m3/h

Rated speed: 1300rpm

Overall dimension

7128×2462×3175mm

The curb weight

8010(Kg)

Gross weight

16000 kg

Max. speed

95km/h

Color

White, red, green, golden and so on.
