Theoretical output: | 130m3/h; | Wheelbase: | 4600+1350mm; |
Dimension(L*W*H): | 12000*2500*3900mm; | Packaging Detail: | nude; |
Productivity: | Other; | Warranty of core components: | 1 Year; |
Concrete slump range: | 8~23cm; | Emission standard: | Eruo III; |
Marketing Type: | New Product 2020; | Showroom Location: | Egypt,Thailand,South Africa,Tajikistan; |
Max. speed: | 90km/h; | After-sales Service Provided: | Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support; |
Theoretical pumping times: | 24~27min; | Weight: | 24500kg; |
Condition: | New; | Certification: | CE/ISO9001; |
Product name: | ZOOMLION Concrete Pumps 63m for sale; | Reach height: | 37m; |
Max. horizontal conveying distance: | 150M; | Core Components: | Pressure vessel,Pump; |
Warranty: | 1 Year; | Port: | China Port; |
Max. vertical conveying distance: | 200M; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; |
Local Service Location: | Russia,Spain,Kenya,Argentina,South Korea; | Supply Ability: | 100 Unit/Units per Week; |
After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; | Video outgoing-inspection: | Provided; |
Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; | Brand Name: | Acnruck; |
UNIQUE SELLING POINT: | Long lifetime; | Tire: | 11.00R22.5; |
Machinery Test Report: | Provided; | Place of Origin: | Other Country; |
Power Type: | Diesel; | Model: | WD615.96; |
ABOVE You can just click what you are interested.
Willow Shen
If you need any informaition, welcome to contact me.
Please leave a message at the bottom of the details page.

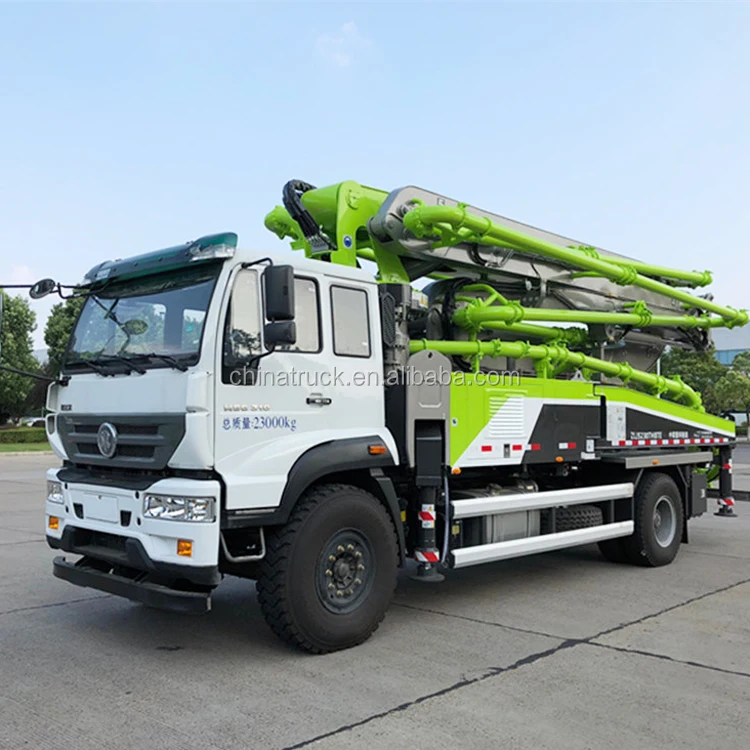

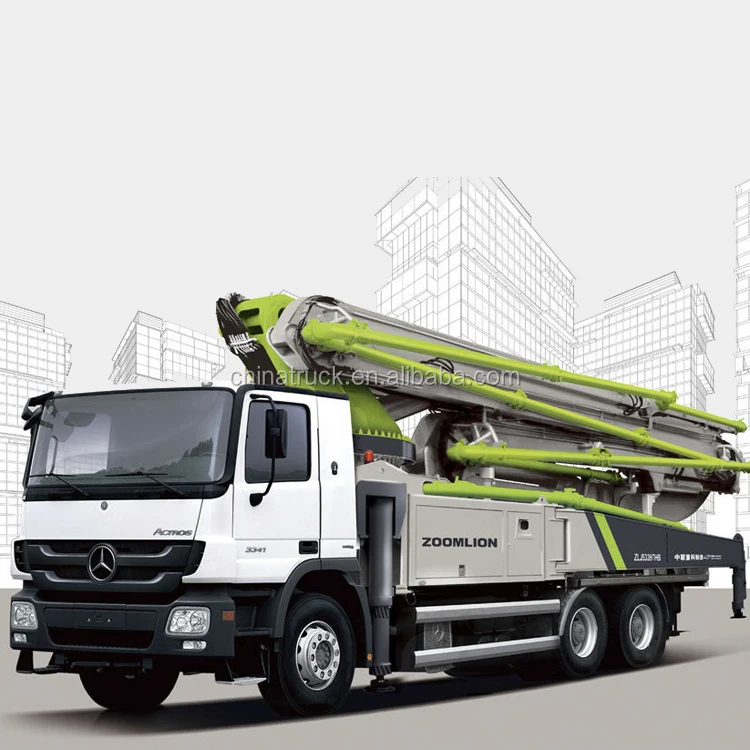

Concrete Pumps 63m for sale
• Compact in design, 60m pump mounted on 5-axle truck.
• Efficient pump unit, two Rexroth main pumps gives a big output, easy to use and maintenance.
• Agile placing boom with 6 arms with unfolding height 14m only, which gives a wide work range.
• One side lateral support enables to work in narrow sites.
• Controller is designed for heavy duty use, with a monitor, it monitors the pump intelligently on working data management, real-time diagnostics, alarm logging, and service interval notice.
• Rich in configurations and high quality components
Distribution valve |
S-valve |
|
---|---|---|
Max. Concrete Output |
m3/h |
200/140 |
Max. Concrete Pressure |
bar |
83/120 |
Delivery Cylinder |
mm |
260 |
Stroke Length |
mm |
2100 |
Strokes |
1/min |
30/21 |
Hopper Capacity |
L |
600 |
Filling height |
mm |
1540 |
Hydraulic System |
Closed |
|
Hydraulic oil cooling |
Double fans |
|
High/Low Press. Switch |
Manual |
|
Lubrication on pump |
Automatic |
|
Lubrication on hopper |
Automatic |
|
GPS Data Manage |
Optional |
|
Boom Control Valve |
Proportional |
|
Number of Arms |
|
6 |
Folding System |
|
RZ |
Max. Reach Vertical |
m |
60 |
Max. Reach Horizontal |
m |
55 |
Max. Reach Depth |
m |
43.6 |
Min. Unfolding Height |
m |
14 |
End Hose Length |
m |
3 |
Pipeline |
DN125/5.5 |
|
Slewing Range |
±270° |
|
Slewing Motors |
2 motors |
|
Remote Control System |
Radio |
|
Water Pump |
20L/min, 60bar |
|
Tool kits with box |
Standard |
