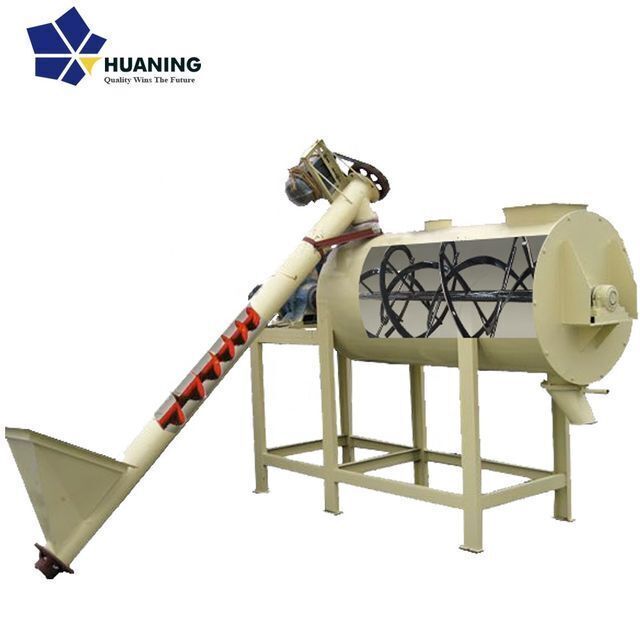

Simple dry mix mortar production line, 2-5T/h ceramic tile adhesive dry mortar mixer machines for sale

Supplier: Henan Huaning Machinery Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Mandy Chen
Price: $2956.00 /set
Min. Order: 1 set

Click here to contact

Product details

Key Selling Points:	Low Noise Level;	Local Service Location:	None;
Brand Name:	Huaning;	Marketing Type:	New Product 2021;
Core Components:	PLC,Engine,Gear;	After Warranty Service:	Video technical support,Online support,Field maintenance and repair service;
Video outgoing-inspection:	Provided;	Voltage:	220V-440V;
Features:	High Efficiency;	Advantage:	Convenient Maintenance;
Application:	Dry Mortar Production;	Power:	22kw;
Port:	Qingdao,Shanghai,Tianjin,Guangzhou.etc.;	Warranty:	1 Year;
Dimension(LWH):	as required;	Showroom Location:	None;
Certification:	ISO;	After-sales Service Provided:	Engineers available to service machinery overseas,Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Packaging Detail:	Export Standard Container: 20GP or 40GP, 40HQ, FR container in bulk, the spare parts in wooden or iron case according to the size and weight.;	Name:	2-5 t/h Dry Mortar Production Line;
Place of Origin:	Henan China;	Applicable Industries:	Building Material Shops,Manufacturing Plant,Construction works ;
Weight:	1500;	Packing Motor:	3kw;
Product name:	Dry mortar mixer;	Second Lift Motor:	4kw;
Capacity:	2-5 T/h;	Warranty of core components:	1 Year;
Payment Terms:	Western Union,T/T,Ali Trade Assurance;	First Lift Motor:	4kw;
Packaging:	Valve Port Packaging;	Machinery Test Report:	Provided;
Supply Ability:	30 Set/Sets per Month Simple Dry Mortar Production Line;	Condition:	New;

Dry mortar production machinery is mainly composed of dry mortar mixer, feed screw conveyor, three ribbon mixing machine, secondary hoist, a storage hopper and automatic packing machine, etc.. This system is an efficiency production system after multiple times improvement on the basis of multiple ribbons dry mortar mixer. Mixed product will be into a storage bin through second lift machine. Then worker can carry out filing operation and not affect the next production. Matching an accurate packing machine can greatly improve production efficiency.

Name		GLHL1.0 Production Line	GLHL1.5 Production Line	GLHL2.0 Production Line	GLHL3.0 Production Line
Host Type	GLHL-1000	GLHL-1000	GLHL-1500	GLHL-2000	GLHL-3000
Feed Screw Converey	Power(kw)	3	4	4	4
Feed Screw Converey	Size(mm)	φ165x3200	φ219x3600	φ219x3600	φ219x3600
Second Lift Screw Converor	Power(kw)	3	3	3	4
Second Lift Screw Converor	Size(mm)	φ165x3000	φ165x3000	φ165x3000	φ219x3300
Size Of Storage Bin (mm)		φ160x2850	φ160x2850	φ180x2850	2100x1320x2850 (Double port)
Automatic Valve Port Paching Machine	Power(kw)	3	3	3	3
	Packing Efficiency(s/bag)	6	6	6	6
	Size(mm)	980x680x1050	980x680x1050	980x680x1050	980x680x1050
