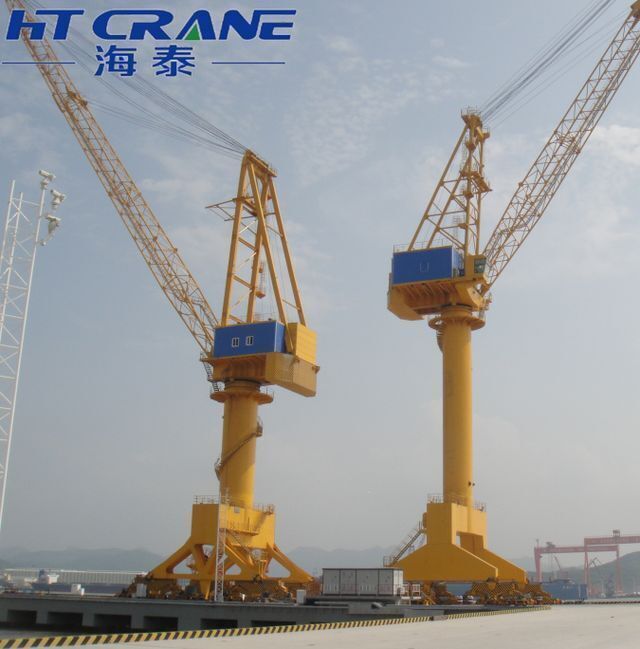

mobile harbour pedestal portal crane

Supplier: Henan Haitai Heavy Industry Co., Ltd.
Region: Henan, China
Contact: Ms Vera Li
Price: $750000.00 / 1 - 4 sets
$50000.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	1. Plastic cloth and Carton for Power machinery and important parts 2. Main structure Sections in Container ( about 12 sets to 25 sets 40 ft container ) Wooden Carton, Plastic cloth, Container;	Rated Lifting Moment:	50KN-4800KN;
Rated Loading Capacity:	15 TON,10 TON,10-45tons;	Marketing Type:	New Product 2020;
Place of Origin:	Henan China;	Warranty:	2 years;
Max.slewing radirus:	33m;	Application:	Port, shipyard, vessel etc;
Gauge:	6~22;	Warranty of core components:	2 years;
Span:	10.5m;	Port:	Shanghai,Xingang,Qingdao;
Structure:	box type boom or frame type;	Working duty:	A4-A7;
Video outgoing-inspection:	Provided;	Color:	Customer's Requirement;
Supply Ability:	200 Set/Sets per Year;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Showroom Location:	Saudi Arabia,Thailand,Argentina,Romania,Bangladesh,Australia;	Core Components:	PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;
Applicable Industries:	Machinery Repair Shops,Manufacturing Plant,Construction works ,Energy & Mining;	Machinery Test Report:	Provided;
After-sales Service Provided:	Engineers available to service machinery overseas,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support,Free spare parts;	Feature:	Portal Crane;
Local Service Location:	None;	Max. Lifting Height:	25M,10M,15M,20M,45m;
Weight (KG):	1;	Working radius:	8.5m~30m;
Payment Terms:	L/C,Western Union,D/P,T/T,MoneyGram;	Basal spur:	8~22;
Brand Name:	Haitai;	Type:	four-bar portal boom or Single Jib;
Standard:	GB/T 24001-2004;	Condition:	New;
Certification:	ABS,BV,CCS,CE,etc.,;

Product Description

design within 24 hours, 2 years warranty for crane parts-

Marine portal crane jib crane from China is commonly known as "gantry crane", refers to the traditional cranes used at port wharf etc.

On the gantry base running along the ground track, there shall be provided a slewing lifting boom with four cooperative working mechanisms - lifting, rotating, changing amplitude and traveling.

The railway train or other vehicles can pass under the door frame, and may carry out loading and unloading of vehicles and ships.

Pedestal crane technical data need to be confirmed

1. Lifting capacity: includes the hoisting material load and the spreader(grab, hook etc) weight.

2. Lifting height: includes the sum of the lifting height above the rail and below the rail.

3. Amplitude: The maximum distance between the centre of the crane and the lead perpendicular of the hoist center.

4. Gauge: refers to the horizontal distance between the central line of the crane's track.

5. Working speed: should be determined on the basis of the required productivity.

Pedestal crane is divided according to the jib system

Single boom pedestal crane Combined boom (four-link boom) pedestal crane

1.Main product

OEM Service -HaitaiCRANE

2. Feature and Drawing

OEM Service -HaitaiCRANE

Safety Device

* Overload Limit Switch
* Rubber Buffers
* Electric Protective Devices
* Emergency Stop System
* Voltage Lower Protection Function
* Current Overload Protection System
* Rail Anchoring
* Lifting Height Limit Device

Customize service

design within 24 hours, 2 years warranty for crane parts-HaitaiCRANE

1,Supplying design drawing for freely.
2,We could make door to door service.(cutorms clearance and transport in overseas)
3,Providing guide installation and commissioning.
4,Maintained for two years.(Detail maintained plan).
