Machine Screw Dies High Tensil Hss Thread Tool Die High Hardness Factory Direct Sale Flat Thread Rolling Dies

Click here to contact
Product details
Standard:ISO;Outside Diameter:Customized;
Brand Name:Henghui;MOQ:1sets;
Delivery Time:15-25Days;Product name:Flat Thread Rolling Die;
Packaging Detail:Wooden box;Model Number:Flat Thread Rolling Dies;
Certificate:ISO9001:2008;Customized support:OBM;
Port:Ningbo Port;Place of Origin:China,Ningbo;
Advantage:High Precision;Supply Ability:10000 Sets per Month for Flat thread rolling dies;
Number of Pieces:2;Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Warranty:1 years;Certification:ISO;
Usage:External Screw Thread Making;HARDNESS:HRC60-67;
Type:Die;Material:SKH9/M2;

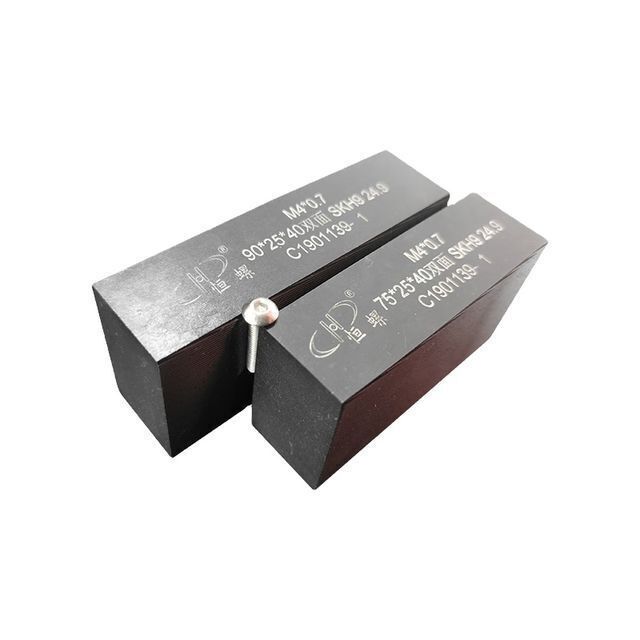

Product Description

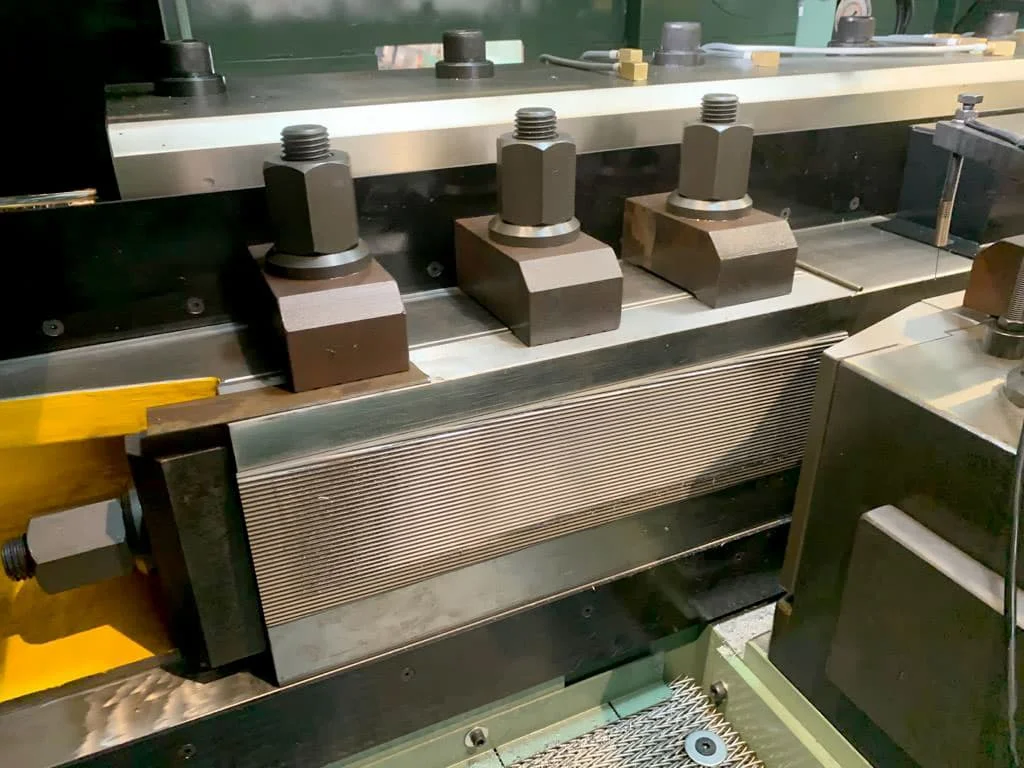

Flat dies system has two die flats, the bottom one is held stationary and the other slides. The blank is placed of one end of the stationary died then the moving die slides over the blank, which causes the blank to roll off the stationary lower die in a
finished form. Flat dies are available in various thread forms such as ANSI, BS, DIN and JIS amongst other. It can be offered with or without holding angles. Flat dies produce external threads by the process of cold forming, sutilize one stationary and one moving die to form the threads.
Dies Section for Thread Rolling Machine
General model
Machine type
Lm
Ls
T
H
(Moving Die)
(Stationary Die)
(Die Thickness)
(Die height)
Machine No. 0
64
51
19
25
Machine No. 3/16
90
75
25
25.40.45.53
Machine No. 1/4
115
100
25
25.40.55.65.80.105
Machine No. 5/16
140
127
25
25.40.55.65.80.105
Machine No. 3/8
165
150
25
25.40.55.65.80.105
Machine No. 1/2
215
190
35
55.80.105.125.150
Machine No. 3/4
265
230
38
55.80.105.125.150
Special model
Machine No. 003
55
45
15
20
Machine No. 004
80
65
20
25
Machine No. 4R
75
65
20
25.30.35.40
Machine No. 6R
105
90
25
25.30.40.55.65
Machine No. 8R
127
108
25
25.30.40.55.65.80.105
Machine No. 250
125
110
25
25.40.55
Machine No. DR125
86.2
73.3
20.8
25.40.55
Machine No. DR200
105.2 gradient 5º
92.3
20.8
25.40.53.65.80
Machine No. DR250
131.2 gradient 5º
112.1
23.8
25.40.54.65.80.105
Company Introduction

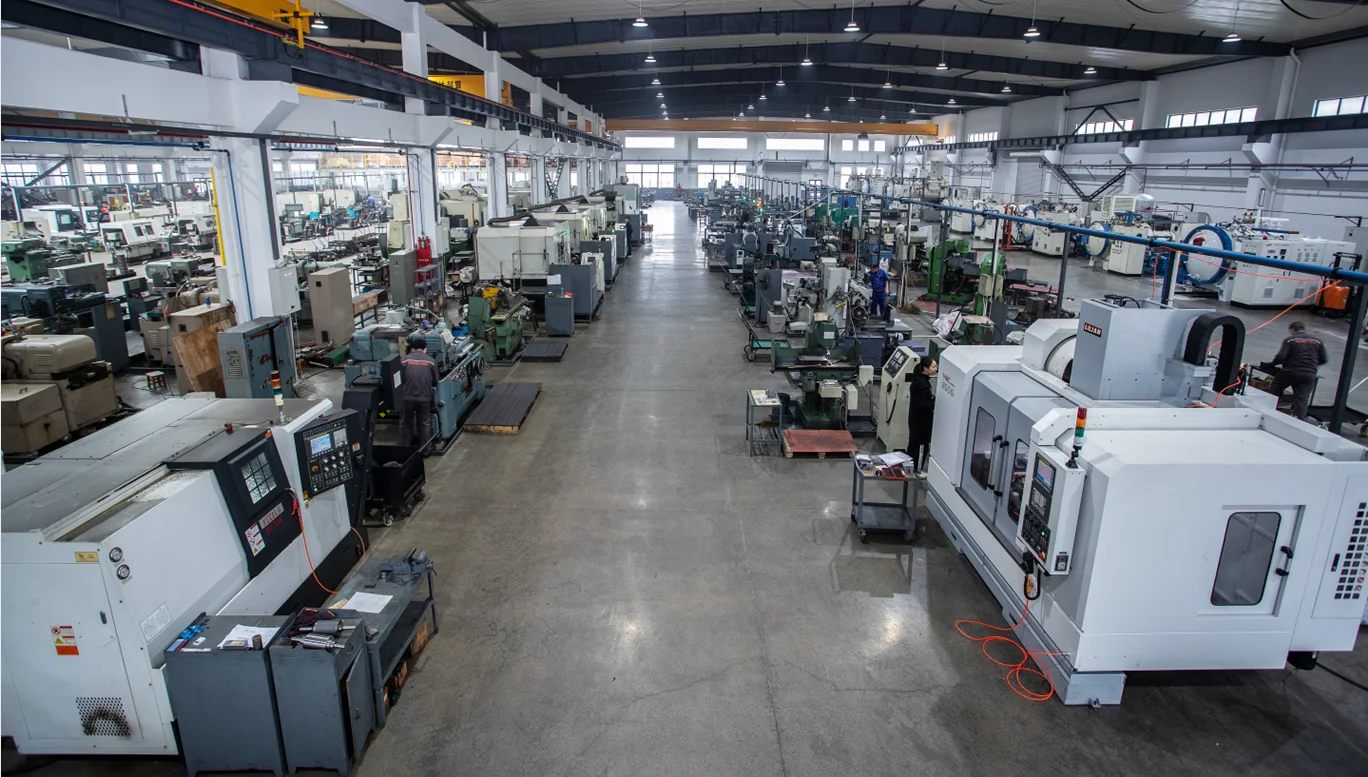

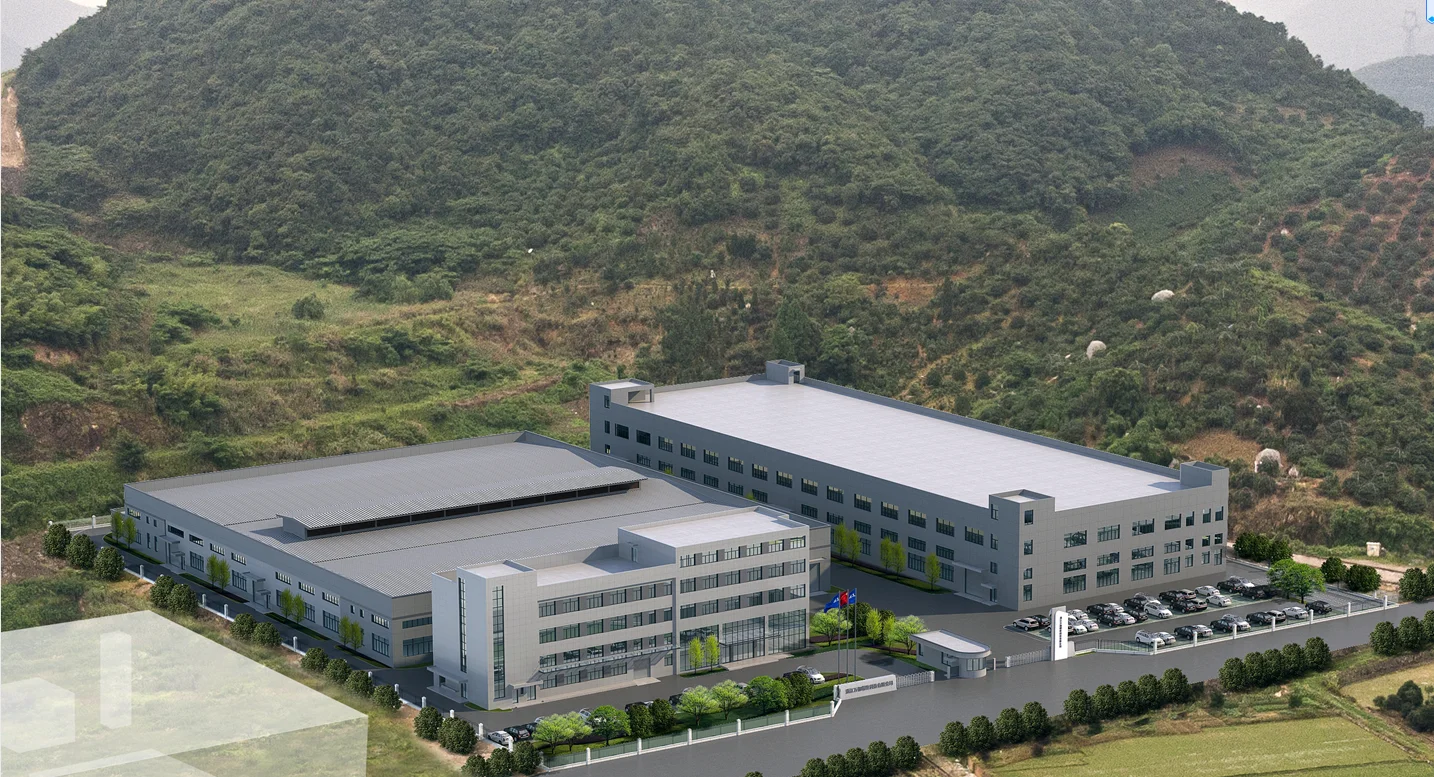

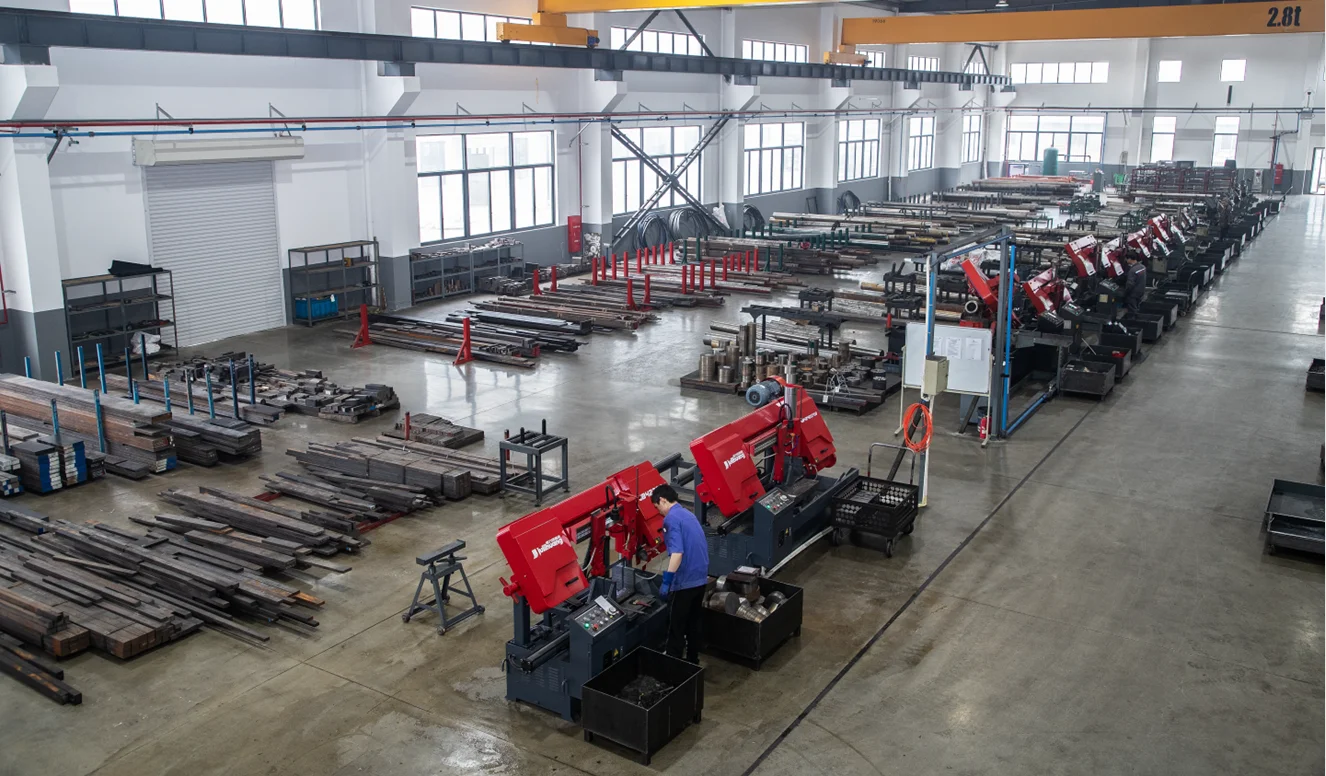

Ningbo Henghui Thread Tools Co., Ltd. established in 2005, located in Fenghua District Ningbo.The predecessor is Yinzhou Hengli Thread Tools Factory, established in 1993. Our company specializes in the Design and Manufacture Customized High-Precision,High-Tensile Thread Rolling Dies from the begining .Right now,we have more than 140 staffs,50 Mu,over 26000 square meters' production base with convenient transportation. Annual production capacity of 1500 tons.More than 500 types dies daily in stock.Top rank in the this field.
Our Services & Strength
Specializes in the design and manufacture of high-accuracy, high-strength, and non-standard thread rolling dies.
Exhibition
FAQ
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. 100% TT as deposit for sample order. We'll show you the photos of the products and
packages before shipment, if you need.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q3. How about your delivery time?
A: Generally, 1 day if dies are in stock after receiving your payment. or it is 15-20 days if the goods are not in stock, but it
depends on quantity.
Q4. Can you produce according to the samples or drawings?
A: Yes, we can produce by your samples or drawings.
Q5. What is your sample policy?
A: We can supply samples for quality testing, but the customers have to pay the sample cost and
the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit
