Fertilizer Thread Rolling Die Metric Thread UN BS Long Tool Life Customized Nitriding DC53 HSS/M2 HRC60-67 3 Years Henghui FF001 ISO

Supplier: Ningbo Henghui Thread Tools Co., Ltd.
Region: Zhejiang, China
Contact: Mr Tony Wang
Price: $16.00 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

Thread form:	Standard spacing	port:	Ningbo
standard:	International Organization for Standardization	application:	Metric thread UN BS
Material:	DC53 HSS/M2	Outer diameter:	custom made
Advantage:	long tool life	Packaging Details:	carton
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	model:	FF001
Supply capacity:	10000 sets/month flat thread rolling die	Surface treatment:	Nitriding
Custom Support:	ODM	place of origin; place of origin:	China, Ningbo
hardness:	HRC60-67	type:	die
Number of pieces:	2	transportation:	ocean

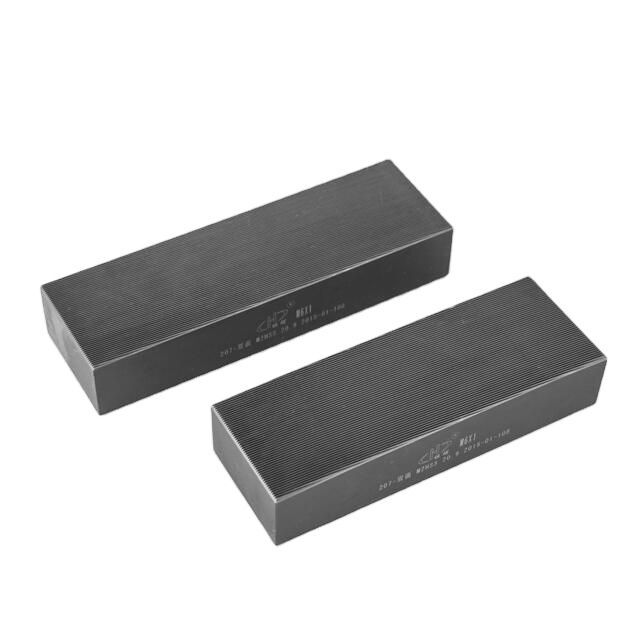

product name:	Flat thread rolling die	brand:	Henghui
Warranty:	3 years

Product Description

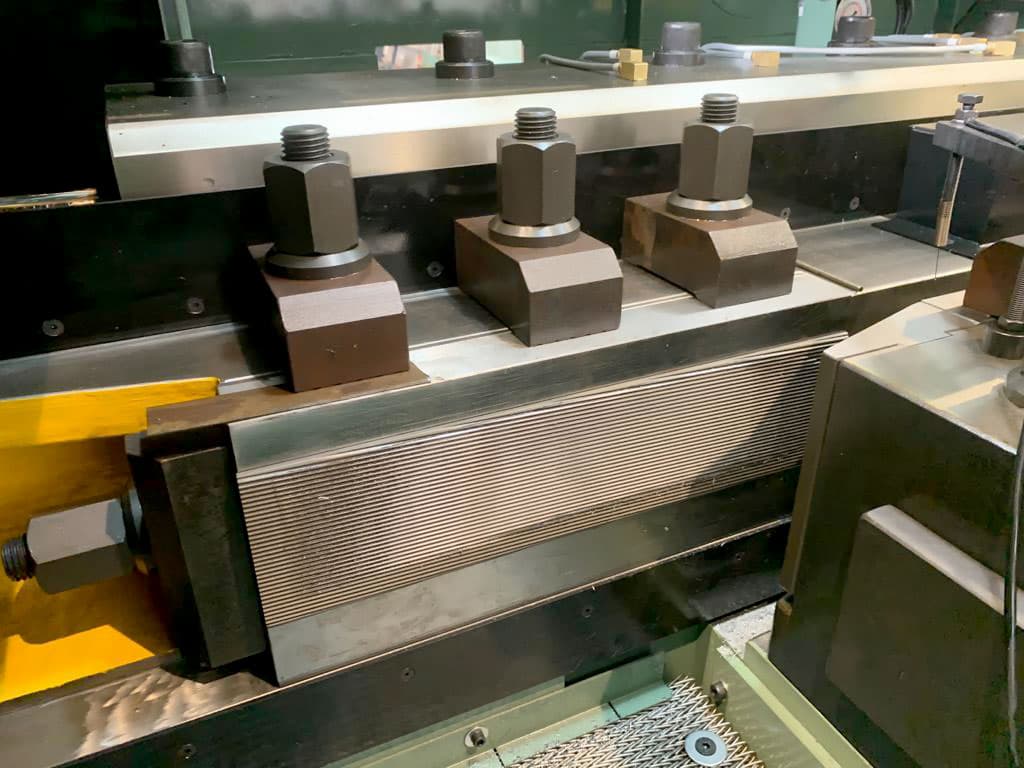

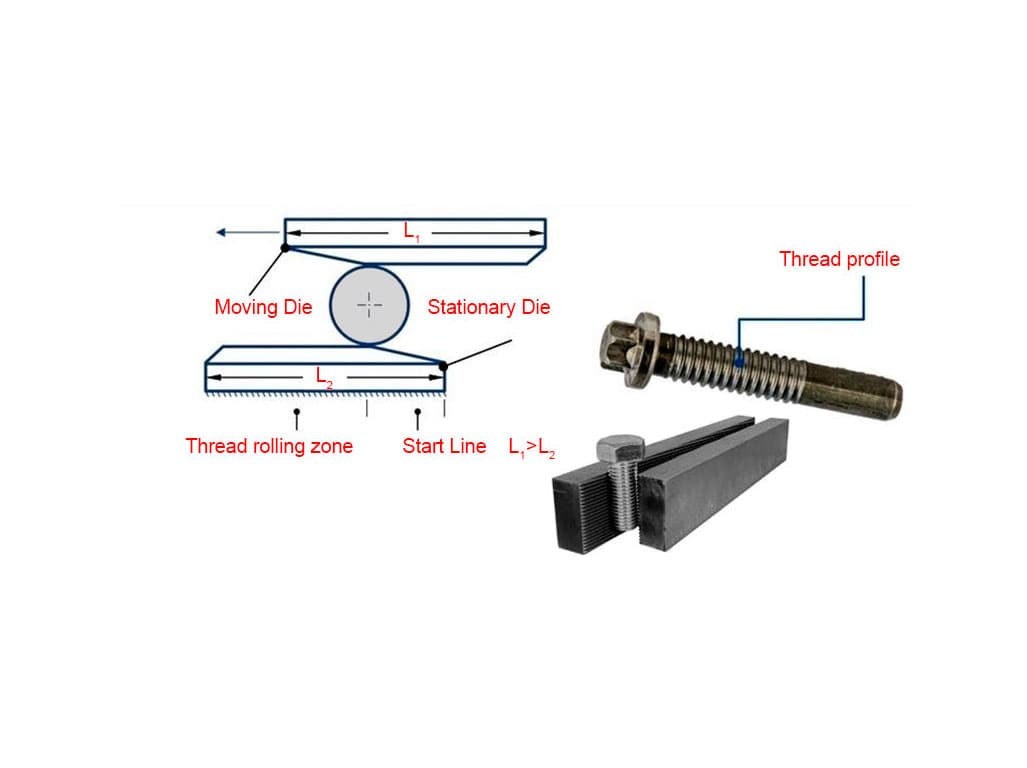

Flat mold systems have two mold planes, one stationary at the bottom and the other sliding. The blank is placed on one end of the stationary die, and then the die is moved to slide over the blank, causing the blank to roll off the stationary lower die.
completed form. Flat dies are available in various thread forms such as ANSI, BS, DIN and JIS. It can be provided with or without a holding angle. The flat die produces external threads through a cold forming process, and a static and a moving die are used to form the threads.

Thread rolling machine die part

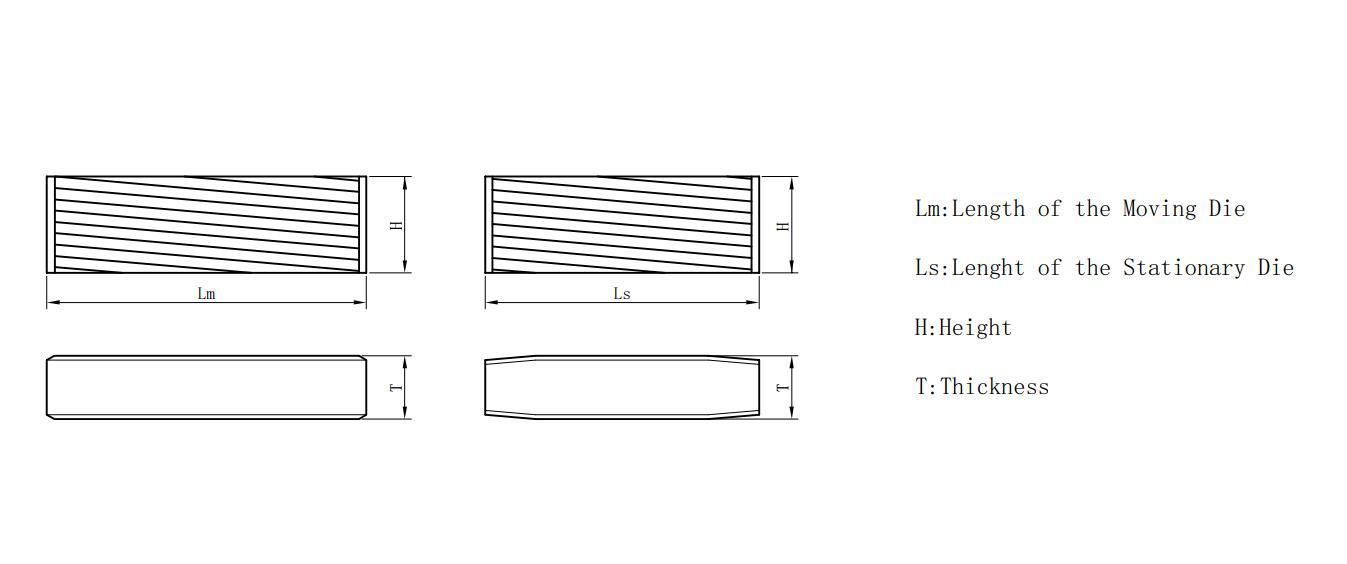

Universal model	type of machine	lm	LS	Ton	H
	type of machine			(moving mold)	(fixed mold)	(mold thickness)	(mold height)
		Machine 0	64	51	19	25
		Machine No. 3/16	90	75	25	25.40.45.53
		Machine 1/4	115	100	25	25.40.55.65.80.105
		Machine No. 5/16	140	127	25	25.40.55.65.80.105
		Unit 3/8	165	150	25	25.40.55.65.80.105
		Unit 1/2	215	190	35	55.80.105.125.150
		Unit 3/4	265	230	38	55.80.105.125.150
special model	Machine 003	55	45	15	20
		Machine No. 004	80	65	20	25
		No. 4R machine	75	65	20	25.30.35.40
		Machine No. 6R	105	90	25	25.30.40.55.65
		Machine No. 8R	127	108	25	25.30.40.55.65.80.105
		Machine No. 250	125	110	25	25.40.55
		Machine No. DR125	86.2	73.3	20.8	25.40.55
		Machine number DR200	105.2 Gradient 5º	92.3	20.8	25.40.53.65.80
		Machine No. DR250	131.2 Gradient 5º	112.1	23.8	25.40.54.65.80.105
