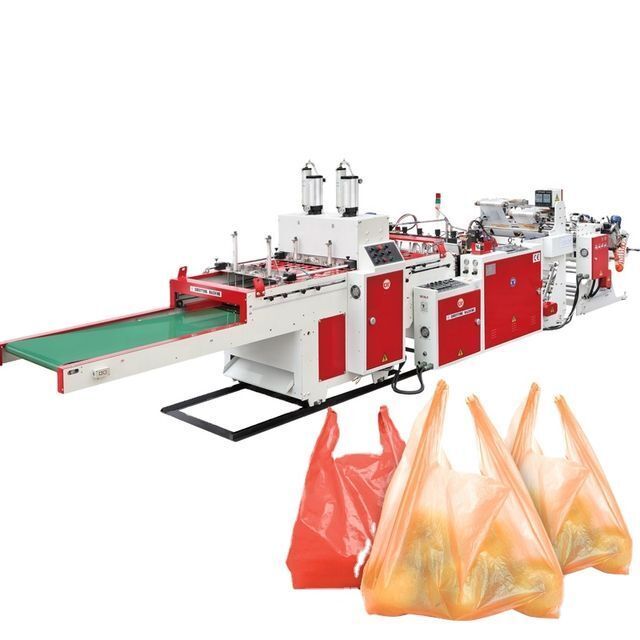

Polythene used plastic shopping fruit nylon bag making machine automatic PE biodegradable T-shirt carry bag making machine price
-
Supplier: Zhejiang Chovyting Machinery Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms Christina Wu -
Price: $38000.00 / 1 - 4 sets
$18000.00 / >=5 sets -
Min. Order: 1 set
| Payment Terms: | L/C,Western Union,T/T; | Brand Name: | CHOVYTING; |
| Voltage: | 380/220V 50/60HZ; | Photocell: | SICK Germany; |
| Bag Type: | T-shirt Bag; | Place of Origin: | Zhejiang, China; |
| Key Selling Points: | Long Service Life; | Certification: | CE/SGS/ISO9001; |
| Weight: | 2900 KG; | Product name: | Polythene used plastic shopping bag making machine; |
| Cylinder: | SHAKO Taiwan; | Supply Ability: | 300 Sets per Year; |
| PLC: | PANASONC JAPAN; | After Warranty Service: | Video technical support,Online support; |
| Material: | Plastic; | Model Number: | CW500V; |
| Marketing Type: | New Product 2020; | Warranty of core components: | 1 Year; |
| After-sales Service Provided: | Engineers available to service machinery overseas,Online support,Video technical support,Field maintenance and repair service; | Showroom Location: | United Kingdom,Italy,Germany,Philippines,Peru,India,Russia,Thailand,Argentina,Chile,Colombia,Sri Lanka,Romania,Ukraine,Kyrgyzstan,Nigeria,Tajikistan,Morocco; |
| Touch screen: | Taiwan; | Machine Type: | Bag Forming Machine; |
| Switch and button: | IDEC Japan; | Port: | Ningbo Port; |
| Local Service Location: | Egypt,Canada,Turkey,United Kingdom,United States,Italy,Germany,Viet Nam,Philippines,Peru,Pakistan,India,Mexico,Russia,Thailand,Malaysia,Morocco,Argentina,Chile,Colombia,Sri Lanka,Bangladesh,Kazakhstan,Kyrgyzstan,Nigeria,Uzbekistan; | Computerized: | Yes; |
| Max Speed: | 180pcs/min; | Machinery Test Report: | Provided; |
| Operation Language: | English/Russia/Arabic/Spanish /Chinese; | Applicable Industries: | Manufacturing Plant,Home Use,Retail,Food Shop,Construction works ,Food & Beverage Shops,Advertising Company; |
| Packaging Detail: | CW-500V Polythene used plastic shopping bag making machine package details: (1 x 40' container) 1. stretch film & bubble film wrapping onto wooden pallet shippment will be along with spare parts, instruction manual & components' manual; | Core Components: | Motor; |
| Inverter: | Yaskawa Japan; | Condition: | New; |
| Dimension(L*W*H): | 9000*1350*1800mm; | Video outgoing-inspection: | Provided; |
| Servo motor: | Yaskawa Japan; | Warranty: | 1 Year; |

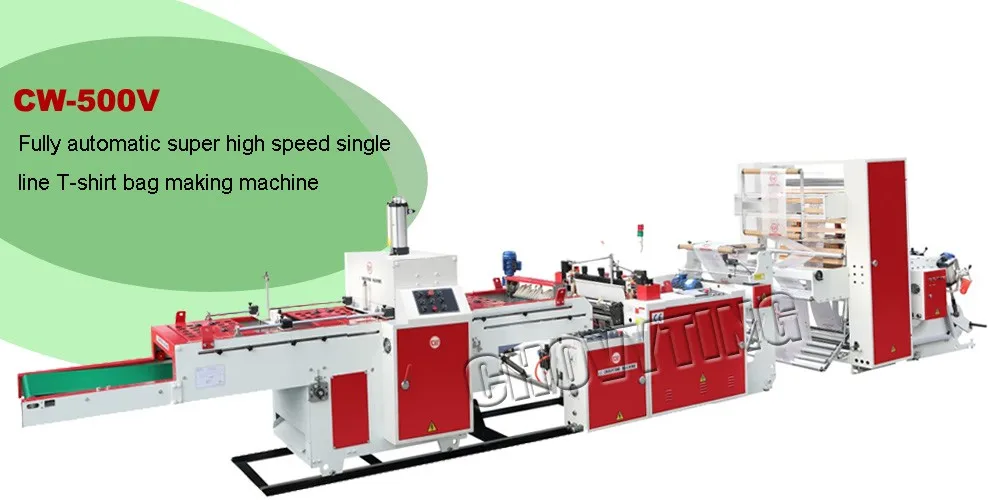

Brief Introduction
This is a practical high yield single line T-shirt bag making machine.Fully automatic operation,customers can effectively reduce the cost of investment and labor workforce.
Main Features
1)Single line width range practical design.
2)Unwinding tension adopts fully automatic tension control.
3)Unwinding roll with big diameter option save material changing time.
4)With feeding automatic correction design.
5)New design of punch device,able to adapt to a longer length of t-shirt bag.
Optional
1.Single sheet film folding unit(hydraulic auto loading device)
2.Double sealing knife device
3.Bottom sealing knife device
Model | CW-500V | CW-600V |
Bag length | 370-1200mm | 370-1200mm |
Bag width | 500mm | 600mm |
Line speed | 100m/min | 100m/min |
Speed of bag-making | 220pcs/min | 200pcs/min |
Total power | about9.8KW | about10.5KW |
Machine weight | 2900kg | 3100kg |
Overall dimension (LXWXH) | 9000*1350*1800mm | 9000*1450*1800mm |

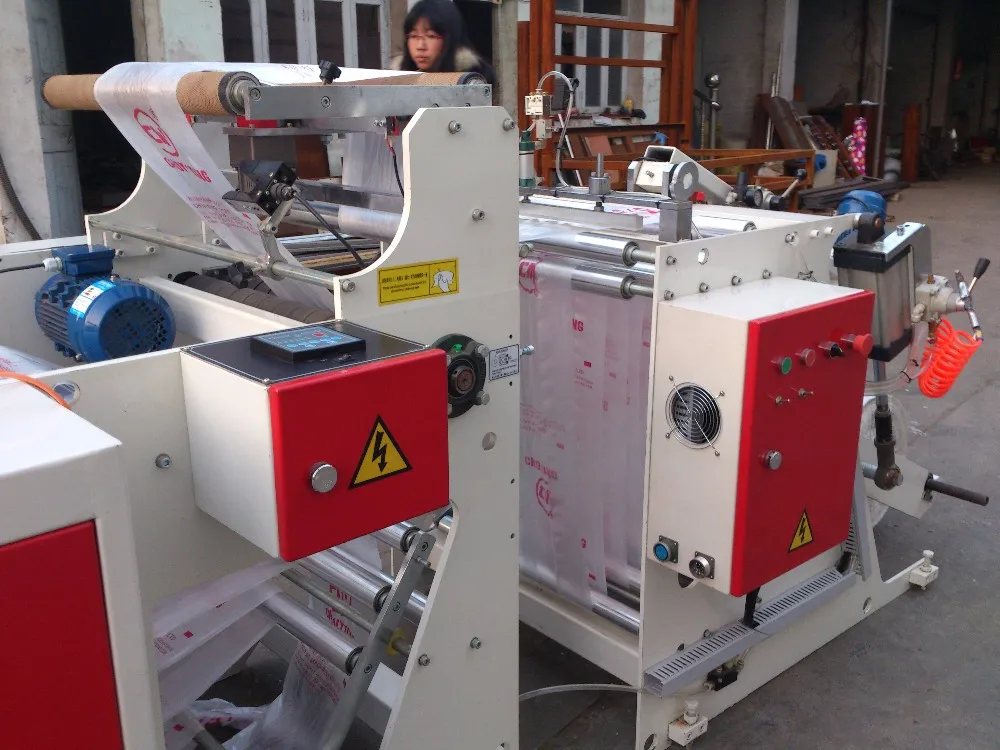

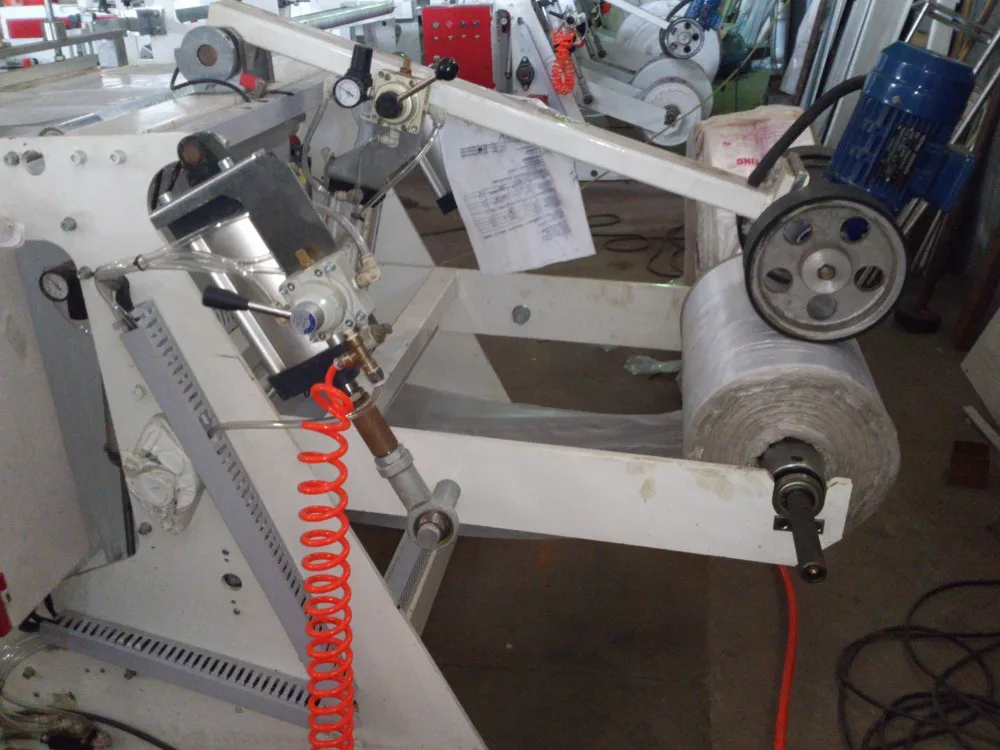

Air cylinder unwind device
1)Unwinder adopts air cylinder automatic load design.
2)Adopts AC frequency motor driving constant tension control,feeding speed is according to the producing speed.
3)Unwinder part has the EPC and automatic tension control.
1)This device special for this high speed model.
2)When roll film feeding so fast that the film will move little left and right, with this EPC device to be control the film feeding corrected to the right position.
3)This EPC system will enhance the productivity of machine.
Printing photocell
1)The uniquely designed printing bag control system enhance the productivity,and it is easy to operate.

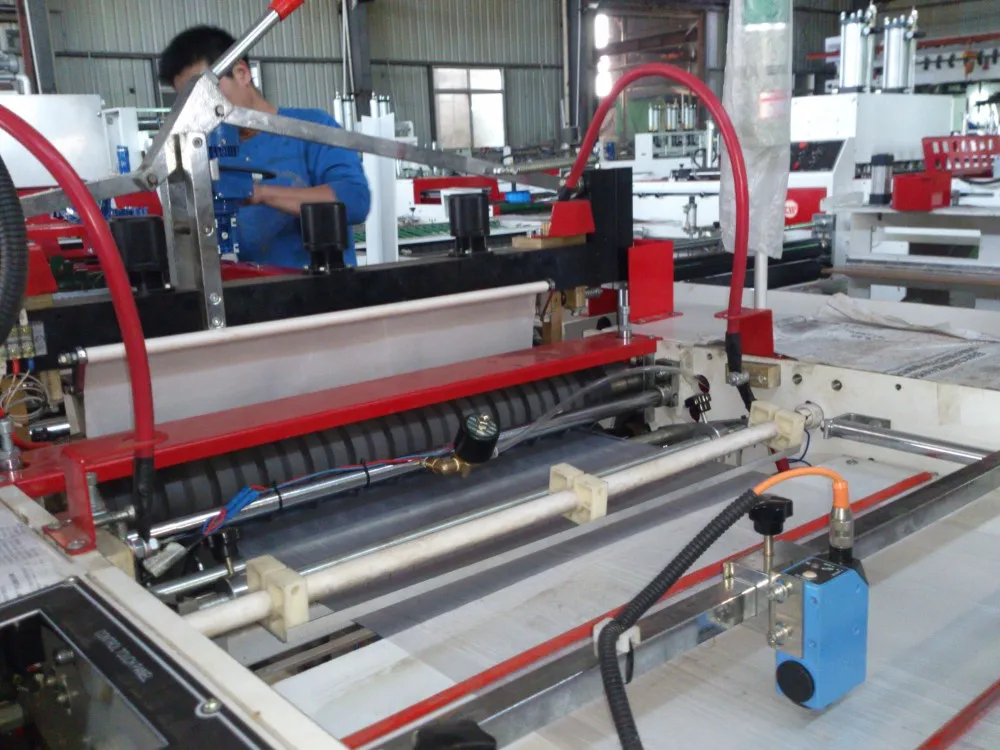

Sealing and cutting knife device
1)Sealing knife "turnover" device ,which easy to clean the knife ,which is better to keep the maintenance easy.
2)The whole set of bags has design of swaying ,no paste between two bags mouth.
Hydraulic air cylinder punch
1)With 5tons hydraulic air cylinder punch from Taiwan.
2)The motor of clip for clamp the bag is Ac inverter motor control 1.5KW,which makes much more tidy.
3)Automatic collect bags and finish stack bags with double fold device.

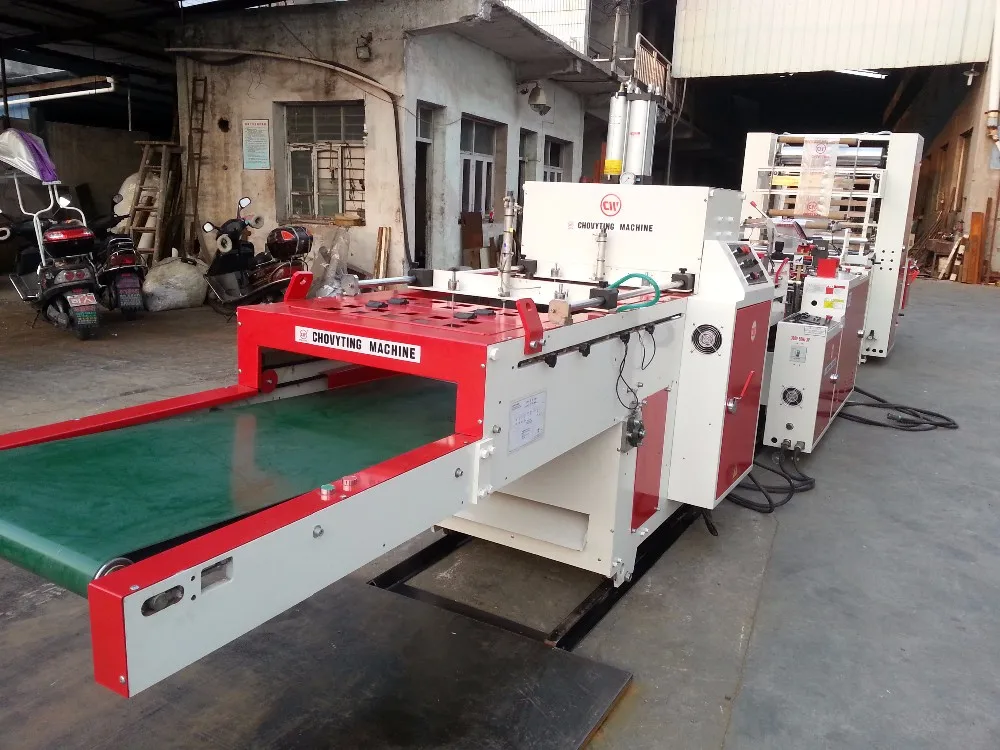

Automatic collect table
A1- CHOVYTING is a factory
A2- CHOVYTING located in Ruian city,zhejiang province, China. Its about 40 minutes from shanghai by plane(4 hours by train). All our clients from home and abroad are warmly welcome to visit us.
Q3- What is the suitable material for your machines?
A3- PE, OPP, Composite material ,etc. Are suitable for CHOVYTING machines
Q4- What is type machines do you have ?
A4 - special for all of plastic bag making machine, like shopping bag, diaper bag, courier bag, stand up zipper pouch ,rolling garbage bag, bread bag, chicken bag etc...
Q5- How many years of your factory
A5- CHOVYTING MACHINERY setted up in 1999
Q6- What is certificate of machine do you have
A6- CE, ISO 2016, And more than 100 piece Patent of machine
Q7- What about your company The development of your company
A7- CHOVYTING Titled as “National key and new products” and Pass identification of the provincial new product; and honored as”patent model enterprise”
Q8- How many exhibition we took part in
A8- We start to took part in CHINAPLAS from 2008 to now,and also K show in German,NPE in America,Arabplast in Dubai,Plastic Eurasia in Turkey etc..
Q9- how many workers from your company
A9- CHOVYTING has more than 150 employees
Q10-what is size of your factory
A10- CHOVYTING factory place have more than 10000 Square meters
-
