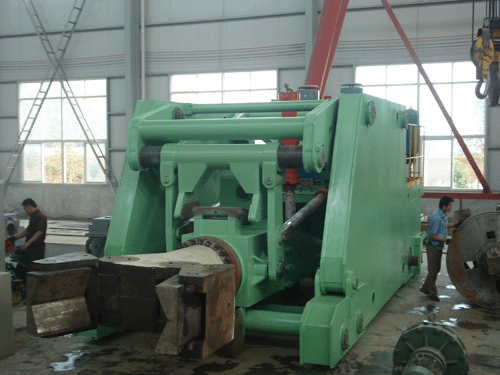

Forging manipulator
Rail-bound movement
Carrying capacity: 1-120t
Linked with press in the work
Siemens PLC
CAPACITY (T) | 5 | 8 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | |
MAX MOMENT(T.M) | 10 | 15 | 25 | 30 | 40 | 45 | 60 | 70 | 90 | |
GRIP OPENING (mm) | min. | 150 | 180 | 180 | 200 | 200 | 200 | 200 | 200 | 200 |
-MAX. ROUND | max. | 800 | 1000 | 1000 | 1200 | 1570 | 1650 | 1650 | 1800 | 1900 |
TONGS CENTER HEIGHT (mm) | min. | 780 | 800 | 800 | 880 | 900 | 950 | 950 | 1000 | 1000 |
max. | 1500 | 1600 | 1800 | 1880 | 1900 | 2300 | 2300 | 2500 | 2500 | |
HORIZONTAL SIDE SHIFT OF TONGS (mm) | 2140 | 2200 | 2300 | 2600 | 2800 | 2850 | 2850 | 2950 | 3150 | |
GAUGE (mm) | 2400 | 2400 | 3200 | 3200 | 3500 | 3500 | 4000 | 4000 | 4500 | |
TRAVELLING SPEED m/min | 32 | 32 | 32 | 26 | 26 | 26 | 26 | 21 | 21 | |
TONGS ROTATION SPEED r/min | 10~20 | 10~20 | 10~15 | 10 | 10 | 8 | 8 | 5~8 | 8 | |
WORKING OIL PRESSURE (Mpa) | 10 | 10 | 16 | 16 | 16 | 16 | 16 | 16 | 20 | |
TOTAL POWER (Kw) | 89 | 112 | 112 | 141 | 148 | 166 | 202 | 220 | 220 | |
EXTERNALITY SIZE (mm) | (L) | 7380 | 8000 | 8500 | 8700 | 9000 | 9000 | 9500 | 9800 | 10000 |
(W) | 3400 | 3470 | 3980 | 3980 | 4200 | 4250 | 4560 | 4600 | 5200 | |
(H) | 3300 | 3300 | 3500 | 3500 | 3900 | 4100 | 4100 | 4200 | 4390 |
