Supply Ability: | 50000 Pieces per Month; | Model Number: | AN-AGM-250AH; |
Application: | Home Appliances,Solar Energy Storage Systems; | Maximum discharge current: | 1000A(5 sec.); |
Battery Size: | 100~250AH; | Brand Name: | Anern,Anern; |
Terminal material: | Copper; | Warranty: | 5YEARS; |
Designed floating life(20℃): | 12 years; | Weight(KG): | 26.20kg/38.04kg/57.30kg/65.60kg; |
Terminal type: | F5/T9; | Packaging Detail: | Standard Export Carton with foam inside suitable for long-distant ocean shipment and tough handling.; |
Port: | Guangzhou; | Size(mm): | 330*171*214/484*171*240/522*238*221/521*269*220; |
Weight: | 65.60kg; | Payment Terms: | L/C,D/P,D/A,T/T,Alipay,Paypal; |
Place of Origin: | Guangdong, China; | Certification: | CE,ROHS; |
Capacity(AH): | 100AH~250AH; | Battery type: | Deep cycle GEL Battery; |
Voltage(V): | 12V; |

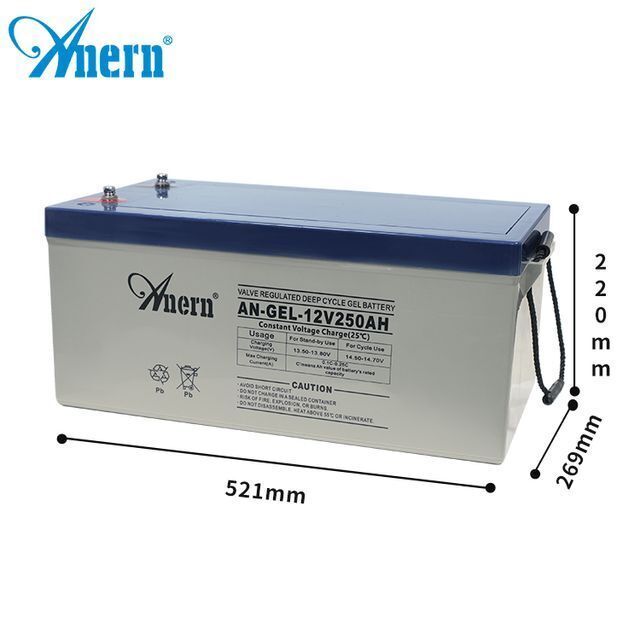

Item No. | AN-GEL-100AH | AN-GEL-150AH | AN-GEL-200AH | AN-GEL-250AH |
Capacity(AH) | 100 | 150 | 200 | 250 |
Voltage(V) | 12 | 12 | 12 | 12 |
Size(mm) | 330*171*214 | 484*171*240 | 522*238*221 | 521*269*220 |
Weight(KG) ±4% | 26.20kg | 38.04kg | 57.30kg | 65.60kg |
Nominal Voltage | 12 V | ||
Capacity(25℃) | 10HR(10.8V) | 250 Ah | |
5HR(10.5V) | 215Ah | ||
1HR(9.60V) | 155Ah | ||
Dimension | Length | 521±2mm (20.5inch) | |
Width | 269±2mm (10.6inch) | ||
Height | 220±2mm (8.66inch) | ||
Total Height | F5: 242±2mm (9.53inch) | ||
T9: 223±2mm (8.78inch) | |||
Approx. Weight | 65.6kg±4% | ||
Terminal type | F5/T10 | ||
Internal resistance(Fully charged, 25℃) | Approx. 2.7mΩ | ||
Capacity affected by temperature (10HR) | 40℃ | 102% | |
25℃ | 100% | ||
0℃ | 85% | ||
-15℃ | 65% | ||
Self-discharge(25℃) | 3 month | Remaining Capacity: 91% | |
6 month | Remaining Capacity: 82% | ||
12 month | Remaining Capacity: 65% | ||
Nominal operating temperature | 25℃±3℃(77℉±5℉) | ||
Operating temperature range | Discharge | -15℃~50℃(5℉~122℉) | |
Charge | -10℃~50℃(14℉~122℉) | ||
Storage | -20℃~50℃(-4℉~122℉) | ||
Float charging voltage(25℃) | 13.50 to 13.80VTemperature compensation:-18mV/℃ | ||
Cyclic charging voltage(25℃) | 14.40 to 14.70VTemperature compensation:-30mV/℃ | ||
Maximum charging current | 75A | ||
Terminal material | Copper | ||
Maximum discharge current | 2000A(5 sec.) | ||
Designed floating life(20℃) | 10 years |
