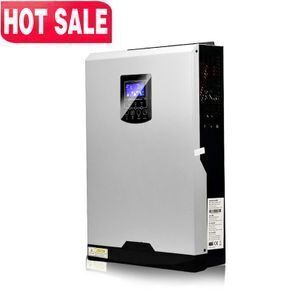

On Grid Off Grid Hybrid MPPT Solar Inverter

Product details
Type:DC/DC Converters,DC/AC Inverters;Power:1kw-8kw;
Size:300*185*85;Place of Origin:Guangdong China;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Alipay,paypal;Overload:110-120%/30S;
Output waveform:Pure Sine Wave Output;Operating ambient temperature:0-40℃;
Brand Name:Anern;Port:Guangzhou;
Display:LCD Display;Model Number:AN-SCI02-PLUS;
Output Voltage:110V/120V/220V/230V;Inverter Efficiency:50~60HZ;
Input Voltage:230V DC;Weight:8kgs;
Control Method:MPPT;Output Current:20A;
Efficiency:>96%;MPPT Accuracy:>99.5%;
Packaging Detail:Standard Export Carton with foam inside suitable for long-distant ocean shipment and tough handling.;Certificate:CE,ROHS;
Output Type:TRIPLE;Switching time:<10ms;
Warranty:3;Output Frequency:50Hz/60Hz;
Inverter Output Frequen:50Hz/60Hzd1%;Supply Ability:10000 Piece/Pieces per Month;

On Grid Off Grid Hybrid MPPT Solar Inverter



Click Here For More Information



Product Description



 Feature of solar inverter:


1.Intelligent functionality enables utility and solar input prioritization.
2. Surges to 2X continuous power for 5 seconds for motor loads.
3. High effciency pure sine wave inverter(PF=1);Wide PV input range (12V dc -50V dc) 80A MPPT SCC;Intelligent 3stage 80A AC battery charger.
4. Wide ulility input range (90Vac _280Vac) for unreliable grid even in the most challenging environments.
5. Field serviceable with replacement boards and spare parts.
6. Monitor, troubleshoot, or communication with USB/RS 232.
7. System configures quickly into compact, wall-mounted system.



Description of solar inverter:

The AN-SCI02 series all in one solar system is the perfect go-to solution for off-grid, backup power for homes, small business, and it also delivers a value added. Inverter running without batteries also can help to reduce cost in solar power system.



ModelSCI02-3200SCI02-5000
RATED POWER3200W5000W
INPUT
Voltage230 VAC
Frequency Range50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (PV Mode)230VAC ± 5%
Surge Power6000VA10000VA
Efficiency (Peak) PV to INV.97%
Efficiency (Peak) Battery to INV.94%
WaveformPure sine wave
BATTERY & AC CHARGER
Battery Voltage24VDC48VDC
Floating Charge Voltage27VDC54VDC
Overcharge Protection33VDC63VDC
Maximum Charge Current80A60A
SOLAR CHARGER
Maximum PV Array Power4000 W4000 W
MPPT Range @ Operating Voltage120 ~ 450 VDC
Maximum PV Array Open Circuit Voltage500 VDC
Maximum Efficiency98%
