Hybrid MPPT 3kva 5kva solar power inverter with charger

Supplier: Guangzhou Anern Energy Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Lynn Pan
Price: $100.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Output Type:	SINGLE,TRIPLE,multiple;	Output Current:	20A;
Packaging Detail:	Standard Export Carton with foam inside suitable for long-distant ocean shipment and tough handling.;	Size:	30018585;
Product name:	Hybrid MPPT 3kva 5kva solar power inverter with charger;	Model Number:	AN-SCI02-3000W;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Alipay,paypal;	Type:	High Frequency,DC/DC Converters,DC/AC Inverters;
Output Frequency:	50Hz,50Hz/60Hz;	Power:	1kw-8kw;
DC Input Voltage:	24V;	Output Voltage:	220VAC;
Output waveform:	Pure Sine Wave Output;	Warranty:	2 years;
Supply Ability:	50000.0 Piece/Pieces per Month;	Brand Name:	Anern;
Efficiency:	>90%;	Weight:	8kgs;
Place of Origin:	Guangdong China;	Port:	Guangzhou;
Certificate:	CE,ROHS;

Advantages

Feature of solar inverter:

1.High effciency pure sine wave inverter(PF=1);Wide PV input range (12V dc -50V dc) 80A MPPT SCC;Intelligent 3stage 80A AC battery charger.
2. Surges to 2X continuous power for 5 seconds for motor loads.
3. Intelligent functionality enables utility and solar input prioritization.
4. Wide ulility input range (90Vac _280Vac) for unreliable grid even in the most challenging environments.
5. Field serviceable with replacement boards and spare parts.
6. Monitor, troubleshoot, or communication with USB/RS 232.
7. System configures quickly into compact, wall-mounted system.

Product Description

Description of solar inverter:

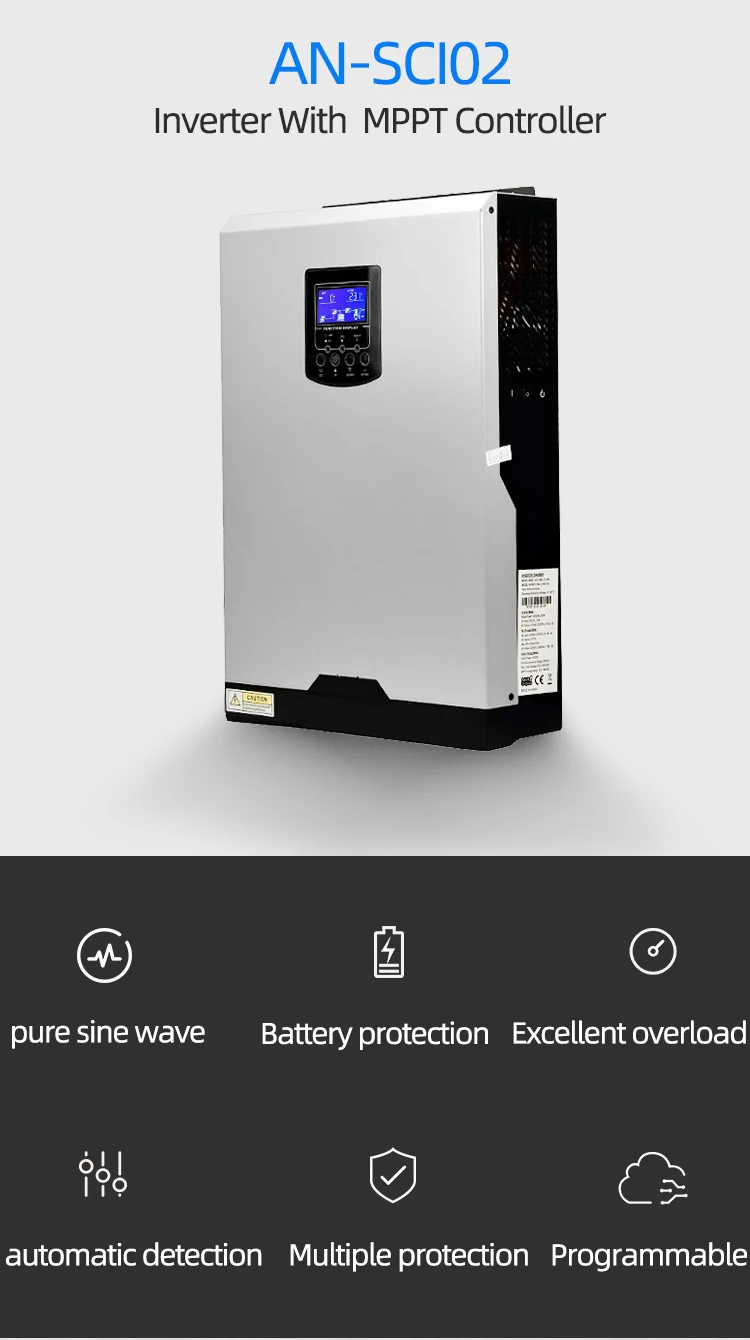

The AN-SCI02 series all in one solar system is the perfect go-to solution for off-grid, backup power for homes, small business, and it also delivers a value added. Inverter running without batteries also can help to reduce cost in solar power system.

Model	SCI02-3200	SCI02-D5000
RATED POWER	3200W	5000w
INPUT
Voltage	230 VAC
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (PV Mode)	230VAC ± 5%
Surge Power	6000VA	10000VA
Efficiency (Peak) PV to INV.	97%
Efficiency (Peak) Battery to INV.	94%
Waveform	Pure sine wave
SOLAR CHARGER
Maximum PV Array Power	4000 W	5000 W
MPPT Range @ Operating Voltage	120 ~ 450 VDC
Maximum PV Array Open Circuit Voltage	500 VDC
Maximum Efficiency	98%

Products Details

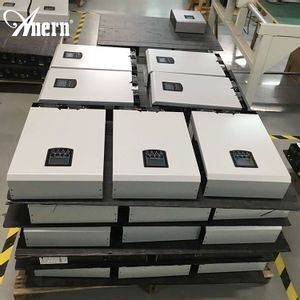

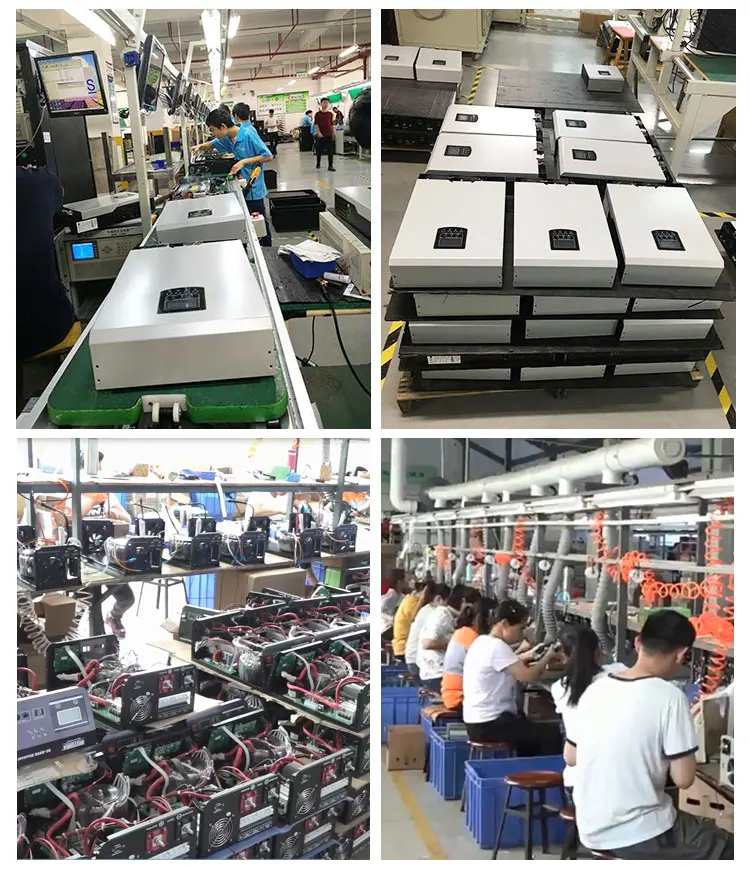

Anern Factory
