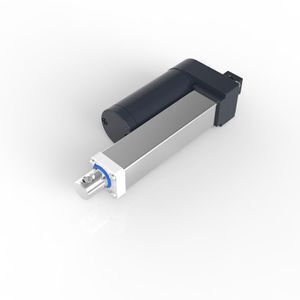

High quality waterproof 12v electric mini linear actuator

Supplier: Zhejiang Ge Ming Driven Technology Co., Ltd.
Region: Zhejiang, China
Contact: Ms Betty Hu
Price: $33.50 /piece
Min. Order: 1 piece

Click here to contact

Product details

The slowest speed at full load:	5.5mm/s(Load 3, 500N);	Stroke:	8-900mm;
Speed(RPM):	3000rpm;	Continuous Current(A):	0.8(A);
Other options:	Hall sensor;	Package Type:	export standard carton package include EPE Foam;
Efficiency:	IE 1;	Single package size:	48X17X9 cm;
Delivery Detail:	0 days after payment;	Selling Units:	Single item;
Product Name:	mini linear actuator;	Maximum load:	3, 500N in pull/push;
Commutation:	Brush;	Operational temperature range:	+5.C-+45C;
Certification:	CE,ROHS,UL,VDE,TUV;	Model Number:	HTA250;
Protect Feature:	Waterproof;	Type:	Gear Motor;
Material:	metallic zinc alloy;	IP rating:	IP54;
Single gross weight:	3 KG;	Voltage of motor:	12V DC, 24V DC, 36V DC, 48V DC;
Brand Name:	GeMinG;	Place of Origin:	Zhejiang China (Mainland);
Construction:	Permanent Magnet;	Colour:	Silver gray or black;
Usage:	Boat,Car,Electric Bicycle,Fan,Home Appliance,12V high quality Industrial electric linear actuator for sale;

High quality waterproof 12v electric mini linear actuator

Product Information

Product Information

General Features
Voltage of motor	12V DC, 24V DC, 36V DC, 48V DC
Maximum load	3, 500N in pull/push
The slowest speed at full load	5.5mm/s(Load 3, 500N)
Stroke	8-900mm
Minimum dimensions	Stroke+ 105 mm(S< 300mm) Stroke+ 120 mm(S> 300mm)
Color	Silver gray or black
IP rating	IP54
Operational temperature range	+5.C-+45C
Material	metallic zinc alloy
limit switches	Built-in

Associated Products

Company Information

Certifications

Packaging & Shipping

FAQ

FAQ

Q: What if I need an actuator using a Stroke length or Force that you don't stock?
A: We have many other actuator configurations available, and we'd be happy to make a Custom Order for you. Please visit our Custom Orders section or contact us with your requirements.

Q: How can I mount your linear actuators?
A: Every linear actuator we sell features mounting holes on each end of the actuator body. Combine these with our mounting brackets (with a 180° turning radius) and you have a full range of mounting solutions. Remember to mount the actuator on something that can bear its weight too.

Q: Do your actuators come with internal limit switches? How do they work?
A: All GEMING actuators come equipped with builtin limit switches. The limit switch stops the actuator once it has hit the end of its complete travel length in either direction, until polarity is reversed. This prevents damage from over-extension and also conserves electricity for low power consumption applications.

Q: What are the actuator dimensions and/or specifications?
A: The technical data section of our website contains measurement details, product specifications, and wiring schematics. This includes actual CAD model drawings of each product. Each individual product page also has a link to its own specifications, And if you require additional information please contact us!

Q: Can the actuator hold a load when partially or fully extended?
A: All GEMING actuators can hold their rated Force weight when stopped at any point along its stroke length. If your actuator is rated for 400 lbs, it will hold that amount when stopped, even if the power is disconnected.

Feel Free To CONTACT US ~

Please Send your Inquiry Details by Clicking the "Contact Supplier" Button.
