Waste EPS Compaction Hot Melt Machine Recycling Plastic Machine Plastic Melting Machine Densifier Qin Feng

Supplier: Zhangjiagang Qinfeng Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Mander Chen
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Video external inspection:	if	Processing material:	foam hot melt
color:	optional	Voltage:	220v 380v 400v 480v 440v (customized)
Core Components Warranty:	1 year	payment terms:	letter of credit, wire transfer
Main selling point:	multifunctional	Certification:	Chief Executive
Applicable industries:	Hotels, building materials stores, farms, restaurants, home furnishing, food stores, plastic recycling industries	place of origin; place of origin:	Jiangsu, China
Key words:	plastic melter	Local service location:	Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, United Arab Emirates
port:	Shanghai	Supply capacity:	20 sets per month efficient, fast and guaranteed
Showroom location:	not any	After-sales service provided:	Engineers can go overseas to service machinery, video technical support, free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, online support
Warranty:	1 year	capacity:	150-200 kg/h
Name:	Plastic melt thickener	Finished goods:	hot melt ingot
Marketing Type:	normal product	Packaging Details:	Standard wooden box or according to customer requirements.
Health status:	new	Mechanical test report:	if
After Warranty Service:	Video technical support, online support, on-site maintenance and repair services	Plastic Type:	Waste plastic, PVC, PP/PE, EPS
Applications:	compressed waste	Core components:	PLC, bearing, gearbox, motor
brand:	China	Packaging Preview:

Product Description

Zhangjiagang Zhongfu Machinery Co., Ltd. specializes in the production of various waste EPS, EPP, EPE, XPS, PUR, PSP, cans, films, bottles and other waste briquetting machines. We manufacture various waste recycling compressors. All compressors produced by Chinafor Machinery are produced in Qinfeng's own factory in Zhangjiagang, China.

ApplicationsIn recent years, the recycling of waste plastics is in the ascendant. EPS is widely used in the packaging industry, but it is bulky and difficult to transport. With the aim of reducing the pollution caused by waste plastics and improving the living environment of human beings, Qinfeng Machinery has successfully developed a new type of plastic melting machine EPS plastic compactor. After numerous continuous tests and researches, it has formed its own characteristics in the field of waste EPS recycling. In order to avoid the secondary pollution of the recycling machine to the water body and the environment, Qinfeng Machinery once again organized scientific researchers to solve this technical problem. Taking reducing secondary pollution as the guiding ideology, it has realized the upgrading of the waste plastic recycling machine. This plastic melter is high performance, space saving and easy to transport finished products. The operation is pollution-free, protects the environment, and avoids secondary pollution. Thoroughly reuse plastic waste and create interest.

main feature1. The linear structure is simple and easy to install and maintain. 2. Pneumatic parts, electrical parts and operating parts all adopt advanced world famous brand components. 3. Easy to operate and high efficiency. 4. The operation is automated, the degree of intelligence is high, and there is no pollution. 5. The machine adopts conveyor belt, which can directly increase the output.

Product parameters

EPS hot melt adhesive machine CF-HM 400The following dimensions are for reference only, special requirements can be discussed in detail.

Model	CF-HM-400 Plastic Melting Densifier
Screw diameter	φ250mm
screw length	2100mm
Screw speed	150 rpm
capacity	150~200Kg/h
Motor Power	22KW
Crusher motor power	2.2kwx4
heating power	14kW
Number of Crusher Blades	4 sets of 11 sets + 10 sets + 11 sets + 10 sets
Crusher speed	100 rpm/m
Dimensions L×W×H	3400x1880x2150mm

work process

1. Hopper 2, Crusher 3, Extruder 4, Die 5, Electric control box

Working principle of plastic melting densifier:The four-shaft crushing blade is two parallel blade shafts with different rotation directions, each blade shaft has 18 blades, which are driven by a gearbox to transport the material through the screen to the barrel. The material is fed into the heating cylinder by the high-speed rotating screw. They will then melt at high heat, extruding into the expected sharpness.

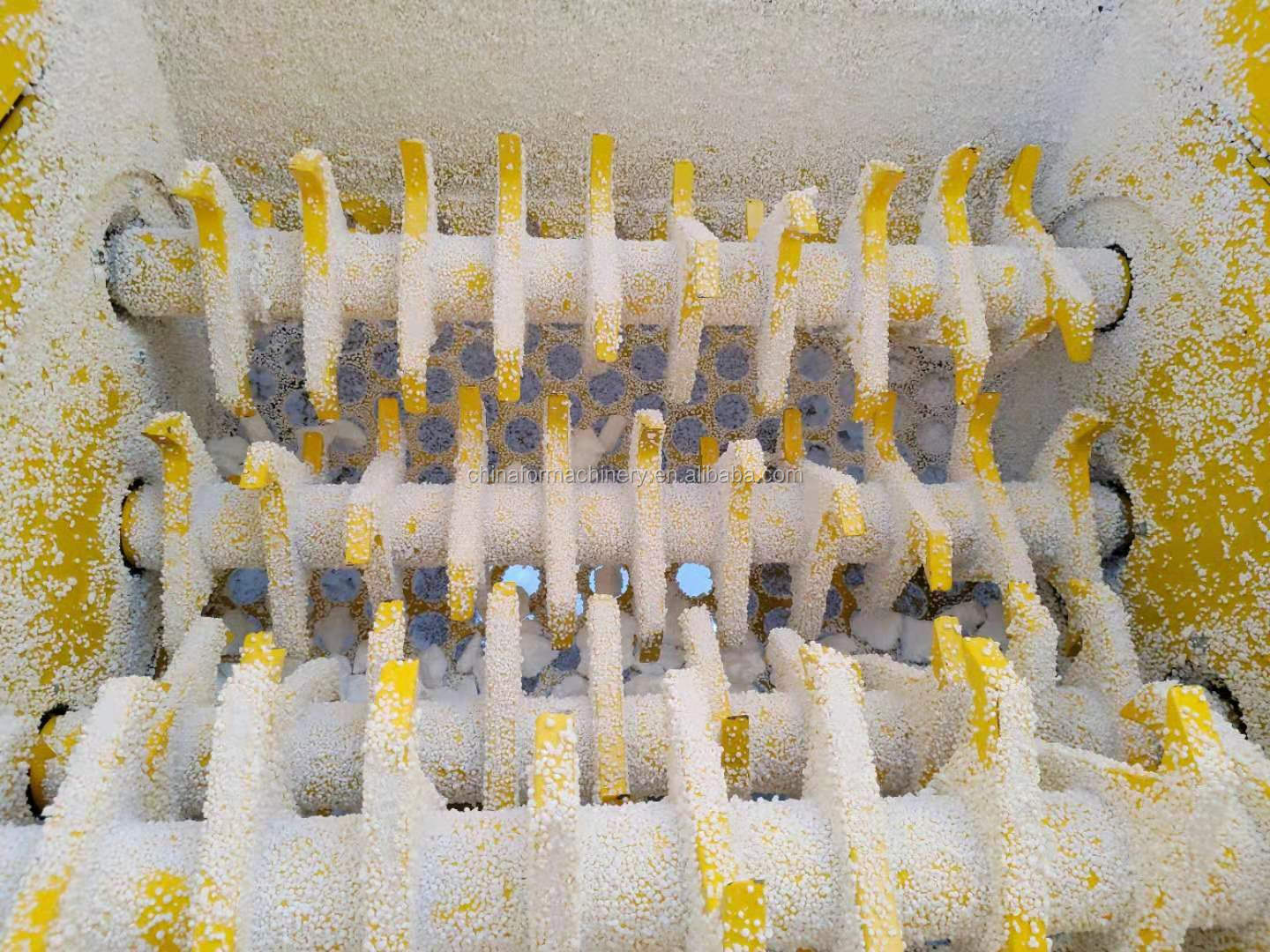

Plastic Melting Machine Crusher Technology:The inclined feeding hopper is convenient for EPS material input, and the material will not be pushed out during the crushing process. The plastic recycling machine adopts a double-shaft crushing blade, two parallel blade axes are symmetrically fixed to the blade, the blades on the two blade shafts are arranged in dislocation, and the blade arithmetic angle of each shaft is evenly arranged on the blade shaft in the same direction. The first and last blades of each axis have a 90° angle.

advantage:1. Low noise - the machine is driven by a gearbox, not a belt. 2. Safety - the air outlet has a protective cover; the height of the air inlet meets the safety standards; the reducer drives the machine to run safely and efficiently, and the control system is equipped with emergency stop and overload switches. 3. Have good after-sales service - installation and debugging are provided according to customer needs; 12-month warranty. 4. Cost-effective - We provide customers with high-quality machines, but the price is very reasonable. 5. Long lifespan - After one year, we will continue to serve customers and the machine can run well for a long time. Our first machine is still running fine. 6. Optional electrical components - Inverter (When installing the inverter, different types of materials can be handled: EPS, EPP, EPE.), other components we can set in the machine according to customer requirements.

detailed image

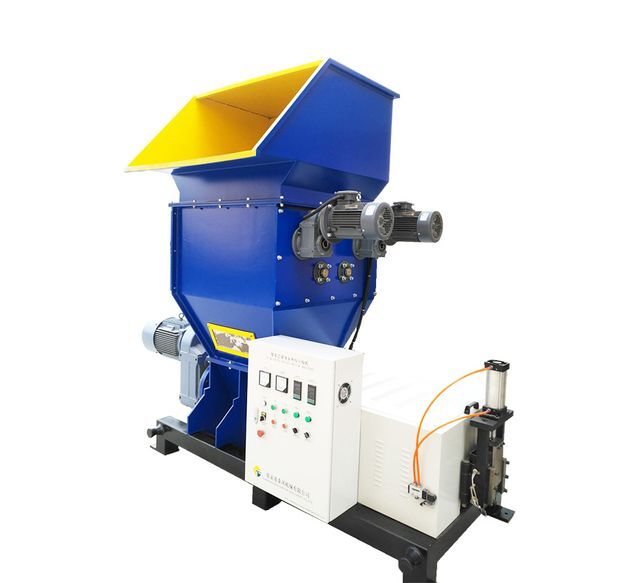

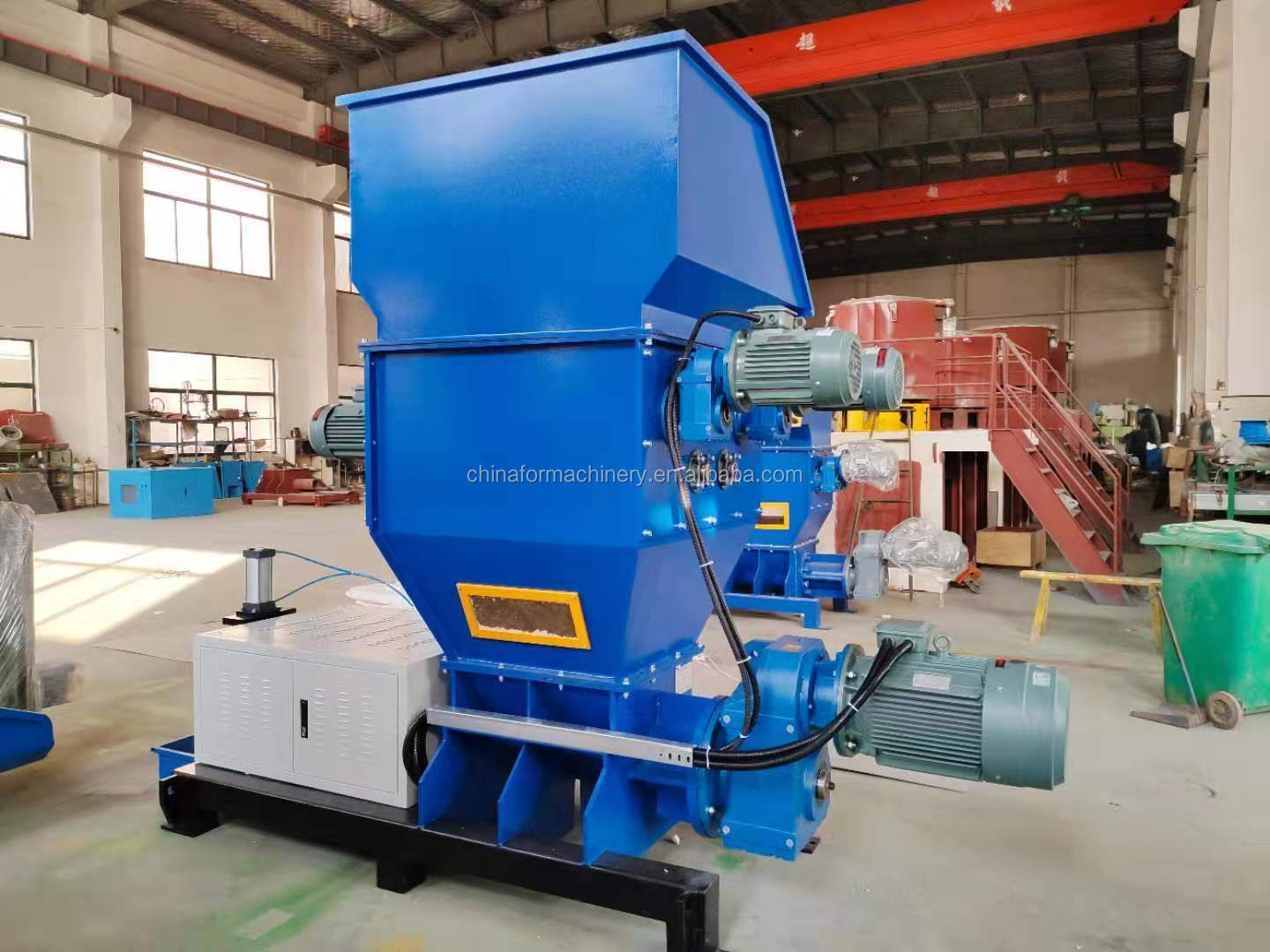

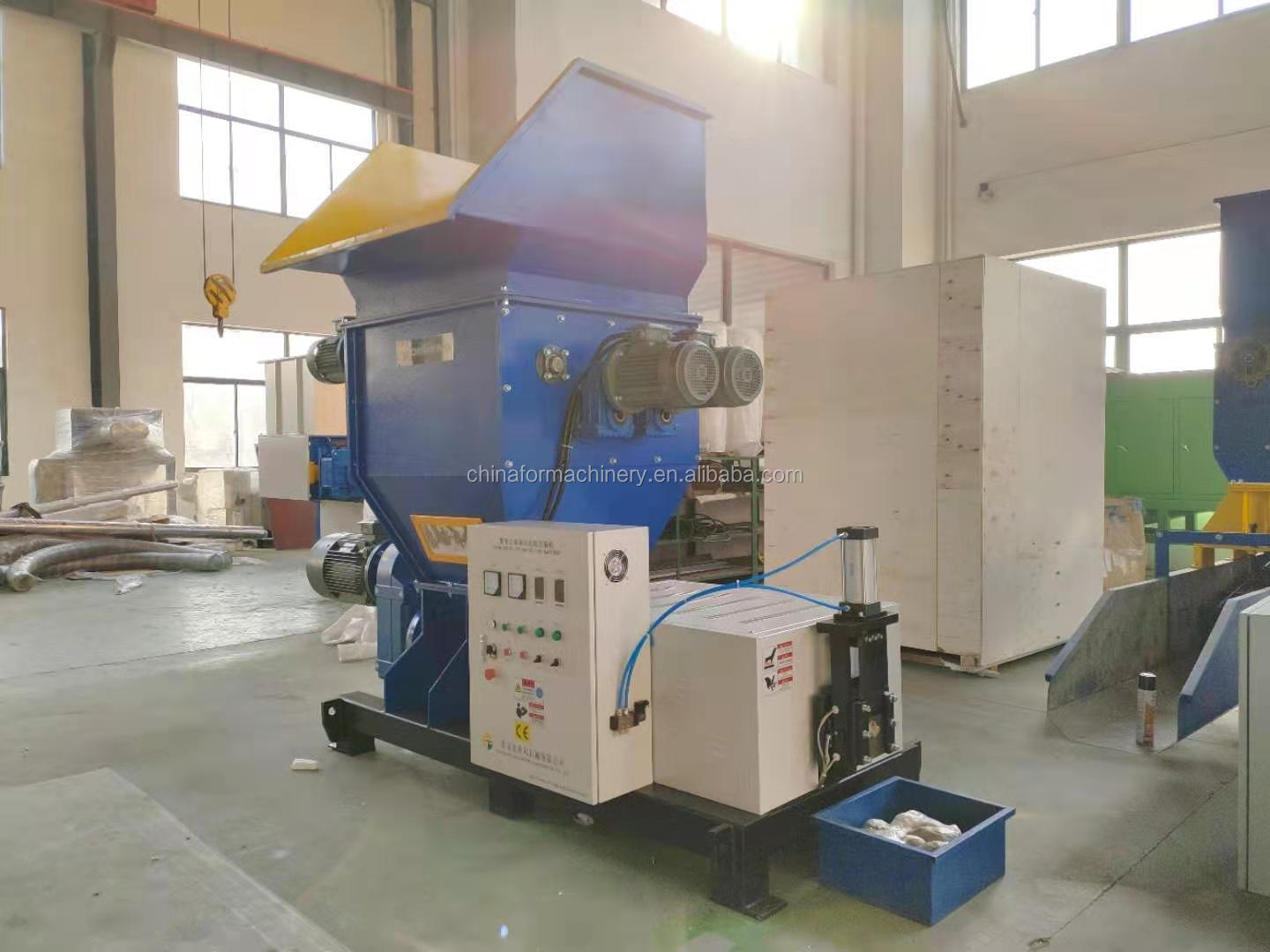

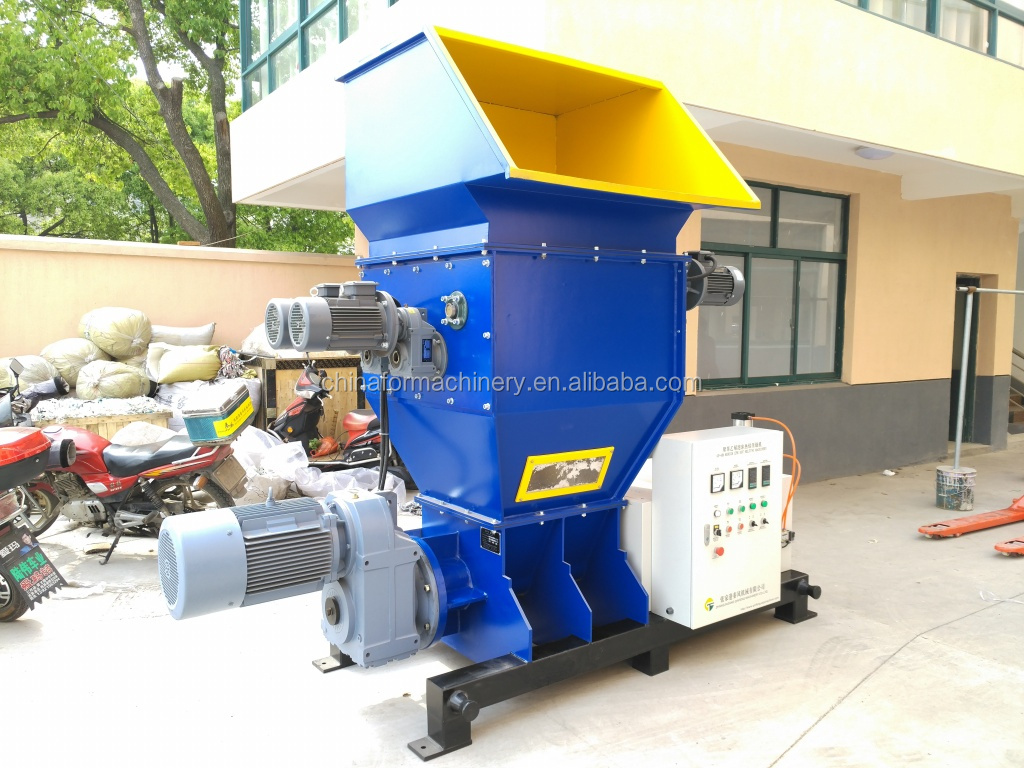

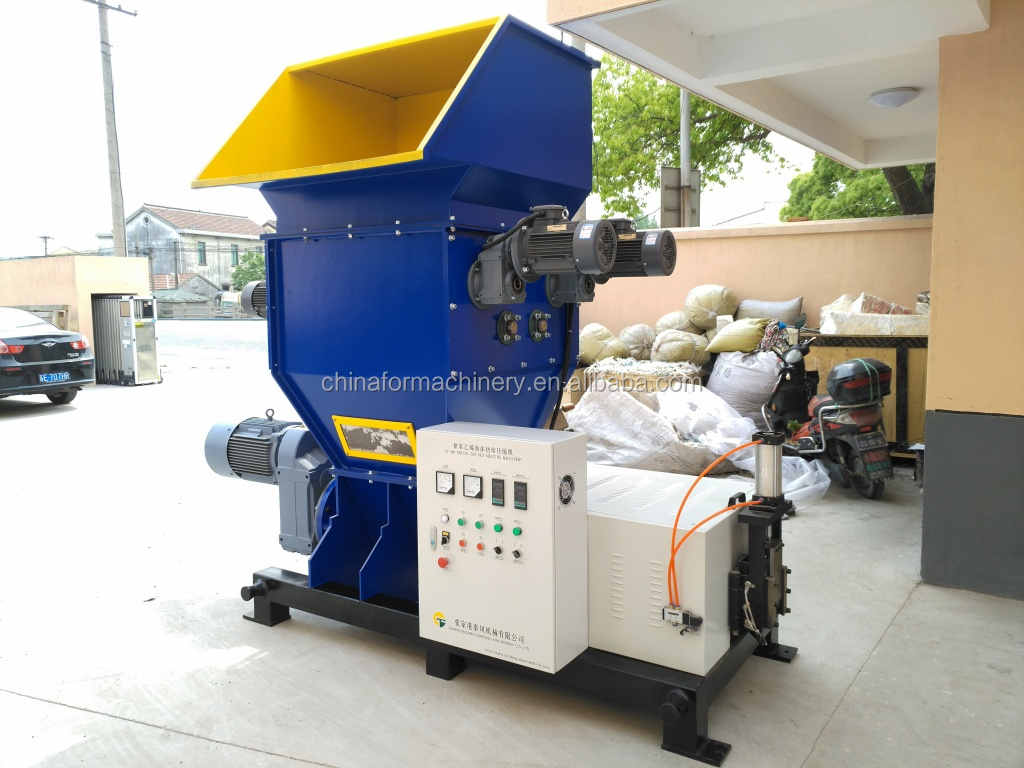

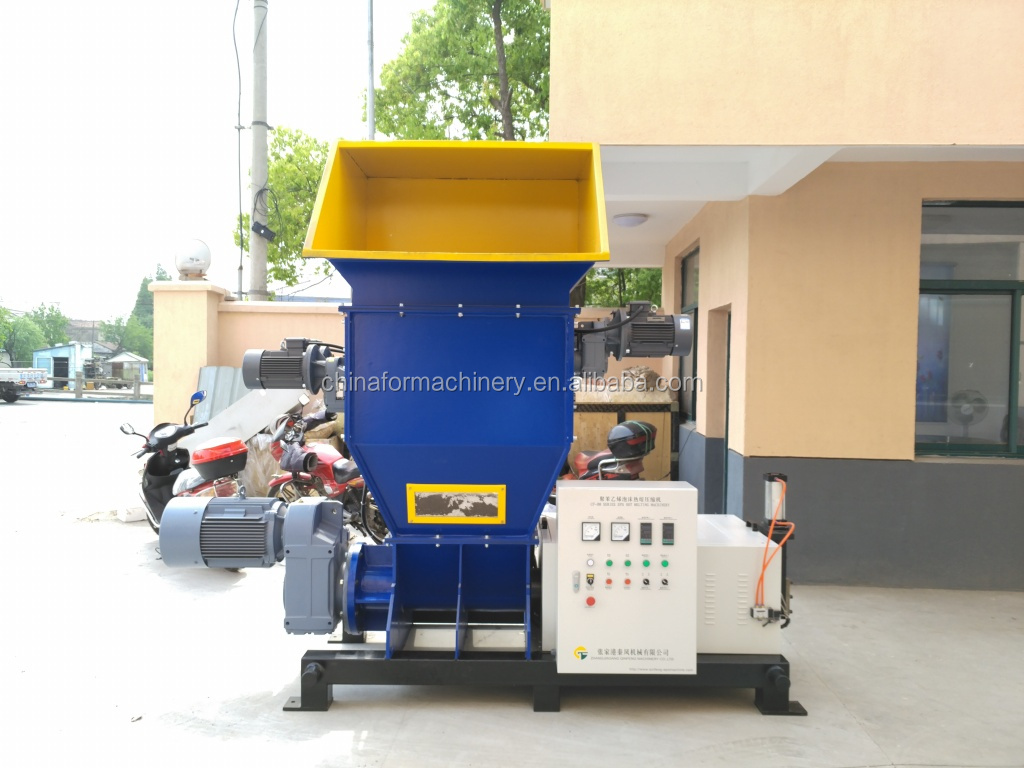

Foam thickener CF-HM 400
