QINFENG Polystyrene Hot Melt Compactor Manufacturing, Waste EPS Recycling Hot Melt Machine Plastic Melting Machine Densifier

Supplier: Zhangjiagang Qinfeng Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Mander Chen
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Core components:	Bearings, gearboxes, motors	Applicable industries:	Hotels, building materials stores, farms, restaurants, home furnishing, food stores, plastic recycling industries
payment terms:	letter of credit, wire transfer	Health status:	new, new
Function:	compaction	color:	customizable
Supply capacity:	20 sets of polystyrene hot melt compactors manufactured per month	Local service location:	Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco
port:	Shanghai	Plastic Type:	PP/PE,EPS,EPE EPP XPS film
Name:	Waste EPS recycling hot melt glue machine	Core Components Warranty:	1 year
Certification:	Chief Executive	Packaging Preview:
brand:	China	Showroom location:	not any
After-sales service provided:	Engineers can go overseas to service machinery, video technical support, free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, online support	Warranty:	1 year
After Warranty Service:	Video technical support, online support, on-site maintenance and repair services	Product Category:	Plastic recycling compactor
Key words:	Plastic melt thickener	Marketing Type:	normal product
Certificate:	Chief Executive	Packaging Details:	About oue polystyrene hot melt compactor manufacturing, the packaging of waste EPS recycling hot melt machine is wooden box with film.
Mechanical test report:	if	capacity:	80-100kg/hour
Video external inspection:	if	Main selling point:	multifunctional
Processing material:	Waste plastic hot melt	place of origin; place of origin:	Jiangsu, China

Product Description

Zhangjiagang Zhongfu Machinery Co., Ltd. specializes in the production of various waste EPS, EPP, EPE, XPS, PUR, PSP, cans, films, bottles and other waste briquetting machines. We manufacture various waste recycling compressors. All compressors produced by Chinafor Machinery are produced in Qinfeng's own factory in Zhangjiagang, China.

ApplicationsIn recent years, the recycling of waste plastics is in the ascendant. EPS is widely used in the packaging industry, but it is bulky and difficult to transport. With the aim of reducing the pollution caused by waste plastics and improving the living environment of human beings, Qinfeng Machinery has successfully developed a new type of plastic melting machine EPS plastic compactor. After numerous continuous tests and researches, it has formed its own characteristics in the field of waste EPS recycling. In order to avoid the secondary pollution of the recycling machine to the water body and the environment, Qinfeng Machinery once again organized scientific researchers to solve this technical problem. Taking reducing secondary pollution as the guiding ideology, it has realized the upgrading of the waste plastic recycling machine. This EPS melter is high performance, space saving and easy to transport finished products. The operation is pollution-free, protects the environment, and avoids secondary pollution. Thoroughly reuse plastic waste and create interest.

main feature1) The linear structure is simple and easy to install and maintain. 2) Pneumatic part, electrical part and operation part all adopt advanced world-renowned brand components. 3) Simple operation and high efficiency. 4) The operation is automatic, intelligent and pollution-free. 5) The machine adopts the conveyor belt, which can directly increase the output.

Product parameters

EPS hot melt adhesive machine CF-HM 200The following dimensions are for reference only, special requirements can be discussed in detail.

Model	CF-HM-200 Plastic Melting Densifier
Screw diameter	φ197mm
Screw distance	150 mm
Screw speed	110 rpm
capacity	100~120Kg/h
Extrusion center height	326 mm
Motor Power	15KW
Crusher motor power	2.2kwx2
heating power	10kW
Number of Crusher Blades	2 sets of 9 sets + 10 sets
Crusher speed	100 rpm/m
Dimensions L×W×H	2800×1580×1950

work process

1. Hopper 2, Crusher 3, Extruder 4, Die 5, Electric control box

Working principle of plastic melting densifier:The double shaft crushing blade is two parallel blade shafts with different rotation directions, each blade shaft has 18 blades, which are driven by a gearbox to transport the material through the screen to the barrel. The material is fed into the heating cylinder by the high-speed rotating screw. They will then melt at high heat, extruding into the expected sharpness.

Plastic Melting Machine Crusher Technology:The inclined feeding hopper is convenient for EPS material input, and the material will not be pushed out during the crushing process. The plastic recycling machine adopts a double-shaft crushing blade, two parallel blade axes are symmetrically fixed to the blade, the blades on the two blade shafts are arranged in dislocation, and the blade arithmetic angle of each shaft is evenly arranged on the blade shaft in the same direction. The first and last blades of each axis have a 90° angle.

advantage:1. Low noise - the machine is driven by a gearbox, not a belt. 2. Safety - the air outlet has a protective cover; the height of the air inlet meets the safety standards; the reducer drives the machine to run safely and efficiently, and the control system is equipped with emergency stop and overload switches. 3. Have good after-sales service - installation and commissioning are provided according to customer needs; 12-month warranty. 4. Cost-effective - We provide customers with high-quality machines, but the price is very reasonable. 5. Long lifespan - After one year, we will continue to serve customers and the machine can run well for a long time. Our first machine is still running fine. 6. Optional electrical components - Inverter (When installing the inverter, different types of materials can be handled: EPS, EPP, EPE.), other components we can set in the machine according to customer requirements.

detailed image

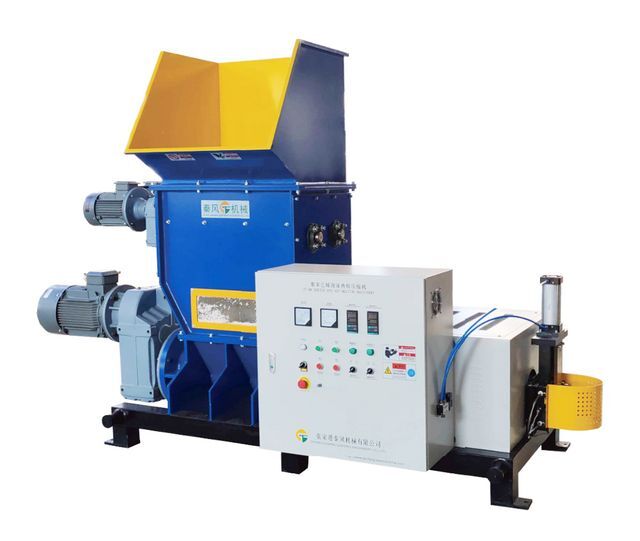

Plastic Melting Machine CF-HM 200
