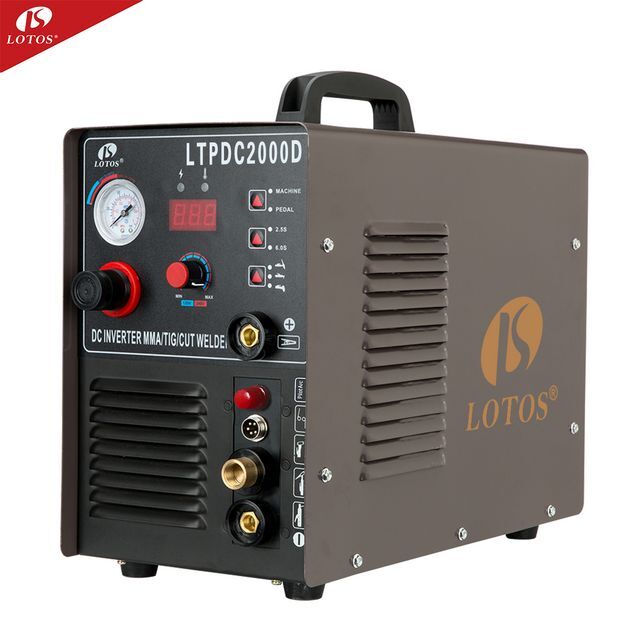

Lotos LTPDC2000D Welder Inverter 200a CUT MMA TIG 3 in1 Inverter Welder Price For Sale

Supplier: Zepin Technology (Hangzhou) Inc.
Region: Zhejiang, China
Contact: Mr Robert Wang
Price: $300.00 / 1 - 9 sets
$290.00 / 10 - 99 sets
$280.00 / >=100 sets
Min. Order: 1 set

Click here to contact

Product details

aspect:	394203305mm	Arc ignition current:	10-200A Welder
Rated Duty Cycle:	60%	Packaging Details:	1 set/box
usage:	welding	Packaging Preview:
brand:	lotto	weight:	19.5kg
Local service location:	United States, Philippines, Peru, Mexico	Accessories:	ground clip
Input power cord length:	6' (1.8m)	Voltage:	110-220V
Weight (kg):	20kg	Applicable industries:	Clothing Stores, Building Materials Stores, Mechanical Repair Stores, Manufacturing Plants, Home Use, Construction Work, Energy and Mining
Package:	carton	strength:	13KVA
After-sales service provided:	Engineers can service machinery overseas, online support, free spare parts, video technical support	Pulse frequency:	50/60 Hz
Supply capacity:	2500 sets per month	Power Efficiency:	85%
Marketing Type:	Hot Products of 2019	place of origin; place of origin:	Zhejiang, China
Core Components Warranty:	2 years	Certification:	Chief Executive; Football Club
Warranty:	2 years	Video external inspection:	if
type:	IGBT, submerged arc welding equipment	Core components:	programmable logic controller
Motor Type:	DC	Showroom location:	United States, Philippines, Peru, Mexico, Russia, South Korea
port:	Shanghai; Ningbo	Arc current:	10-200A
Main selling point:	long lasting	Mechanical test report:	if
Health status:	new	After Warranty Service:	Video technical support, online support, spare parts
payment terms:	L/C,Western Union,T/T,Paypal	color:	Red

Product Description

The Lotos LTPDC2000D is the first multipurpose welder to market, allowing users to perform DC TIG/Stick welding and plasma cutting from one portable machine. The LTPDC2000D uses a 200 amp DC TIG welder, 200 amp stick welder and 50 amp pilot arc plasma cutter in one switch. With 50A arc plasma cutting function, it can cut various metals below 1/2 inch. It is designed for business and DIY (do-it-yourself) users, while fully meeting the needs of professional operators. Optional foot pedals are available for purchase.

Features

3 in 1 combination

LOTOS LTPDC2000D is a multifunctional 3 in 1 combination welder (dual voltage 220V/110V):

-50A pilot arc plasma cutting machine

-200A TIG welding machine

-200A Stick Welder

Touchless Pilot ARC

Pilot arc torches effectively cut rough, painted and rusted surfaces with minimal drossing.

Arc ignition technology allows you to cut without touching the tip to the metal. Better cut quality and longer consumable life.

1/2 inch clean cut

-Maximum rated clean cut thickness: 1/2''

-Maximum separation thickness: 3/4''

-DC TIG output current: 10-200A @ 220V & 10-150A @ 110V

-DC Stick/MMA output current: 10-200A @ 220V & 10-150A @ 110V

dual voltage

Automatic dual voltage/dual frequency (110V/220V 50/60Hz).

Dual voltage capability allows the machine to run directly on 220V 50/60 Hz power, or 110V 50/60 Hz using pigtails (sold separately).

【Non-Touch Plasma Cutter】50AMP Plasma Cutter Current Output; Maximum Ideal Cut Thickness: 1/2"; Maximum Cut Thickness: 3/4"; The pilot arc torch effectively cuts rough, painted and rusted surfaces with minimal Slag; compact plasma cutter with portable handle for cutting stainless steel, alloy steel, mild steel, copper and aluminum using harmless compressed air
【TIG Welder】15-200AMP DC TIG current output; High quality TIG welding on stainless steel or steel and precision welding of thinner materials; HF; High frequency start torch control and support precise foot pedal welding heat control (foot not included pedal).
[Stick/MMA Welder] 15-200AMP DC Stick/MMA current output; easy arc starting, stable welding arc, deep welding pool, beautiful welding seam; adjustable arc starting current, greatly improving arc starting function; suitable for all kinds of acid or alkaline electrode welding
【Dual Voltage】Automatic Dual Voltage/Dual Frequency (110/220V 50/60Hz); Dual Voltage feature allows the machine to run directly on 220V 50/60 Hz power supply, or 110V 50/60 Hz using pigtails (sold separately )
[INCLUDED]: 1 Year Limited Warranty; Power Supply; Torch; Flashlight; Sitck/MMA Welding Gun; Consumables; Grounding Clip; Air Filter and Regulator; Argon Gas Regulator; Connections

LOTOS LTPDC2000D
general Specification	type	Inverter-MOSFET
	Function	50A arc ignition plasma cutting machine 200A TIG Welder 200A Aluminum Bar Welder
	Input voltage	110-220V, 1-PH, 50/60 Hz
	efficiency	85%
	aspect	394203305mm
	weight	19.5kg
plasma cut	Rated Input Power Requirements	120-220V, 1-PH, 27A +/- 15%, 50/60 Hz
	Output current	10-50A @ 110/220V
	Duty Cycle @ 40°C (104°F)	60% @ 50A 100% @ 35A
	cutting material	Mild steel, stainless steel, aluminum, etc.
	Maximum cutting thickness	12.7mm
	gas supply	Clean, dry, oil-free air
DC argon arc welding welding	Rated Input Power Requirements	120-220V, 1-PH, 17A +/- 15%, 50/60 Hz
	Output current	15-200A @ 110/220V
	Duty Cycle @ 40°C (104°F)	60% @ 200A 100% @ 150A
	No-load voltage	62V
	Operating Voltage	16.9V
	Welding materials	Steel, stainless steel, molybdenum, ferrous metals
	gas supply	Clean, dry, oil-free argon
DC rod welding	Rated Input Power Requirements	120-220V, 1-PH, 23A +/- 15%, 50/60 Hz
	Output current	15-200A @ 110/220V
	Duty Cycle @ 40°C (104°F)	60% @ 200A 100% @ 95A
	No-load voltage	62V
	Operating Voltage	25V
	Welding materials	Steel, stainless steel, molybdenum, ferrous metals

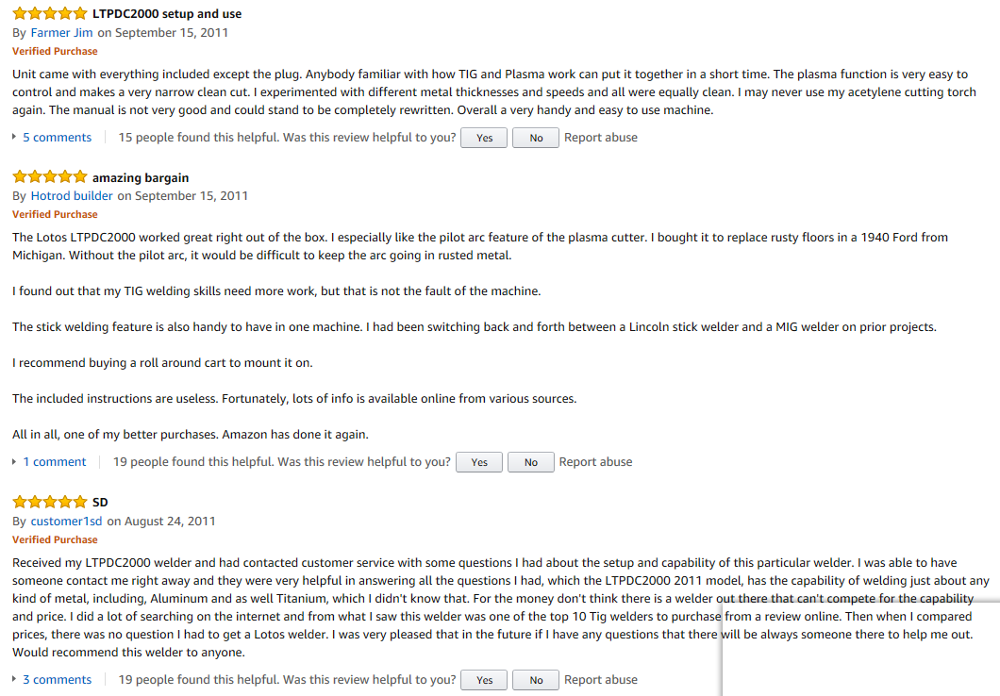

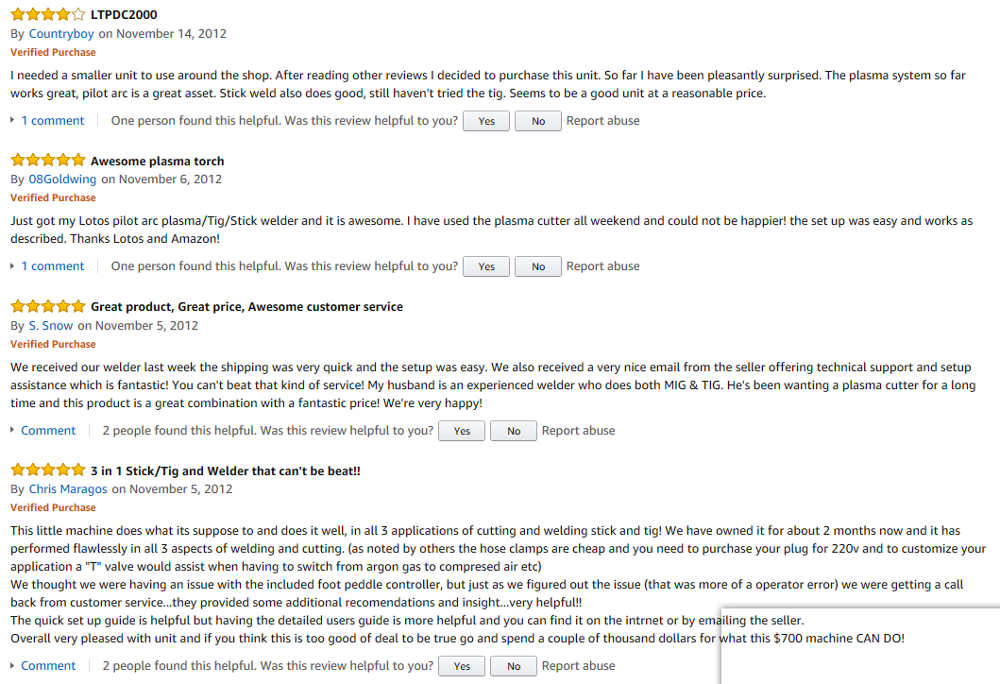

Buyer feedback

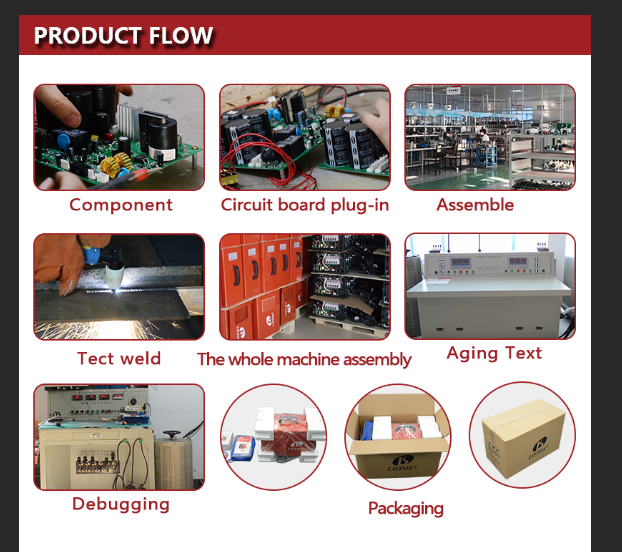

Production Process

Packaging and Shipping

Packaging Details:

1 set/box
Cardboard box with plastic bag and foam inside

Delivery Details:

Within 20 days after confirming payment
Ships from China within 3-5 business days by air/express (DHL, FedEx, UPS, EMS, etc.)
We can also arrange by sea (about 20-25 days to Europe or North America). Minimum CBM: 1 CBM
