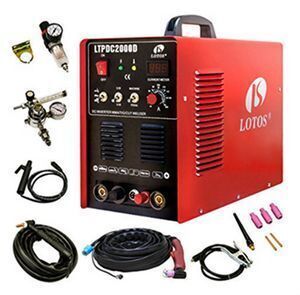

Lotos LTPDC2000D CUT MMA TIG 3 in1 multi function Plasma welder

Supplier: Zepin Technology (Hangzhou) Inc.
Region: Zhejiang, China
Contact: Mr Robert Wang
Price: $290.00 /set
Min. Order: 1 set

Click here to contact

Product details

Usage:	Welding;	Type:	IGBT;
Single package size:	64X32X42 cm;	Pilot Arc Current:	10-200A Welding Machine;
Accessories:	Earth Clamp;	Material / Metal Processed:	Carbon Steel,Stainless Steel;
After-sales Service Provided:	Engineers available to service machinery overseas;	Single gross weight:	19 KG;
Rated Output Voltage (TIG):	220;	Package Type:	1 set/carton;
Rated Output Current (TIG):	200;	Rated Duty Cycle @40°C (TIG):	80;
Pulse Frequency:	50/60 HZ;	Max. Load Power Capacity:	44;
Selling Units:	Single item;	Certification:	CE; FC;
Voltage:	110-220V;	Packing:	Carton;
Output Polarity:	DC TIG;	Power Efficiency:	85%;
Input Power Cable Length:	6' (1.8m);	Warranty:	2 years;
Package Preview:	https://sc02.alicdn.com/kf/HTB1MDFDbRSD3KVjSZFqq6A4bpXaR.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB16hBBbRiE3KVjSZFM762QhVXaY.png_640x640.png;	Condition:	New;
Rated Input Voltage:	220;	Welding Current/Voltage Range:	20-200;
Applicable Industries:	Hotels,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Construction works ;	Color:	Red;
Power(W):	13KVA;	Weight:	19.5kg;
Motor Type:	AC/DC;	Rated Duty Cycle:	60%;
Place of Origin:	Zhejiang China;	Dimensions:	394203305mm;
Brand Name:	Lotos;	After-sales Service Provided:	Online support,Free spare parts;
Arc Current:	10-200A;

Product Description

The Lotos LTPDC2000D is a first to market multi purpose welder that allows the user to DC TIG/Stick weld and plasma cut all from one portable machine. LTPDC2000D combines 3 functions into one with a 200amp DC TIG Welder, a 200 Amp Stick Welder, and a 50amp Pilot Arc Plasma Cutter with the flip of a switch. It is able to cut various types of metal up to 1/2 inch with the 50A pilot arc plasma cutting function. It is designed especially for businesses and DIY (do-it-yourself) users, while fully accommodating the demands of professional operators. An optional foot pedal is available for purchase.

Product Features

3 in 1 Combo

LOTOS LTPDC2000D is a multipurpose 3 in 1 combo welding machine (Dual Voltage 220V/110V):

-50A Pilot Arc Plasma Cutter

-200A TIG Welder

-200A Stick Welder

Non-touch Pilot ARC

Pilot arc torch efficiently cuts through rough, painted and rusty surfaces and produces minimal slag.

Pilot arc technology allows you to cut without touching the tip to the metal. Better cutting quality and longer consumable life.

1/2 Inch Clean Cut

-Max Rated Clean Cut Thickness: 1/2’’

-Max Severance Thickness: 3/4’’

-DC TIG Output Current: 10-200A @ 220V & 10-150A @ 110V

-DC Stick/MMA Output Current: 10-200A @ 220V & 10-150A @ 110V

Dual Voltage

Automatic Dual Voltage / Dual Frequency (110V/220V 50/60Hz).

Dual voltage capability allows the machine to run directly on 220V 50/60 Hz power, or on 110V 50/60 Hz with the use of a pigtail (sold separately).

[Non-Touch Plasma Cutter] 50AMP Plasma Cutter Current Output; Max Ideal Cut Thickness: 1/2" ; Max Severance Thickness: 3/4"; Pilot Arc Torch Efficiently Cuts Though Rough, Painted, and Rusty Surfaces and Produces Minimal Slag; Compact Plasma Cutter Has a Handle for Portability and Uses Non-Hazardous Compressed Air to Cut Stainless Steel, Alloy Steel, Mild steel, Copper, and Aluminum
[TIG Welder] 15-200AMP DC TIG Electric Current Output; Quality TIG welding on Stainless or Steel and Precise Welding of Thinner-gauge Materials;HF; Both HF start hand torch control and Support Precise Foot Pedal Welding Heat Control(Foot Pedal NOT Include).
[Stick/MMA Welder] 15-200AMP DC Stick/MMA Electric Current Output; Easy ARC Start, Stable Welding Arc,Deep Weld Pool and Beautiful Welding Shape; Adjustable Hot Striking Arc Current which Can Greatly Improve the Arc-Starting Function; Suitable for Welding with Different Kinds of Acid or Basic Electrode
[Dual Voltage] Automatic Dual Voltage / Dual Frequency (110/220V 50/60Hz); Dual Voltage Capability Allows the Machine to Run Directly on 220V 50/60 Hz Power, or on 110V 50/60 Hz with the Use of a Pigtail (sold separately)
[Include]: 1 Year Limited Warranty; Power Supply; Cutting Torch; Tig Torch; Sitck/MMA Welder Torch; Consumables; Ground Clamp; Air Filter and Regulator; Argon Regulator; Connections

LOTOS LTPDC2000D
General Specification	Type	Inverter-MOSFET
	Functions	50A Pilot Arc Plasma Cutter 200A TIG Welder 200A Aluminum STICK Welder
	Input Voltage	110-220V, 1-PH, 50/60 Hz
	Efficiency	85%
	Dimension	394203305mm
	Weight	19.5kg
Plasma Cutting	Rated Input Power Requirement	120-220V, 1-PH, 27A +/- 15%, 50/60 Hz
	Output Current	10-50A @ 110/220V
	Duty Cycle @ 40℃ (104℉)	60% @ 50A 100% @ 35A
	Cutting Material	Mild steel, stainless steel, aluminum, etc.
	Max Cutting Thickness	12.7mm
	Gas Supply	Clean, dry, oil-free air
DC TIG Welding	Rated Input Power Requirement	120-220V, 1-PH, 17A +/- 15%, 50/60 Hz
	Output Current	15-200A @ 110/220V
	Duty Cycle @ 40℃ (104℉)	60% @ 200A 100% @ 150A
	No-load Voltage	62V
	Working Voltage	16.9V
	Welding Material	Steel, Stainless, Moly, Ferrous
	Gas Supply	Clean, dry, oil-free argon gas
DC STICK Welding	Rated Input Power Requirement	120-220V, 1-PH, 23A +/- 15%, 50/60 Hz
	Output Current	15-200A @ 110/220V
	Duty Cycle @ 40℃ (104℉)	60% @ 200A 100% @ 95A
	No-load Voltage	62V
	Working Voltage	25V
	Welding Material	Steel, Stainless, Moly, Ferrous

Buyer Feedback

Production Flow

Packaging & Shipping

Packing Details:

1 set/carton
Cardboard carton with plastic bag and foam inside

Delivery Details:

Within 20 days after confirming the payment
3-5 workdays shipping from China by Air/Express (DHL, FedEx, UPS, EMS, etc.)
We could also arrange shipment by sea(About 20-25 days to Europe or North America). Minimum CBM: 1 CBM
