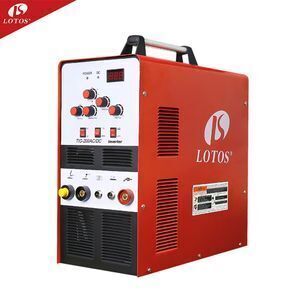

Lotos 200amp IGBT inverter ac/dc tig welder for aluminum tig-200

Supplier: Zepin Technology (Hangzhou) Inc.
Region: Zhejiang, China
Contact: Mr Robert Wang
Price: $325.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	2 Years;	Weight:	8KG;
Pulse Frequency:	50/60 HZ;	Usage:	Welding;
Certification:	CE CCC;	Max. Load Power Capacity:	44KVA;
Rated Duty Cycle @40°C (TIG):	80%;	Rated Input Voltage:	110/220V;
Package Type:	1 set per carton;	After-sales Service Provided:	Online support,Free spare parts;
Voltage:	220V;	Package Preview:	https://sc02.alicdn.com/kf/HLB1hTtuPwHqK1RjSZFgq6y7JXXaY.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HLB1VjXuPCzqK1RjSZFH7623CpXa4.png_640x640.png;
Pilot Arc Current:	10-200A Welding Machine;	Single package size:	69X30X56 cm;
Arc Current:	10-200A;	Accessories:	Earth Clamp;
Power(W):	8.2KVA;	After-sales Service Provided:	Engineers available to service machinery overseas;
Selling Units:	Single item;	Function:	Inverter IGBT Welding Machine;
Condition:	New;	Place of Origin:	Zhejiang China;
Name:	50/60HZ 1 PHASE DC Tig Welder;	Color:	Red;
Motor Type:	AC Motor;	Output Polarity:	AC/DC TIG;
Packing:	Carton;	Material / Metal Processed:	Carbon Steel,Stainless Steel,Aluminium Alloy;
Power Factor:	0.73;	Single gross weight:	27 KG;
Rated Output Current (TIG):	200;	Type:	IGBT;
Rated Output Voltage (TIG):	220;	Brand Name:	Lotos;
Rated Duty Cycle:	60%;	Dimensions:	420155305;
Efficiency:	85% Inverter Welders;	Welding Current/Voltage Range:	20-200;

Product Description

This compact, dual-voltage, versatile TIG200 offers user a simple array of controls to accurately set the welder to perform under a wide variety of situations. Its square-wave inverter enables accurate welding of fine aluminum. It allows user to easily switch from 220 V to 110 V with the included adapter plug, and produces AC/DC 200 amps for TIG and STICK welding. It is perfect for a professional or a weekend enthusiast who is looking to get industrial quality features in a hardworking, affordable welder.

200 A AC/DC square-wave inverter TIG/Stick(MMA) Welder
Automatic dual voltage / dual frequency (110/220-volt 50/60Hz)
HF start hand torch control and precise foot pedal welding heat control
Suitable for welding stainless steel, mild steel, aluminum, and other metal materials
Welding capacity is 3/8" (9.5mm) for mild steel, stainless steel and aluminu

-IGBT inverter,high frequency soft switches, high efficiency and reliability.

-Welding parameters can be set accurately.

-AC square wave is especially suitable for welding aluminum alloy products.

-DC square wave for welding stainless steel, alloy steel, carbon steel, copper and other non-ferrous metals.

-Multifunction: DC TIG, AC TIG, DC pulse TIG welding and AC pulse welding.

-Easy arc starting, stable welding current, excellent square wave.

-Fast response, little splashing, excellent welding appearance.

Main Characteristics:

Stabilization	Power efficiency and low noise output
Reliability	High cutting speed
Portability	Smooth cuts or welding

Parameters

General Specification	Output Power	AC/DC
	Input Voltages	110/220+_15%, 1-PH,50/60Hz
	Input current	15A@110V,30A@220V
	Power Factor	0.73
	Power Efficiency	80%
	Duty cycle @40℃ (104℉)	60%@150A,110V
		100%@110A, 110V
		60%@190A,220V
		100%150A,220V
	Dimensions with handles	28’’ (711mm) L
		13’’ (330mm) W
		17’’ (432mm) H
	Weight w/8’11’’(20.7m)torh	58lbs (26.3kg)
	Gas Supply	Clean, dry, oil-free argon
	Recommended gas inlet flow rate/pressure	3.6scfm@65psi
	Input power cable length	6’ (1.8m)
Materials	Mild Steel	Welding Capacity :1/4’’ (6mm)
	Stainless Steel
	Aluminum
	Other Metals
Warranty	New Unit	1-Year Warranty
Warranty	Refurbished Unit	6-Day Warranty

Accessories

Production Line

Application

Packaging & Shipping

Packaging Details:	Packing: 1 set / Carton
Delivery Detail:	1. Shipped within20-25 days after receiving the payment 2. 3-5 workdays shipping from China by Air/Express (DHL, FedEx, UPS, EMS etc.) 3. We can arrange shipment by sea. Minimum CBM: 1 CBM and takes about 25-30 days to Europe and North America.

Packaging Details:

Packing: 1 set / Carton

Delivery Detail:

1. Shipped within20-25 days after receiving the payment

2. 3-5 workdays shipping from China by Air/Express (DHL, FedEx, UPS, EMS etc.)

3. We can arrange shipment by sea. Minimum CBM: 1 CBM and takes about 25-30 days to Europe and North America.
