Warranty: | 1 year | Voltage: | 220-510V |
Total volume of mixing chamber: | 75 liters | weight: | 6500 kg |
Tilt motor power: | 2.2kW | type: | Rubber kneader |
place of origin; place of origin: | Shandong China | After-sales service provided: | On-site installation, commissioning and training, engineers can service machinery overseas |
strength: | 55000+2200 | Dimensions (L*W*H): | 3200*1900*2945 |
Certification: | ISO9001/CE | Packaging Details: | Export standard (wooden box packing) |
payment terms: | letter of credit, wire transfer | brand: | Aino |
model: | X(S)N-35*30 | main motor power: | 55kW |
Mixing chamber working volume: | 35 liters | Health status: | new |
Type of machine: | Used Rubber Kneader | market: | 20 countries |
Supply capacity: | 30 second-hand rubber kneaders per month | port: | Qingdao |
type: | Used Rubber Kneader |

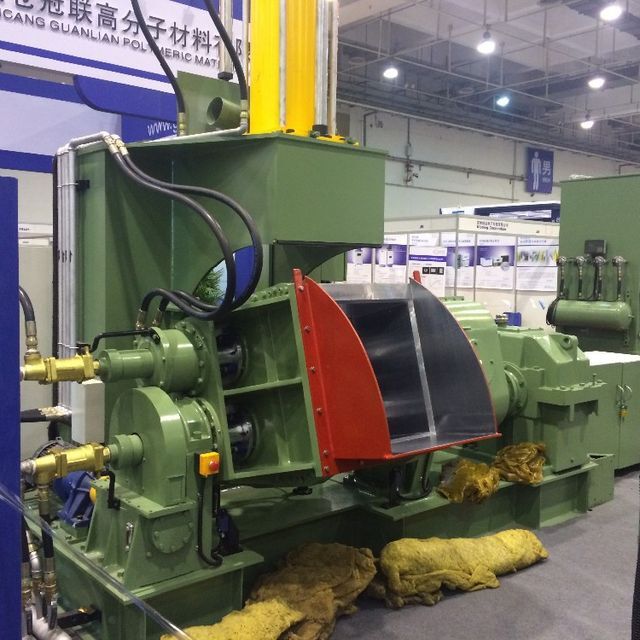

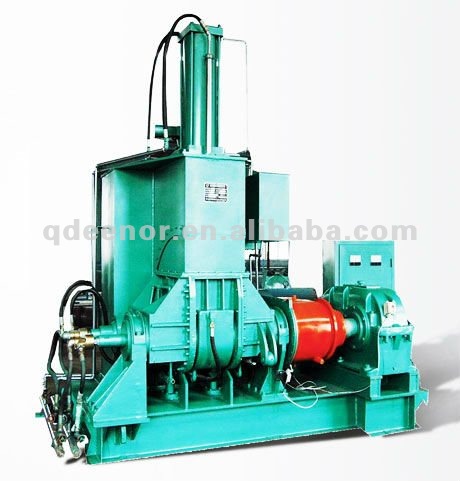

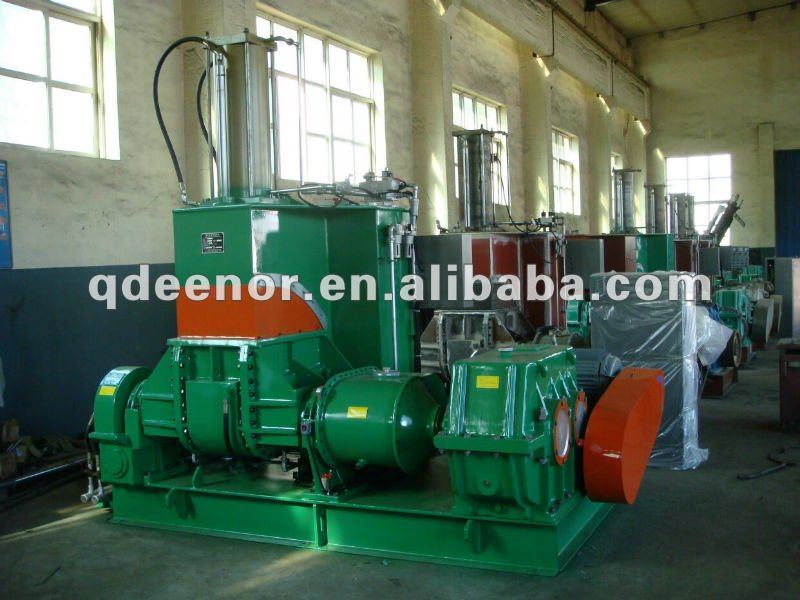

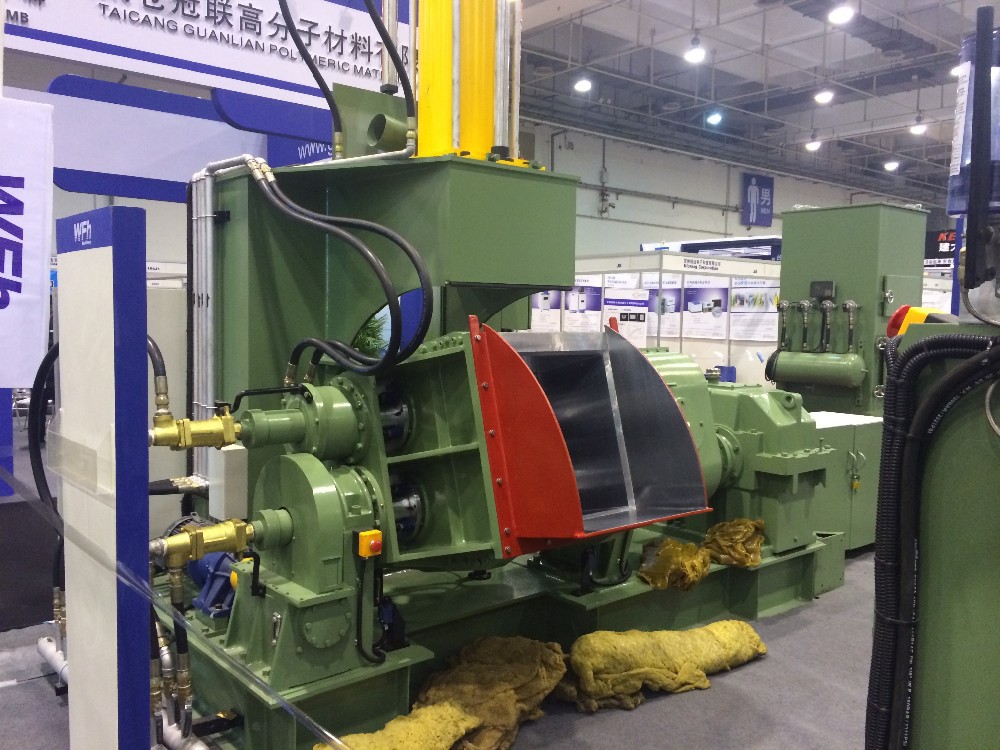

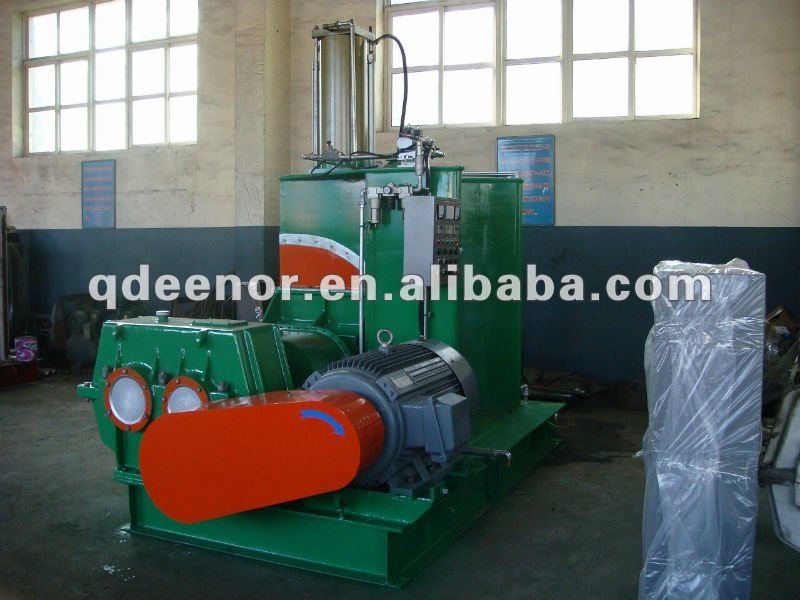

Rubber mixer dispersing kneader/rubber dispersing mixer/used rubber kneading machine
1. Under the condition of complete sealing, the material is mixed or plasticized under a certain pressure and controllable temperature, with high production efficiency and stable quality.
2. The helix angle and lap length of the rotor blades are designed reasonably, so that the material can be dispersed evenly.
3. The contact surface with the material is plated with hard chrome and polished, which is corrosion-resistant and wear-resistant.
4. The part in contact with the surface of the material adopts a jacket structure, which can achieve excellent water cooling or steam heating effect, and meet the needs of plastic and rubber processing technology.

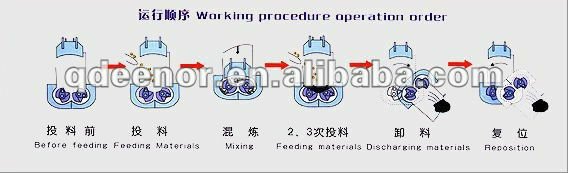

5. Feeding from the back door (or separate top door) on the rack is convenient for the continuous process operation of the production line. The mixing chamber can be rotated 140 degrees around the front rotor to discharge the material, which is convenient for changing the color and cleaning the chamber.
6. The electric control system adopts programmable logic controller (PLC), which has reliable control function and alarm function, and has interlocking safety protection function, and has a network serial interface.
Model | X(S)N-35*30 | X(S)N-55*30 | X(S)N-75*30 | X(S)N-110*30 | |
Total volume of mixing chamber | large | 75 | 125 | 175 | 250 |
Mixing chamber working volume | large | 35 | 55 | 75 | 110 |
Motor Power | kilowatt | 55 | 75 | 110 | 185 |
Tilt motor power | kilowatt | 2.2 | 2.2 | 2.2 | 5.5 |
tilt | 140○ | 140○ | 140○ | 140○ | |
Rotor ratio | rpm | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 |
compressed air pressure | MPa | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 |
cooling water consumption | MPa | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 | ≥1.5 |
steam pressure | MPa | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.3~0.4 |
size | mm | 3200*1900*2945 | 3300*1900*2900 | 3760*2143*3135 | 4075*2710*3580 |
weight | Kilogram | 6500 | 7800 | 10200 | 14900 |

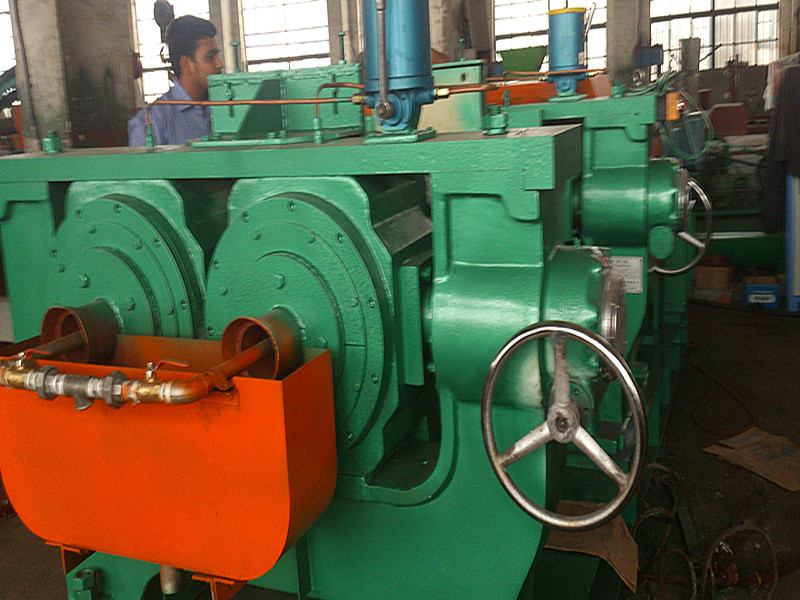

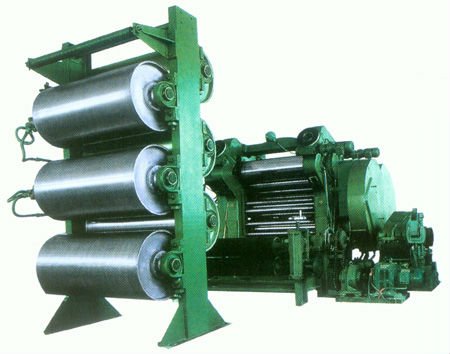

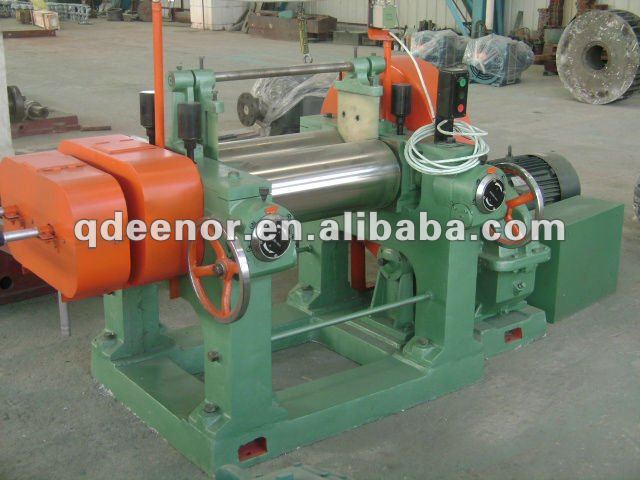

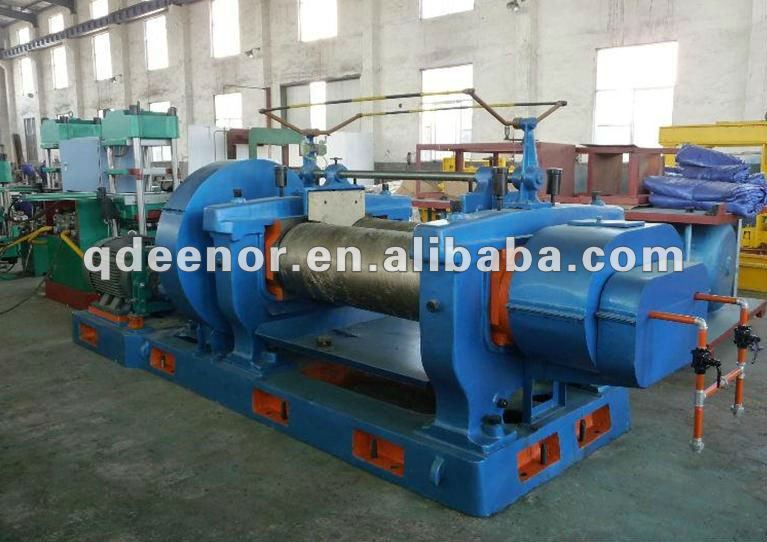

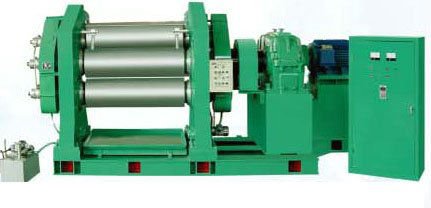

Other production:

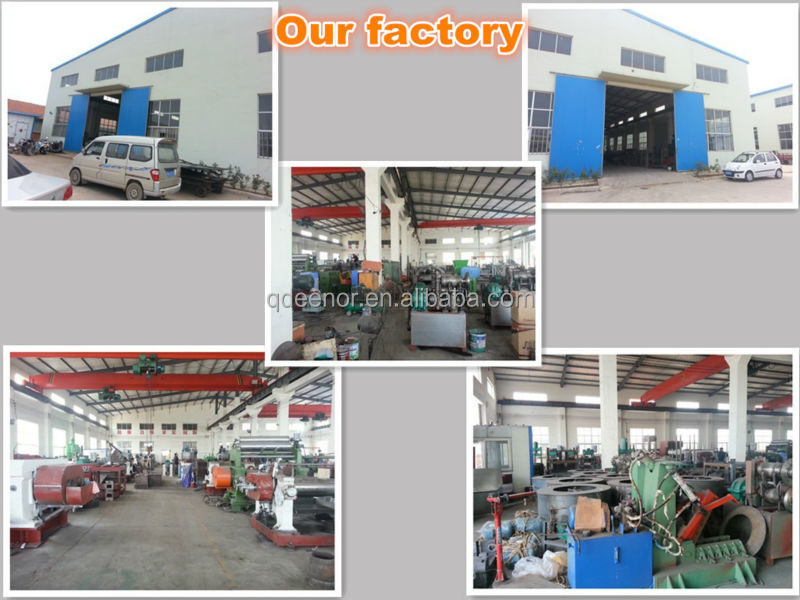

We are a professional rubber machinery manufacturer with 10 years experience in China. All products have passed the certification of the State Technical Supervision Bureau, and are exported to South Asia, the Middle East, Eastern Europe, North and South America, Africa, Australia and so on.
FAQ:
1. Q: Are you a factory or a trading company?
A: We are a factory.
2. Q: How does your factory control the machine quality and after-sales service?

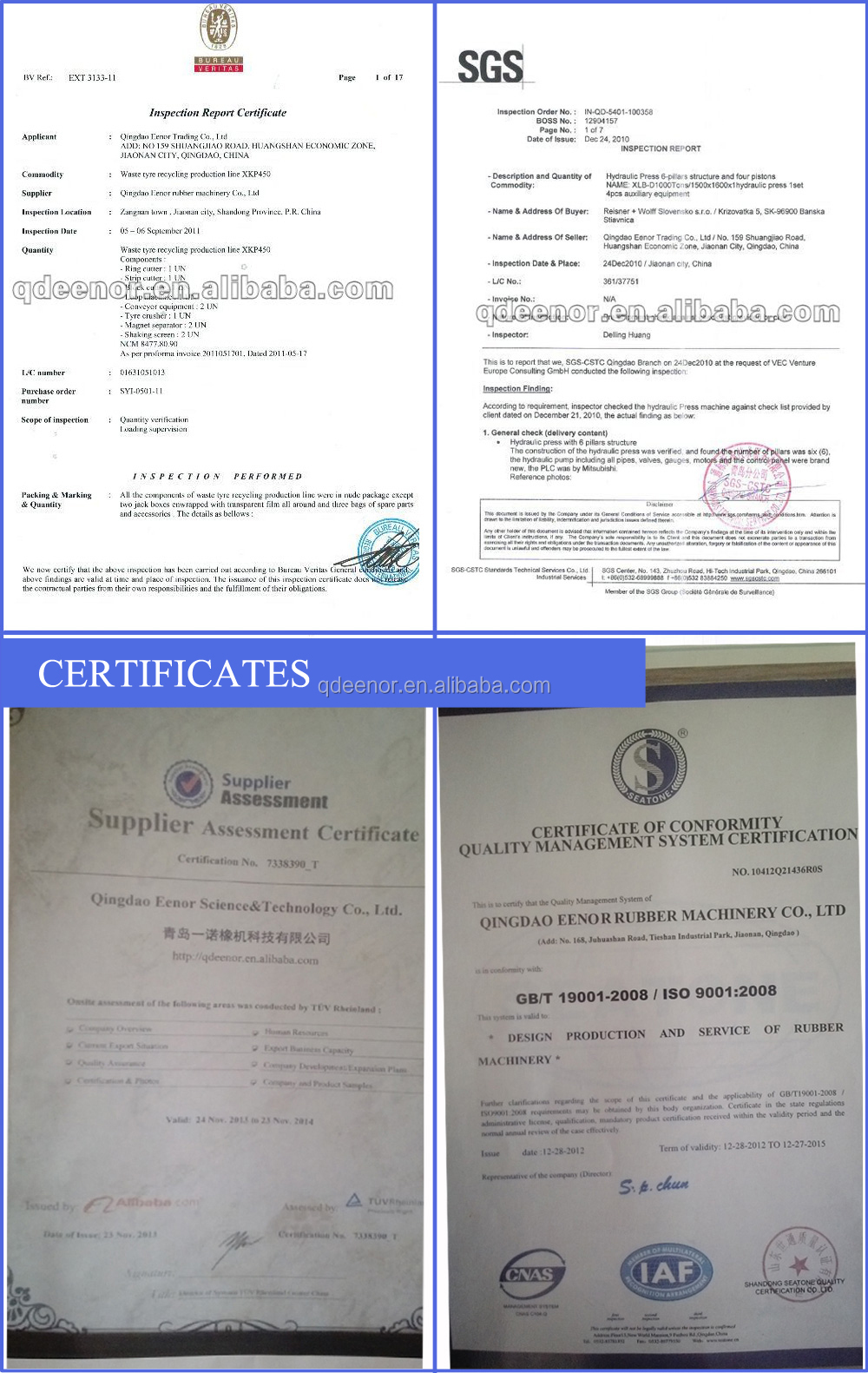

A: Our machines have passed CE, BV, ISO, SGS certification, please confirm the quality. All our machines have a 1 year warranty and will provide lifetime maintenance.
Why choose us?
We are ready to provide them with a turnkey solution, design the production line according to their space, design all electrical installations, water installations, civil foundations, train their personnel and certify that they will achieve production goals as designed.
The machine cost they pay is one-time, but the correct production design and machine configuration to meet production goals is the most important point. Even if someone gets the cheapest quote for a machine, at the end of the day, what matters is the production quantity, quality and durability of the machine in order to cover the investment at the right time.
A satisfied customer can bring you ten customers, and a disappointed customer can send you a hundred customers. Market reputation is the most important factor in keeping your business healthy and growing.
Warranty and after-sales service:
♥One year warranty for the whole machine
♥24 hours email technical support
♥ Phone or door-to-door service.
♥ Provide video for each machine.
