Front roller working line speed: | 8.95-28.6 m/min | Capacity per batch: | 1-165kg |
After-sales service provided: | Video technical support, online support | weight: | 2000-5000 kg |
Supply capacity: | 50 sets per quarter | type: | Rubber mixer, Banbury mixer |
Max Clearance: | 4.5-15mm | Certification: | ISO9001:2008, SGS |
notes: | Bearing / Nylon Bushing Grease LUB / Copper Bushing Oil LUB | port: | Qingdao |
place of origin; place of origin: | Shandong China | Packaging Details: | According to customer requirements |
Roll working length: | 320-2130mm | Drive motor power: | 5.5-245kW |
strength: | 45-75kW | Main selling point: | competitive price |
Warranty: | 2 years | Health status: | new |
Voltage: | According to customer requirements | payment terms: | letter of credit, wire transfer |
Roller working diameter: | 160-660 mm | brand: | Hainaut |
color: | blue, green, etc. | Applicable industries: | manufacturing plant |
1. About our company:
Our company is engaged in the production of rubber products with a history of more than 20 years.
Relying on technical strength, scientific and rigorous professional management, product quality and good service, the company has won the trust of our customers. Many products are exported to the United States, Canada, Australia and India, Indonesia and Uzbekistan, etc.
Company management certification: ISO 9001:2000, ISO 17799, ISO 9001:2008, ISO 14001:2004, ISO/TS 16949
Our main products are flat vulcanizers, twin-roll mixers, rubber extruders, Banbury mixers, balers, conveyor belt vulcanizers, tire recycling machines, rubber mixers, rubber crackers, etc. Non-standard products.
2. Features:
1' The two rollers are made of chilled cast iron, the smooth surface is highly polished and the cutter is scratch resistant: high hardness (68-75HSD) and wear resistance;
2' The roller is a hollow structure, the temperature of the roller can be adjusted by steam or cooling water according to different requirements, and the temperature can be controlled by circulating steam and cooling water through the roller;
3' There are two nip adjustment methods to choose from: manual or electric;

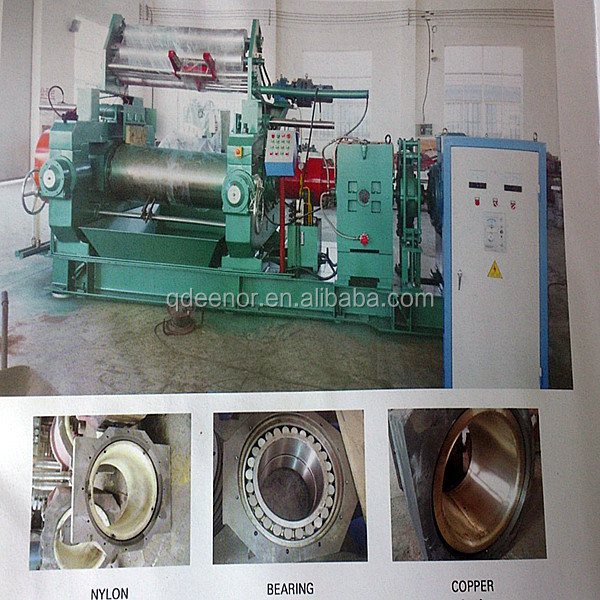

4' There are three main bearing options: bearing or copper bushing or nylon bushing;
5' trips when the machine is overloaded to protect valuable circuits;
6' All electrical connections are fine, no short circuit is possible anyway.
7' It can be used with Stock Blender and also provides future fit for Stock Blender.
8' Provides means to open the nip guard for cleaning the rolls and nip;
Provides 9' hand operated safety switch;
3. Technical parameters:
type | Xk-160 | Xk-250 | Xk-300 | Xk-400 | Xk-450 | Xk-560 | Xk-660 |
Reel working diameter (mm) | 160 | 250 | 300 | 400 | 450 | 560 | 660 |
Reel working length (mm) | 320 | 620 | 750 | 1000 | 1200 | 1530 | 2130 |
Front roller surface speed (m/min) | 8.95 | 14.1 | 15.1 | 18.65 | 24.26 | 27.72 | 28.6 |
friction ratio | 1:1.35 | 1:1.17 | 1:1.27 | 1:1.27 | 1:1.27 | 1:1.2 | 1:1.24 |
Max imprint(mm) | 4.5 | 8 | 8 | 10 | 15 | 15 | 15 |
Capacity per batch (kg) | 1-2 | 8-15 | 15-20 | 18-35 | 25-50 | 35-50 | 165 |
Motor Power (kilowatt) | 5.5 | 18.5 | twenty two | 37 | 55 | 90 | 245 |
Dimensions (mm | 1380*860 *1320 | 3400*1500 *1800 | 3580*1550 *1695 | 4350*1850 *1785 | 5200*2380 *1840 | 5845*2284 *1978 | 7465*3662 *2080 |

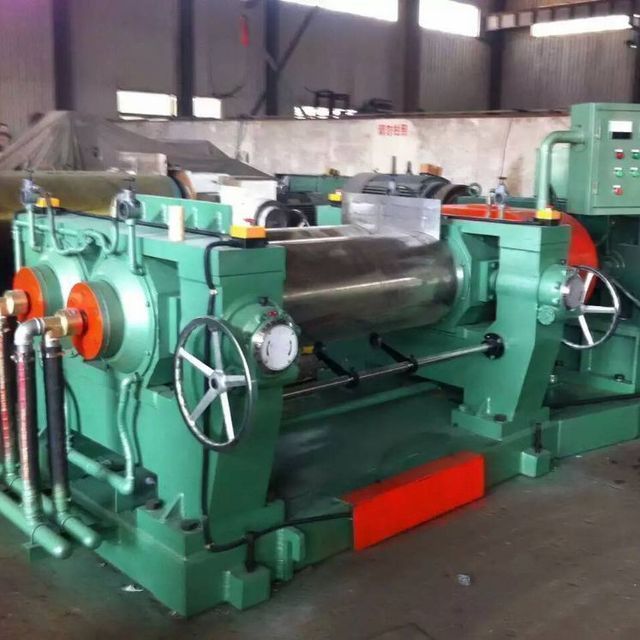

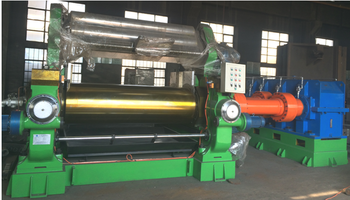

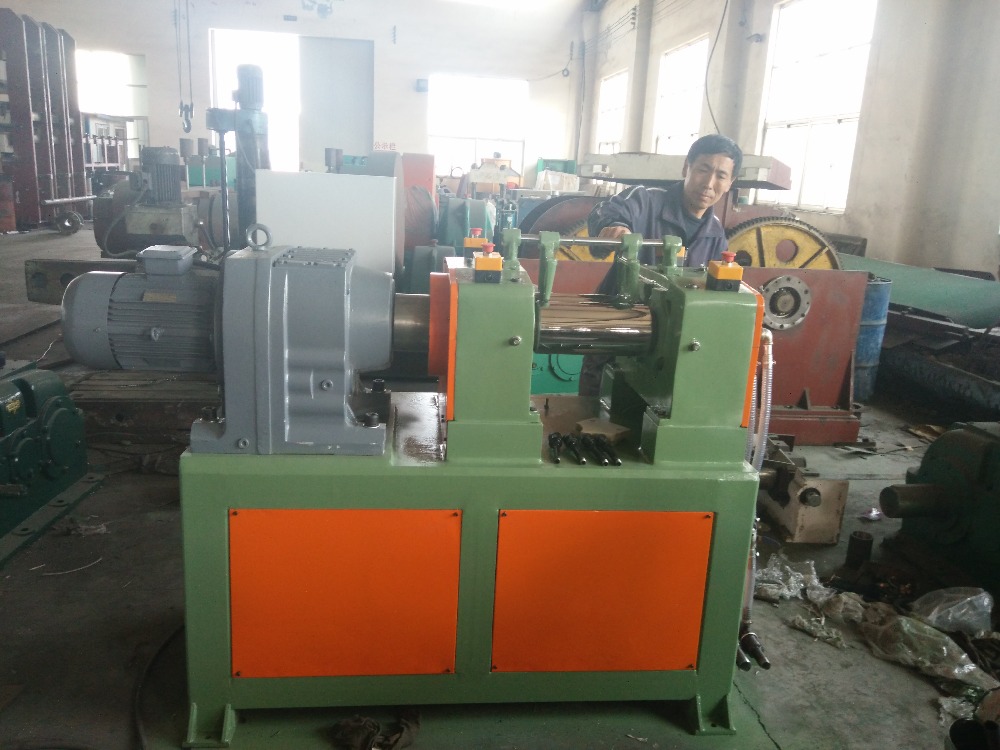

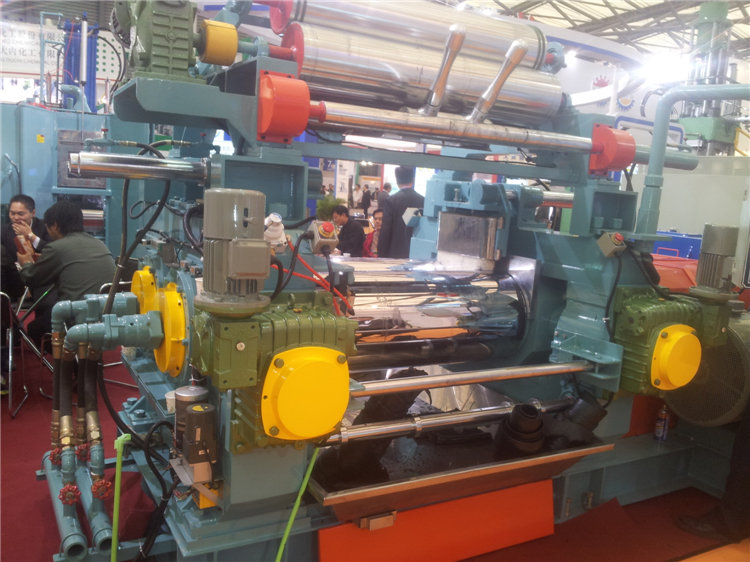

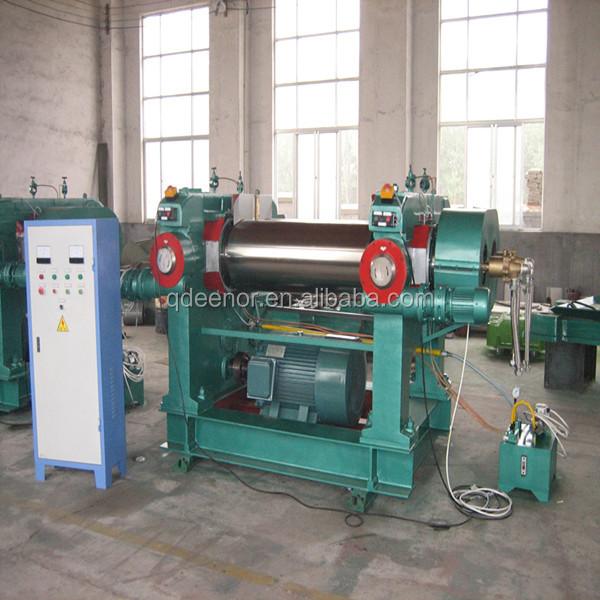

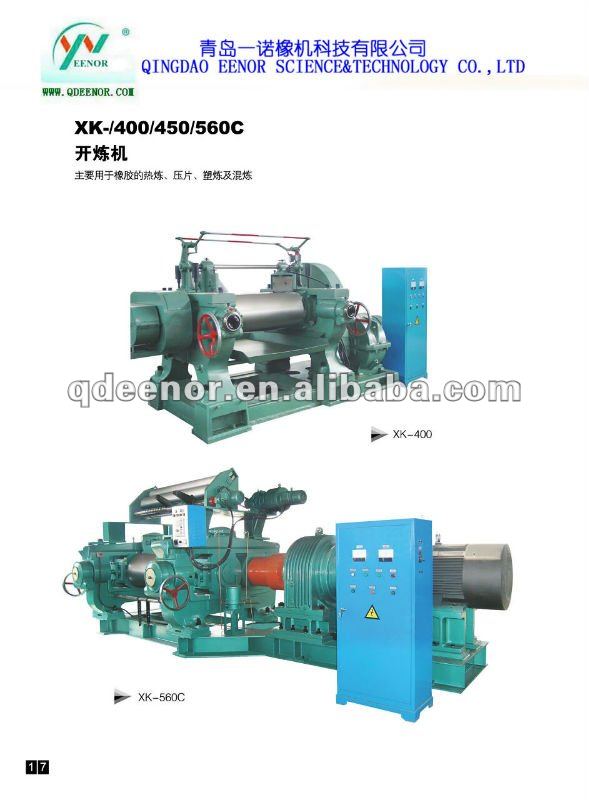

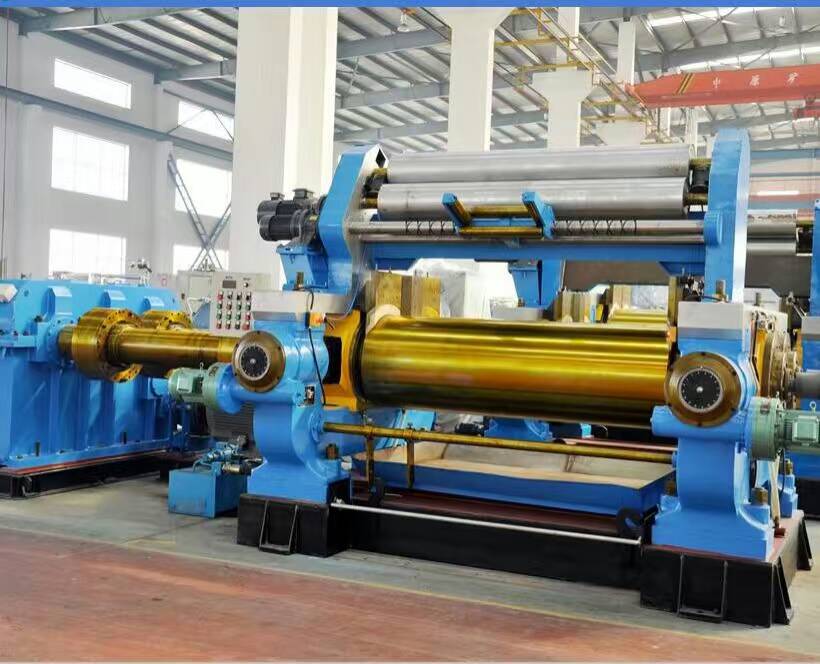

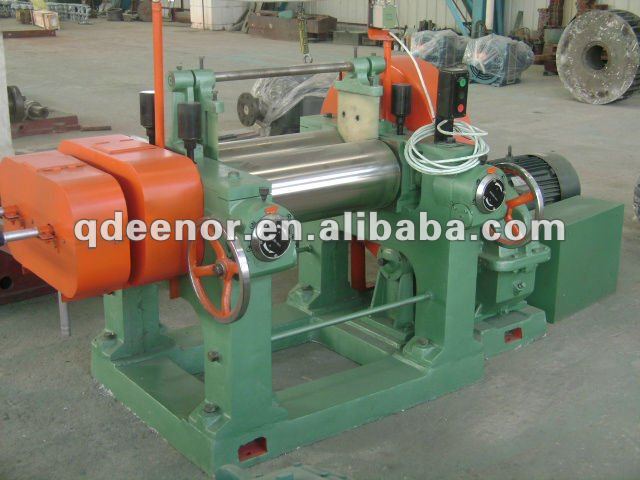

4. Pictures:

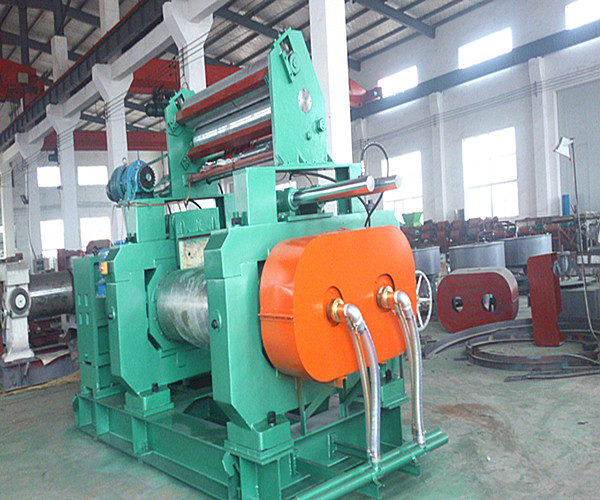

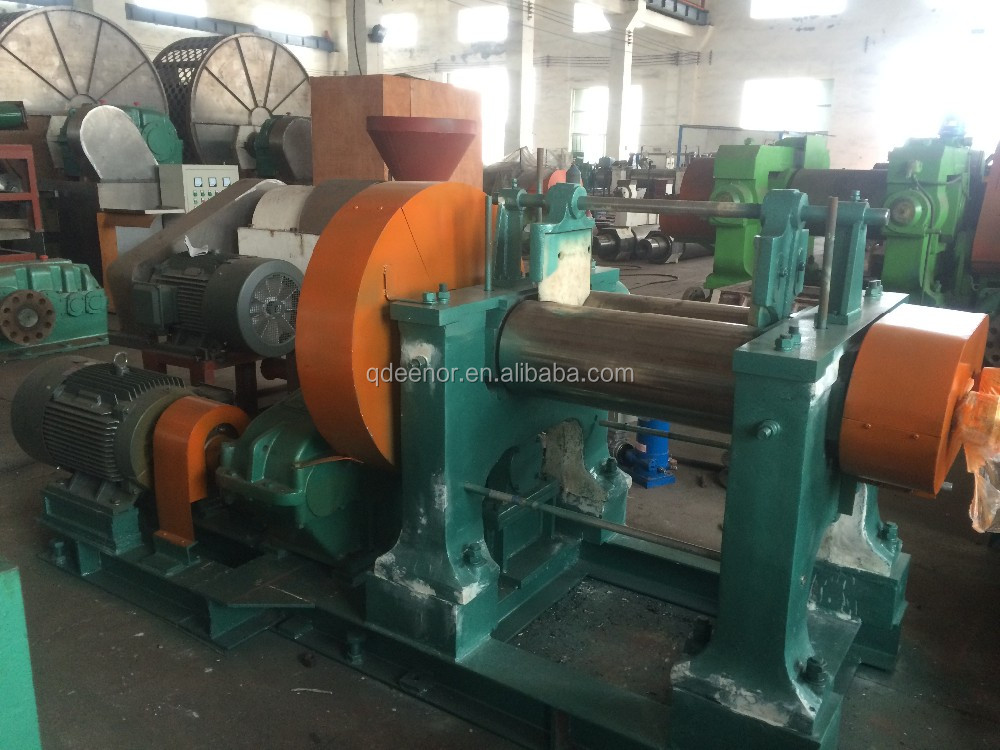

Open mill for tire recycling
We can also design and produce according to customer's requirements. We can produce all kinds of non-standard rubber machinery, which we can design according to your requirements.If you are interested in our products or have any questions, please feel free to contact us. We will try our best to meet your request as soon as possible.

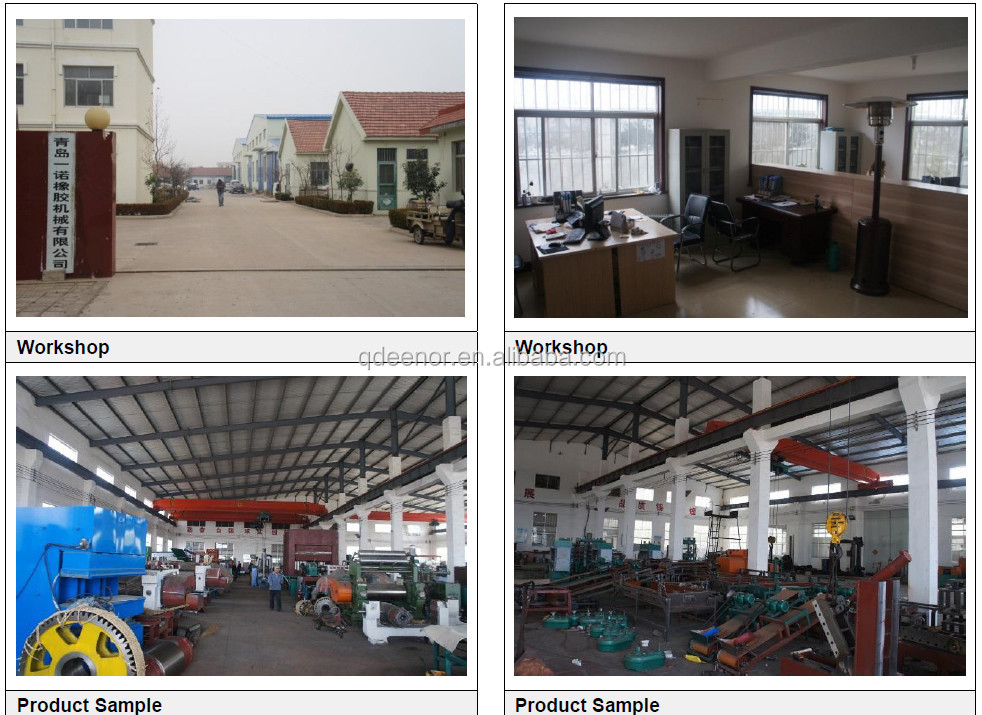

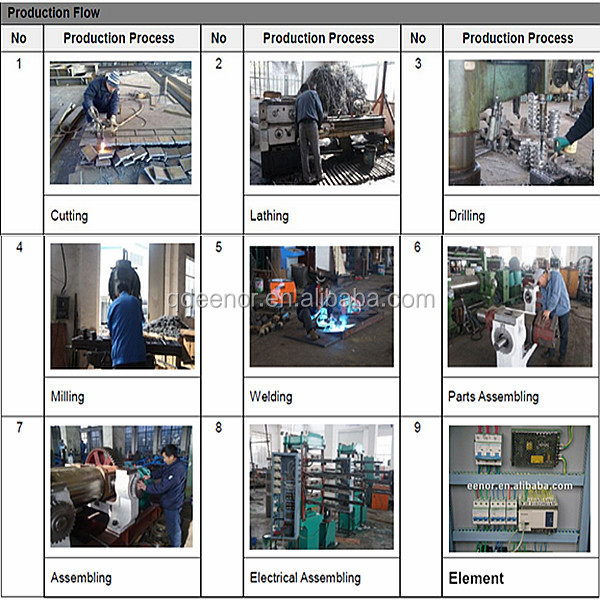

Our factories and certifications:
(1) The operation and maintenance of training equipment can also be installed and debugged on site.
(2) Various specifications of molding machines are available, which can be customized according to your needs.
(3) Ensure that the machine is in good maintenance condition.
