Z3040 Double Column Radial Drilling Machine

Supplier: Chongqing Kaku Machinery Imp & Exp Co., Ltd.
Region: Chongqing, China
Contact: Mr Victor Wen
Price: $2000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Brand Name:	KAKU;	Color:	Customized Option;
Main motor power:	2.2kw;	Port:	shanghai;
Movements motor power:	1.5kw;	Spindle travel:	200mm;
Place of Origin:	Chongqing China (Mainland);	Drilling Speed:	75-1200;
Supply Ability:	100 Piece/Pieces per Month;	Packaging Detail:	wooden case;
Delivery Detail:	30 days after 30% deposit;	Dimension(LWH):	18008102300mm;
Certification:	CE ISO;	Weight:	1800kg;
Rocker rotary angle:	360°;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
Condition:	New;	CNC or Not:	Normal;
Max drilling dia.:	40mm/32mm;	Model Number:	Z3040;
Power(W):	2.2kw;	After-sales Service Provided:	Engineers available to service machinery overseas;
Voltage:	380V;

Product Description

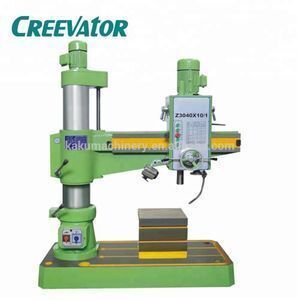

NAME: Z3040 double column radial drilling machine

Z3040 radial drilling machine has the characteristics of simple structure, practical, convenient operation and maintenance, and other advantages of drilling machine as a whole, so that it enlarges the drilling machine processing range.

Feature:

1. The key part is made of high strength cast iron and special steel.

2. Through professional equipment continuous processing, to ensure that the basic components of sophisticated.

3. Mechanical speed change, mechanical locking, rocker automatic lifting, spindle automatic feed, high production efficiency.

4. Convenient operation.

5. There are perfect safety protection devices and external column protection.

6. Effective measures are taken in the design and manufacture of the machine to prolong the accuracy and prolong the life of the machine.

Parameters

Parameters	Z3040*13A	Z3040*10A
Max. drilling dia.	40mm/32mm	40mm/32mm
Distance between spindle nose to table surface	260-1050mm	260-1050mm
Distance between spindle axis and column surface	360-1300mm	360-1000mm
Spindle travel	200mm	200mm
Spindle cone	MT4	MT4
Spindle speeds range	75/130/240/380/660/1200/rpm
Spindle speed step	6	6
Spindle feeding range	0.1-0.25/rpm	0.1-0.25
Spindle feeding step	3	3
Rocker rotary angle	360°	360°
Main motor power	2.2kw	2.2kw
Movements motor power	1.5kw	1.5kw
N.W	1800kg	1600kg
Overall dimensions	18008102300mm	15007052200mm

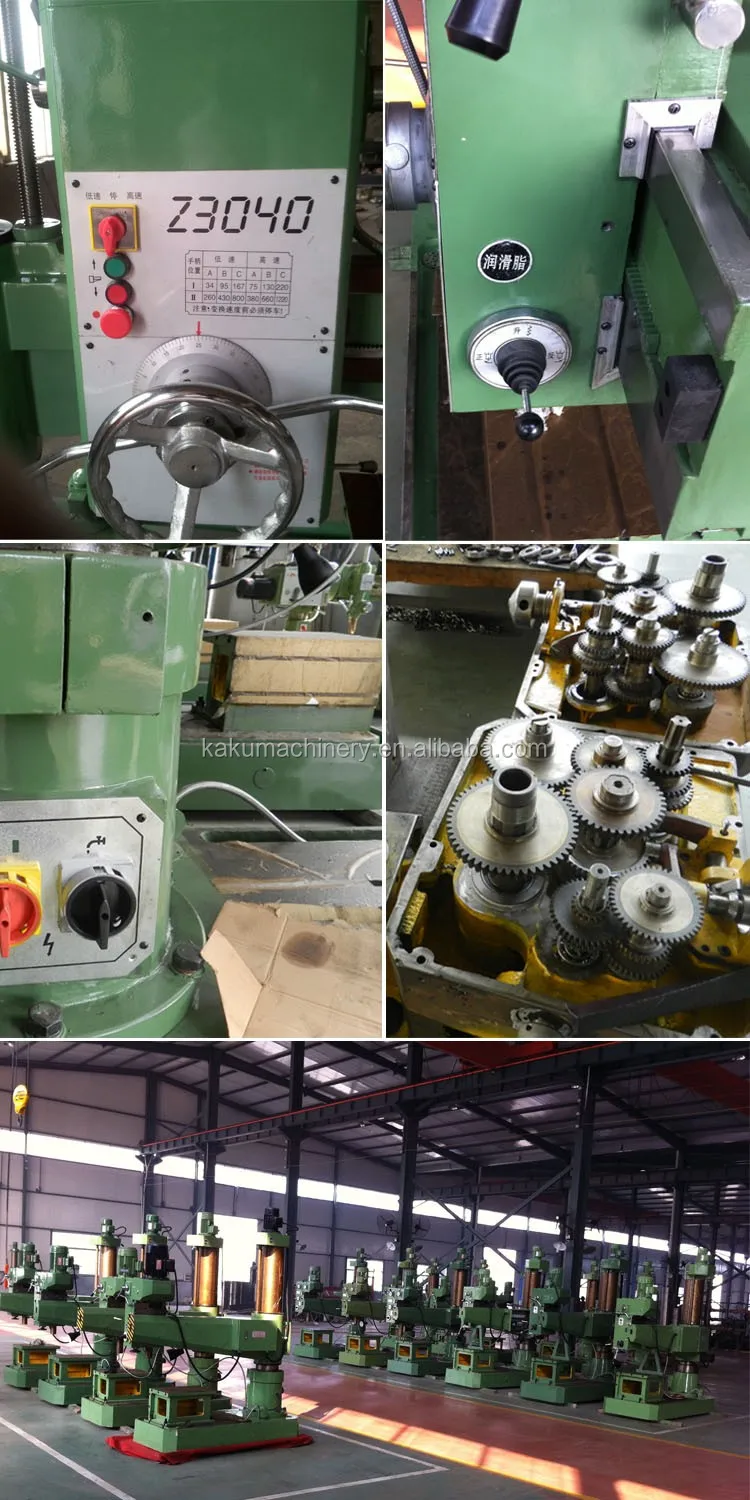

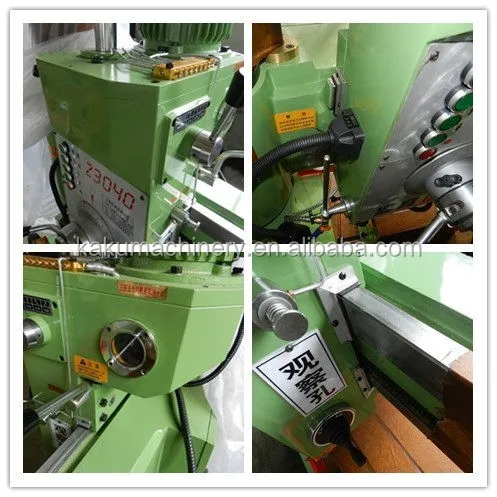

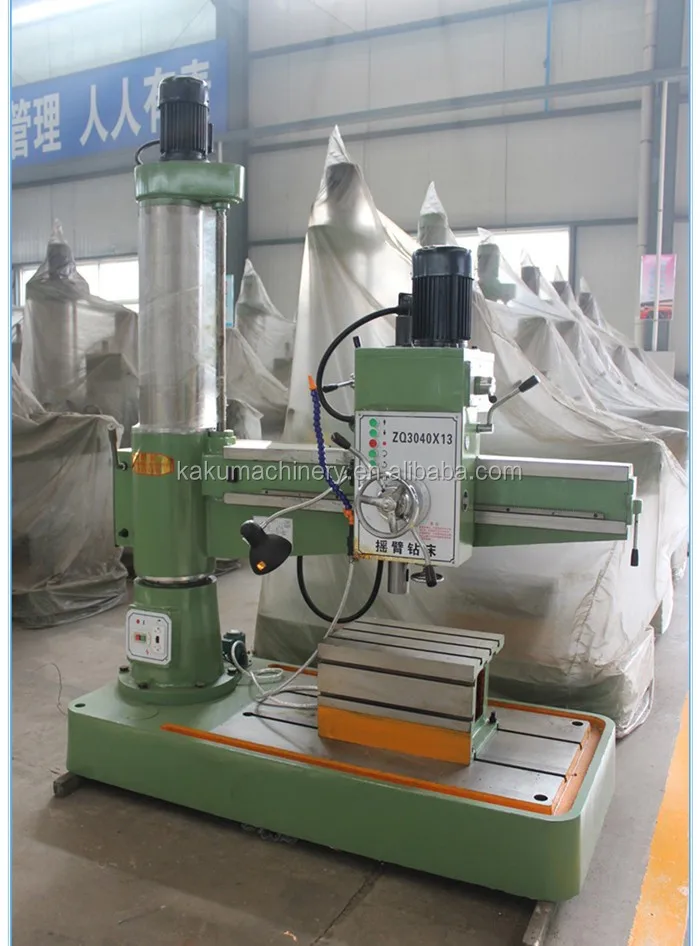

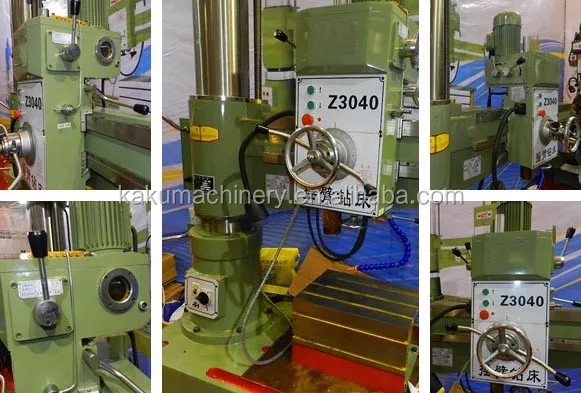

Detailed Images

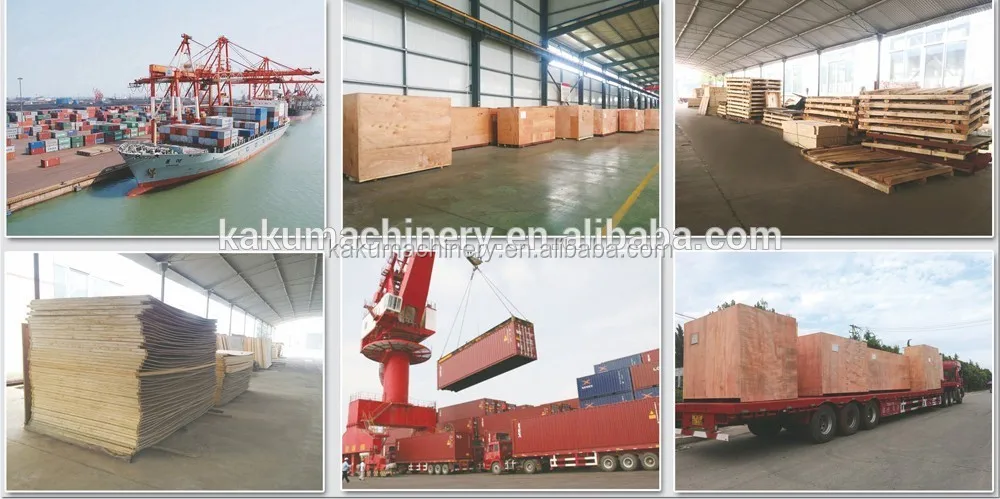

Packing & Delivery

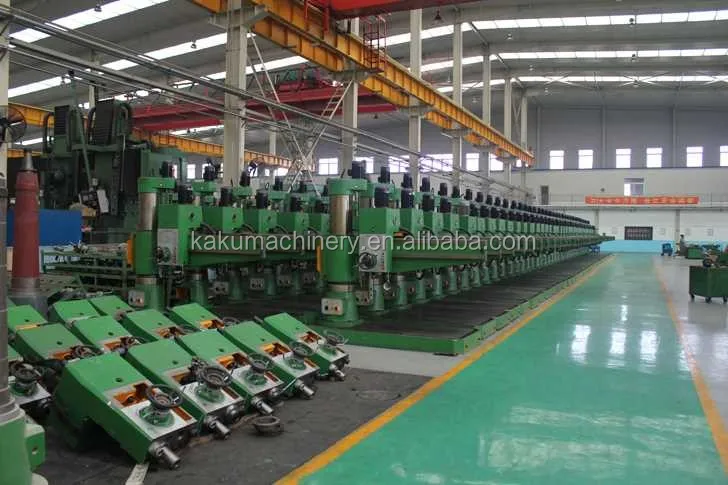

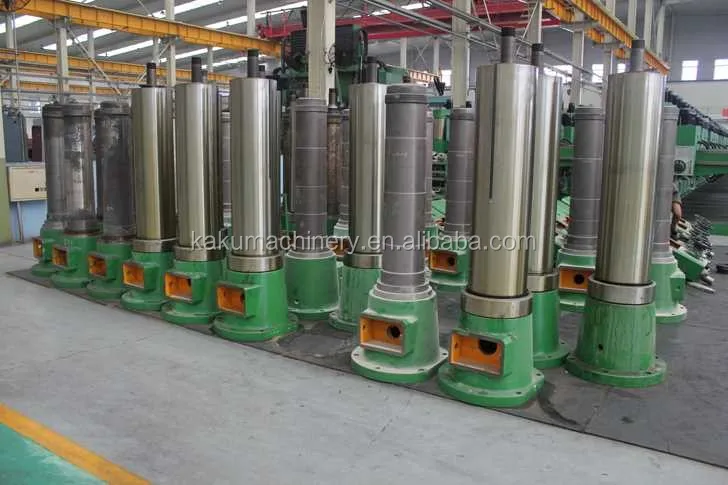

Our Company

Our company is located in the largest industrial city – Chongqing, China.

We provide decent machine tools from China to all over the world. Our main products as bench lathes, CNC lathes, milling machines, drilling & milling machines, drilling machines, grinders, band saws with a various of specifications, secure and reliable quality and convenient and efficient services.

We have our own shareholding factories, also co-operated with other factories with high quality products. We have a professional international sales team to do the export business in the Global.

Our company has 48 experienced technicians of lathes export team. High quality and high cost-effective has been our company's reputation. The company has advanced testing equipment and strict product testing process.

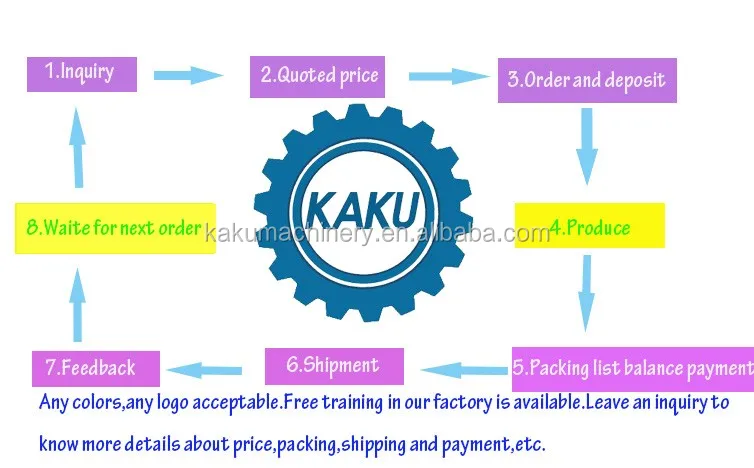

Our Service

1. We will add all item picture in the PI for avoiding any mistake of your order.

2. We will update every step for you once we start your order,

3. We will booking the vessel for you when it is going to be finished.

4. We will inform you that detail ship date once we get the information.

5. We will update the vessel information(ETA&ETD) for you.
