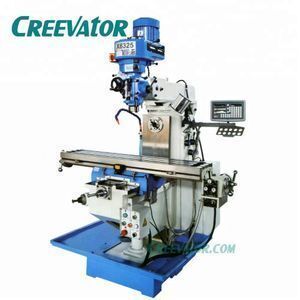

Turret Milling Machine X6325B

Product details
Packaging Detail:Wooden case package;Spindle taper:R8/ ISO30;
Voltage:220v/380v;Place of Origin:Chongqing China (Mainland);
Delivery Detail:Shipped in 30 days after payment;Port:Shanghai;
Weight:1400kg;Automatic Spindle Sleeve Feed:0.04/0.08/0.15mm/rev;
Certification:ISO10791-2:2001;Dimension(L*W*H):1760*1690*2160mm;
Table size:1270*254mm;Payment Terms:L/C,T/T;
Table travel(horizontal/cross/vertical):800*400*400mm;Color:Opitional;
Type:Universal;Brand Name:KAKU;
T-Slot Size:14/64/3;Warranty:1 Year;
Spindle travel:127mm;Supply Ability:100 Piece/Pieces per Month;
Spindle Speed:65-45000rpm;After-sales Service Provided:Engineers available to service machinery overseas;
Machine Type:Vertical and horizontal drilling milling machine;CNC or Not:Normal;
Power(W):2.25KW;Condition:New;
Application:Metal Machining;
Product Description

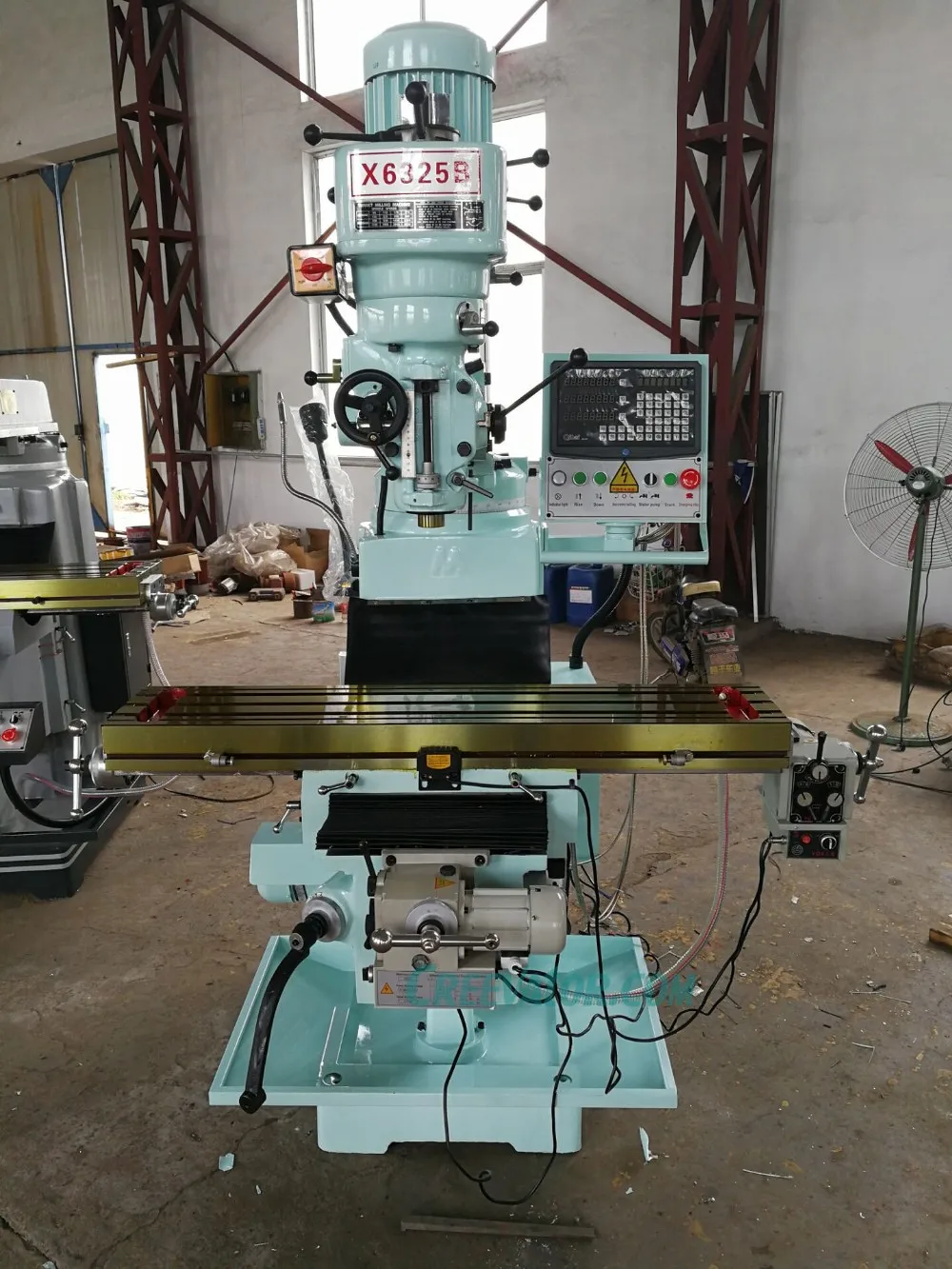

X6325B Turret Milling Machine:

X6325B turret milling machine is light type milling machine, with horizontal milling and vertical milling functions, can process small and medium parts of plane, bevel, groove and spline.
All of the machine is made of good castings to keep the steability.
The milling head can be vertically rotate +-45 degrees and 360 degrees horizontally.
The spindle can use R8. NT30/ NT40.

The BIGEST difference of X6325 and X6325A and X6325B:
Model
X6325A
X6325B
Table size
254*1370mm
254*1270mm
Table travel
900*400*400mm
750*400*400mm
Machine weight
1400kg
1250kg

Taiwan Turret Milling Head



X6325B with 2-3 seconds to complete the tool change step, saving time and effort.
Eliminate the traditional manual tool change, the need to hit the lever.

Worktable



X6325B Hardening treatment table is 254*1270mm, the machine have higher rigidity.

Three-axis Automatic Feed



X6325B with X, Y two axis mechanical automatic feeding, Z axis motor lift.

Lifiting Table




X6325B Lifiting table for a square guide, with good rigidity.

Parameter
Model
X6235B
Spindle Taper
R8/ ISO30 OR ISO40 for selection
Table Size
1270*254(X6325B) / 1370*254(X6325A)
Table Travel
800*400*400(X6325B) / 900*400*400(X6325A)
Sleeve Travel
127mm
Spindle Speed
standard 16 steps 65-45000rpm
Head Swivel(L-F)
90 degree
Head Incline (Back to Forth)
45 degree
Automatic Spindle Sleeve Feed
0.04/0.08/0.15mm/rev
T-Slot Size
14/64/3
Motor
2.25kw
Machine Size
1760*1690*2160mm
N.W/ G. W
1400kg
Detailed Images

Exported to Turkey with CE certification

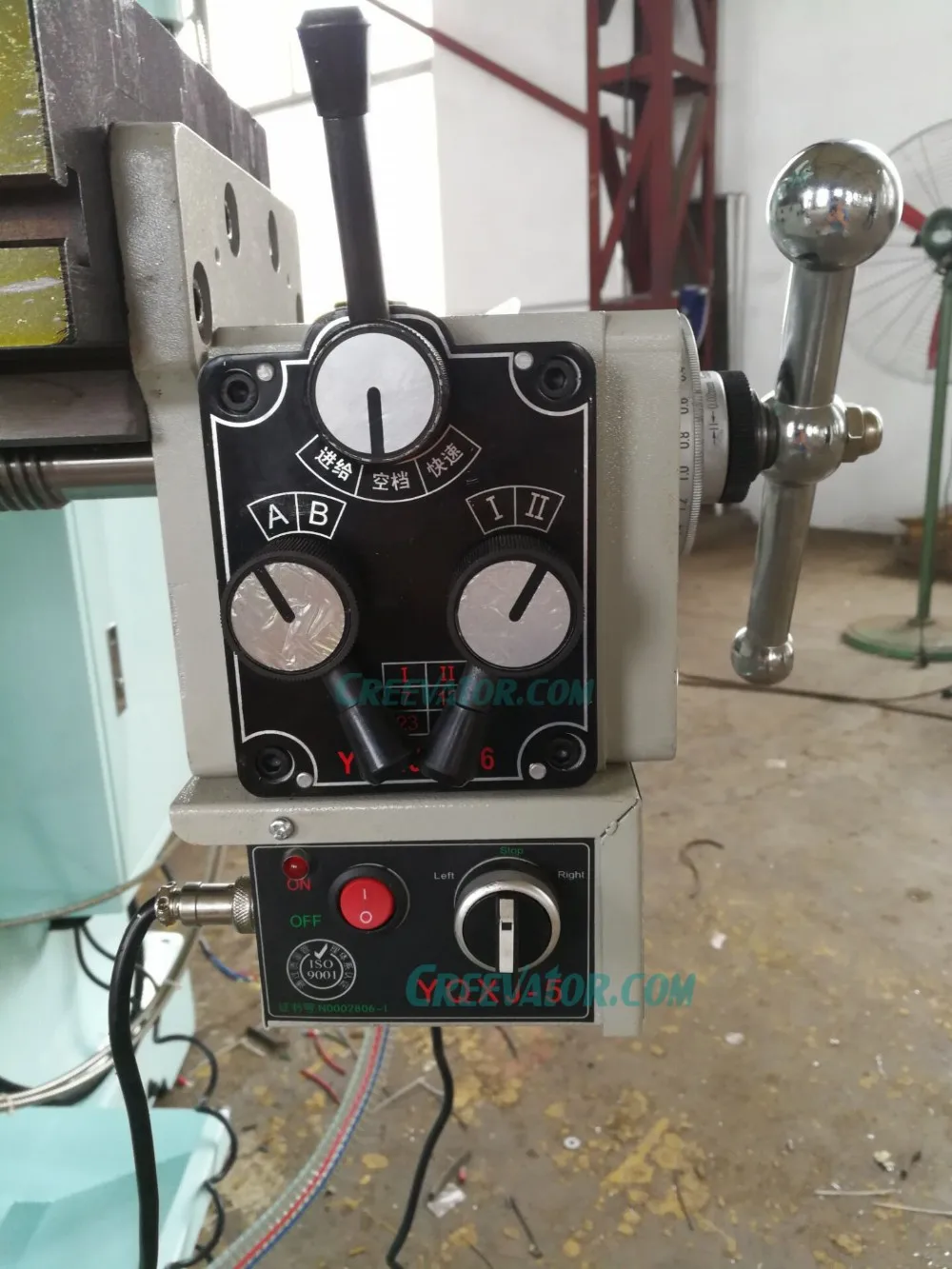

X6325B Spindle auto feed

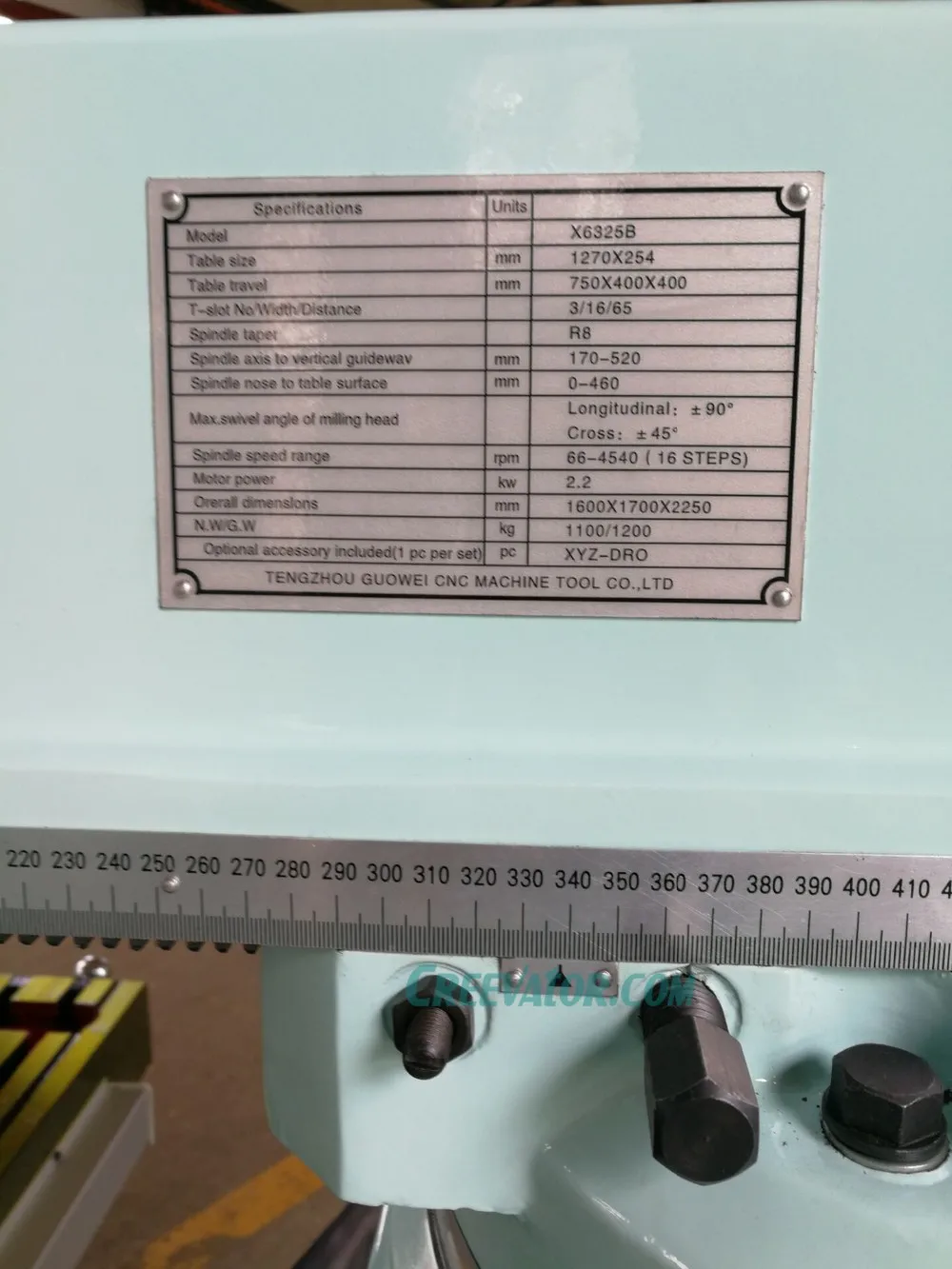

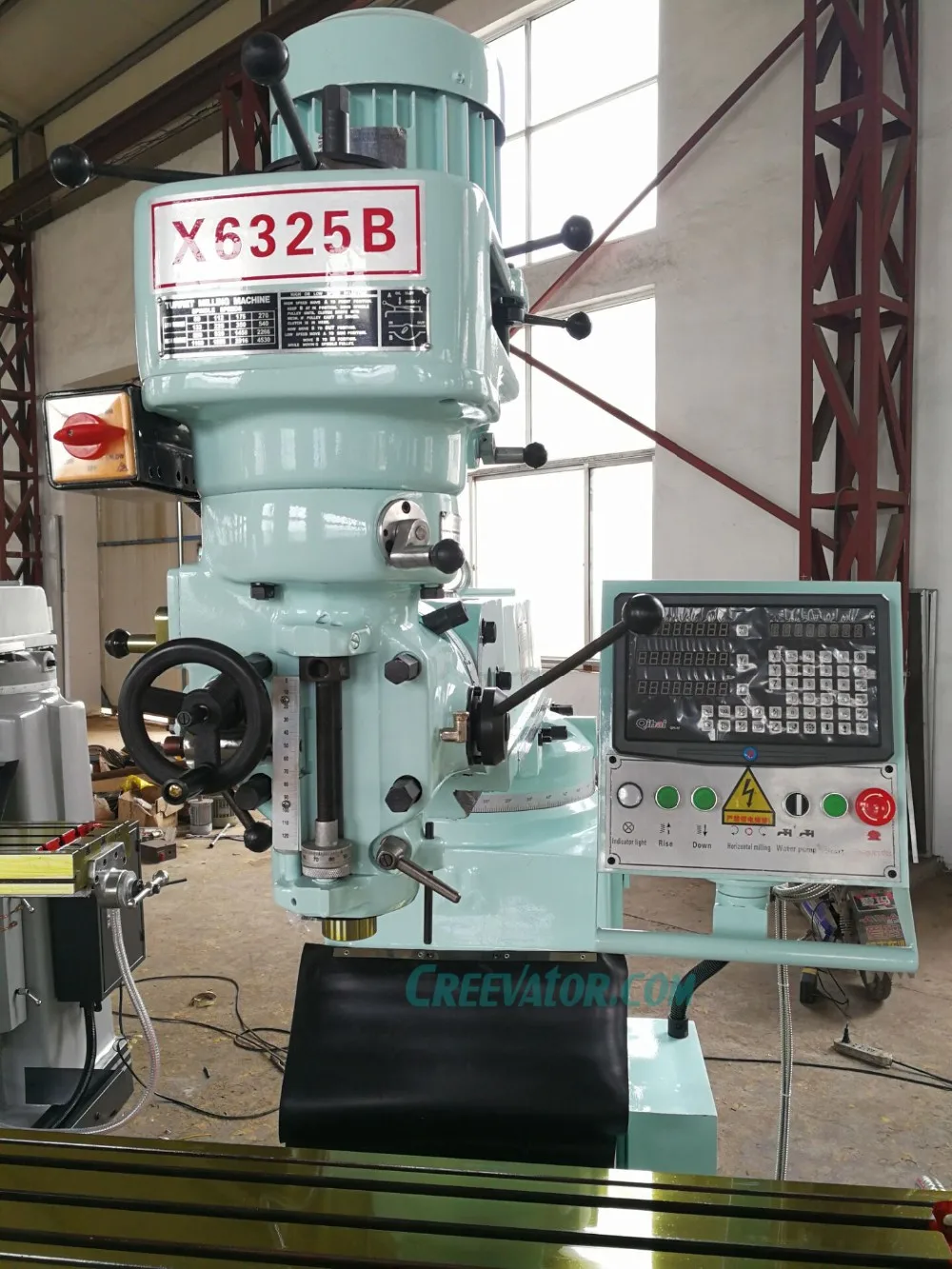

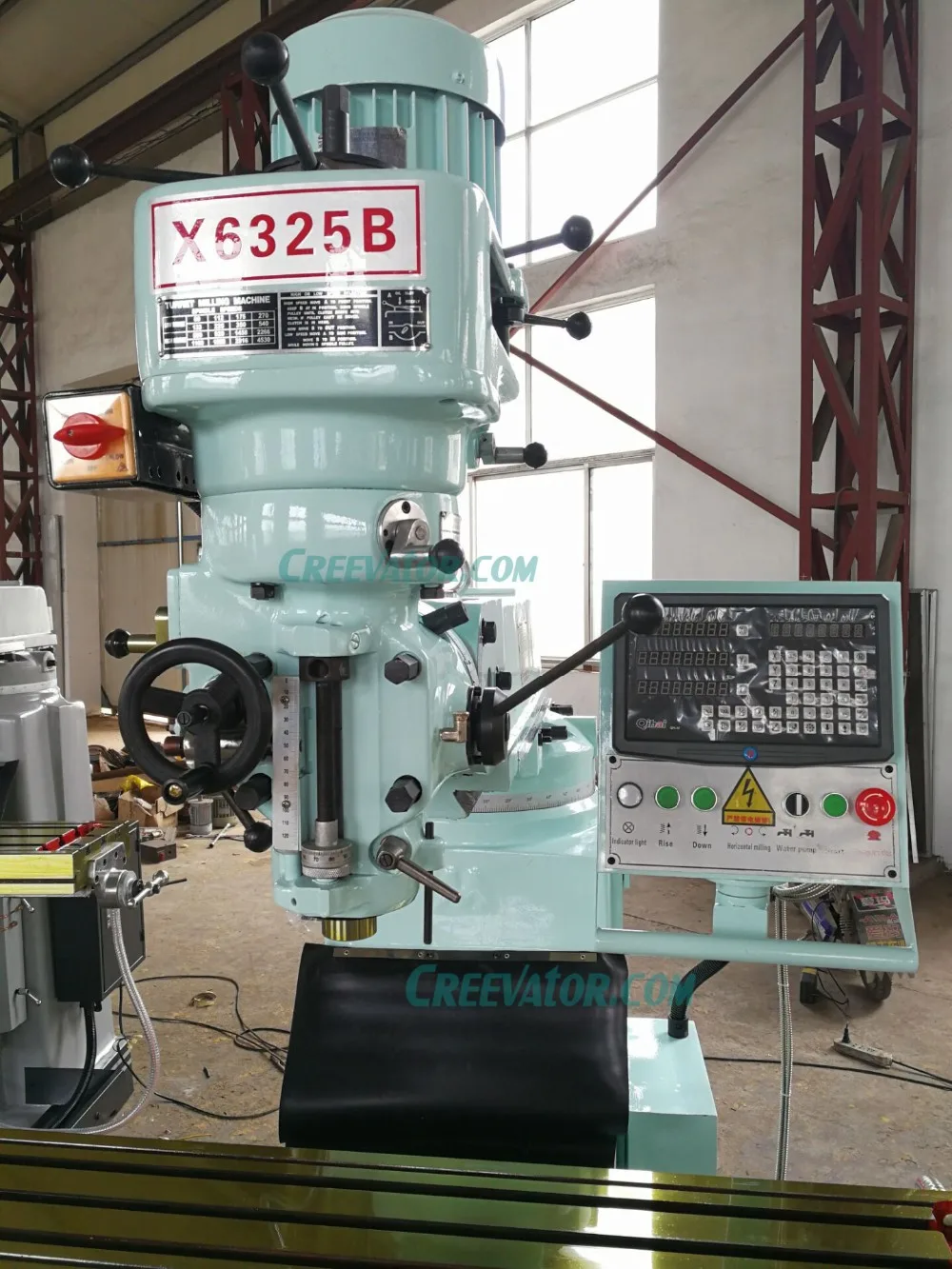

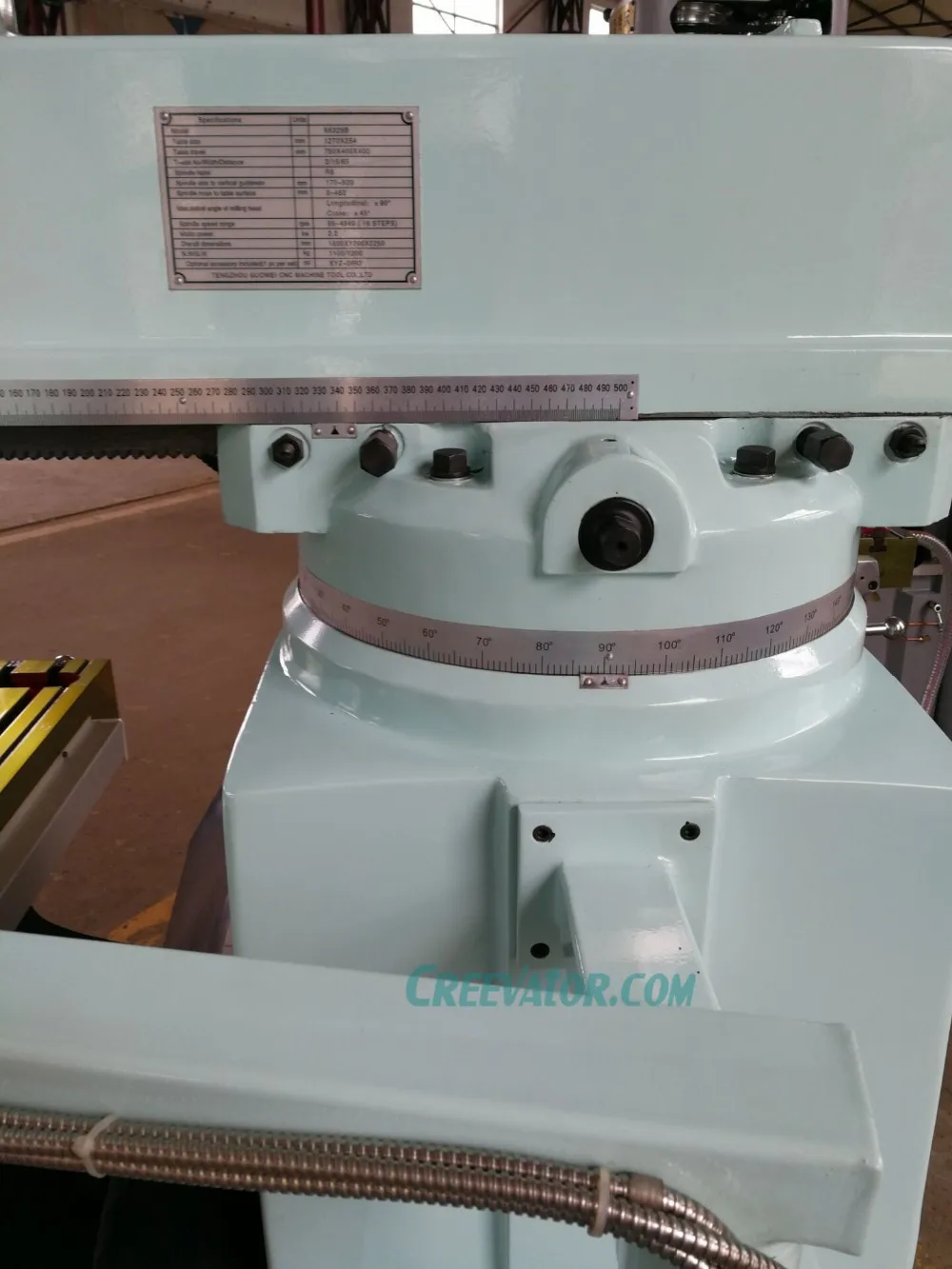

X6325B Specification Table

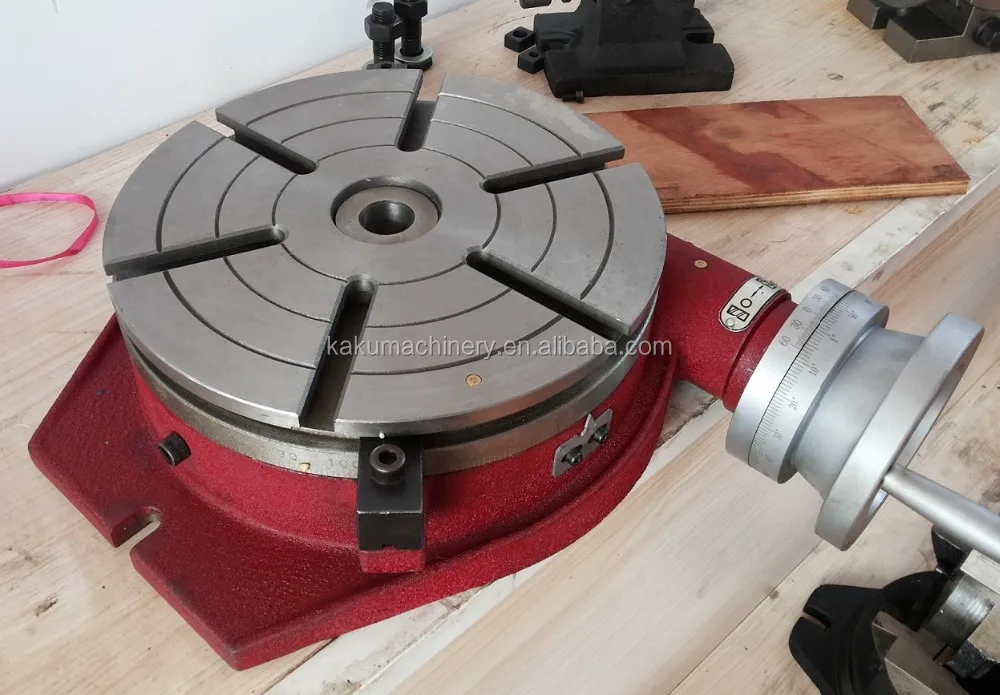

X6325B Rotary Table

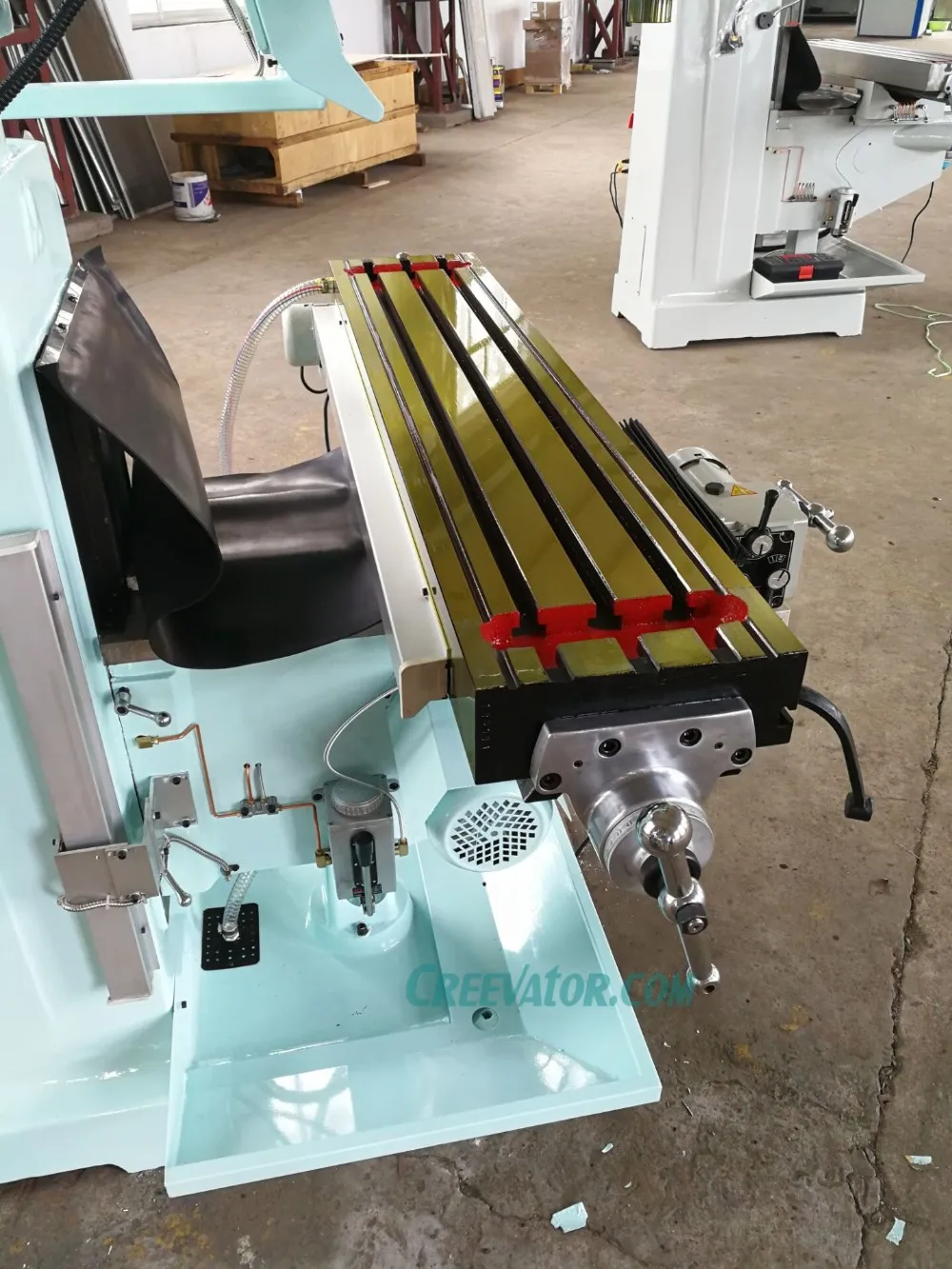

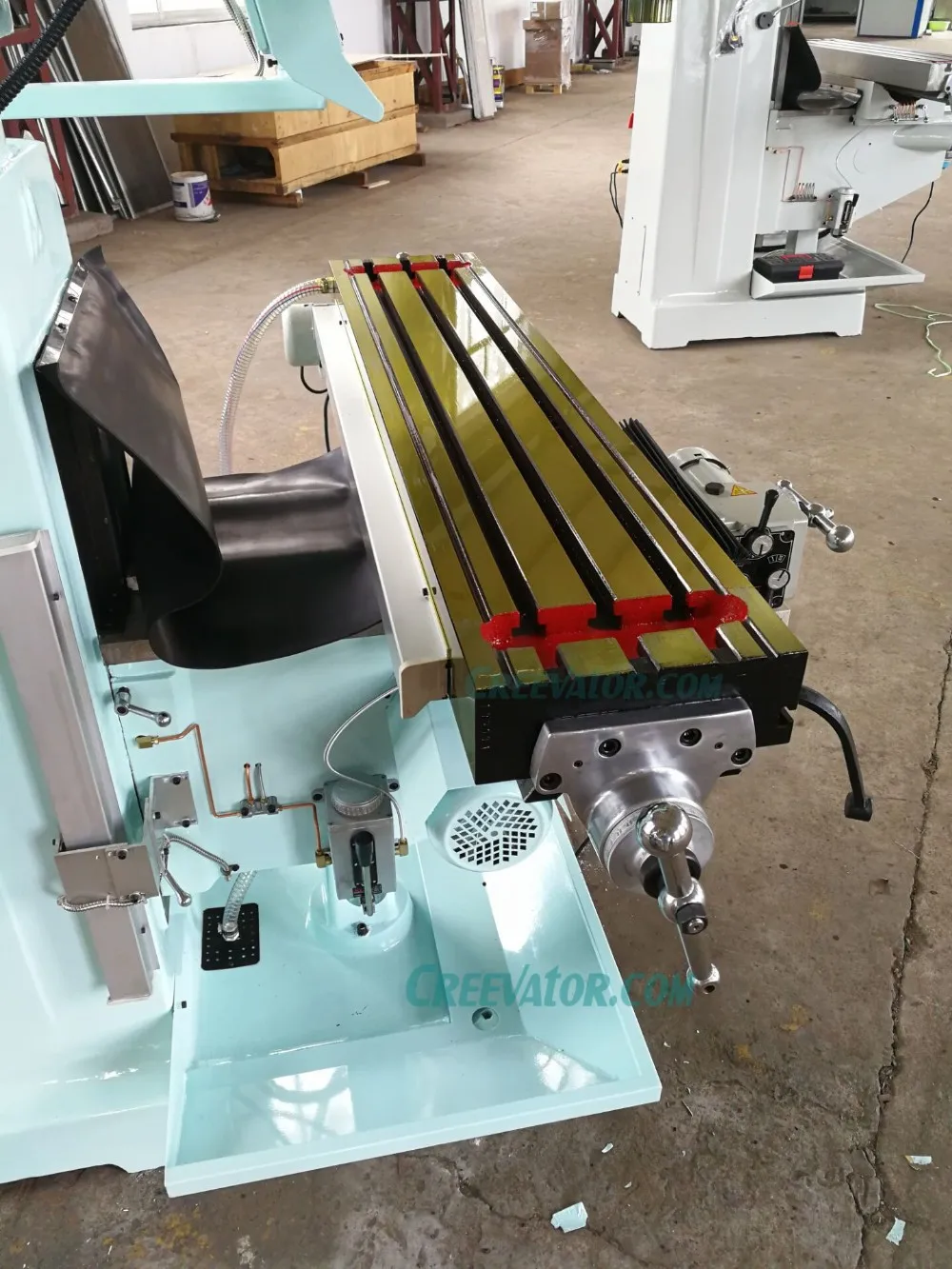

X6325B Worktable

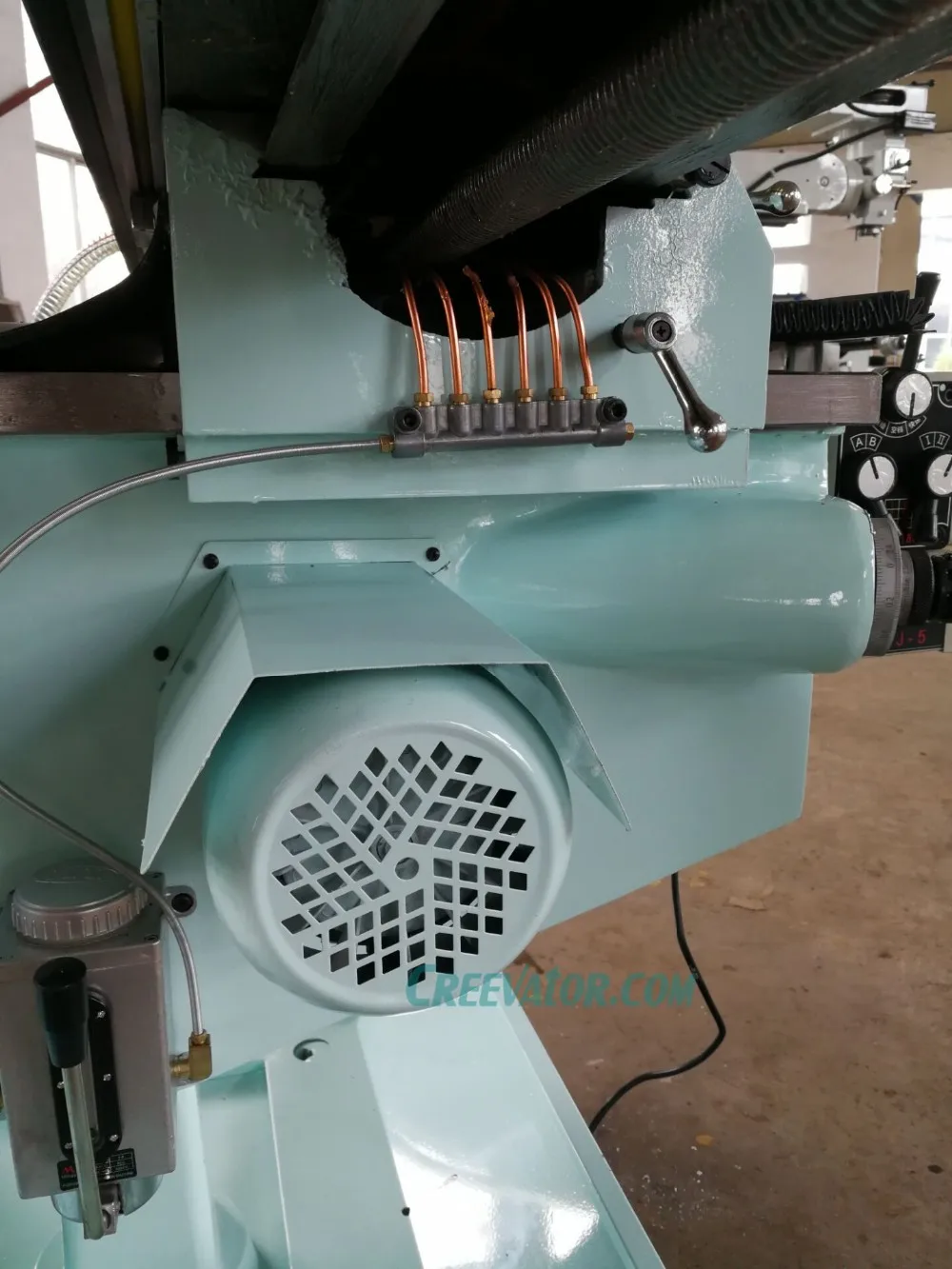

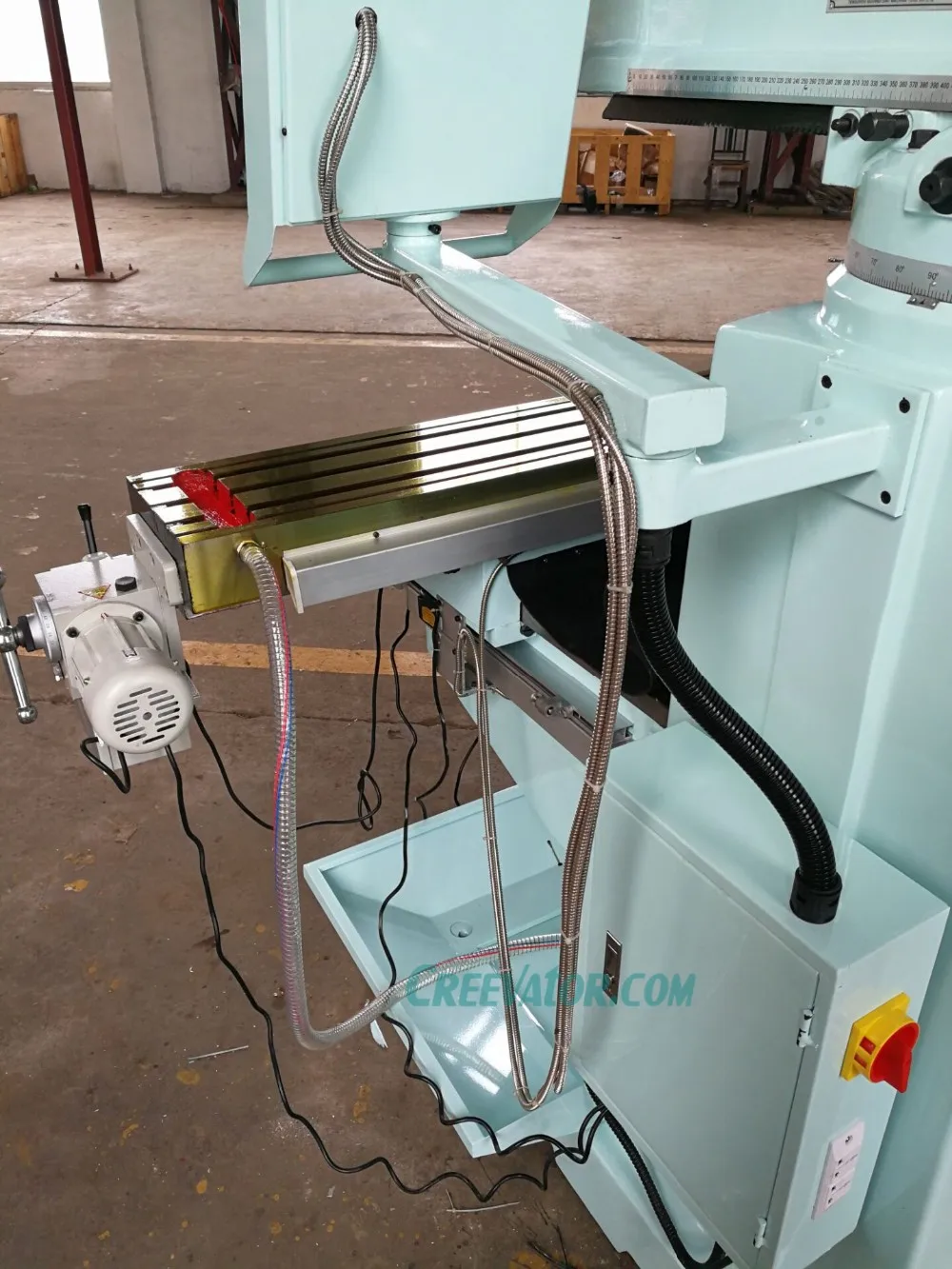

X6325B Lifting Motor

X6325B Button of Lifting

X6325B Screw

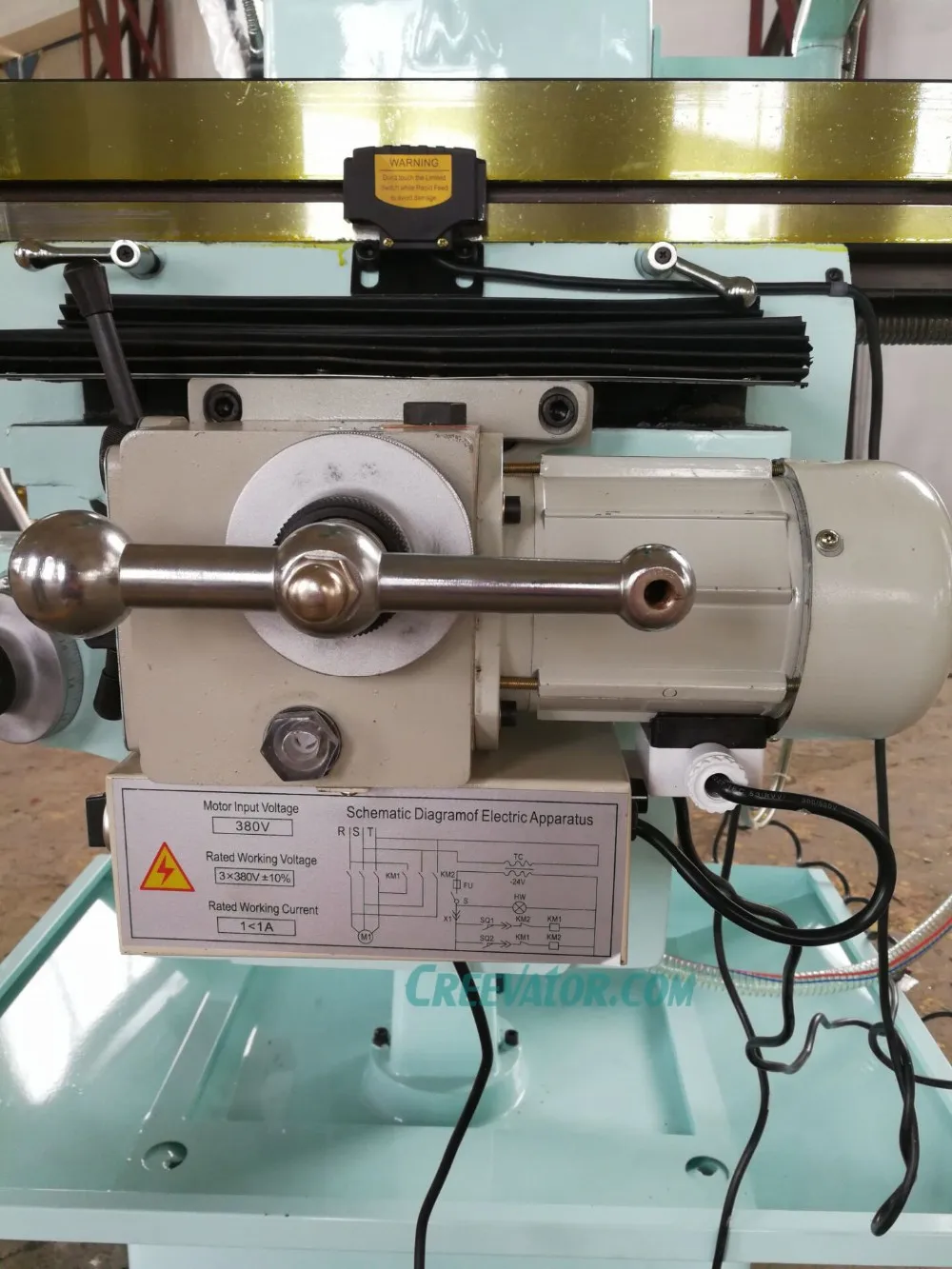

X6325B 3-axis Automatic Feeding

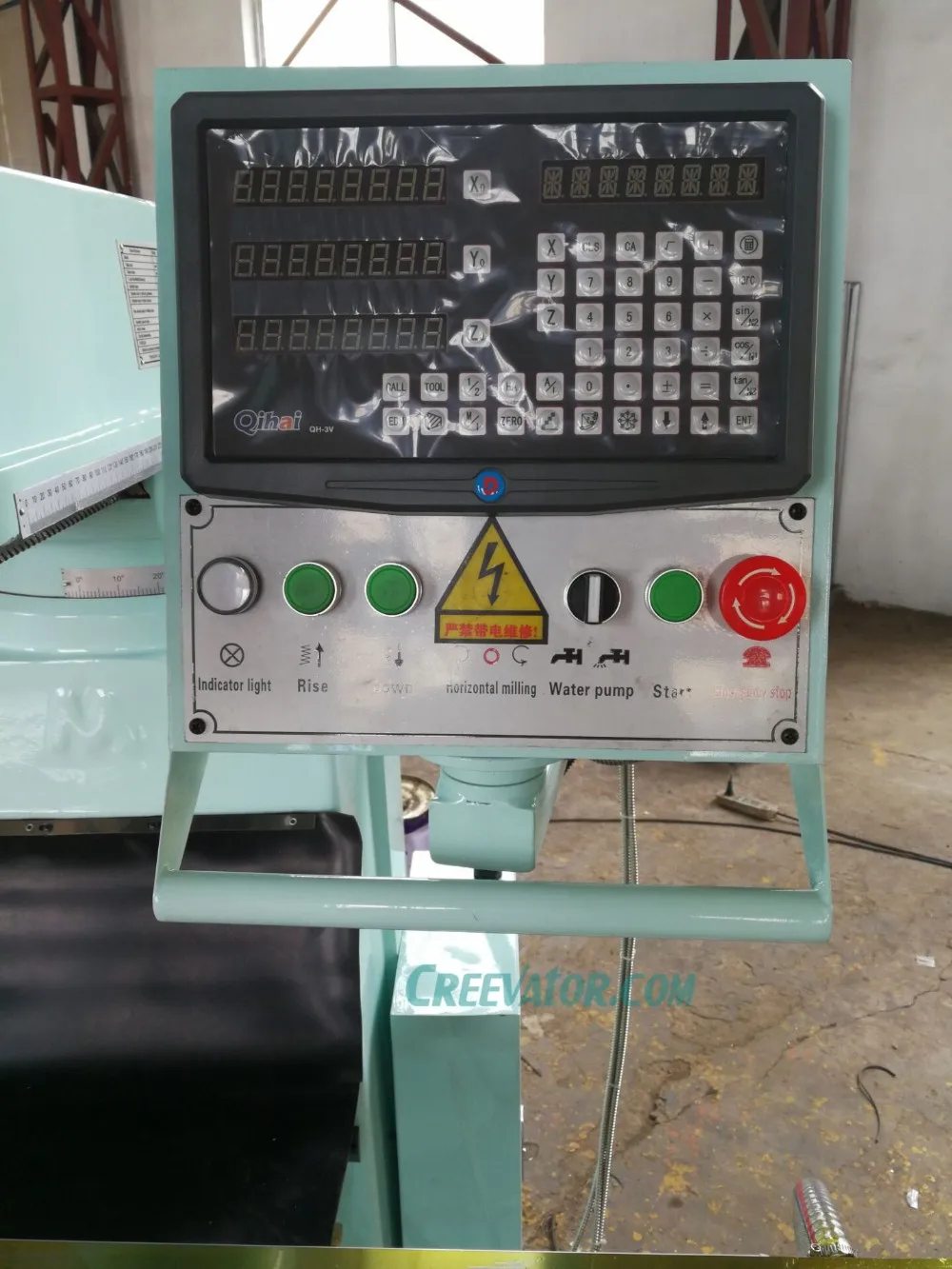

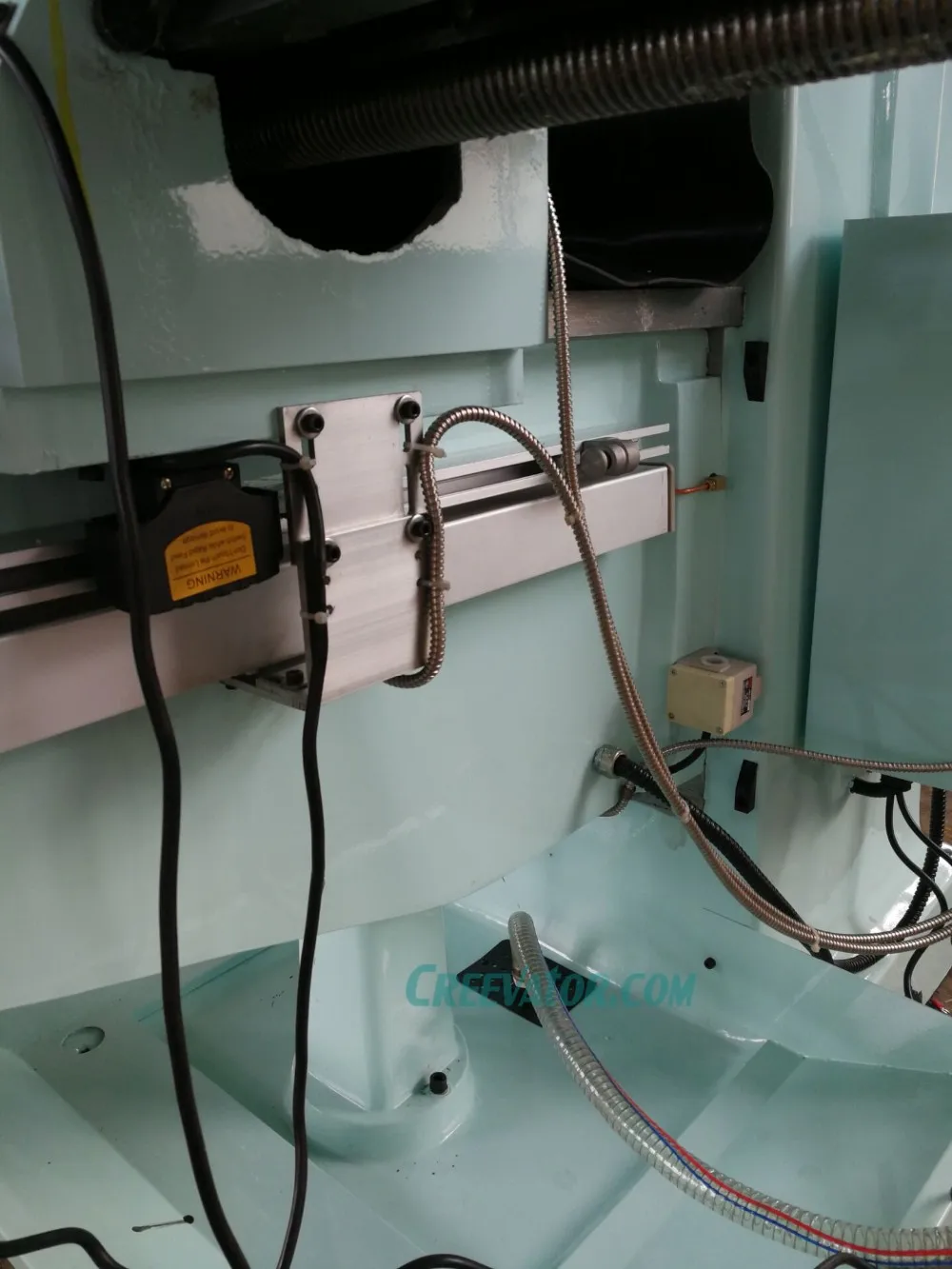

3-axis DRO (Optional)

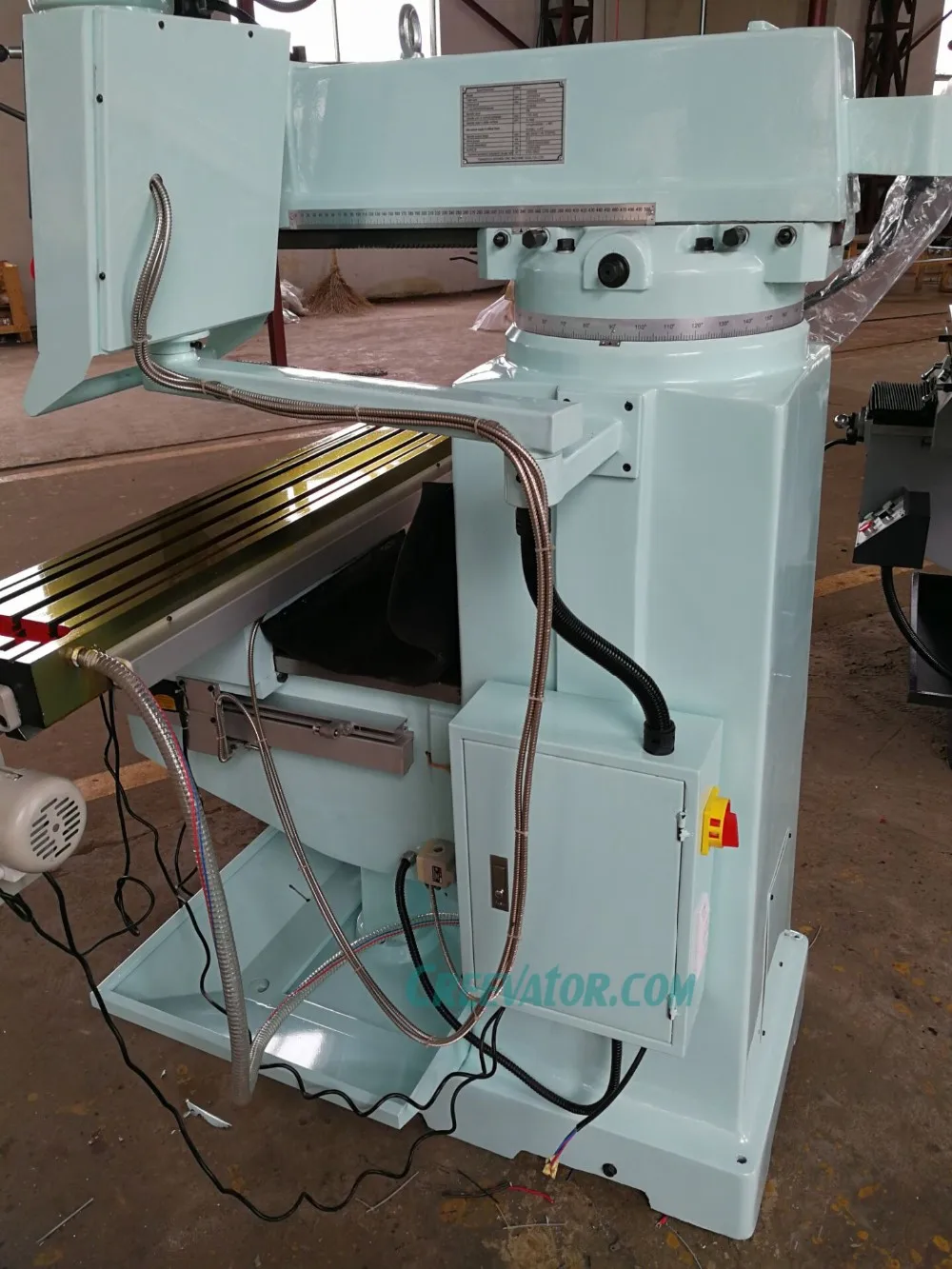

X6325B Back

X6325B Part1

X6325B Part2

Milling plugs (Optional)

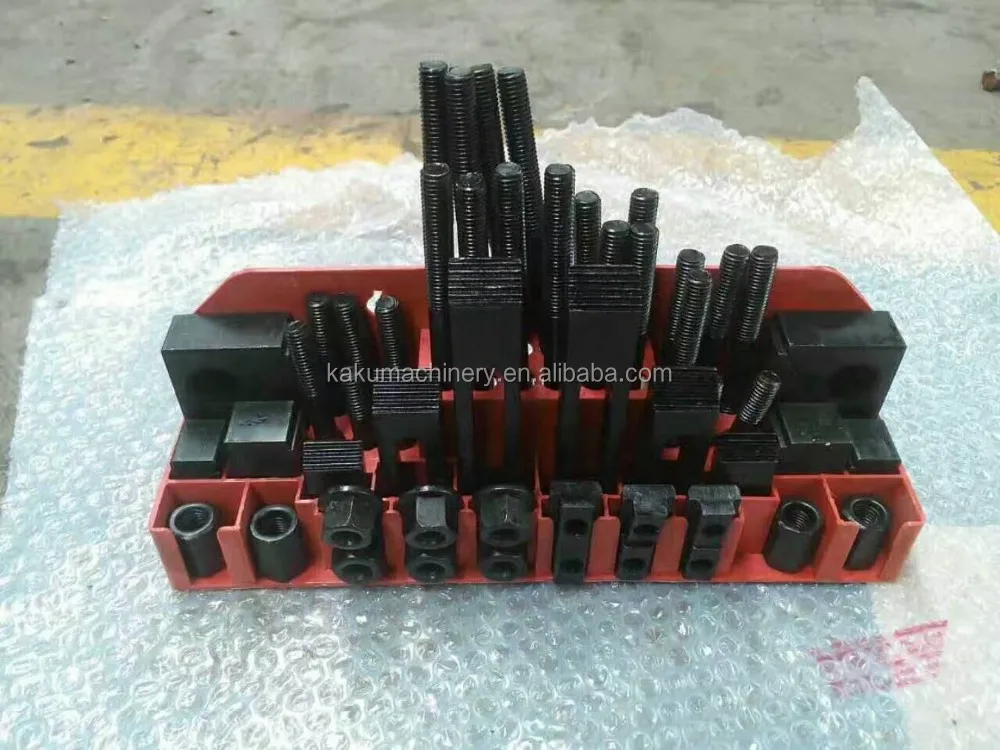

58 sets clamping kits (Optional)

TS-series Rotary Table (Optional)

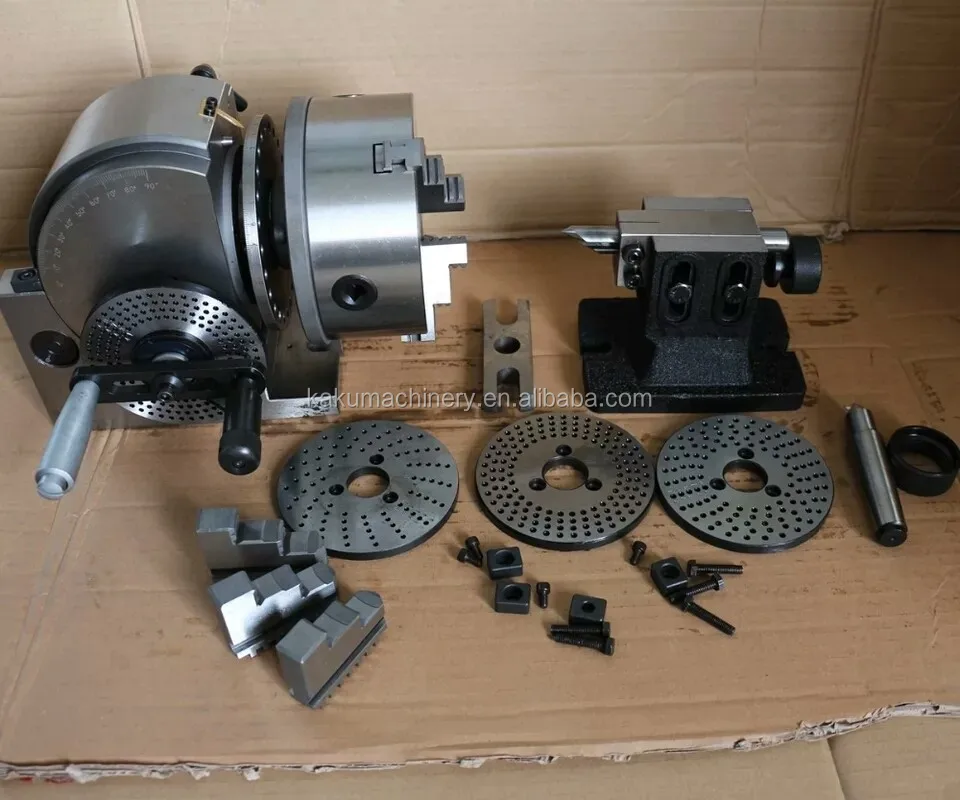

BS-1 Dividing Head (Optional)

Configurations

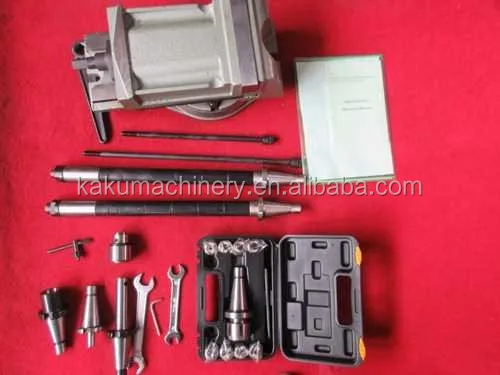

Standard accessories:

Drill chuck

Milling chuck

Reduction sleeve

Machine vice

Wrench

Ineer hexagpnal spanner

Cam lock

Wedge shifter

Spindle arbor

Horizontal drilling bolt

Horizontal drilling bolt

Operation manual

Certificate of inspection

Packing list

Optional accessories:
2-axis/ 3-axis DROM
58 sets of combination fixture
Rotary table
Dividing head

Why choose us
Packing & Delivery
Packaging details
Size
1860*1790*2260mm
Weight
1550kg
Packing Details
The normal package is Fumigation-free plywood, if export to european countries, the machine have CE certificate. If the container is too bigger, we can use PE film for packing or pack it according to customers special request.
Our Service

Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you as usual.
1.Technical files service provided.

2.All of the questions will be replied within 24 hours

3.We counld provide OEM

4.Machine and Service Quality Double Assurance!
