Aimix mobile 40's 60's 80's 100's asphalt mixer plant with fuel model

Supplier: Aimix Group Co., Ltd.
Region: Henan, China
Contact: Mr Jason Yu
Price: $200000.00 / 1 - 1 sets
$170000.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

strength:	152kW	Mixer (kg):	600
Dimensions (LWH):	92.95.5	Marketing Type:	normal product
Mechanical test report:	if	Certification:	EU standard
Packaging Preview:		Showroom location:	Philippines, Indonesia, Pakistan, Russia, Thailand, Sri Lanka, Bangladesh, Kazakhstan, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia
Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump	weight:	50000kg
Unique Selling Points:	Short turning radius	Asphalt heating:	Heat transfer oil furnace or direct heat asphalt tank
Core Components Warranty:	1 year	place of origin; place of origin:	Henan, China
Asphalt tank (ton):	10-40t or as required	After Warranty Service:	On-site maintenance and repair services
Packaging Details:	Mobile asphalt plant packing: 1. General packing: 13*40HQ 2. Standard packing or according to your special requirements	product name:	The 40th mobile asphalt mixer
Video external inspection:	if	port:	Qingdao, Dalian, Tianjin, Shanghai
brand:	Amix	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Trade Assurance
Applicable industries:	Mechanical Repair Shop, Construction Engineering, Energy & Mining, Others, Road Construction	Voltage:	380v
gasoline:	Diesel, heavy oil, natural gas, liquefied gas	Supply capacity:	Annual output of 100 asphalt plants
Local service location:	Uzbekistan, Pakistan, Indonesia, Malaysia	Health status:	new
Vibration Layer:	4	Warranty:	1 year
Drying capacity (t/h):	50

Aimix asphalt mixing plant burner oil model mobile asphalt mixer mini concrete asphalt plant

Product Description

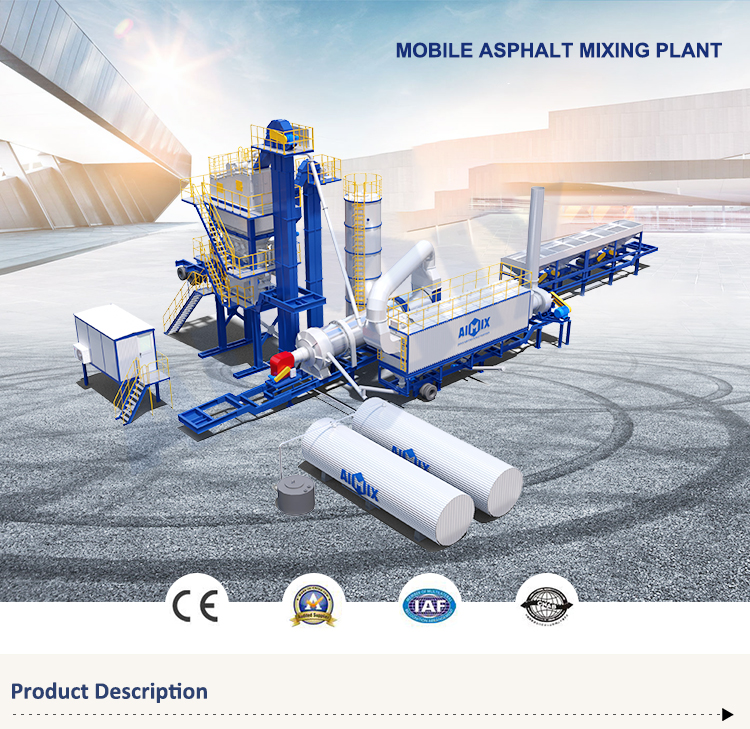

ALYQ series mobile asphalt mixing plant is an advanced modular design of asphalt mixing plant independently developed by our company under the national initiative. The device is simple in structure, elegant in appearance, and has a high degree of modularity in design.
Environmentally friendly batch plants are also energy efficient. It is very reliable and easy to install, operate and transport. The obtained asphalt concrete has good quality and stable performance, is widely used in infrastructure construction such as highways and bridges, and is suitable for daily road maintenance.

ALYQ Strong Asphalt Mixing Plant
Model	ALYQ60	ALYQ80	ALYQ100	ALYQ120	ALYQ160
output	60 tons/hour	80 tons/hour	100 tons/hour	120 tons/hour	160 tons/hour
Cold Aggregate Feeding System
Hopper capacity	4×6.5m³	4×7.5m³	4×7.5m³	4×7.5m³	5×8m³
collection belt capacity	80 tons/hour	100 tons/hour	120 tons/hour	140 tons/hour	180 tons/hour

Aggregate Dryer
dryer size	φ1.5m×6m	φ1.5m×6.7m	φ1.65m×7m	φ1.8m×8m	φ1.9m×9m
dry capacity	80 tons/hour	100 tons/hour	120 tons/hour	140 tons/hour	180 tons/hour
Fuel consumption	100-400 kg/h	120-600 kg/h	150-1000 kg/h	150-1000 kg/h	150-1400 kg/h
stirring tower
Vibrating screen (layer)	4th floor	4th floor	4th floor	4th floor	5th floor
Aggregate metering hopper	800kg	1000kg	1300kg	1500kg	2000kg
Mineral powder metering hopper	150kg	200kg	200kg	300kg	300kg
Asphalt metering hopper	120kg	150kg	150kg	250kg	250kg
mixer capacity	800kg	1000kg	1250kg	1500kg	2000kg
cycle	45 seconds	45 seconds	45 seconds	45 seconds	45 seconds
Dust filter (bag dust filter)
filter area	300 square meters	420 square meters	480 square meters	550 square meters	650 square meters
fan draft	30kW	45kW	55kW	90kW	110kW
Asphalt temperature	140-180℃	140-180℃	140-180℃	140-180℃	140-180℃
total power	200kW	300kW	350kW	380kW	490kW

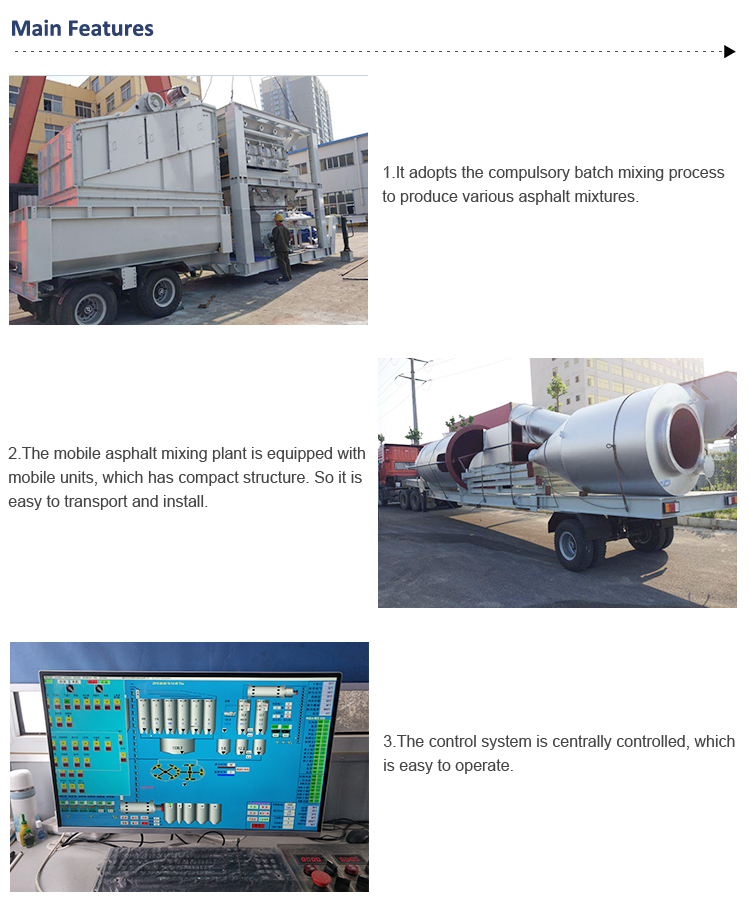

main feature
