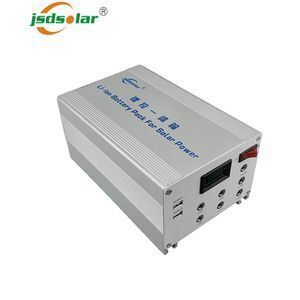

Portable 12v house lithium lifepo4 deep cycle solar battery 200ah

Supplier: Shenzhen Jinsdon Lighting Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Rosalind tang
Price: $65.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Weight:	2kg;	Single package size:	34X16X12 cm;
Package Type:	Standard inner box and master carton or as client's design For details(just OEM order);	Size:	245154117mm/335154117mm;
Single gross weight:	10 KG;	Output current:	30mA-2700mA;
Warranty:	3 Years;	Certification:	ce;
Nominal Capacity:	20Ah 30Ah 40Ah 50Ah 60Ah;	Cycle life:	≥2000cycle;
Charge Current:	10A/15A;	Brand Name:	JSDSOLAR;
Usage:	UPS;	Working Temperature:	-35℃~55℃;
Model Number:	solar battery 200ah;	Selling Units:	Single item;
Delivery Detail:	0 days after payment;	Sealed Type:	Sealed;
Protection Class:	IP68;	IP Rating:	IP68;
Package Preview:	https://sc01.alicdn.com/kf/HTB13D47KsbpK1RjSZFy760_qFXak.png_640x640.png;	Maintenance Type:	Low Rate;
Charging Temperature:	0℃~55℃;	Place of Origin:	Guangdong China (Mainland);

Portable 12v house lithium lifepo4 deep cycle solar battery 200ah

Product Description

Features:

1.Customized.

2.With AC Charge

3.Waterproof IP68.
4.DC Portable Solar System.
5.Small volume, light weight, smooth operation.
6.12V solar power supply, it is suitable for mobile use.
7.Design of lifepo4 battery and solar controller integrated, which is scientific and reliable.
8.High efficient intelligent battery power management system.
9.High efficient intelligent solar charge controller integrated constant current LED driver, with 91%- 96% output efficiency.
10.Solar Controller integrated with dusk to dawn, time and dimming function.
11.Used high&low temperature material and waterproofing process to prolong battery working lifespan.

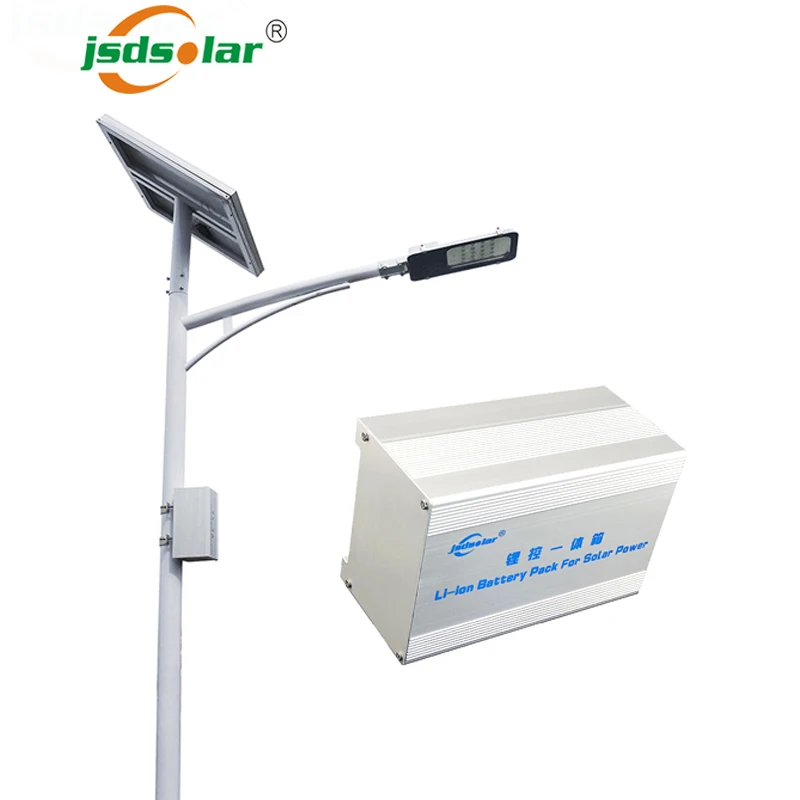

12.Suitable for installing on the pole, more than 2.5 meters from ground.
13.Scientific design to maintenance lifepo4 battery and solar controller more easily.
14.Suitable for 10Ah-80Ah li-ion battery pack.
15.Made of aluminum housing, with the mounting brackets.

16.Style color variety, yellow, blue, white, silver, etc.

Introduction:

This is DC solar system. It can provide power for all kinds of low voltage electrical appliances, such as
DC LED, Mobile phone, digital products. With complete functions, simple operation, no need complex
installation, plug and play.

Model	JSD-LBP
Battery Type	Lithium iron phosphate (LiFeP04) battery
Nominal capacity	10AH	20AH	30AH	40AH	50AH	60AH
Recommend LED lamp	10W	10-20W	10-20W	20-30W	20-30W	30-40W
Recommend Solar Panel	30-40W	40-60W	60-80W	60-100W	100-140W	120-160W
Rated Working Voltage	12V/24V auto
Output Efficiency	91%-96%
Life expectation	1800 cycles at 100% DOD; 2500 cycles at 80% DOD
Operation temperature	Charge: 0~55℃; Discharge:-20~60℃
Maximum discharge current	10A
Maximum charge current	10A				15A
PV input voltage	16V-50V
Output voltage	15V~50V (this demands LED lamp without LED driver)
Output current	30mA-2700mA
Dimming Value	Four periods time with 10%-90%
Programmable	Lighting Control Option
Charging Mode	MPPT Charge or PWM charge for option
Fixation Material	Filler and Protective Cotton(EVA)
Housing	Aluminum
Protection Class	IP68
Mounting Brackets	2pcs * Hold Hoop/ 4pcs* M850 Bolt/ 8pcs Buts
Size	245154117mm				335154117mm
Weight	3.2kg	4.2kg	5.4kg	6.4kg	8.4kg	9.6kg
